TerraMaster F2-210 Manuel utilisateur

TerraMaster NAS

Data Storage Master

Contents2. Hardware Installation3. Software Installation4. Initialisation1

1. Overview2

5. Getting Started11

Model:F2-210

2. Hardware Installation1. OverviewA TNAS product includes hardware, operating systems (OS), and other auxiliary applications. Therefore, you should carefully read the instructions prior to operation. For any questions, please visit the “Help” section at TerraMaster's oﬃcial website, or contact our technical support team at [email protected]. Once you receive your new TNAS, please check to ensure that the package includes the items detailed below. If any items are missing, please contact the reseller immediately. Once you receive your new TerraMaster TNAS product, please install and set up your TNAS according to the “Quick Installation Guide”. Please note that given our commitment to the continuous improvement of our products, their appearances, designs, and speciﬁcations may be subject to change without prior notiﬁcation. Finally, the images and illustrations in this instruction manual may be slightly diﬀerent from the actual product, and so please always refer to the actual product. 2.1 Package List2

Model:F2-210TNAS unit X 1Power core X 1Power adaptor X 1Several screwsInstallation guide X 1Network core X 1Product brochure (optional)

Panel Illustration:Rear Cover Illustration:2.2 Appearance

②

①

③

④

⑤

⑥

⑦

SNDescriptionItemPower interfaceUSB 3.0 host (×2)Network interfaceDC 12V power inputNOTE: Do not use a third-party power adaptor.Use to connect USB storage device 1000M/100M bps network interface

①

②

③

④

SN⑤

⑥

⑦

SNItemItem

Hard drive tray

Network indicatorPower switch/Power indicatorHard drive indicatorPower interfaceUSB 3.0 host interface (×2)Network interface

Model:F2-210

⑤

⑦

⑥

A TNAS may be installed with or without a hard drive, since diﬀerent models are available for purchase. If you purchase a TNAS without a hard drive, you should purchase a hard drive separately. Only after hard drives have been installed and initialised can the TNAS be used.Please refer to the “Quick Installation Guide” to complete hard drive installation. Therefore, to complete the connection, please follow the instructions below:Step 1:Connect TNAS to the network using a network cable. The possible network devices that TNAS can connect to can be routers, hubs, network switching.Step 2: Connect TNAS to a power supply using the supplied power adapter (Warning: Please do not use a third-party power adapter. If you do, the device may sustain severe damage, and in extreme cases, damage to the physical body can occur).TNAS should be installed with hard drives of the following type: ﬁrstly, 2.5/3.5 inch SATA hard drive; or secondly, 2.5 SATA SSDs. TNAS is a durable storage device, which means that in order to operate for long periods of time, high-quality hard drives are required. Therefore, please visit TerraMaster’s oﬃcial website to read our “Hard Drive Compatibility” guide, and then select the correct hard drive for your TNAS. 2.3 Indicators and Buzzers2.4 Hard Drive Installation Before it can function properly, your TNAS device needs to be connected to the network and powered on.2.5 Connection

②

③

④

SNDescriptionIndicatorHard drive indicatorPower indicatorLAN network indicatorGreen: Normal operation statusGreen (ﬂickering): Reading/writing dataOﬀ: No hard drive detectedOn: Power onOﬀ: Power oﬀGreen: Network connection is normalOﬀ: Network disconnected

Buzzer SoundDescription

Short beeps

Long beeps1. Booting complete2. System shutting downAn exception has occurred on the system. Please log in to TOS to ﬁx the exception and turn oﬀ the buzzer manually.

Model:F2-210

Step 3: Press the power button to power on TNAS. Step 4: If the hardware indicator is always red, this indicates that the hard drive is functioning abnormally. The hard drive may be damaged, or the hard drive may not be compatible with the TNAS device. If this happens, please re-install or replace the hard drive and try again. Step 5: If the hard drive indicators and network indicators display a normal connection, your TNAS hardware is ready. To ensure that TNAS functions properly, please install some necessary software.TNAS PC is a desktop application designed for TNAS devices. It helps you to quickly search, log in, or set up your TNAS. The application is available in both Mac OS and Windows OS versions.1. Visit www.terra-master.com and click “Download”2. Select your TNAS model3. Locate TNAS PC using the download checklist4. Choose a version that works for you and click “Download”5. Install the TNAS PC application you just downloaded onto your computerPlease follow the instructions below to download the TNAS PC application:3.1 TNAS PC3. Software Installation

Computer

Router Network

Power

F2-210

Model:F2-210

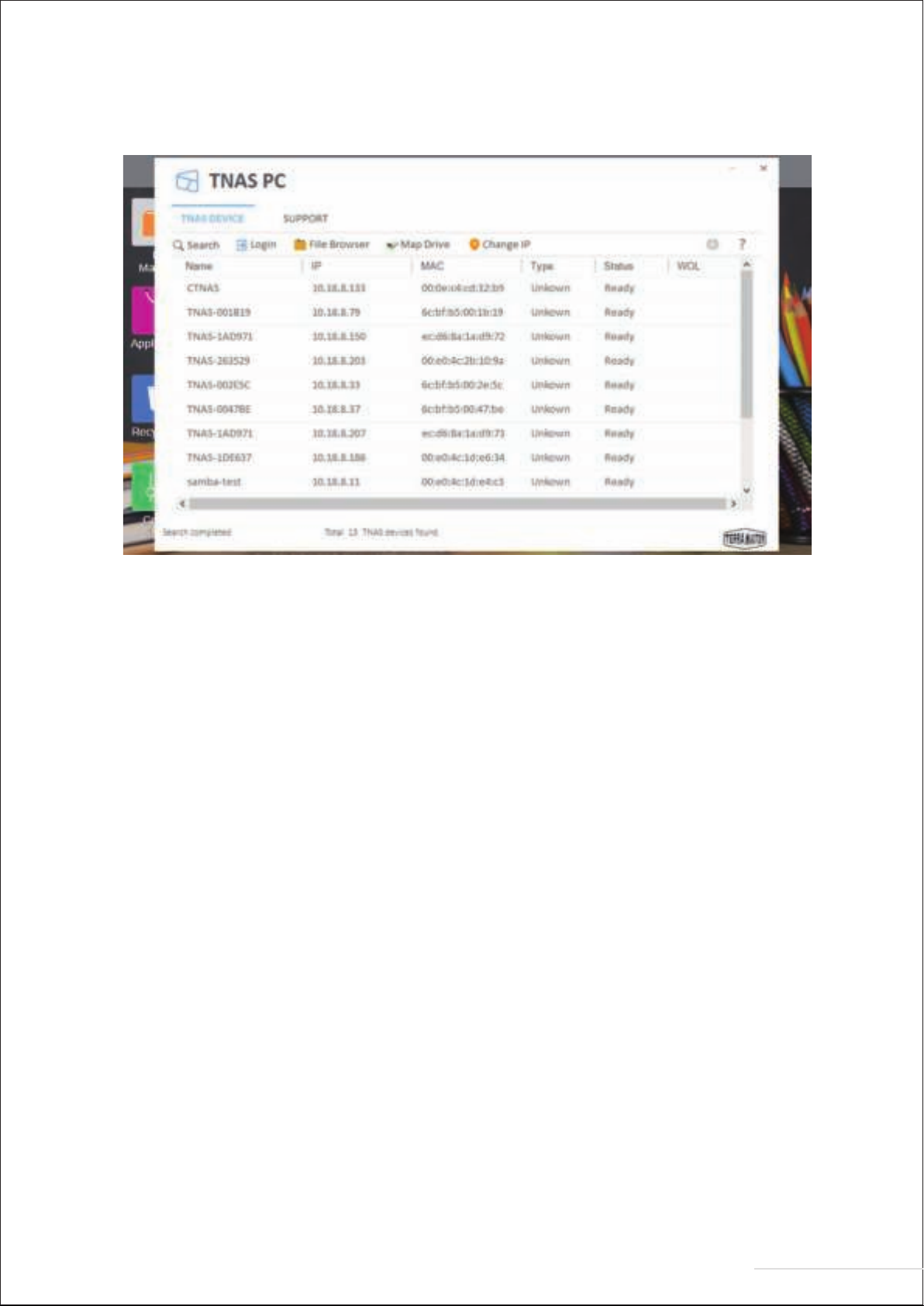

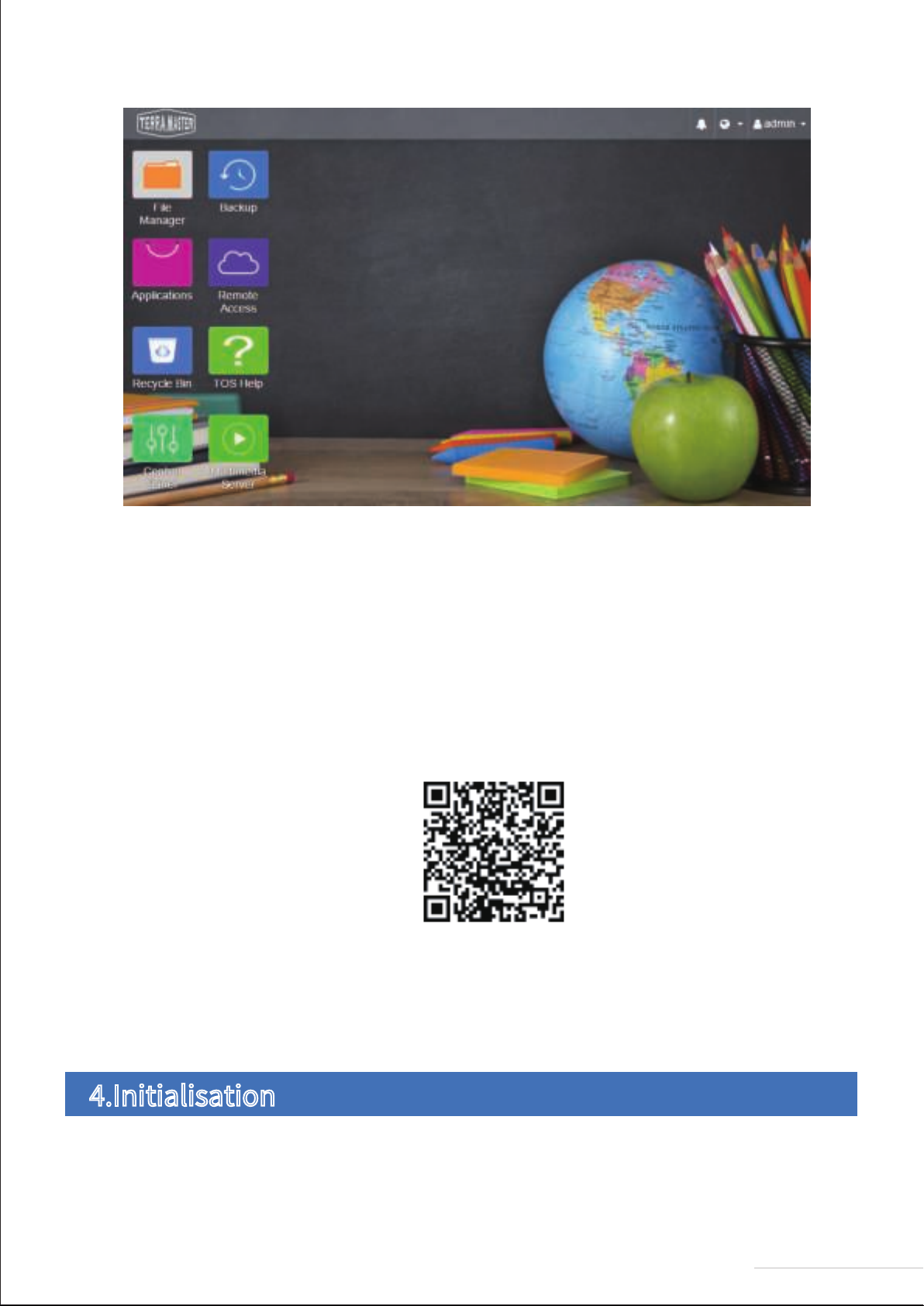

Search: You can access your TNAS device only after it has been found on the network. To search for your TNAS device, click the “Search” button (Note: You can only search when TNAS and your computer are on the same sub-network).Login:To log in to TNAS's advanced settings menu (TOS), select your TNAS and click “Login” (Note: Only users with administrator privileges can use TOS’s advanced features).File Browser: If you need to browse ﬁles in TNAS or write data to the device, select your TNAS in the menu and click “File Browser” (Note: At this point, you need to have a username and password).Map Drive:By mapping your drive, you can simplify ﬁle management by creating a shortcut to frequently used folders. To create a mapped drive, select your TNAS and click “Map Drive” (Note: The Mac OS version of TNAS PC does not have this feature).Change IP:You can use the “Change IP” option to manually change your TNAS IP address. You may need to do this if your TNAS IP address conﬂicts with the network IP address segment. Otherwise, TNAS will be inaccessible.TerraMaster's Operating System (TOS) was specially developed for TNAS. The following are the core features of TNAS PC 3.2 TOS6

Model:F2-210

To access ﬁles via mobile devices (e.g., iOS or Android devices), please download the TNAS mobile app to your mobile device.To download the iOS and Android versions of TNAS mobile, you can search for "TNAS mobile" in the App Store and Google Play, respectively. Alternatively, visit the “Download” on TerraMaster’s oﬃcial website to download the app of android version for free (Note: Your username and password are required to use our app, so please remember to obtain these details from your TNAS administrator).Scan the QR code to download the TNAS mobile appNewly purchased TNAS devices must be initialised prior to use. In the process of initialisation, TOS will be installed onto your TNAS. Please see the section on “Initialisation” for an operation guide to TOS installation. You can also update your TOS software at any time after completing initialisation. Your newly purchased TNAS must be initialised prior to use. However, before you initialise your device, please ensure the following: (1) That your TNAS hardware is installed properly; and (2) That you have installed the TNAS PC desktop application on your computer.3.3 TNAS Mobile App4.Initialisation7

Model:F2-210

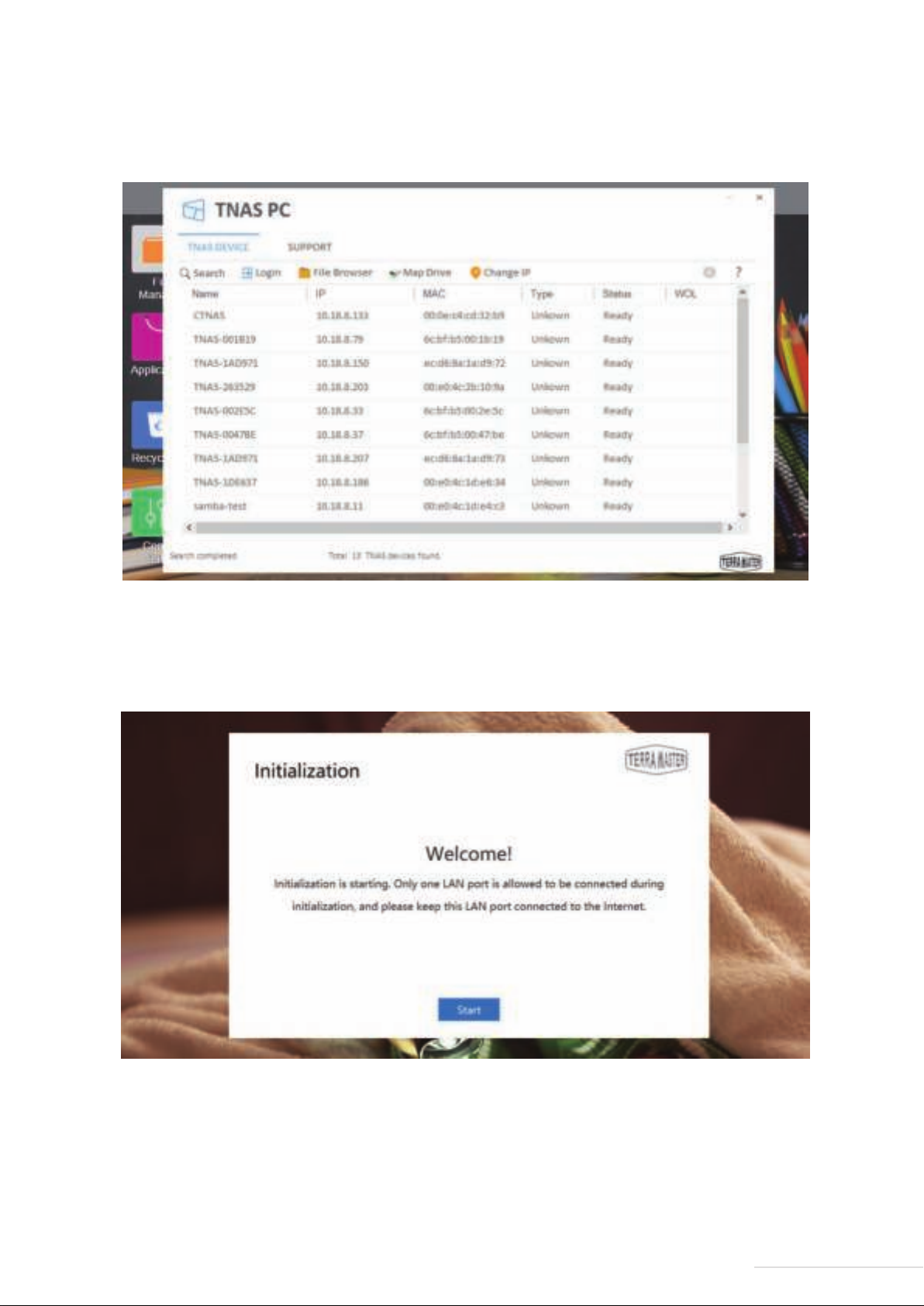

Step 1: Search for TNAS DevicesBefore initialising your device, you need to ﬁnd your TNAS device on the network. To ﬁnd your TNAS, open the TNAS PC desktop application on your computer and click “Search”. Step 2: Start InitialisationSelect your TNAS from the search list and click “Login”. If your TNAS is not initialised, you will be redirected to the initialisation page. Please Click “Start” to initiate the initialisation process.8

Model:F2-210Step 3: Hard Drive DetectionIf the installed hard drive is detected by TNAS, bootstrap initialisation will automatically proceed to the next step. If the hard drive is not installed, please install the hard drive and click “Recheck”. Since TNAS supports hard drive hot swap, the hard drive can be directly installed without having to turn the power oﬀ.

After TOS installation is complete, TNAS will take several minutes to restart. Please wait patiently for this process to ﬁnish. Once TNAS has restarted successfully, you will be guided to the next step.Step 6: Basic SettingsComplete the basic settings for TNAS according to the instructions. This will involve setting a password, inputting device name, selecting your time zone, and clicking “Next”.Step 4: Hard Drive Check-UpYour TNAS will assess the health status of the hard drive. If the health status is good, please click “Next”. If the test results indicate a risk, we recommend that you replace the abnormal hard drive. Step 5: Install TOSFollow the page prompts to install TOS. If your TNAS is connected to the Internet, we recommend that you choose the “Online Install” option. Otherwise, choose the “Manual Install” option. If you select “Manual Install”, please visit TerraMaster's website to download the TOS software package from the “Download” before you process the installation.9

Model:F2-210
