IB 9008211 (10--2010) 1

INSTRUCTION BULLETIN

No. 9008211

Machine: S30/S30 XP/

S30 X4

Published: 10--2010

Rev. 00

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9008200

SYNOPSIS:

This kit contains the parts needed to install an overhead guard kit on S30, S30 XP, and S30 X4

machines (serial numbers 002100 and above).

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: NONE

(Estimated time to complete: 1 hour)

PREPARATION:

1. Park the machine on a clean level surface,

turn off the machine, remove the key, and set

the parking brake.

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, turn off

machine, and remove key.

2. Open the right rear cover.

INSTALLATION:

NOTE: It is recommended that two persons install

this kit, due to it being necessary for two persons

to lift the assembled overhead guard onto the

machine and one person to hold parts while the

other installs the assembly/mounting hardware.

NOTE: Do not completely tighten assembly/

mounting hardware until instructed to do so at the

end of this Instruction Bulletin. All hardware is

tightened after the overhead guard is completely

installed onto the machine.

1. Use four hex screws (6), eight flat washers

(8), and four lock nuts (9) to install the right

guard leg (3) onto the overhead guard top (1).

Refer to Fig. 1.

FIG. 1

IB 9008211 (10--2010)2

2. Use a hex screw (6), two flat washers (8),

and a lock nut (9) to install the mirror

bracket (4) and left guard leg (2) onto the

overhead guard top (1). Refer to Fig. 2.

FIG. 2

3. Use three hex screws (6), six flat washers (8),

and three lock nuts (9) to install the rest of the

rear of left guard leg (2) onto the overhead

guard top (1). Refer to Fig. 2.

4. Use the hardware included with the mirror (5)

to install the mirror onto the mirror bracket (4).

Refer to Fig. 2.

5. Use existing hardware already installed on

machine to install the front leg of the right

guard leg (3) to the machine. Refer to Fig. 3

and Fig. 7.

FIG. 3

6. Use existing hardware already installed on the

machinetoinstallthefrontlegoftheleft

guard leg (2) to the machine. Refer to Fig. 4

and Fig. 7.

FIG. 4

7. Use a hex screw (7), one flat washer (8), and

a lock nut (9) to install the rear leg of the left

guard leg (2) to the machine. Refer to Fig.5

and Fig. 7.

FIG. 5

8. Use two hex screws (7) to install the rear leg of

the right guard leg (3) to the machine. Refer to

Fig. 6 and Fig. 7.

FIG. 6

9. Tighten all loose hardware.

IB 9008211 (10--2010) 3

Existing

hardware

Existing

hardware

FIG. 7

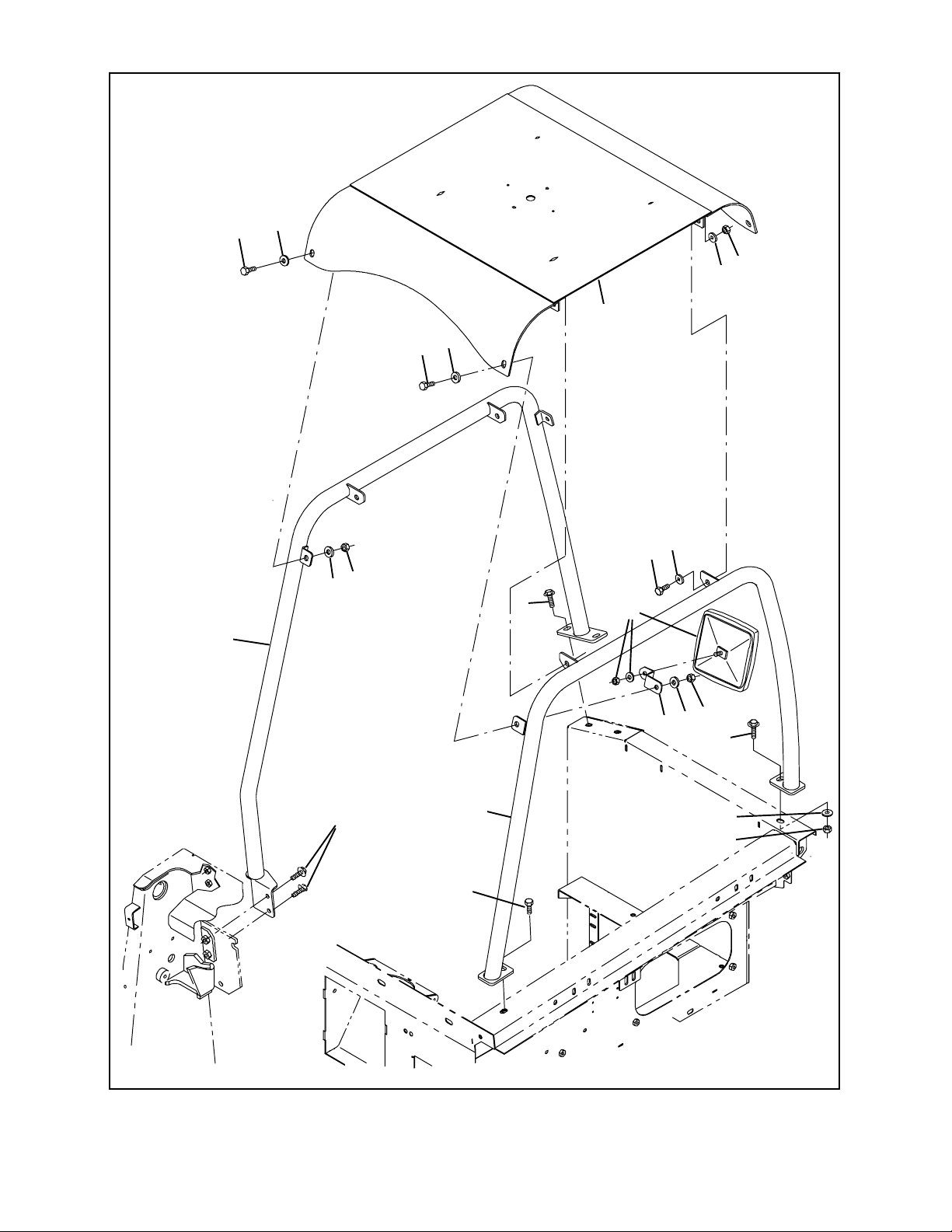

IB 9008211 (10--2010)4

Bill of Materials for OHG Kit, CI [S30] -- 9008200

Ref.

Tennant

Part No. Description Qty.

o9008200 )OHGKit,Ci[S30] 1

Y1 1032262 Guard Wldt, Ohg, Top 1

Y2 1032067 Leg Wldt, Guard, Lh 1

Y3 1061016 Leg Wldt, Guard, Rh [Roto--Covers] 1

Y4 1032722 Bracket, Mtg, Mirror 1

Y549034 )Mirror, Convex, 06.7 X 06.2 1

Y6 39283 Screw, Hex, M10 X 1.5 X 25, 8.8 8

Y7 1037358 Screw, Hex, M10 X 1.5 X 35, Sems 6

Y8 32492 Washer, Flat, 0.38, Std 17

Y9 41430 Nut, Hex, Lock, M10 X 1.5, Nl 9

Y10 1045101 )Bracket, Sppt, Ohg 1

TENNANT COMPANY

P. O. Box 1452

Minneapolis, MN 55440-1452
