Product Application and Solution Guide

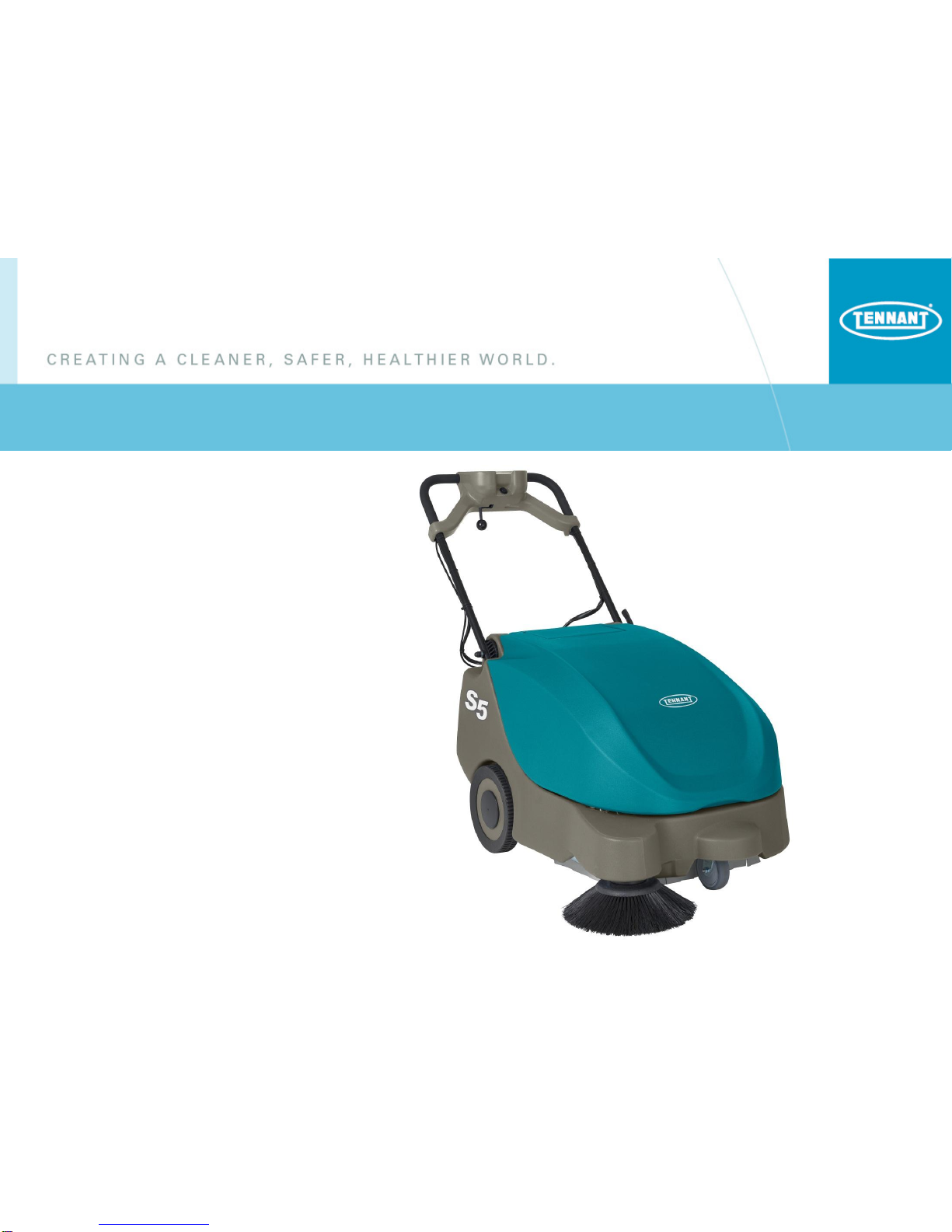

S5 Sweeper

Model Names: S5

Positioning: Compact maneuverability and outstanding performance over a wider variety of debris

(compared to single broom systems)

Value Proposition: “Sweep smarter, not harder” – more versatility/benefits for the same price point

Key Support Points:

PRODUCTIVITY and consistent performance

• TwinMax™ technology improves capture of a wide variety of debris

•Compact size is easy to maneuver in tight spaces while side brush captures

debris in corners and under shelves

•Consistent optimum sweeping performance due to constant broom

drive with motor

VERSATILITY to clean multiple surface and environments

•Dust control with active fan and large filter

•Suitable for both inside and outside sweeping

QUALITY CONSTRUCTION that extends product life

•Robust roto-molded construction and reliable technology

LOW COST OF OWNERSHIP in acquiring and operating

•Balancing the performance, durability and compact size make this sweeper a great value at an affordable price!

Product Positioning/Highlights

Product Markets and Applications

MARKET APPLICATION FLOOR TYPES

Retail

Show floors, entry ways, narrow

aisles, storage

rooms

Natural stone, concrete, tiles, vinyl,

carpet

Small

Warehouses

Production

areas, storage areas,

aisles, dock areas

Concrete, vinyl,

hard floor

Schools and

Universities

Classrooms, locker

rooms, common

dormitories spaces

Tiles, vinyl, carpet

Hospitality

Patient rooms, hallways

Natural stone, tiles, vinyl, carpet

Small

Manufacturing

Production areas, entrances, material

storage areas

Coated concrete, vinyl,

hard floor

Building

Services

Small offices, hallways, route

cleaning

trucks

Coated concrete, vinyl,

hard floor, carpet

Product Markets and Applications

Product Specifications

FEATURES

SPECIFICATION*

Product Name S5

Sweeping System TwinMaxTM Technology

Path Width 24 in / 620 mm

Main Broom

Length

Diameter

Speed - rpms

16 in / 400 mm

6.7 in / 170 mm

390 rpm

Side Broom

Diameter

# of side brooms

12 in / 300 mm

Productivity

Practical (per ISSA

540 cleaning times)

13,850 ft²/hr / 1,290 m²/hr

Hopper Capacity 1.3 ft3 / 37 L

Drive Type Gear Motor

Automatic Main Broom

Drive Yes

Power Transmission Maintenance Free, High

Performance Belt Drive

Sound Level

(operator’s ear) 62 dBA

FEATURES

SPECIFICATION*

Batteries 12 V AGM

Charger On-Board

AirFlow 141 cfm / 240 m³/hr

Filtration

Type

Filter Area

99.97 @ .3 microns

13 ft² / 1.2 m²

Adjustable Handle Yes

Dimensions

Length

Width

Height

36.3 in / 923 mm

25.5 in / 650 mm

22 in / 557 mm

Weight:

w/battery

w/o battery

121 lb / 55 kg

88 lb / 40kg

Construction:

Main Body

Chassis

Roto-Molded

Corrosion Resistant

Warranty: See your sales representative or authorized

distributor for complete warranty details

*Specifications subject to change without notice

Crucial Design Concept

TwinMax™ Technology

•Performance Improvement with dual counter-rotating brushes

•Combines over-throw and direct sweeping principles

•Performs better than single broom systems on a wider variety of debris

•Performs well inside and outside, including on carpet

•Fully adjustable main and side brushes for optimal pick-up

•Optimal hopper utilization with top fill design

Strengths of Our Sweeper Solution

CUSTOMER

Results & Benefits

Versatile operation

–well suited for small indoor

and outdoor

environments

Optimal adaptation

–allowing you to clean a wide array of

floors & c

aptures many types of dirt

Outstanding performance

–with consistent broom drive

Decreased

labor –with easy replacement & cleaning of the

brush and bristles

Increased operator comfort

–due to no manual pushing

force needed to operate

Simplified training

–shortened learning curve allows for less

training and more time cleaning

Reduced fatigue

–with less strain on the operator while

cleaning

TENNANT

Advantages & Features

Compact size

Pressure adjustment

main brushes

Motor

operation

Split

-half design main brushes

Battery operation

Intuitive design

Fully adjustable handle

Productivity –helping workers to drive a better time/clean ratio

Versatility –allowing you to re-purpose one machine for multiple uses

Quality Construction –ensuring strong performance and a long asset life

Low Cost of Ownership –delivering operating value at a reasonable investment

Top Line S5 Customer Benefits

Productivity

Effective cleaning

•Easier pick-up into the hopper with both

brushes working together

•Chevron pattern directs debris toward center

of machine

Fully adjustable brushes can be set at optimal

height for whatever surface needs cleaning

Compact size

•Easy to maneuver around racks and shelves

•Able to clean narrow aisles quickly

•Low profile side brooms for reach under capabilities

Productivity

More time spent sweeping and fewer

dumps with a large 1.3 ft3/ 37L capacity

hopper

Easy hopper removal makes dumping

debris quicker and less fatiguing on

the operator HOPPER

BATTERY

OPERATED Consistent optimum sweeping performance

with constant broom drive.

No manual pushing force required to operate
