Tendercare Swirl Manuel utilisateur

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 1 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

Swirl®

WHEELBASE AND INTERFACE

USER MANUAL

IMPORTANT

Please read these instructions carefully before using the Wheelbase or

Interface. In addition, we have a YouTube channel with a series of ‘How to

guides’ to provide a visual demonstration. Please note that these videos are

not a substitute for reading your manual.

QR Code links to video guides:

Swirl Wheelbase:

Serial Number:

TEN/SW……..

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 2 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

Fig 0.1 Swirl Wheelbase Front View

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 3 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

Fig 0.2 Swirl Wheelbase Rear View

Fig 0.3 Wheelbase Folded

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 4 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

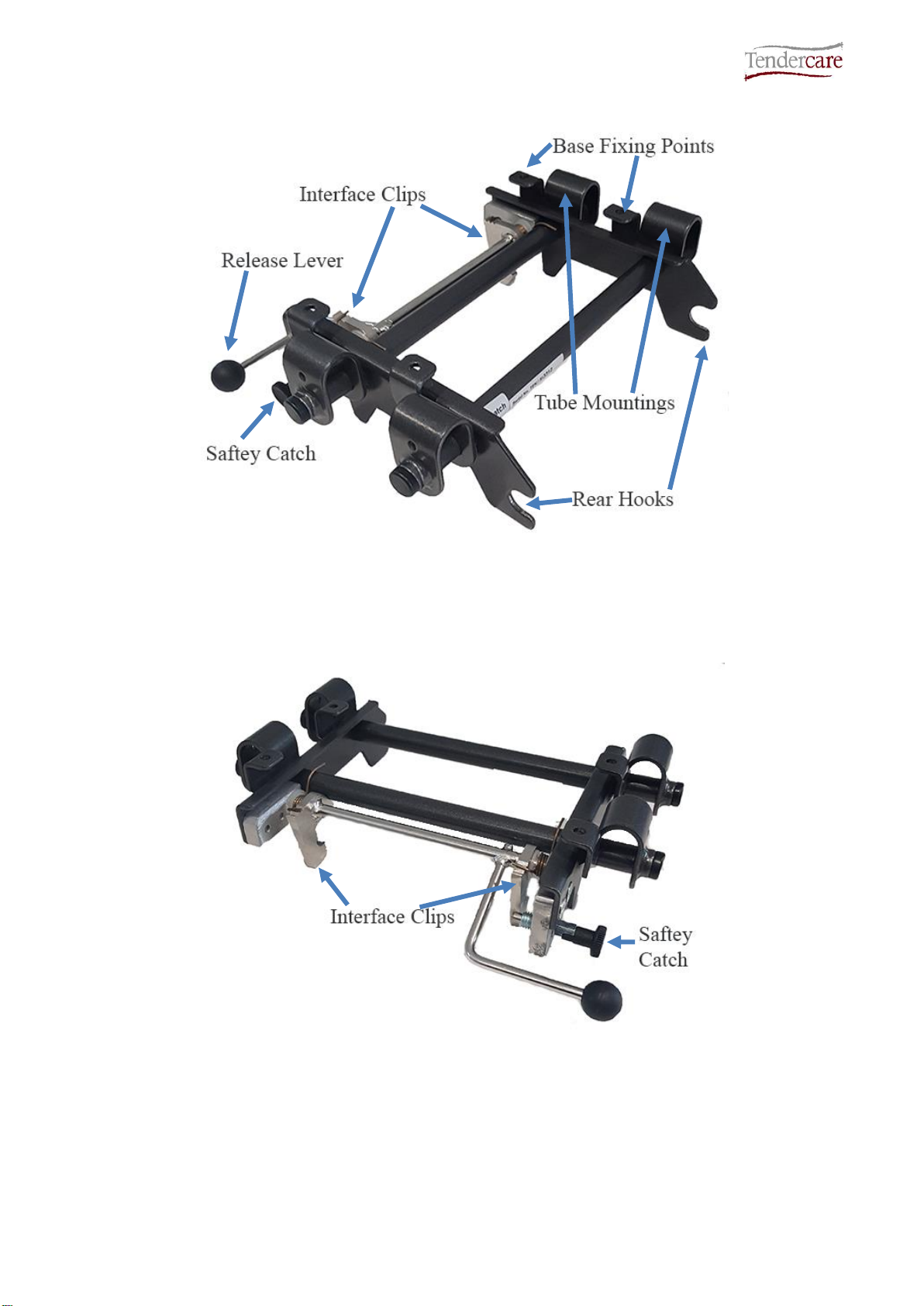

Fig 0.4 Seat Interface (Back View)

Fig 0.5 Seat Interface (Front View)

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 5 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

Fig 0.6 Interface Fitted To Frame

Fig 0.7 Swirl with Modular Seat, Rearward Facing

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 6 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

Fig 0.8 Swirl with Snappi Seat, Forward Facing

Fig 0.9 Swirl with Snappi Seat, Rearward Facing

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 7 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

Item

Description

Page

Who to contact if you have difficulty

Introduction

8 - 10

Unpacking

10 - 11

Preparing the Wheelbase for Use

4.1A Unfolding the Frame (hand wheels - pushchairs supplied

after December 2017)

11 - 16

4.1B Unfolding and Folding the Frame (quick release handles -

pushchairs supplied before December 2017)

17 - 22

4.2 Pin Brakes

22 - 23

4.2A Tyres

4.2B Push Handle Mounted Attendant Brakes –Hub (Optional

Upgrade)

23 - 25

4.2C Front Locking Castors

25 - 26

4.3 Using the Tilt in Space Facility

4.4A Fitting A Seat / Interface

28 - 29

4.4B Removing A Seat / Interface

29 - 30

4.4C How to Operate the Safety Catch

30 - 31

4.5 Switching from Forward Facing to Rearward Facing

31 - 35

4.6 Adjusting the Push Handles

Accessories

5.1 Shopping Basket

35 - 36

5.2 Equipment Carrying Tray

36 - 37

5.3 Sun Canopy

37 - 38

5.4 Frame Padding

Fitting a Non-Tendercare Seating System

39 - 40

Final Checks

Attendant Pushing

8.1 Pushing

40 - 41

8.2 Brakes

8.3 Comfort

8.4 Lifting and general safety

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 8 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

Cleaning

Maintenance

10.1 Routine maintenance

42 - 43

10.2 Six –monthly maintenance

Transporting the Wheelbase

12.1 Preparing Wheelbase for Transport

44 - 46

12.2 Attaching Wheelbase to Vehicle

46 - 48

Repairs

Warranty

1: Who to contact in difficulty

Tendercare Ltd.

PO BOX 3091, Littlehampton, BN16 2WF

Tel: (01903) 726161 Fax: (01903) 734083

Email: [email protected]

Web: www.tendercareltd.com

2: Introduction

The Wheelbase is made of a strong and lightweight aluminium alloy. It provides tilt in

space and rotation facilities and has 2 fixed rear wheels and 2 castor wheels at the front

for easy steering.

The Interface provides a lightweight, easy to operate, quick release system that can be

fitted to a wide range of special seating systems. Please note the interface requires

additional framework to fit to a seat and been designed to take 19mm (3/4”) aluminium or

mild steel tube.

The interface can be quickly fitted and released from the wheelbase, which can be folded

for transport. The Swirl has been successfully impact tested as a wheelbase and interface

with the Snappi, Snug and Modular seating systems. When fitting third party seating

systems to the Swirl, the manufacturer of the system must carry out a risk assessment

before use.

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 9 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

Interfacing:

Seat / Interface

Version

Max Carry

Weight (kg)*

Maximum Seat Width

(mm)

Maximum Footrest

Width (mm)

Swirl Wheelbase

430

320

Important:

❖Maximum width i.e. the maximum space available for seating systems being

fitted into frame.

❖*Maximum carry weight is defined as the user weight, weight of the seating

system, plus any accessories / equipment which may be fitted or carried on the

wheelbase. Warning: Never exceed the maximum stated carry weight.

Frame Weight: 13.4kg

Swirl Wheelbase Open Dimensions (mm):

985

583

984

Swirl Wheelbase Folded Dimensions (mm):

622

583

546

Swirl Wheelbase & Interface User Manual

Document No: 056-01 v10 Page 10 of 49 April 2020

Swirl Wheelbase Interface User Manual.doc Patent No. GB2552197

All sizes and weights are given as a guide. Tendercare ltd reserves the right to amend

specifications at any time as part of their product development programme.

3: Unpacking

The wheelbase will be delivered in a cardboard box. This measures 680mm wide x

480mm deep x 1030mm high and weighs approximately 15kg.

WARNING:

The transit carton is quite bulky so moving and unpacking must be done with care.

Observe all lifting and handling regulations.

Stand the box upright, making sure it is supported and cannot fall over. Open the box and

remove any packing or packages, which could obstruct the removal of the wheelbase.

Now remove the wheelbase. Please note if you ordered a seat, this will be delivered in a

separate box and will have a separate user manual for operating the seat.

The carton should contain the following items:

Item

Component

QTY.

Yes

Swirl Wheelbase

User Manual

5mm Allen Key

Fire Resistant Label

Important:

❖If you have ordered the Swirl with an interface; this will be supplied fitted to

the frame. The interface can easily be separated by releasing the interface

catch. Please refer to section 4.4A for more information on working with the

interface.
