54M Wireless Notebook Adapter User Guide
54M Wireless Notebook Adapter User Guide
Copyright Statement
is the registered trademark of
Shenzhen Tenda Technology Co., Ltd. All the products
and product names mentioned herein are the
trademarks or registered trademarks of their
respective holders. Copyright of the whole product as
integration, including its accessories and software,
belongs to Shenzhen Tenda Technology Co., Ltd.
Without the permission of Shenzhen Tenda Technology
Co., Ltd, any individual or party is not allowed to copy,
plagiarize, imitate or translate it into other languages.
All the photos and product specifications mentioned in
this guide are for references only. As the upgrade of
software and hardware, there will be changes. And if
there are changes, Tenda is not responsible for
informing in advance. If you want to know more about
our product information, please visit our website at
www.tenda.cn.
54M Wireless Notebook Adapter User Guide
Table of Content
Chapter 1 Introduction........................................1
1.1 Product Feature .......................................2
1.2 Product Deployment .................................3
1.3 Package Contents.....................................4
1.4 LED Indicator Description..........................4
Chapter 2 Installation Guide.................................5
Chapter 3 Client Utility Interface.........................10
3.1 Station Mode.........................................11
3.1.1 Station Mode Topology......................11
3.1.2 Status ............................................12
3.1.3 Site Survey .....................................13
3.1.4 Profile Management..........................14
3.1.5 Statistics.........................................16
3.1.6 WPS Setting ....................................16
3.2 AP Mode ...............................................18
3.2.1 .........................18AP Mode Topology
54M Wireless Notebook Adapter User Guide
3.2.2 Basic Setting..................................19
3.2.3 Security Setting...............................20
3.2.4 Access Control.................................21
3.2.5 About.............................................23
Appendix One: Acronyms and Terms ...................24
Appendix Two: Product Specification....................27
Appendix Three: How to connect with PSP............28
54M Wireless Notebook Adapter User Guide
-1-
Chapter 1 Introduction
W54C Wireless Notebook Adapter complies with
IEEE802.11b, IEEE 802.11g standards with up to
54Mbps wireless transmission rate which is five times
ordinary IEEE802.11b products. It also supports
64/128-bit WEP, WPA/WPA-PSK, WPA2/WPA2-PSK
encryption and 802.1x security authentication
standard to secure your wireless networking. Built-in
Omni-directional antenna frees you from the wired
cabling troubles and improves convenience and
flexibility of the wireless utility for fast and mobile
network sharing.
Soft AP supported by W54C can help you establish
wireless LAN networking with lowest cost. Besides,
PBC and PIN encryption methods (WPS, Wi-Fi
Protected Setup) can free you from remembering the
long passwords. Moreover, complete WMM support
makes your voice and video more smooth. Especially
supporting PSP, NDS and WII connections with Xlink
Kai will be your best choice to enjoy on-line games.
54M Wireless Notebook Adapter User Guide
-2-
1.1 Product Feature
Supports IEEE 802.11g and IEEE 802.11b
standards
Provides two work modes: Infrastructure
modeandAd-Hocmode
Provides up to 54Mbps maximum transmission
rate and up to 300m maximum transmission
range
Auto-detects and changes the network
transmissionrate
Supports Soft AP; PSP, NDS and WII
connections with Internet and Xlink Kai
Supports access control over MAC address in
SoftAP mode
Supports WPS (Wi-Fi Protected Setup)
encryption method to free you from
rememberinglongpasswords
Provides simple configuration and monitoring
program
SupportswirelessRoamingfunction
Supports WMM to make your voice and video
more smooth
Easy-to-install, plug and play
54M Wireless Notebook Adapter User Guide
-3-
1.2 Product Deployment
W54C Wireless Notebook Adapter offers fast,
reliable and cost-effective solution for wireless
access. Deployment as follows:
For staff who requires higher mobility in the
office, they want to have access to traditional
wired or wireless network in any place of the
company;
Enterprise or individual who requires often
changes in lay out of network cables;
Companies or places which are not suitable for
LAN cable laying out because of budget or
objective building, including places of great
interests, rent places or places for short-term
usage;
Company or individual who avoids using
expensive cables, renting cables or renting
rights for access.
54M Wireless Notebook Adapter User Guide
-4-
1.3 Package Contents
Unpack the packets, and please find the following
items:
One W54C Wireless Notebook Adapter
One CD-ROM
1.4 LED Indicator Description
On W54C’s front panel, there is one LED indicator
and one Status indicator. When the device works
well, Status is Always On; Activity is blinking when
the device is transmitting and receiving data.
54M Wireless Notebook Adapter User Guide
Chapter 2 Installation Guide
This chapter is to assist you how to use the included
CD-ROM which comprises the Setup Wizard and the
Client Utility Interface.
The following steps on Setup Wizard are taken the
Windows XP as example.

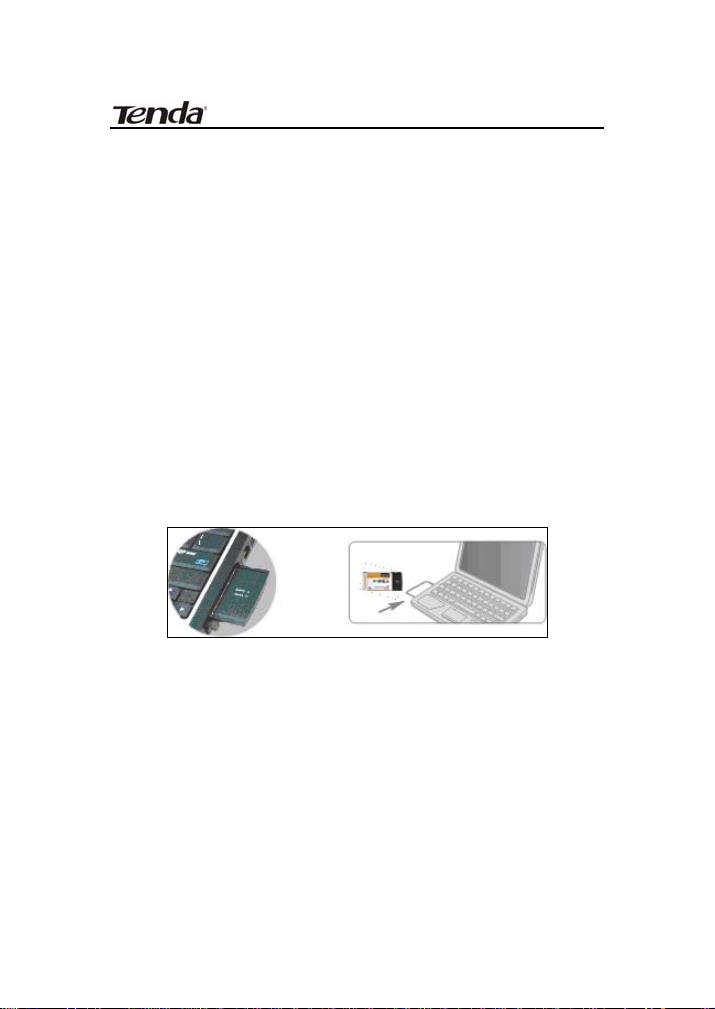

1. Please insert the Wireless Notebook Adapter into
the Cardbus interface of your computer.

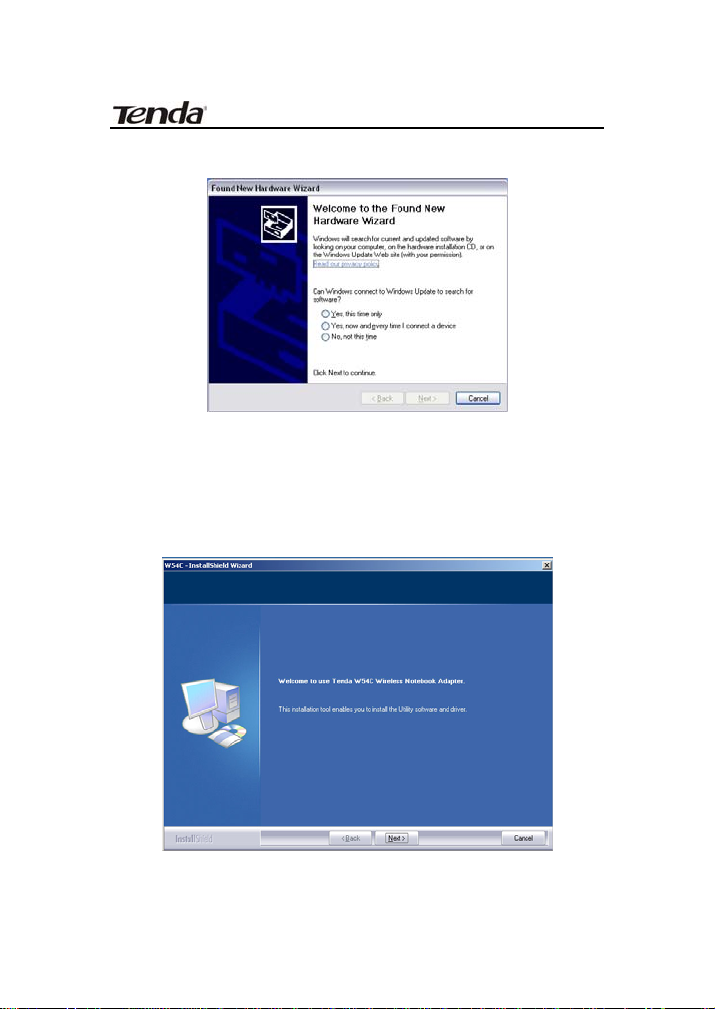

2. “Found New Hardware” system dialogue appears,
and selects “Cancel” to use the included Setup
Wizard for fast installation; of course, you also can
select “Next” to install by manual.
-5-
54M Wireless Notebook Adapter User Guide
3. Inert the included CD-ROM into the CD-ROM
drive of your computer. (If not appear, double
click the “Setup.exe” icon.)
-6-
