Teltonika FMB910 Guide d'installation
FMB910
Track & trace device
Quick Manual v1.8
Quick Manual v1.8 // FMB910 2
CONTENT
Know your device................................................................................................................................................................................................3
Pinout ...................................................................................................................................................................................................................4
Wiring scheme.....................................................................................................................................................................................................5
Set up your device ..............................................................................................................................................................................................6
PC Connection (Windows)..................................................................................................................................................................................7
How to install USB drivers (Windows) ..............................................................................................................................................................7
Conguration.......................................................................................................................................................................................................8
Quick SMS conguration................................................................................................................................................................................. 10
Mounting recommendations.......................................................................................................................................................................... 12
Basic characteristics ........................................................................................................................................................................................ 13
LED indications................................................................................................................................................................................................. 13
Electrical characteristics.................................................................................................................................................................................. 16
Safety information .......................................................................................................................................................................................... 17
Certication and Approvals ............................................................................................................................................................................ 18
Warranty ........................................................................................................................................................................................................... 20
Warranty disclaimer ....................................................................................................................................................................................... 20
Quick Manual v1.8 // FMB910 3
KNOW YOUR DEVICE
POWER
CABLE
MICRO-SIM
SLOT
BATTERY
SOCKET
STATUS
LED
MICRO-USB
NAVIGATE
LED
TOP VIEW BOTTOM VIEW (WITHOUT COVER)
Quick Manual v1.8 // FMB910 4
PIN NUMBER PIN NAME DESCRIPTION
1 VCC (6-30) V DC (+) Power supply (6-30) V
DC (+)
2 GND (-) Ground pin
3 DIN 1
Digital input, channel
1. DEDICATED FOR
IGNITION INPUT
4AIN 1
Analog input, channel
1. Input range: 0-30
V DC
5DOUT 1
Digital output, channel
1. Open collector
output. Max. 0,5 A DC
PINOUT
2
3
4
5
1
+6...30 V DC
GND
AIN1
DOUT1
DIN1
FMB910 pinout
Quick Manual v1.8 // FMB910 5
WIRING SCHEME
BUZZER
30
8586
87a
87
IGNITION
DETECTION
STARTER
POWER SUPPLY
6 - 30V DC
2
3
4
5
1
+6...30 V DC
GND
AIN1
DIN1
DOUT1
Quick Manual v1.8 // FMB910 6
SET UP YOUR DEVICE
HOW TO INSERT MICRO-SIM CARD
4
1COVER REMOVAL 3BATTERY CONNECTION
2MICRO-SIM CARD INSERT ATTACHING COVER BACK
Gently remove FMB910
cover using plastic pry tool
from both sides.
Insert Micro-SIM card as
shown with PIN request
disabled or read our Wiki1
how to enter it later in
Teltonika Congurator2.
Make sure that Micro-
SIM card cut-o corner is
pointing forward to slot.
1 wiki.teltonika-gps.com/index.
php?title=FMB910_Security_info
2 wiki.teltonika-gps.com/view/
Teltonika_Congurator
Connect the battery as
shown on device. Position
the battery in place where
it does not obstruct other
components.
After conguration, see PC
Connection (Windows)3,
attach device cover back.
3 Page 7, "PC Connection
(Windows)"
Quick Manual v1.8 // FMB910 7
PC CONNECTION (WINDOWS)
HOW TO INSTALL USB DRIVERS (WINDOWS)
1. Please download COM port drivers from here1.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in driver installation window.
4. In the following window click Install button.
5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the
setup.
1 teltonika-gps.com/downloads/en/FMB910/TeltonikaCOMDriver.zip
1. Power-up FMB910 with DC voltage (6 – 30 V) power supply using power wires. LED’s should start blinking, see “LED indications1”.
2. Connect device to computer using Micro-USB cable or Bluetooth connection:
• Using Micro-USB cable
• You will need to install USB drivers, see “How to install USB drivers (Windows)2”
• Using Bluetooth
• FMB910 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device >
Bluetooth. Choose your device named – “FMB910_last_7_imei_digits”, without LE in the end.
• Enter default password 5555, press Connect and then select Done.
3. You are now ready to use the device on your computer.
1 Page 13, "LED indications"
2 Page 7, "How to install USB drivers (Windows)"
Quick Manual v1.8 // FMB910 8
At rst FMM003 device will have default factory settings set. These settings should be changed according to the users needs. Main
conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator
operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.
1 wiki.teltonika-gps.com/view/Teltonika_Congurator
2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions
CONFIGURATION
MS .NET REQUIREMENTS
Operating system MS .NET Framework version Version Links
Windows Vista
Windows 7
Windows 8.1
Windows 10
MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1
1.microsoft.com/en-us/download/conrmation.aspx?id=53344
Quick Manual v1.8 // FMB910 9
Downloaded Congurator will be in compressed archive.
Extract it and launch Congurator.exe. After launch software
language can be changed by clicking 🌐in the right bottom
corner.
Conguration process begins by pressing on connected device.
FMB910
After connection to Congurator Status window will be
displayed.
FMB910
Various Status window1 tabs display information about GNSS2,
GSM3, I/O4, Maintenance5 and etc. FMB910 has one user
editable prole, which can be loaded and saved to the device.
After any modication of conguration the changes need to
be saved to device using Save to device button. Main buttons
oer following functionality:
Load from device – loads conguration from device.
Save to device – saves conguration to device.
Load from le – loads conguration from le.
Save to le – saves conguration to le.
Update rmware – updates rmware on device.
Read records – reads records from the device.
Reboot device – restarts device.
Reset conguration – sets device conguration to
default.
Most important congurator section is GPRS – where all
your server and GPRS settings6 can be congured and Data
Acquisition7– where data acquiring parameters can be
congured. More details about FMM003 conguration using
Congurator can be found in our Wiki8.
1 wiki.teltonika-gps.com/view/FMB910_Status_info
2 wiki.teltonika-gps.com/view/FMB910_Status_info#GNSS_Info
3 wiki.teltonika-gps.com/view/FMB910_Status_info#GSM_Info
4 wiki.teltonika-gps.com/view/FMB910_Status_info#I.2FO_Info
5 wiki.teltonika-gps.com/view/FMB910_Status_info#Maintenance
6 wiki.teltonika-gps.com/index.php?title=FMB910_GPRS_settings
7 wiki.teltonika-gps.com/index.php?title=FMB9101_Data_acquisition_
settings
8 wiki.teltonika-gps.com/index.php?title=FMB910_Conguration
Quick Manual v1.8 // FMB910 10

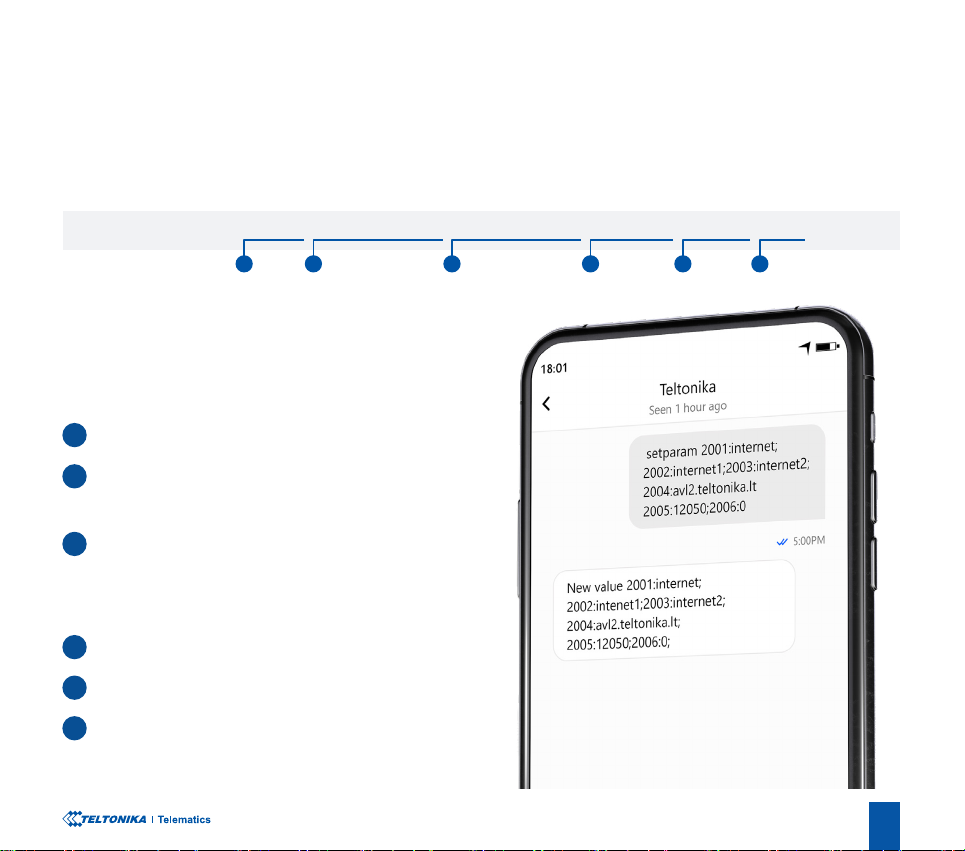

QUICK SMS CONFIGURATION
Default conguration has optimal parameters present to ensure best performance of track quality and data usage.
Quickly set up your device by sending this SMS command to it:
Note: Before SMS text, two space symbols should be inserted.
GPRS SETTINGS:
2001 – APN
2002 – APN username (if there are no APN username,
empty eld should be left)
2003 – APN password (if there are no APN password,
empty eld should be left)
SERVER SETTINGS:
2004 – Domain
2005 – Port
2006 – Data sending protocol (0 – TCP, 1 – UDP)
« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»
1 2 3 4 5 6
1
2
3
4
5
6
