Telemotive AG Blue PiraT2 Manuel utilisateur

blue PiraT2

Camera User Guide

Version 1.9.1 - 29.01.2014

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 1

bP2_Camera_UserGuide_V1.9.1.doc

Index

1. LICENSE AGREEMENT.......................................................................................................... 3

2. PRODUCT LIABILITY ............................................................................................................. 4

3. Overwiev ................................................................................................................................. 5

4. System requirements............................................................................................................. 6

5. Setup Video Encoder AXIS Q7404........................................................................................ 7

5.1. Connecting to the Q7404............................................................................................. 7

5.2. Access to Axis Q7404.................................................................................................. 7

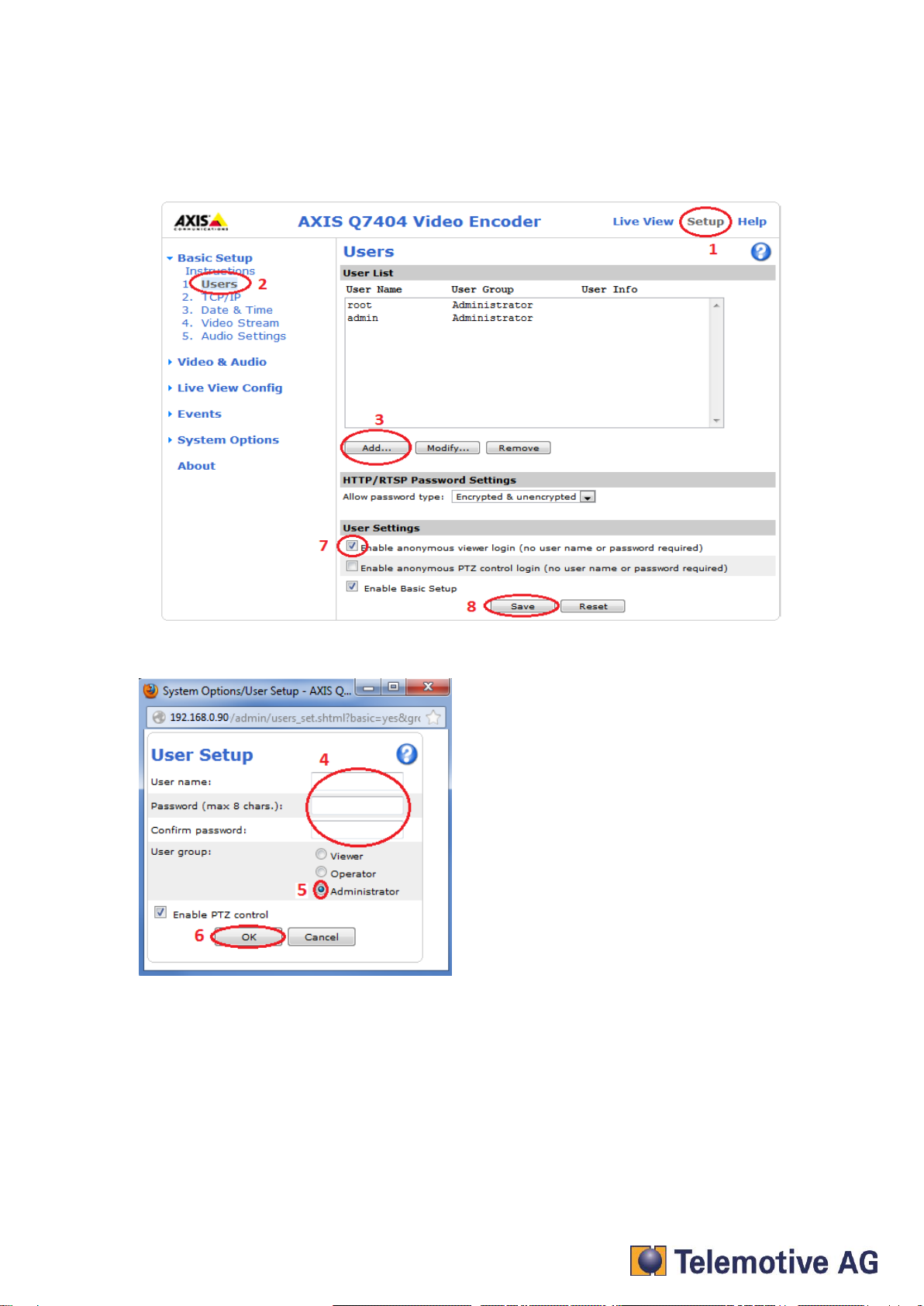

5.3. Installing the admin user.............................................................................................. 8

5.4. Setting date and time................................................................................................. 10

5.5. IP-configuration.......................................................................................................... 11

6. Setup Video Encoder AXIS P7214...................................................................................... 13

6.1. Connecting to the P7214........................................................................................... 13

6.2. Access to Axis P7214................................................................................................ 13

6.3. Installing the admin user............................................................................................ 14

6.4. Setting date and time................................................................................................. 15

6.5. IP-configuration.......................................................................................................... 16

7. Save and restore the Video Encoder settings................................................................... 18

8. Resetting the Video Encoder AXIS Q7404 or P7214......................................................... 20

9. Connecting AXIS Video Encoder to blue PiraT2............................................................... 21

10. Configuring stand alone cameras AXIS 207/210/211 ....................................................... 22

10.1. Further applicable documents................................................................................... 22

10.2. Configuration of the Ethernet camera AXIS 207/210/211......................................... 22

10.3. Automatic configuration (recommended)................................................................... 22

10.3.1. Installing the camera configuration-template........................................................ 22

10.3.2. Adding the camera user „admin“ ......................................................................... 24

10.4. Manual configuration of AXIS 207/210/211............................................................... 26

10.4.1. Reset configuration............................................................................................... 26

10.4.2. Setting up the IP-address..................................................................................... 26

10.4.3. Create admin user account .................................................................................. 27

10.4.4. Video and image settings..................................................................................... 28

10.4.5. Date and time settings.......................................................................................... 28

10.4.6. MPEG-4 settings .................................................................................................. 29

11. Preparing the blue PiraT2.................................................................................................... 30

11.1. Startup blue PiraT2.................................................................................................... 30

11.2. Shutting down blue PiraT2 manually......................................................................... 31

11.3. Updating the blue PiraT2’s firmware ......................................................................... 31

11.4. Updating the license of a blue PiraT2........................................................................ 32

11.5. Updating blue PiraT2’s client..................................................................................... 33

12. Configuration of the blue PiraT2 to use cameras or video encoder............................... 34

12.1. General settings......................................................................................................... 34

12.2. Camera settings in blue PiraT2 client........................................................................ 35

12.3. Front display of blue PiraT2....................................................................................... 36

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 2

bP2_Camera_UserGuide_V1.9.1.doc

13. Download video data........................................................................................................... 37

14. Converting the video data................................................................................................... 37

15. Watching the videos ............................................................................................................ 38

16. Contact.................................................................................................................................. 39

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 3

bP2_Camera_UserGuide_V1.9.1.doc

1. LICENSE AGREEMENT

Please read the license agreement of this license contract carefully, before you install the software.

By the installation of the software you agree to the conditions of this license contract.

This software-license agreement, in the following called as " license", contains all rights and

restrictions for final users that regulate the use of the accompanying software, operating

instructions and other documents, in the following called as "software".

1. This license contract is an agreement between Licensor and Licensee, who is being licensed

to use the named Software.

2. Licensee acknowledges that this is only a limited nonexclusive license. This means that the

licensee has no right to allocate sublicenses. Licensor is and remains the owner of all titles,

rights, and interests in the Software.

3. The software is a copyright property of the Telemotive AG. The program or parts of it may not

be further licensed to third parts, rented, sells, or be further marketed, otherwise, in any form

without explicit Written approval by Telemotive AG. The user may neither change the software

and their components, modify nor, otherwise, redevelopment or decompile in any form.

4. This Software is subject to no warranty. This software is sold as is, without any warranty. If at

any time, a user changes their system, we hold no responsibility to change our software to

make it work again.

5. This License permits Licensee to install the Software on more than one computer system, as

long as the Software will not be used on more than one computer system simultaneously.

Licensee will not make copies of the Software or allow copies of the Software to be made by

others, unless authorized by this License Agreement. Licensee may make copies of the

Software for backup purposes only. Licensee not entitled to transmit or to transfer the software

or your rights from this License agreement.

6. LICENSOR IS NOT LIABLE TO LICENSEE FOR ANY DAMAGES, INCLUDING

COMPENSATORY, SPECIAL, INCIDENTAL, EXEMPLARY, PUNITIVE, OR

CONSEQUENTIAL DAMAGES, CONNECTED WITH OR RESULTING FROM THIS LICENSE

AGREEMENT OR LICENSEE’S USE OF THIS SOFTWARE.

7. Licensee agrees to defend and indemnify Licensor and hold Licensor harmless from all claims,

losses, damages, complaints, or expenses connected with or resulting from Licensee’s

business operations.

8. Licensor has the right to terminate this License Agreement and Licensee’s right to use this

Software upon any material breach by Licensee. duration of the license contract is indefinitely

determined.

9. Licensee agrees to return to Licensor or to destroy all copies of the Software upon termination

of the License Contract.

10. This License Agreement replaces and supersedes all prior negotiations, dealings, and

agreements between Licensor and Licensee regarding this Software.

11. This License Contract is subject to german law.

12. If a regulation of this license contract is void by law, the validity of the remaining regulations is

not affected. If there is such a regulation it will be replaced by a valid, according to the legal

regulations and enforcable regulation with similar intention and similar economic

consequences.

13. the license contract is effectve by delivery of the software of the licensor to the lecensee

and/or by usage of the software by the licensee. This License contract is also valid without

Licensor’s signature.

14. The license automatically goes out if the licensee does not agree to the license regulations

described here or offend against the license regulations of this license contract. With ending

the license contract the licensee is obliged to extinguish all copies of the software or to destroy

it.

15. The LICENSEE sticks for all damages which originates the licensor from the injury of these

license regulations.

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 4

bP2_Camera_UserGuide_V1.9.1.doc

2. PRODUCT LIABILITY

For all offers, sales and supplies do explicit apply the following conditions, even if the buyer,

orderer and suchlike prescribes other conditions. Alterations are only valid, if they are agreed in

writing.

1. The technical documentation is part of the products. The product liability and the product

guarantee will be excluded, if contents and in particular the safety references and instruction

for action of the documentation are not considered.

2. The products do belong to the group of testtools. by application of the equipment a

disturbance ot the tested system cannot be completely excluded. For this reason, the warranty

of a perfectly functioning system cannot be taken over by the manufacturer.

Application of the product takes place at one’s own risk.

3. The liability of the substitution of damages according to §1 product liability law, is expressly

excluded in the context of §9 product liability law, as far as compelling legal terms do not

provide anything else.

In no event will the producer be liable for any indirect, incidental, special or consequential

damages, including loss of profits, loss of revenues, loss of data, loss of use, any other

economic advantage or damages caused by pretensions of third party towards the customer

out of this agreement, under any theory of liability, whether in an action in contract, strict

liability, tort (including negligence) or other legal or equitable theory.

The burden of proof is with the customer.

4. The Telemotive AG does ensure the legal warranty according to German law.

Except for warranties expressly set forth in this agreement, any and all products are delivered

“as is” and the producer makes and the customer receives no additional express or implied

warranties. The producer hereby expressly disclaims any and all other warranties of any kind

or nature concerning the products, whether express or implied, including without limitation,

any warranty of title, merchantability, quality, accuracy, or fitness for a particular purpose or

the customer’s purpose. The producer expressly disclaims any warranties that may be implied

form usage of trade, course of dealing, or course of performance, except for the express war-

ranties stated in this agreement. The products are provided with all faults, and the entire risk

of satisfactory quality, performance, accuracy, and effort is with customer. The producer does

not warrant that the Products will operate without interruption or be error free.

5. The Telemotive AG is justified to exchange defective goods against homogeneous acceptable

ones or to eliminate the fault within an appropriate period. In this case a demand for

redhibitory action or reduction of price expires. Warranty claims presuppose a due notice of

defects.

6. Resale, transfer, donation, exchanges or the rental of the offered products at third party, is

permitted without clearance of the Telemotive AG.

7. German Law is deemed to be as legal basis.

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 5

bP2_Camera_UserGuide_V1.9.1.doc

3. Overwiev

The following documentation describes the usage of a system composed of an AXIS Video-

Encoder Q7404 or P7214, the AXIS Network-Cameras 207, 210 or 211 and a blue PiraT2 data

logger. The Video-Encoders are used to connect analog (PAL / NTSC) cameras. The network

cameras can be connected directly.

For general points refer to the manual "User Guide". For special functions, appropriate instructions

are available.

The system allows the recording of one to four different videos streams at the same time. To make

it work, the server and the data logger must be connected to each other and configured separately

by a HTML based client. The procedure is explained from chapter 3.

The video streams are recorded in real-time and in a specified time interval in the logger. They can

be downloaded into a control unit for offline use. They can also be converted to a video file and

transferred from the logger into a computer. The video block length can be adjusted between 15

and 60 seconds and the videos are stored in the mpeg4 format.

When converting into a video file, the system can combine a maximum of 400 blocks per file. The

length of the blocks can change. If more video blocks are available and they cannot be converted

to one file, then the system creates several files. In this way no video data is lost.

Attention:

The Video-Encoder and the cameras are not set by default to standby mode, which may be a

reason for an empty battery.

After rebooting, the system takes approximately 60 seconds to be synchronized. The recording

starts immediately after the synchronization.

If the Ethernet cable was removed from the Video-Encoder during the recording and plugged in

again, the system takes around 11 seconds for the resynchronization.

If the supply voltage is removed from the Video-Encoder during the recording, the server takes

about 54 seconds to be synchronized (after a reconnection).

AXIS camera or Video-Encoder should be operating within the AXIS specification. This is

especially true for power and environmental parameters.

This document refers to blue PiraT2 FW 01.09.01 and blue PiraT2 client version 1.9.1. Some

features depending on model and feature license or may not be available in older versions.

Software updates are frequently available in the blue PiraT Service Center. Please make sure to

use current software.

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 6

bP2_Camera_UserGuide_V1.9.1.doc

4. System requirements

Control Unit

A Laptop or a PC is used to configure the devices by a software client. It also allows to save the

recorded data and to use them offline.

blue PiraT2

The blue PiraT2 is an optimized data logger developed by Telemotive AG. The communication of

bus systems and control units are monitored and relevant data can be recorded very precisely with

the blue PiraT2. The collected data are stored on the blue PiraT2 and can be downloaded to a PC

blue PiraT2 Ethernet Kit

This device is connected via a FCI cable to the blue PiraT2 and via Ethernet with the AXIS Server.

This establishes the connection between blue PiraT2 and the AXIS Video-Encoder and allows

connecting to a Local Area Network (LAN).

AXIS Q7404 / P7214 Video Encoder

The AXIS Video Encoder is a powerful standalone device with 4 channels. It integrates 4 analog

cameras simultaneously into an IP-based video surveillance system. It delivers also super video

quality with H.264 and significant savings in bandwidth and storage requirements.

AXIS Q7404 will use 4 different IP addresses for each group of 4 input channels.

AXIS P7214 however will use 1 IP address for each group of 4 input channels.

Network-Cameras

1 to 4 cameras are supported to record the video streams. These cameras can be connected to the

4 channels of the encoder. These cameras are supported: AXIS 207, 210 and 211.

The setup of AXIS Network-Cameras 207/210/211 is similar to the configuration of AXIS Q7404

Video-Encoder.

Camera License

For using the camera feature, a license file must be installed on each blue PiraT2.

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 7

bP2_Camera_UserGuide_V1.9.1.doc

5. Setup Video Encoder AXIS Q7404

5.1. Connecting to the Q7404

Connect your PC with the Video-Encoder via Ethernet. The video signal has to be connected to the

Video-Encoder port. Connect the Video-Encoder to the power supply. Wait until the startup is

complete (All LEDs are colored in green).

Cameras AXIS Q7404

Power (acc. AXIS spec.)

Change your PC IP configuration. Use static IP address with the following setting:

IP address: 192.168.1.80

Subnet mask: 255.255.255.0

5.2. Access to Axis Q7404

Open you browser and type in the following URL: 192.168.0.90

Type in your password and keep it in mind or write it down. If the system ask for a further

authentication (in some cases), please type in the same user and password like before.

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 8

bP2_Camera_UserGuide_V1.9.1.doc

After setting the password please login to the Video Encoder

When you logged into the Video Encoder the first time, you can change the language settings if

required.

After your confirmation, you can see the live stream from camera 1.

5.3. Installing the admin user

The blue PiraT2 camera application needs a special user with administrator rights.

blue PiraT2 - Camera User Guide

Version 1.9.1 - 29.01.2014 Page 9

bP2_Camera_UserGuide_V1.9.1.doc

Open “Setup” (1), “Basic Setup” => “Users” (2) and choose “Add…” (3). Name the new user

“admin” and define a password (4). Keep the data in mind or write it down. Choose the option

“Administrator” (5) and click “OK (6). Afterwards, mark the checkbox “Enable anonymous viewer

We recommend these settings:

User name: admin

Password: 2x8bg4

Note:

To be sure to get access to the Video Encoder by the blue PiraT2 please use the properties above.

Autres manuels pour blue PiraT2

Table des matières

Autres manuels Telemotive AG Enregistreur de données

Telemotive AG

Telemotive AG blue PiraT2 Manuel utilisateur

Telemotive AG

Telemotive AG blue PiraT Mini Manuel utilisateur

Telemotive AG

Telemotive AG blue PiraT2 Manuel d'installation

Manuels Enregistreur de données populaires d'autres marques

TESTO

TESTO 176 Manuel utilisateur

HT Italia

HT Italia XL421 Manuel utilisateur

HBM

HBM SOMAT XR CX22B-R Manuel utilisateur

Agtrix

Agtrix 380i Manuel utilisateur

Hobo

Hobo H8 Pro Manuel utilisateur

Beijing ART Tech

Beijing ART Tech PCI2320 Manuel utilisateur

Athena

Athena GET SL1 Manuel utilisateur

Motec Systems

Motec Systems C185 Manuel utilisateur

Beijing ART Tech

Beijing ART Tech USB2832 Manuel utilisateur

Rotronic

Rotronic HygroLog HL20 Manuel utilisateur

MRC

MRC DW-6092 Manuel utilisateur

Racelogic

Racelogic VBOX LapTimer Manuel utilisateur

Edu-Logger

Edu-Logger 900-240 Manuel utilisateur

Elma

Elma DT173 Manuel utilisateur

MadgeTech

MadgeTech PRTemp140 Fiche technique

Comet

Comet U0121M Manuel utilisateur

pico Technology

pico Technology PT-104 Manuel utilisateur

Soil Instruments

Soil Instruments GTecLink Manuel utilisateur
