About this manual

This document is common to several television models. Therefore, certain functions or settings may not apply to

the model you have purchased

About the switch

The position of the ON/OFF switch differs depending on the model. It may be located on the front or on the

right-hand side of your set (see the drawing inside the cover page of your manual).

About safety

To ensure your own safety and safe operation of the equipment, observe the following instructions

thoroughly.

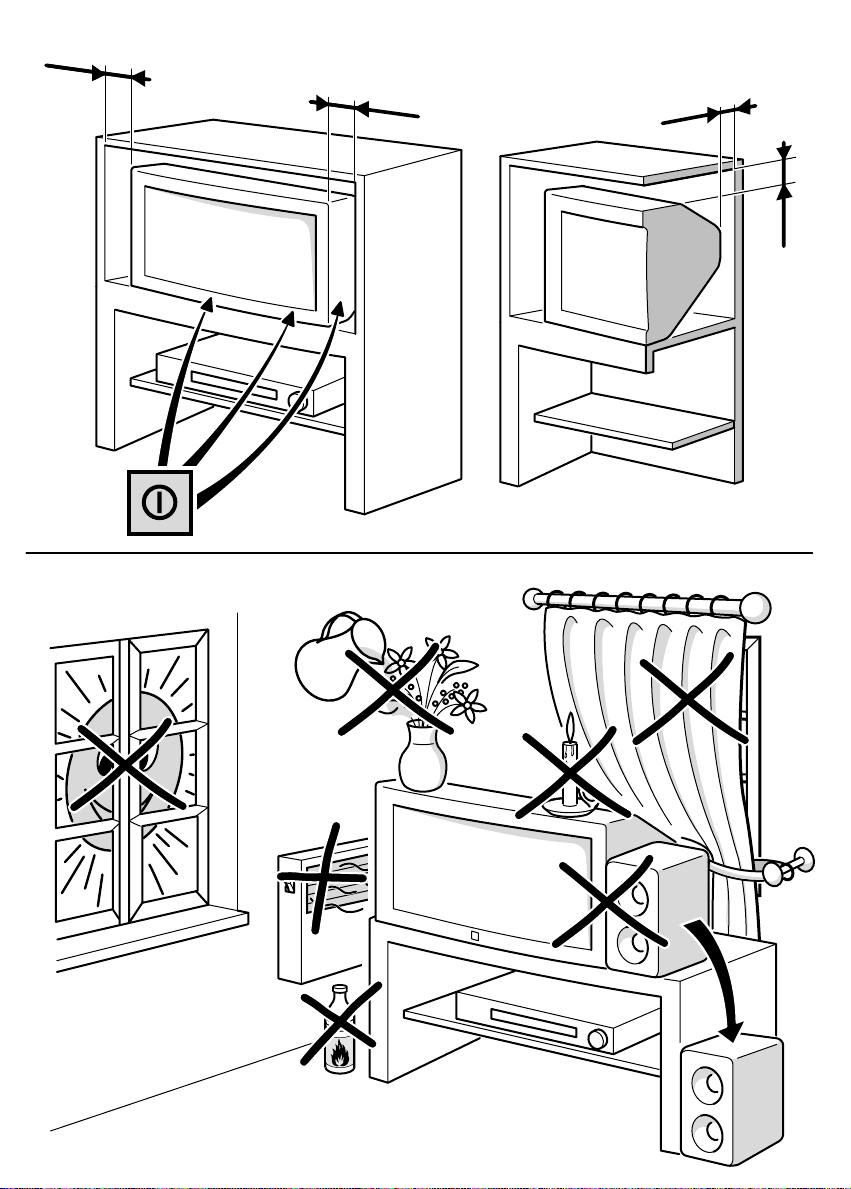

TV sets requiresufficient ventilation toprevent theircomponents from overheating, whichwill causefailure. Do not

block the ventilation openings at the rear. If you place your TV set in a special piece of furniture, make sure there

is enough space for unhindered air circulation. Do not place the TV set in the close vicinity of a heater.

The TV set has been designed for use in dry rooms. Should you use it, in exceptional

circumstances in the open air (example: on the balcony, in the veranda or tent), you must absolutely protect it

against moisture (dew, rain, splash water). Before switching on a cold TV set in a warm room, youshould wait until

any condensation in the screen has dried by itself.

Maximum ambient temperature: 35°C

Maximum humidity: 85%

By the end of your TV evening or when away from home for a longer period, we recommend that you turn off the

TV set with the On/Off-switch.

Even when the On/Off-switch is in the Off-position, your TV set is not fully disconnected from the mains. To

disconnect the set completely, the mains plug must be pulled out.

The mains plug must be easily accessible.

In the following cases, we recommend that you pull out the mains connector:

1. During a thunderstorm. In such acase, it is advisablethat you also disconnect the TV set from the aerial socket.

2. When odour or smoke emanates from the set.

Never attempt to open your TV set yourself.

Further information:

The TV set shielding is sufficient to prevent X-radiation to the exterior.

Any operation performed by a non skilled person, change of high voltage or replacement of the picture tube by a

model not complying with the manufacturer specification are likely to cause considerable increase in X-radiation.

A TV set modified in such a way no longer complies with the manufacturers’ specification and must not be used.

About cleaning

The screen is to be cleaned with liquid glass cleaners.

Never use abrasive products.

Clean the cabinet with a soft cloth soaked with neutral cleaner. Do not use solvents, such as white spirit or

alcohol-based cleaning products since they may damage your television.

At regular intervals, clean the ventilation grids at the rear of the TV set.

About degaussing

The terrestrial magnetic field may have an influence on your TV set. This influence is revealed by the coloured

spots, which appear on the screen.

Should this be the case:

Turn the equipment off by means of the On/Off-switch.

Wait about one hour before switching the set on again.

This procedure performs automatic degaussing of the screen. Should there still be coloured spots on the screen,

repeat the operation.

Contents

Page 4

Using the remote control

and fitting the batteries.

Page

How to call up a menu

and how to select a

function, a setting or an

option.

Installation

About this manual 1...................

About the switch 1.....................

About safety 1........................

About cleaning 1......................

About degaussing 1...................

Basic connections 3....................

Remote control 4.......................

Navigation principles 5.................

Calling up the Installation main menu 5...

Calling up the Settings summary 5.......

Calling up a Menu 5...................

Navigating within the Menus 5...........

Installing your television for the

first time 6.............................

Automatic installation 7.................

Programme organisation 8..............

Manual programming 9.................

Personal settings 10...................

Preferences 11........................

Instructions for Use

Daily viewing 12.......................

Picture Adjustment 12................

Sound Settings 12....................

Time 13.............................

List of Channels 14...................

Selecting Programmes 15.............

Scrolling the Programmes 15...........

Audio-visual (AV) Programmes 15......

Volume Control 15....................

Muting the Sound 15..................

Zoom (16/9 models only) 15...........

Displaying Information 15..............

Television Lock 15....................

Switching Off the Television 15.........

Teletext 16............................

Standard Functions 16................

Other Connections 17..................

Other Possibilities 17.................

Connecting a HiFi or AV amplifier 17....



Continental

Europe

United Kingdom

The plug is fitted with a fuse which protects your

television. If your television does not work, the fuse may

be blown. In this case, replace it with an identical 5 Amp

ASTA or lr BSI(BS 1362) certified fuse.

Note: the mains lead of your television is fitted with a

moulded plug.This lead contains all the safety equipment,

so you are advised when replacing itnot to use a

non-specific commercially-available model.

Basic connections

Basic co nnect ions

The mains plug (1) supplies power to the television. The

television must only be plugged in to a 220-240 V - 50 Hz

power supply. It must never be plugged in to a DC source. If

the plug comes away from the lead, never attempt to plug it

in: this could cause electrocution.

The aerial socket (2), located on the rearof the television, can

be used to connect an external aerial or other appliance

equipped with a modulator such as a VCR, satellite receiver,

etc.

If you connect an appliance to the aerial jack, you must give

it a channel number. To do this, switch on the appliance, then

use the television to find the modulator channel (see the

appliance manual). Now give it a programme number and

memorise it (see Manual Programming of channels). Then,

when you wish to use the appliance, simply select its

programme number on the television. This procedure is not

required for VCR’s not equipped with a modulator.

The SCART socket AV1 (3), located on the rear of the

television, is intended to connect a VCR or a camcorder

(VHS, 8 mm), a Canal+ decoder, a video games console or

RGB-signal emitting appliances.

The SCART socket AV2 (3), located on the rear of the

television, is intended to connect a VCR or a camcorder

(VHS, 8 mm, S-VHS or Hi-8).

We strongly recommend the use of this type of connection,

which gives a better picture quality. To use the peripheral

appliance that you have connected, press the AVkey onyour

remote control (press once to select AV1; twice to select

AV2; three times for AV3: see ”Other Connections”). This

selection is automatic for some appliances. Pressing “”play”

on a VCR, or switching on a satellite receiver connected to

AV1 or AV2 will automatically switch on your television.

When you stop the VCR, if you have not changed channels

while watching the VCR, the television automatically

switches back to the channel you were watching beforehand.

If the television has been switched on from the VCR, it

switches to standby when the VCR is switched off. The

television automatically switches to 16/9 format if the

connected appliance delivers the corresponding signal.

This key is active only when using

the Teletext (blue key)

Display of channel, time, sound (yellow

button) (and zoom for models with zoom)

The red, green, yellow and

blue keys are also used for

the Teletext.

Standby

Right/Left Selection within

menus and

Zoom Function (for models with

this function)

Call up Teletext / Toptext /

Fastext function (purple button)

Go to adjustment function MENU

Go to programmes and enter

numerical values in menus

Move Up/Down in menus

Change programme

Volume adjustment

To leave a menu or Teletext

Sound mute

Call up programme list

(green button)

Selecting appliances

connected to the television

(AV1, AV2 ...)

Confirm an action or validate a

menu option

Reminder of picture

preferences (red button)

For programme numbers higher

than 10, press the

key on the

remote control: ”- -” appears on

the screen. Now use the

number keys on the remote

control to enter first the tens

digit then the units digit.











Please respect the environment! Before throwing any batteries away, consult your

distributor who may be able to take them back for specific recycling.

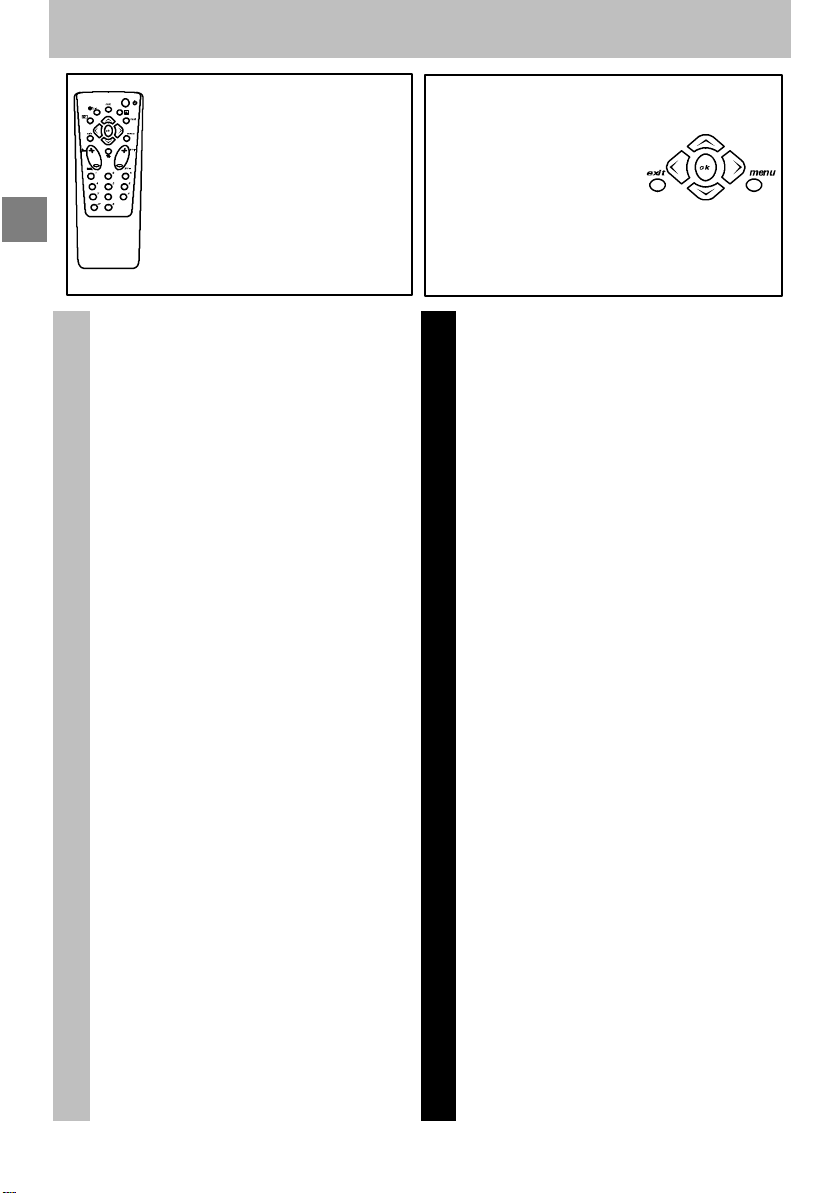

Remote control

INSTALLATION MAIN MENU

Exit

Manual programming

Auto installation

Programme organisation

Personal settings

SUMMARY

Exit

Teletext


Sound

List

Time

Preferences

Navigation principles

Calling up the Installation main menu

If there is no menu displayed on the screen,

press and hold the key on the remote

control. The settings SUMMARY is displayed

first, followed by the INSTALLATION MAIN

MENU which you can use to operate your

television.

Calling up the Settings summary

Press and release the key on the

remote control to display the list of menus

available for using your television functions or

adjusting your television

Calling up a Menu

SelectthemenuyouwishusingtheUp/Down

keys. Press the key to validate..

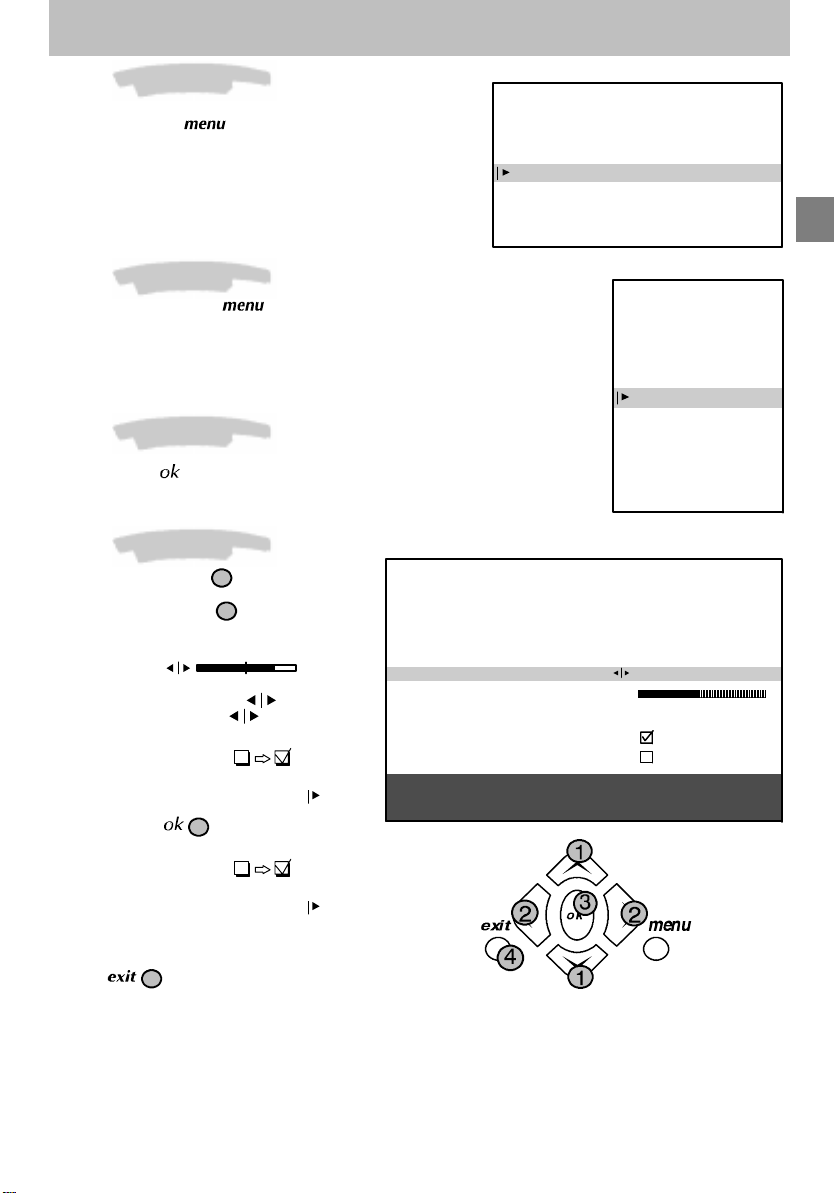

Navigating within the Menus

Use the Up/Down keys 1to select a line.

Use the Left/Right keys 2to:

- Increase or decrease a value:

for example:

Fine tuning

- Select an option:

for example: Reception Aerial

Reception Cable

- Activate or deactivate an option:

for example: Decoder

- Access a sub-menu:

for example: Picture preferences

You can use the 3key to:

- Activate or deactivate an option:

for example: Decoder

- Access a sub-menu:

for example: Picture preferences

- Validate an action:

for example: Store on PR number

Use the 4key to exit a menu.

MANUAL PROGRAMMING

Return

Standard

Reception

Autosearch

Fine tuning

Store on PR number

Name

Decoder

External sound path

EURO BG

Cable

CH- -

----

Enter channel number or start

autosearch with < or >.

English

Français OK

Deutsch

Italiano

Español

Português

Nederlands

Svenska

Dansk

Norwisch

(Fig. 1)(Fig. 1)

(Fig. 2) COUNTRY SELECTION

Exit

United Kingdom

Eire

France

Germany

Italy

Spain

Portugal

Holland

Belgium and Luxembourg

Switzerland

Austria

Sweden

Denmark

Norway

Other

Select your country and press OK

SEARCHING

AUTO INSTALLATION

003 STATIONS FOUND

Searching for TV stations.

Please wait. To cancel press EXIT.

(Fig. 3)

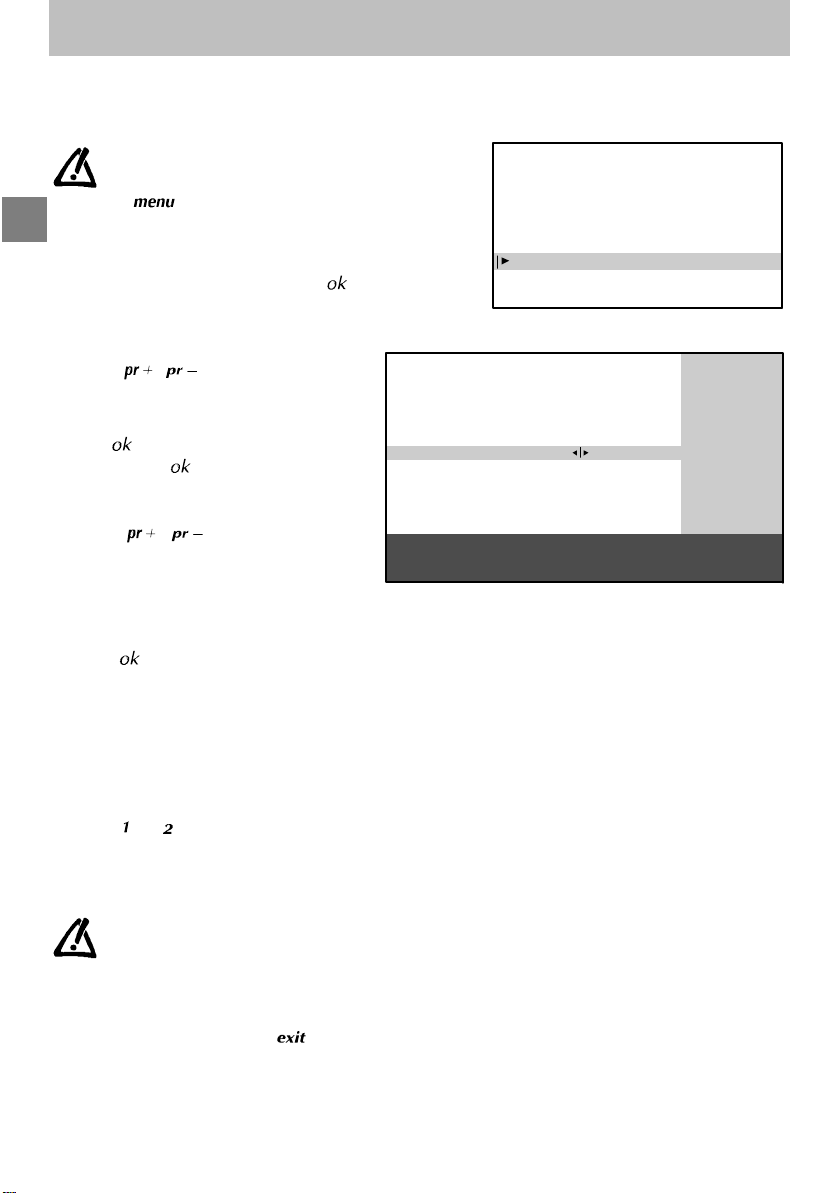

Installing your television for the first time

Installing yo ur television for th ef irst time

First plug thetelevision into amains poweroutlet and tothe external aerial or a cable network, then switch on using

the ON/OFF switch located on the front or the side of your set.

When youswitch on yourtelevision forthe first time, the language selection menu* is displayed(Fig. 1). If this does

not happen, set thetelevision tostandby thenpress andhold the keyon thetelevision until this menuappears.

Installation Instructions (start)

1. Use the Up/Down keys to select the

language in which you wish the menus tobe

displayed.

2. Then validate using .

3. A list of countries* is now displayed (Fig. 2).

Select the country in which you live, or the

country from which you wish to receive the

broadcasts if you live in a border area.

4. Then validate using .

5. A welcome message is displayed.

6. Run the automatic installation sequence

using .

7. A message appears to inform you that

automatic installation has started (Fig. 3).

Wait for a few minutes.

A new message will inform you when

automatic installation is completed.

8. If you wish to check or modify the channel

organisation, press and see the

Programme organisation chapter.

If you do not wish to modify the channel

organisation, you can exit the menu by

pressing then watch the channel of

your choice. Choose the desired channel

using the number keys (1, 2, 3, ...) and the

/keys.

If you have a decoder, see the Manual

programming chapter.

Your television will only search for channels

corresponding to the country you have

selected. See the Manual channel

programming chapter to install any channels

not found.

For cable networks, read the Automatic

channel installation chapter to install any

channels not found.

*The list of languages and countries may vary

from one model to another.

Installation Instructions (end)

INSTALLATION MAIN MENU

Exit

Manual programming

Auto installation

Programme organisation

Personal settings

SEARCHING

AUTO INSTALLATION

003 STATIONS FOUND

Searching for TV stations.

Please wait. To cancel press EXIT.

Automatic installation

Automaticinstallation

The Automatic installation function is useful if you have to go through the installation procedure again, such as

when moving house. This function deletes all previously memorised programmes. To install a new channel, you

should use the Manual programming function.

Before running AUTO INSTALLATION, check the PERSONAL SETTINGS menu to ensure that the country

displayed is correct.

Your television will only search for channels corresponding to the selected country, so see the Manual

programming chapter to install any channels not found. Forcablenetworks, if you havenot foundcertain

channels,select

Other

insteadofacountryname inthe

PERSONALSETTINGS

menu,then runautomatic

installation again.

1. Press and hold the key on the remote

control to display the INSTALLATION MAIN

MENU (The SUMMARY appears first,

followed by the INSTALLATION MAIN

MENU).

2. Select the Auto installation line.

3. Validate using .

A message will inform you that Automatic

installation has begun.

Wait for a few minutes.

A new message will inform you when

Automatic installation is completed.

If you wish to check or reorganize your channel

display, press the key and see the

Programme organisation chapter.

If you do not wish to reorganize your

programmes, you can exit this menu by

pressing , then watch the programme of

your choice. Choose the desired programme

using the number keys (1, 2, 3, ...) and the

/keys.

INSTALLATION MAIN MENU

Exit

Manual programming

Auto installation

Programme organisation

Personal settings

PROGRAMME ORGANISATION

Return

Select program.

Swap with PR.

Change pr. name

Delete program.

EURO

10 MTV

11 FR2

12 TF1

13 EURO

14 CH40

15 CC01

16 ARTE

17 CART

18 ----

19 ARD

Select programme number using

PR-/PR+ or </> or 0 to 9 keys.

Select the line marked Return to return to the previous

menu.

Programme organisation

During automatic installation, your television will search for the channel name and assign it a programme number

according to the selected country. You can use the PROGRAMME ORGANISATION menu to name any channel

name not found, to changethe order in which the channels are displayed, or todelete channels for which reception

is too poor. Follow the messages at the bottom of the screen. For further details, read the information below.

If you wish to access the

PROGRAMME ORGANISATION

menu thereafter, first press and hold

the key on the remote control to

display the

INSTALLATION MAIN

(the

SUMMARY

is displayed

first, followed by the

INSTALLATION

MAINMENU

)thenselect

Programme

organisation

and validate using .

- Todeletea programme for which reception

is too poor:

1. Select the line marked Select program.

2. Use the /or Left/Right keys to list

your channels.

3. Whenyougetto achannel youwishtodelete,

select the line marked Delete program.

4. Press to delete the programme.

5. .Validate using .

- To organize your channels to suit you:

1. Select the line marked Select program..

2. Use the /or Left/Right keys and

the programmes logos to find theprogramme

to which you wish to give the No.1.

Its present number appears on the line

marked Select program..

3. Select the line marked Swap with PR.

4. Enter 01.

5. Press . The two programmes swap

position and the desired programme

becomes N°1.

6. Repeat the above procedure for the other

channels.

- To name your channels:

1. Select the line marked Change pr. name

2. Select the character youwish to modify using

the Left/Right keys.

3. Use the and keys to displaythe letter you

require.

The name you have entered will be

memorised when you move to another line or

exit the menu.

If you wish to change the orderin which

your programmes are displayed or if

you wish to name other programmes,

repeat the procedures described

above.

When you have finished organizing the

programmes, exit the menu using .

Autres manuels pour Telefunken DF321E

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Telefunken TV

Telefunken

Telefunken D32H125A3C Manuel utilisateur

Telefunken

Telefunken TF42K192A Manuel utilisateur

Telefunken

Telefunken TFL65FHD200BC Manuel utilisateur

Telefunken

Telefunken T7068TL Manuel utilisateur

Telefunken

Telefunken T22R900 Manuel utilisateur

Telefunken

Telefunken TK2929STX Manuel utilisateur

Telefunken

Telefunken TTV-299 Manuel utilisateur

Telefunken

Telefunken DF 316 ET Manuel utilisateur

Telefunken

Telefunken TF-LED32S22T2 Manuel utilisateur

Telefunken

Telefunken TK3429STX Manuel utilisateur

Telefunken

Telefunken TE39PNDB42V2D Manuel utilisateur

Telefunken

Telefunken TE24555S27YXD Manuel utilisateur

Telefunken

Telefunken 75TU6200 Manuel utilisateur

Telefunken

Telefunken TE24550B40Q2D Manuel utilisateur

Telefunken

Telefunken TF-LED15S5 Manuel utilisateur

Telefunken

Telefunken TE24550B42V2D Manuel utilisateur

Telefunken

Telefunken TE32555B45V2D Manuel utilisateur

Telefunken

Telefunken TE32550S27YXD Manuel utilisateur

Telefunken

Telefunken TKP2939ST Manuel utilisateur

Telefunken

Telefunken TF-LED32S26T2 Manuel utilisateur

Telefunken

Telefunken TTV-21N02 Instructions de montage

Telefunken

Telefunken TE24550B42V2E Manuel utilisateur

Telefunken

Telefunken UMBRA40UHD Manuel utilisateur

Telefunken

Telefunken TKP2147STX Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
