Teledyne Lecroy PP009 Manuel utilisateur

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

Excellent Integrated System Limited

Stocking Distributor

Click to view price, real time Inventory, Delivery & Lifecycle Information:

Teledyne LeCroy

PP009-1

For any questions, you can email us directly:

[email protected]

1 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

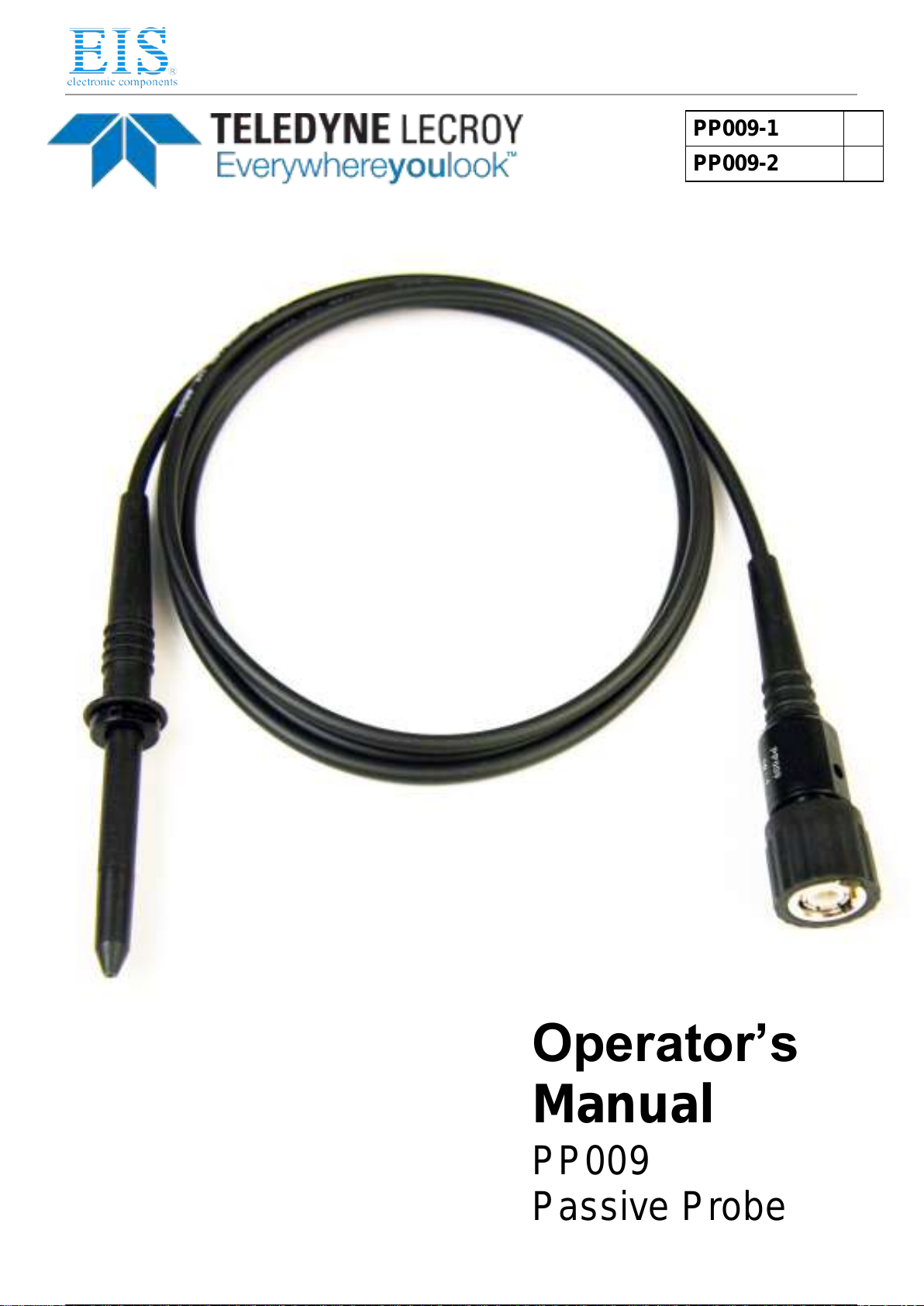

PP009-1

PP009-2

Operator’s

Manual

PP009

Passive Probe

2 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

3 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

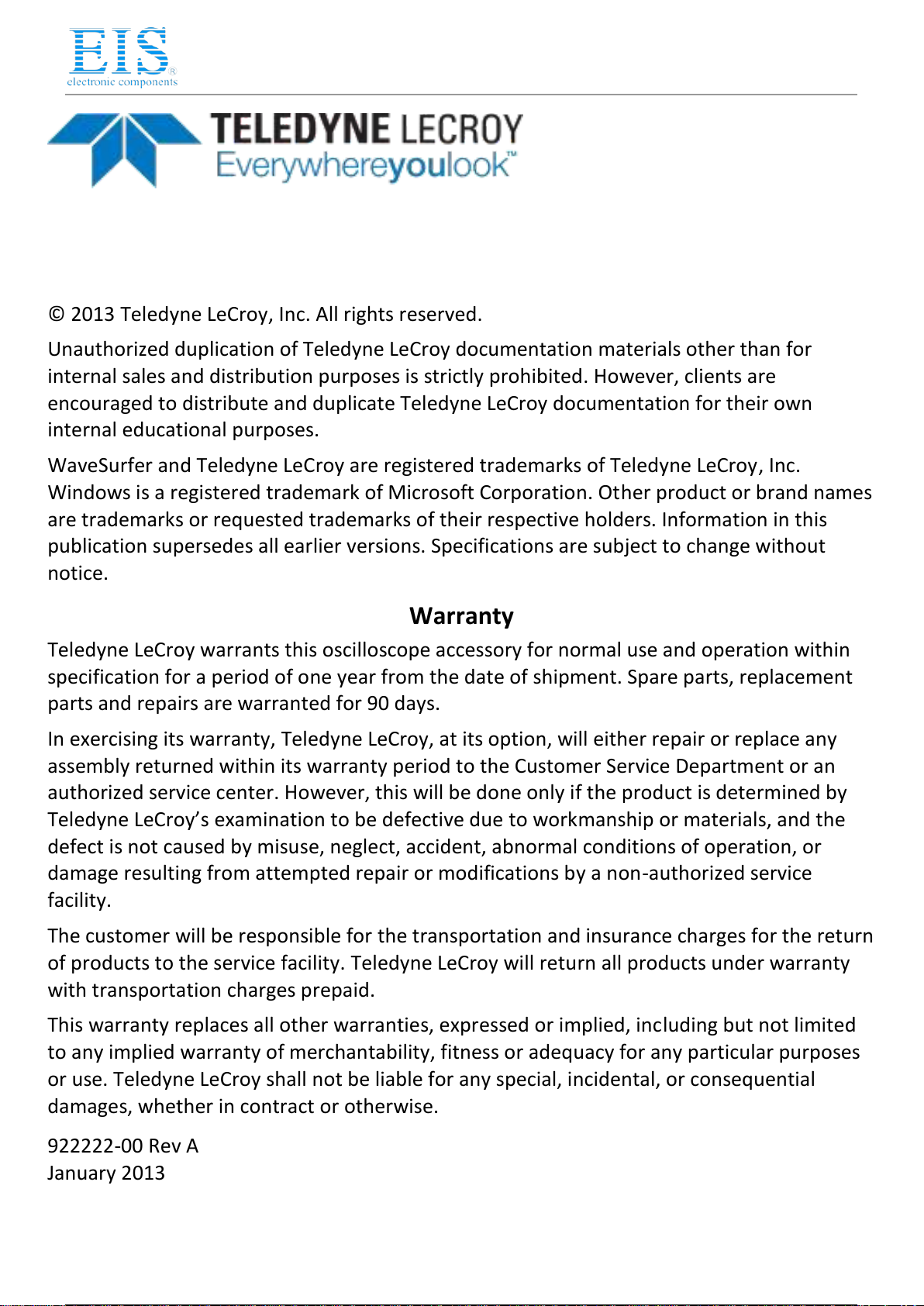

Unauthorized duplication of Teledyne LeCroy documentation materials other than for

internal sales and distribution purposes is strictly prohibited. However, clients are

encouraged to distribute and duplicate Teledyne LeCroy documentation for their own

internal educational purposes.

WaveSurfer and Teledyne LeCroy are registered trademarks of Teledyne LeCroy, Inc.

Windows is a registered trademark of Microsoft Corporation. Other product or brand names

are trademarks or requested trademarks of their respective holders. Information in this

publication supersedes all earlier versions. Specifications are subject to change without

notice.

Warranty

Teledyne LeCroy warrants this oscilloscope accessory for normal use and operation within

specification for a period of one year from the date of shipment. Spare parts, replacement

parts and repairs are warranted for 90 days.

In exercising its warranty, Teledyne LeCroy, at its option, will either repair or replace any

assembly returned within its warranty period to the Customer Service Department or an

authorized service center. However, this will be done only if the product is determined by

Teledyne LeCroy’s examination to be defective due to workmanship or materials, and the

defect is not caused by misuse, neglect, accident, abnormal conditions of operation, or

damage resulting from attempted repair or modifications by a non-authorized service

facility.

The customer will be responsible for the transportation and insurance charges for the return

of products to the service facility. Teledyne LeCroy will return all products under warranty

with transportation charges prepaid.

This warranty replaces all other warranties, expressed or implied, including but not limited

to any implied warranty of merchantability, fitness or adequacy for any particular purposes

or use. Teledyne LeCroy shall not be liable for any special, incidental, or consequential

damages, whether in contract or otherwise.

922222-00 Rev A

January 2013

4 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

PP009 Passive Probe

2 922222-00 Rev A

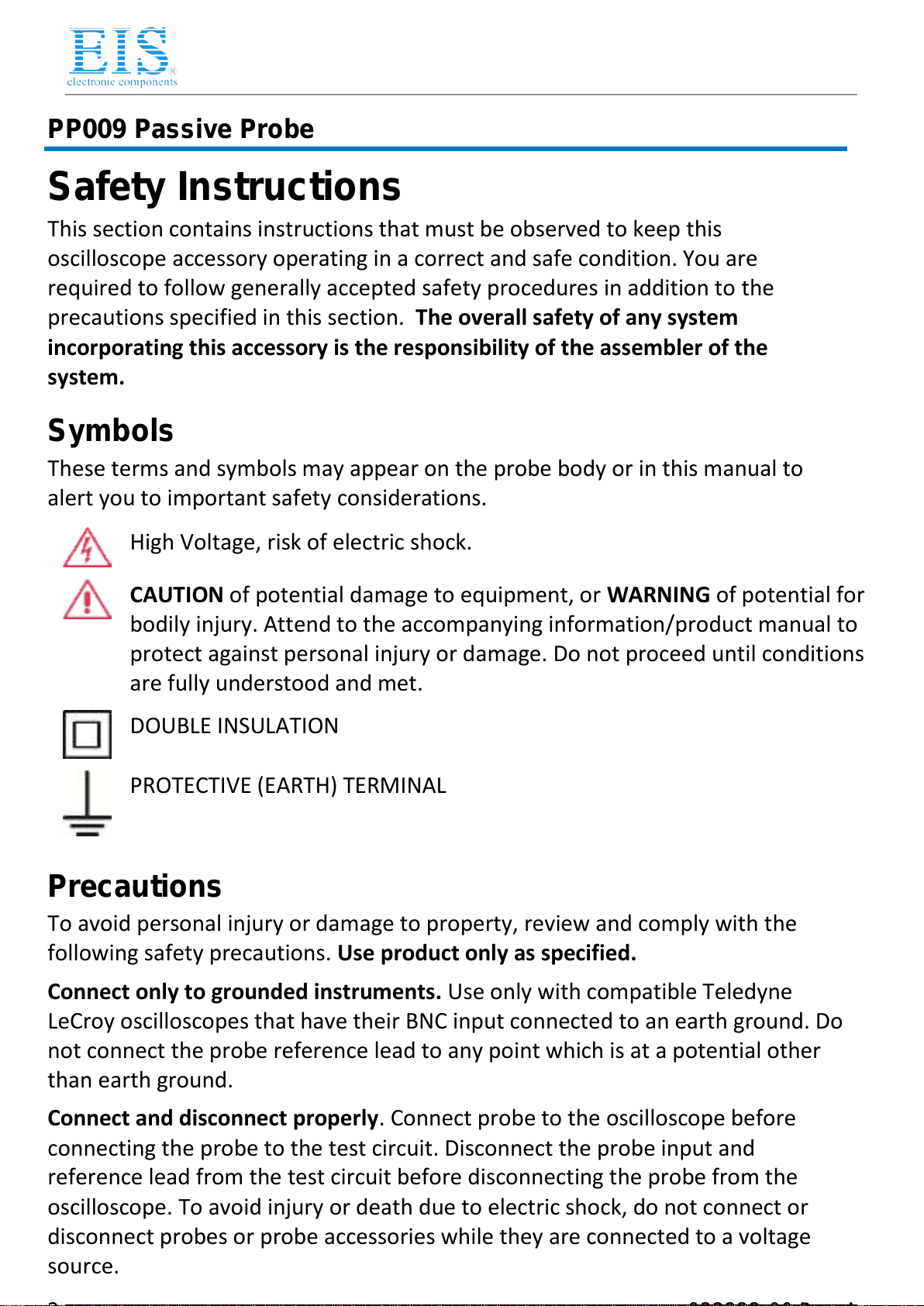

Safety Instructions

This section contains instructions that must be observed to keep this

oscilloscope accessory operating in a correct and safe condition. You are

required to follow generally accepted safety procedures in addition to the

precautions specified in this section. The overall safety of any system

incorporating this accessory is the responsibility of the assembler of the

system.

Symbols

These terms and symbols may appear on the probe body or in this manual to

alert you to important safety considerations.

High Voltage, risk of electric shock.

CAUTION of potential damage to equipment, or WARNING of potential for

bodily injury. Attend to the accompanying information/product manual to

protect against personal injury or damage. Do not proceed until conditions

are fully understood and met.

DOUBLE INSULATION

PROTECTIVE (EARTH) TERMINAL

Precautions

To avoid personal injury or damage to property, review and comply with the

following safety precautions. Use product only as specified.

Connect only to grounded instruments. Use only with compatible Teledyne

LeCroy oscilloscopes that have their BNC input connected to an earth ground. Do

not connect the probe reference lead to any point which is at a potential other

than earth ground.

Connect and disconnect properly. Connect probe to the oscilloscope before

connecting the probe to the test circuit. Disconnect the probe input and

reference lead from the test circuit before disconnecting the probe from the

oscilloscope. To avoid injury or death due to electric shock, do not connect or

disconnect probes or probe accessories while they are connected to a voltage

source.

5 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

Operator’s Manual

922222-00 Rev A 3

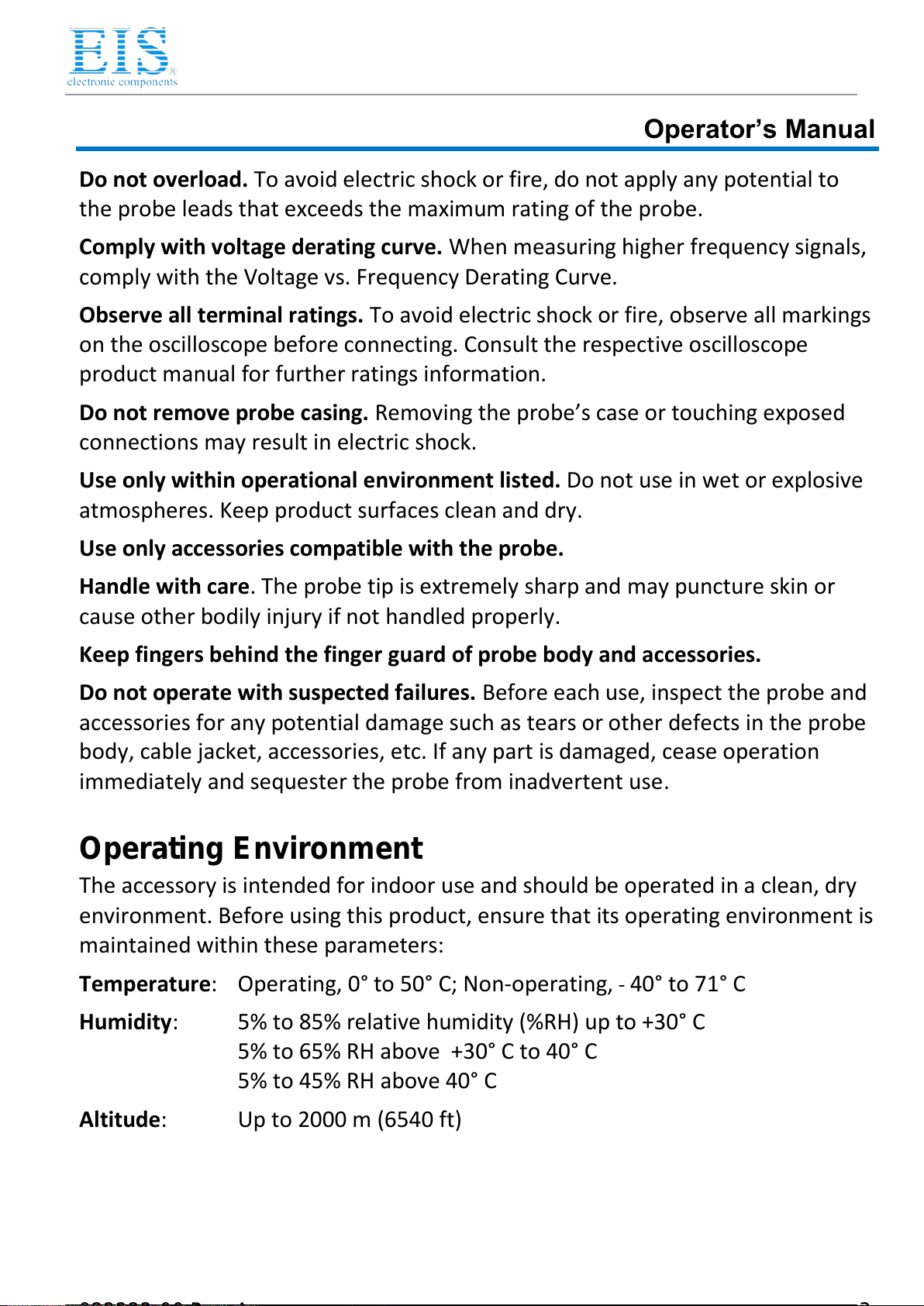

Do not overload. To avoid electric shock or fire, do not apply any potential to

the probe leads that exceeds the maximum rating of the probe.

Comply with voltage derating curve. When measuring higher frequency signals,

comply with the Voltage vs. Frequency Derating Curve.

Observe all terminal ratings. To avoid electric shock or fire, observe all markings

on the oscilloscope before connecting. Consult the respective oscilloscope

product manual for further ratings information.

Do not remove probe casing. Removing the probe’s case or touching exposed

connections may result in electric shock.

Use only within operational environment listed. Do not use in wet or explosive

atmospheres. Keep product surfaces clean and dry.

Use only accessories compatible with the probe.

Handle with care. The probe tip is extremely sharp and may puncture skin or

cause other bodily injury if not handled properly.

Keep fingers behind the finger guard of probe body and accessories.

Do not operate with suspected failures. Before each use, inspect the probe and

accessories for any potential damage such as tears or other defects in the probe

body, cable jacket, accessories, etc. If any part is damaged, cease operation

immediately and sequester the probe from inadvertent use.

Operating Environment

The accessory is intended for indoor use and should be operated in a clean, dry

environment. Before using this product, ensure that its operating environment is

maintained within these parameters:

Temperature: Operating, 0° to 50° C; Non-operating, - 40° to 71° C

Humidity: 5% to 85% relative humidity (%RH) up to +30° C

5% to 65% RH above +30° C to 40° C

5% to 45% RH above 40° C

Altitude: Up to 2000 m (6540 ft)

6 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

PP009 Passive Probe

4 922222-00 Rev A

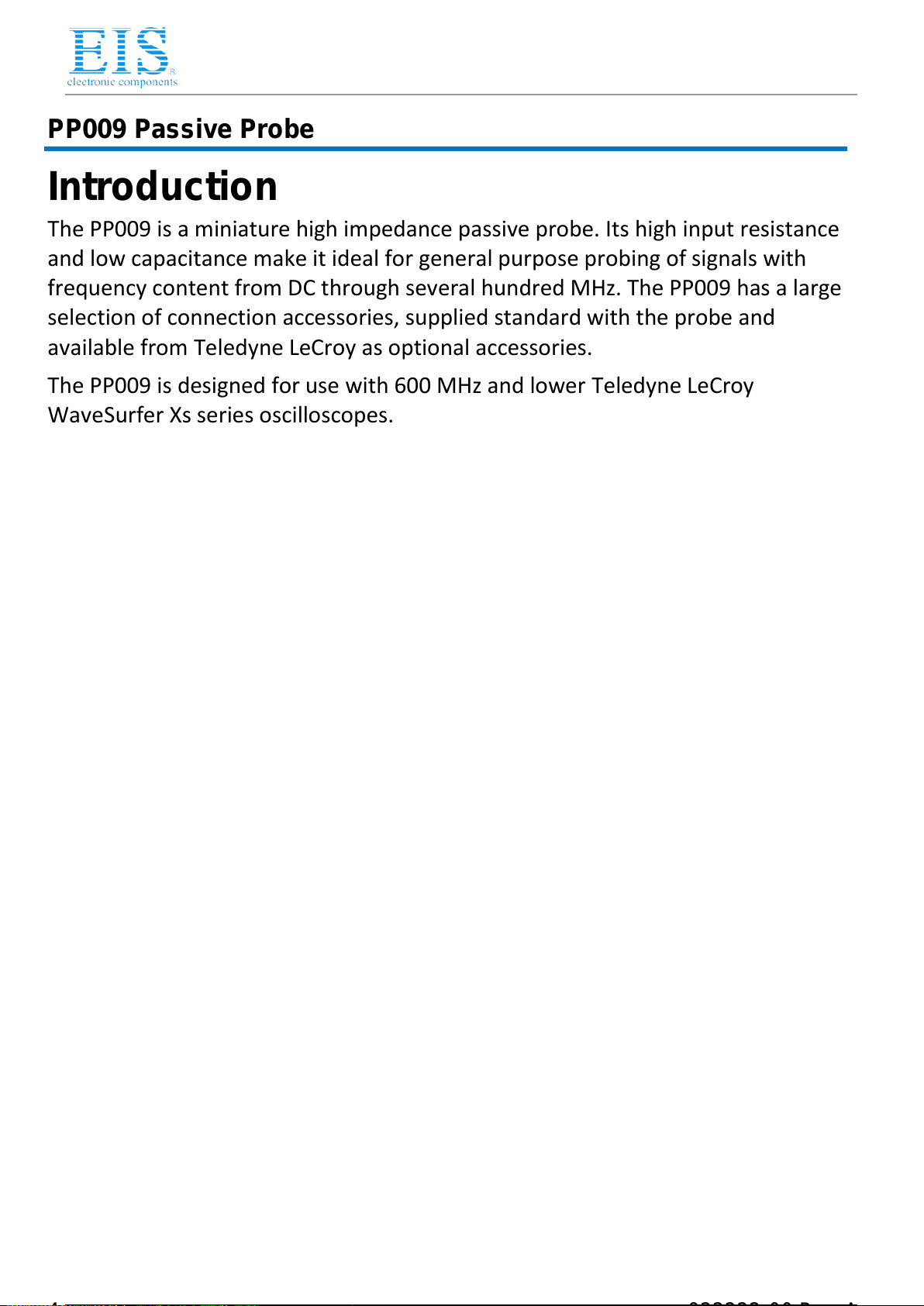

Introduction

The PP009 is a miniature high impedance passive probe. Its high input resistance

and low capacitance make it ideal for general purpose probing of signals with

frequency content from DC through several hundred MHz. The PP009 has a large

selection of connection accessories, supplied standard with the probe and

available from Teledyne LeCroy as optional accessories.

The PP009 is designed for use with 600 MHz and lower Teledyne LeCroy

WaveSurfer Xs series oscilloscopes.

7 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

Operator’s Manual

922222-00 Rev A 5

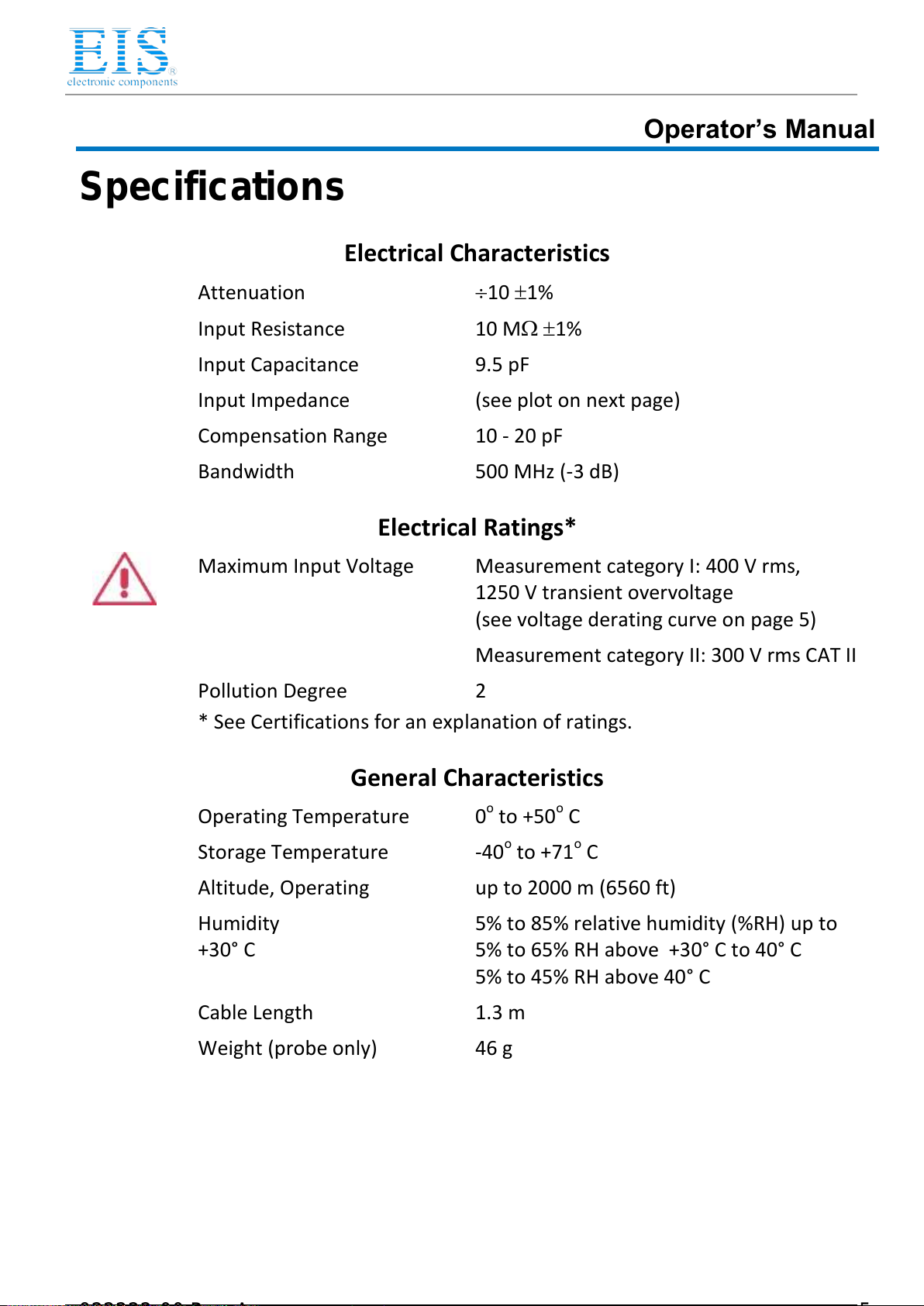

Specifications

Electrical Characteristics

Attenuation 10 1%

Input Resistance 10 M1%

Input Capacitance 9.5 pF

Input Impedance (see plot on next page)

Compensation Range 10 - 20 pF

Bandwidth 500 MHz (-3 dB)

Electrical Ratings*

Maximum Input Voltage Measurement category I: 400 V rms,

1250 V transient overvoltage

(see voltage derating curve on page 5)

Measurement category II: 300 V rms CAT II

Pollution Degree 2

* See Certifications for an explanation of ratings.

General Characteristics

Operating Temperature 0oto +50oC

Storage Temperature -40oto +71oC

Altitude, Operating up to 2000 m (6560 ft)

Humidity 5% to 85% relative humidity (%RH) up to

+30° C 5% to 65% RH above +30° C to 40° C

5% to 45% RH above 40° C

Cable Length 1.3 m

Weight (probe only) 46 g

8 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

PP009 Passive Probe

6 922222-00 Rev A

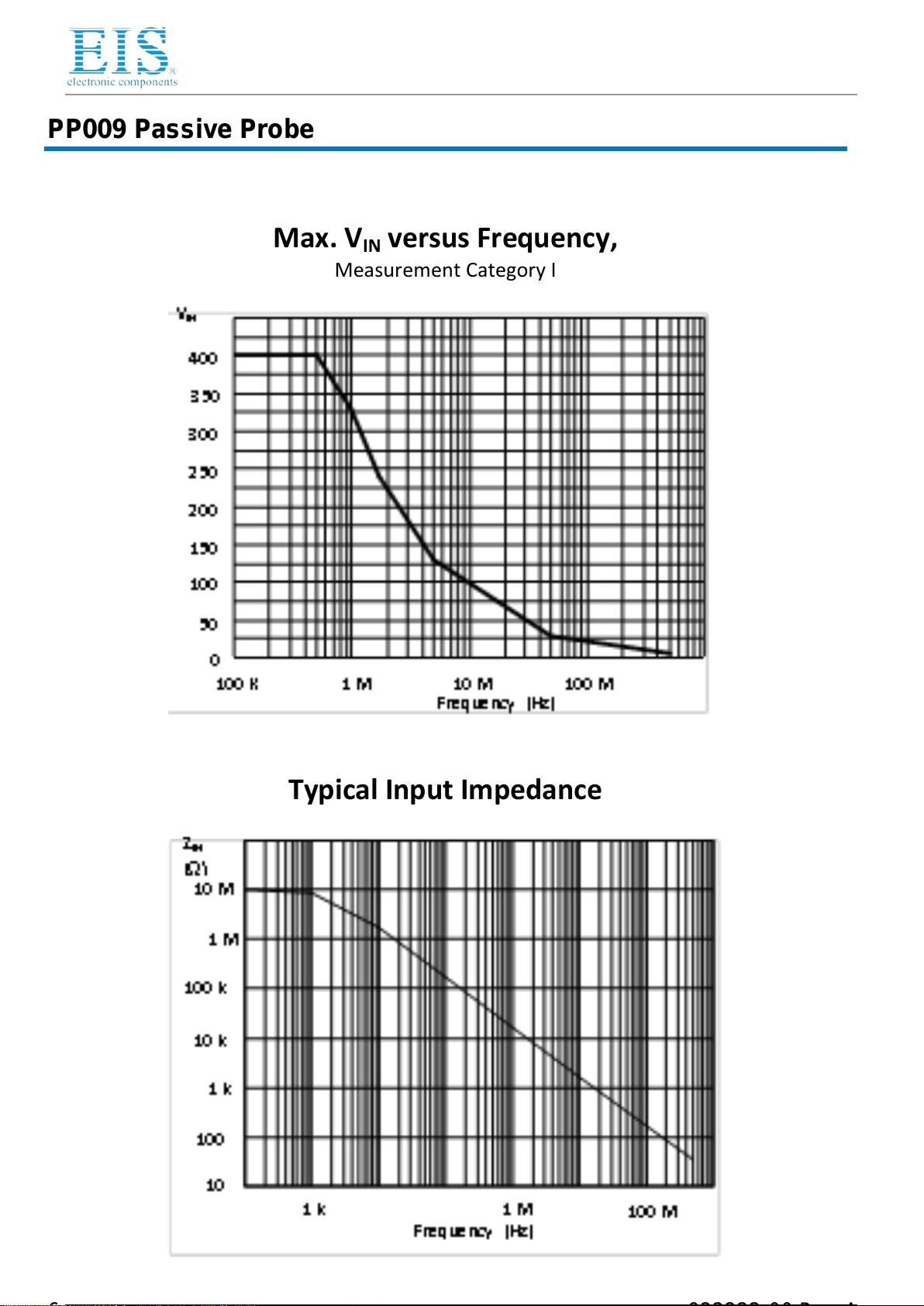

Max. VIN versus Frequency,

Measurement Category I

Typical Input Impedance

9 / 21

Distributor of Teledyne LeCroy: Excellent Integrated System Limited

Datasheet of PP009-1 - PASS PROBE 10:1 500MHZ 10M OHMS

Operator’s Manual

922222-00 Rev A 7

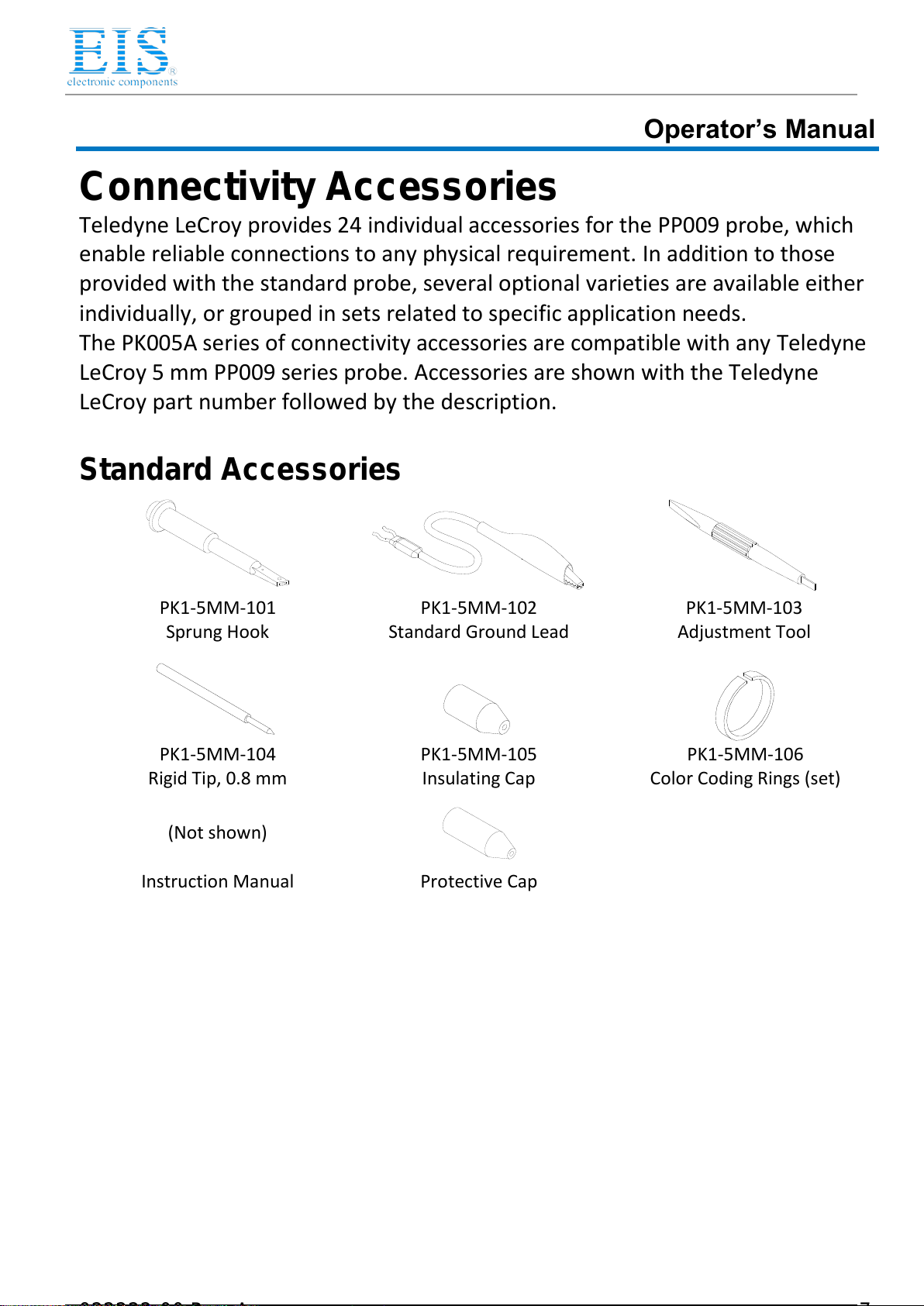

Connectivity Accessories

Teledyne LeCroy provides 24 individual accessories for the PP009 probe, which

enable reliable connections to any physical requirement. In addition to those

provided with the standard probe, several optional varieties are available either

individually, or grouped in sets related to specific application needs.

The PK005A series of connectivity accessories are compatible with any Teledyne

LeCroy 5 mm PP009 series probe. Accessories are shown with the Teledyne

LeCroy part number followed by the description.

Standard Accessories

PK1-5MM-101

Sprung Hook

PK1-5MM-102

Standard Ground Lead

PK1-5MM-103

Adjustment Tool

PK1-5MM-104

Rigid Tip, 0.8 mm

PK1-5MM-105

Insulating Cap

PK1-5MM-106

Color Coding Rings (set)

(Not shown)

Instruction Manual

Protective Cap
