Tele Radio D8-2 Manuel utilisateur

IM-TG2-XX002-A01-ALL

TELERADIOTIGER G2



Installation instructions



D8-2, D8-4



Language: English (original language)

CONTENTS
Chapter 1: CUSTOMER INFORMATION 3
Chapter 2: SYSTEM INFORMATION 5
Chapter 3: PRODUCT PAGES 6
D8-2/D8-4 circuit board description 6
Technical data 6
Mount D8-4 inside the receiver 7
Chapter 4: INSTALLERS GUIDE 8
Functionality 8
Connect MODBUS 9
Configuration settings for Tiger receiver and transmitter 9
Configuration settings for the MODBUS communication between D8-2/D8-4 and Tiger
receiver 9
Chapter 4: RoHS and WEEE 11
Chapter 5: Guarantee, service, repairs and maintenance 12
-2-

Chapter 1: CUSTOMER INFORMATION

CHAPTER 1: CUSTOMER INFORMATION



THANK YOU FOR PURCHASING A TELE RADIO AB PRODUCT



READALLINSTRUCTIONS ANDWARNINGS CAREFULLY BEFOREMOUNTING, INSTALLING

ANDCONFIGURATING THEPRODUCTS.



These instructions are published by Tele Radio AB without any guarantee. The instructions may be

removed or revised by Tele Radio AB at any time and without further notice. Corrections and additions

will be added to the latest version of the instruction.



IMPORTANT! These instructions are directed to installers. There are separate instructions directed

towards end users. The instructions that contain information on the installation and configuration of the

radio remote control unit on the machine are not intended to be passed on to the end user. Only such

information may be passed on to the end user that is needed to operate the machine correctly by radio

remote control.



Tele Radio AB products are covered by a guarantee/ warranty against material, construction or

manufacturing faults. During the guarantee/ warranty period, Tele Radio AB may replace the product or

faulty parts with new. Work under guarantee/ warranty must be carried out by Tele Radio AB or by an

authorized service center specified by Tele Radio AB. Contact your Tele Radio AB representative if you

need support or service.



©Tele Radio AB, 2013

Datavägen 21

SE-436 36 ASKIM

SWEDEN

Tel: +46-31-748 54 60

Fax: +46-31-68 54 64

www.tele-radio.com

-3-

WARNINGS & RESTRICTIONS



IMPORTANT! Tele Radio remote controls are often built into wider applications. We recommend that

the system is provided with a wired emergency stop where necessary.



NOTE! We recommend that the functionality of the STOP button is being tested at a regular basis: At a

minimum, when used for 200 hours. Test the STOP button by pressing it and pulling it out.



INSTALLING, CONNECTING AND MOUNTING

n Allow only licensed or qualified personnel to install the product.

n Switch the power supply off to the receiver before connecting the equipment.

n Check that you have connected the power supply to the correct connection terminal.

n To utilize the safety of the system, use the stop relays in the safety circuitry of the object that you

want to control.

n Use undamaged cables. No cables should hang loose.

n Avoid installing in areas affected by strong vibrations.

n Place the receiver well away from wind, damp and water.

n Cable glands and vent plugs must face down to prevent water from seeping in.



THE USER

n Make sure that the user is following the instructions.

n Make sure that the user has reached the certified age of your country to operate the equipment.

n Make sure that the user is not under the influence of drugs, alcohol and medicines.

n Allow only qualified personnel to have access to the transmitter and operate the equipment.

n Make sure that the user does not leave the transmitter unsupervised.

n Make sure that the user always turns the transmitter off when not in use.

n Make sure that the user keeps a good overview of the work area.



MAINTENANCE

n Use the stop button to start and turn off the transmitter as often as possible.

n When error messages are shown, it is very important to find out what caused them.

n If the stop button is mechanically damaged, contact your representative for service immediately.

n Always contact your representative for service and maintenance work on the product.

n Write down the serial numbers/ ID codes of the receivers and transmitters used. This infor-

mation should be recorded on the “Settings document” for your product (download from our

website).

n Avoid registering transmitters to receivers where it is not being used.

n Keep the safety instruction for future reference. Always download the configurations instruction

from our web site for the latest version available.

-4-

Chapter 2: SYSTEM INFORMATION

CHAPTER 2: SYSTEM INFORMATION



APPLICATION AREA FOR D8-2/D8-4 ANALOGUE OUTPUT

MODULE



The Tele Radio analogue output module D8-2/D8-4 is aimed to be used in applications with analogue

functions. All MN, MD and MX Tiger receivers support D8-2/D8-4.

-5-

Chapter 3: PRODUCT PAGES

CHAPTER 3: PRODUCT PAGES



D8-2/D8-4 CIRCUIT BOARD DESCRIPTION



1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1-16

LED1

LED2



1. AOUT1 8. GND 15. RS485A

2. AOUT2 9. +4.5-15V DC 16. RS485A

3. AOUT3 10. +4.5-15V DC 17. Select-button

4. AOUT4 11. GND 18. Power LED (green)

5. GND 12. GND 19. RS485 LED (red)

6. GND 13. RS485B 20. Programming connector

7. GND 14. RS485B 



TECHNICAL DATA



 D8-2 D8-4

Size 80x54x38 mm/3x2x1.5 in 63x45x15 mm/2.5x1.8x0.6 in

Weight Max. 200 g/0.44 Ibs Max 17 g/0.04Ibs

IP classification IP 65 -

Power supply +4.5-15 V DC

Current consumption 100 mA

Analogue outputs 4

Output signal types 0-10V DC



-6-

Chapter 3: PRODUCT PAGES

MOUNT D8-4 INSIDE THE RECEIVER



WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to

turn the electricity off before opening the receiver.



WARNING! Do not touch the area marked with danger when the receiver has been powered by

electricity. Touching the marked area may be very hazardous.



NOTE! D8-4 analogue output module can only be mounted inside the Tiger MX receiver.



1. Remove the display board by unscrewing the five screws and lifting it up. If a relay expansion

board is mounted, it has to be removed first.

SR1

SR2

sF1

sF2

SYSTEM SETUP>

>Register TX

Danger! High Voltage

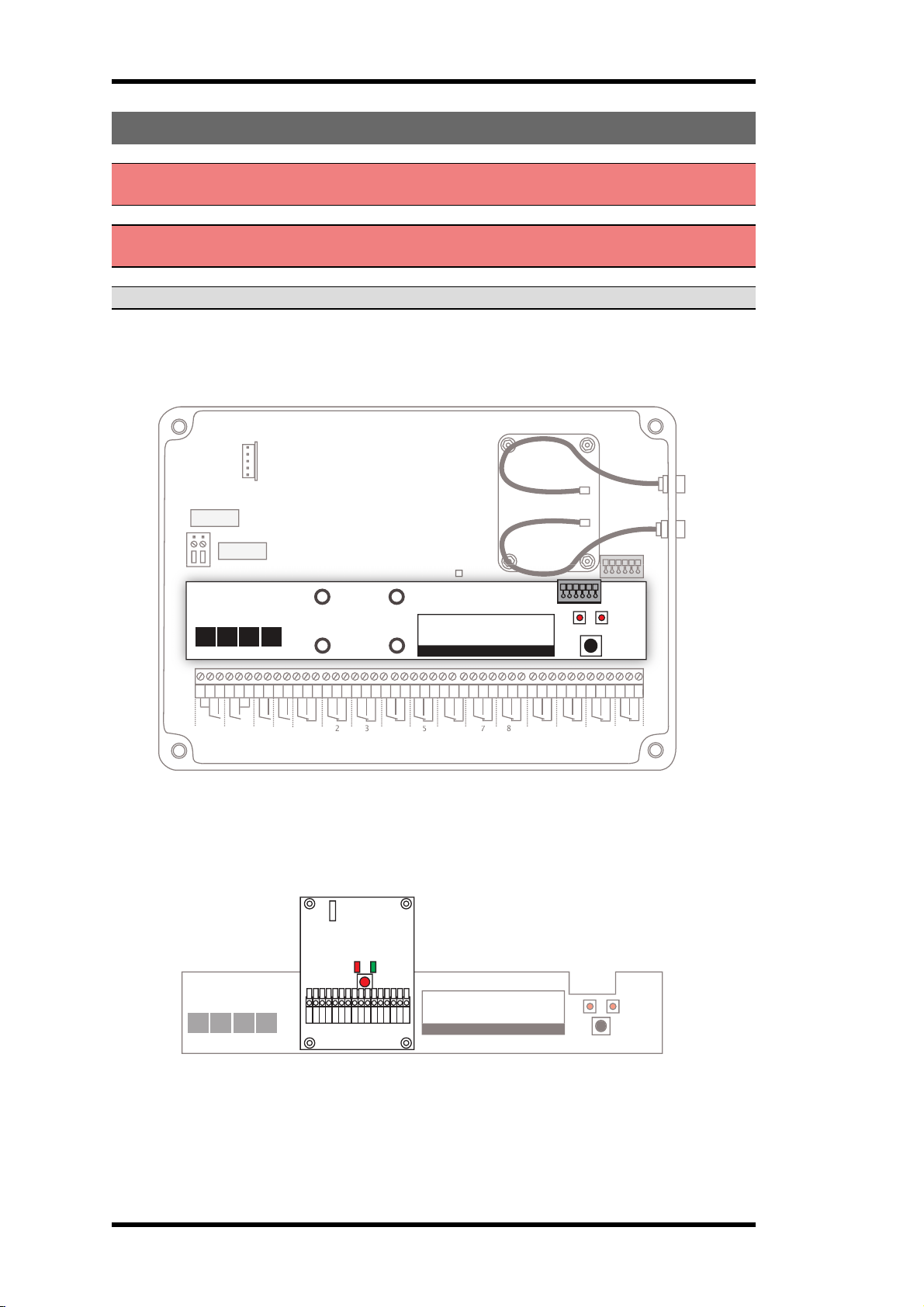

2. Mount the D8-4 unit on the display board with the four spacers. The screws are placed on the

back.

Danger! High Voltage

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

3. Put the display board back in the receiver using the five screws.

-7-

Chapter 4: INSTALLERS GUIDE

CHAPTER 4: INSTALLERS GUIDE



FUNCTIONALITY



The analogue output module D8-2/D8-4 has four channels, CH1-CH4. The four channels can output

one signal each. The output signals can be mapped to analogue levers, potentiometer, push button etc.

The analogue output modules are connected to the receiver with the RS485/MODBUS.



IMPORTANT! The Tiger system supports a maximum of four D8-2/D8-4 units. If all four modules are

connected to the receiver, unit one and two will have full functionality while units three and four will

only have limited functionality. This means that the output signal for units three and four can only be 0-

10V and that no scaling, ramping or offset of the output signal is possible. Contact your representative

for more information.



RS485/MODBUS

D8-2/

D8-4

D8-2/

D8-4

RECEIVER

TRANSMITTER

Signals in

CH1

CH2

CH3

CH4

Signals out

CH1

CH2

CH3

CH4

Signals out

CH1

CH2

CH3

CH4

Signals out

CH1

CH2

CH3

CH4

Signals out

D8-2/

D8-4

D8-2/

D8-4



-8-

Chapter 4: INSTALLERS GUIDE

CONNECT MODBUS



Connect D8-2/D8-4 unit to Tiger MX receiver.



1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 9 10 11 12 13 14



Connect D8-2/D8-4 unit to Tiger MN/MD receiver.



1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

32 33 34 35 36 37 38 39 40 41 42 43



Connect multiple D8-2/D8-4 units.



1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16



CONFIGURATION SETTINGS FOR TIGER RECEIVER AND

TRANSMITTER



The receiver can be configured to map, scale, ramp or offset the analogue output signals.



NOTE! The settings are made in the PC program Settings Manager. Contact your representative for

assistance.



CONFIGURATION SETTINGS FOR THE MODBUS

COMMUNICATION BETWEEN D8-2/D8-4 AND TIGER RECEIVER



Configure D8-2/D8-4 Analogue input module:

1. Connect D8-2/D8-4 unit to the PC program Settings Manager.

2. Go to MODBUS_ID and set slave address for the D8-2/D8-4 unit, (e.g. 1).

3. Save the settings.



-9-

Chapter 4: INSTALLERS GUIDE

Configure Tiger receiver:

1. Connect Tiger receiver to the PC program Settings Manager.

2. Go to MODBUSTDEVICES and set DEVICETYPEconnected to Tiger receiver.

3. Under section MODBUSDEVICES, go to DEVICEID and set slave address for the D8-2/D8-4

unit, (e.g. 1).

4. Under section COMMONRADIO, go to FLAGS and diable cable control for RS485.

5. Save the settings.



-10 -
