Tektronix TCP202 Manuel utilisateur

Instruction Manual

TCP202

15 Ampere AC/DC Current Probe

070-9542-00

Tektronix products are covered by U.S. and foreign patents, issued and

pending. Information in this publication supercedes that in all previously

published material. Specifications and price change privileges reserved.

Printed in the U.S.A.

Tektronix, Inc., P.O. Box 1000, Wilsonville, OR 97070–1000

TEKTRONIX, TEK, and TekProbe are registered trademarks of Tektronix, Inc.

WARRANTY

Tektronix warrants that the products that it manufactures and sells will be free from defects

in materials and workmanship for a period of one (1) year from the date of purchase from

an authorized Tektronix distributor. If any such product proves defective during this

warranty period, Tektronix, at its option, either will repair the defective product without

charge for parts and labor, or will provide a replacement in exchange for the defective

product. Batteries are excluded from this warranty.

In order to obtain service under this warranty, Customer must notify Tektronix of the defect

before the expiration of the warranty period and make suitable arrangements for the

performance of service. Customer shall be responsible for packaging and shipping the

defective product to the service center designated by Tektronix, shipping charges prepaid,

and with a copy of customer proof of purchase. Tektronix shall pay for the return of the

product to Customer if the shipment is to a location within the country in which the

Tektronix service center is located. Customer shall be responsible for paying all shipping

charges, duties, taxes, and any other charges for products returned to any other locations.

This warranty shall not apply to any defect, failure or damage caused by improper use or

improper or inadequate maintenance and care. Tektronix shall not be obligated to furnish

service under this warranty a) to repair damage resulting from attempts by personnel other

than Tektronix representatives to install, repair or service the product; b) to repair damage

resulting from improper use or connection to incompatible equipment; c) to repair any

damage or malfunction caused by the use of non-Tektronix supplies; or d) to service a

product that has been modified or integrated with other products when the effect of such

modification or integration increases the time or difficulty of servicing the product.

THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THE

LISTED PRODUCTS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR

IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. TEKTRONIX’ RESPONSIBILITY TO REPAIR OR REPLACE

DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY

PROVIDED TO THE CUSTOMER FOR BREACH OF THIS WARRANTY.

TEKTRONIX AND ITS VENDORS WILL NOT BE LIABLE FOR ANY

INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS

ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

TCP202 Instruction Manual i

Table of Contents

General Safety Summary iii. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Getting Started 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Features and Accessories 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Compensating the Probe (Optional) 4. . . . . . . . . . . . . . . . . . . . .

Operating Basics 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Measurement Limits 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Degaussing and Balancing the Probe 6. . . . . . . . . . . . . . . . . . . .

Measurement Procedures and Techniques 7. . . . . . . . . . . . . . . . .

Reference 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Measurements 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inductance Measurements 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuity Test of Multiple-Conductor Cable 18. . . . . . . . . . . . . .

Measuring Inductor Turns Count 18. . . . . . . . . . . . . . . . . . . . . . . .

Specifications 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranted Characteristics 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Typical Characteristics 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Nominal Characteristics 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maintenance 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning the Probe Head 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Servicing the Compensation Box 30. . . . . . . . . . . . . . . . . . . . . . .

Probe Head Disassembly 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Obtaining Replacement Parts 38. . . . . . . . . . . . . . . . . . . . . . . . . .

Preparation for Shipment 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Performance Verification and Adjustment 40. . . . . . . . . . . . . .

Test Procedure Conditions 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Required 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DC Accuracy 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bandwidth 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rise Time 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Calibrator Accuracy (Optional) 43. . . . . . . . . . . . . . . . . . . . . . . . .

Replaceable Parts 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents

ii TCP202 Instruction Manual

List of Figures

Figure 1: TCP202 Current Probe 1. . . . . . . . . . . . . . . . . . . . . . . .

Figure 2: Coarse Balance Adjustment 3. . . . . . . . . . . . . . . . . . . .

Figure 3: Connecting the Calibrator 4. . . . . . . . . . . . . . . . . . . . .

Figure 4: Polarity of Current Flow 8. . . . . . . . . . . . . . . . . . . . . .

Figure 5: Measuring Differential Current and Nulls 9. . . . . . . . .

Figure 6: Increasing the DC Measurement Range 11. . . . . . . . . . .

Figure 7: Increasing Probe Sensitivity 12. . . . . . . . . . . . . . . . . . . .

Figure 8: Measuring Inductance with a Low-Impedance

Source 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 9: Linear Current versus Time Ramp 16. . . . . . . . . . . . . . .

Figure 10: Measuring Inductance with a High-Impedance

Source 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 11: High-Impedance Source Current Ramp 17. . . . . . . . . .

Figure 12: Measuring the Number of Turns in a Coil 19. . . . . . . .

Figure 13: Turns Measurement Using Reference Coil 19. . . . . . .

Figure 14: Frequency Derating 23. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 15: Insertion Impedance – Magnitude –

Single Conductor 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 16: Insertion Impedance – Phase Angle –

Single Conductor 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 17: Insertion Impedance – Magnitude –

10-Turn #24 AWG Primary 25. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 18: Insertion Impedance – Phase Angle –

10-Turn #24 AWG Primary 26. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 19: Current Ratings 27. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 20: Replacing TekProbe Interface Pins 30. . . . . . . . . . . . .

Figure 21: Replacing the TekProbe collar 31. . . . . . . . . . . . . . . . .

Figure 22: Removing the Compensation Box Covers 32. . . . . . . .

Figure 23: Accessing the Gain Adjustment 33. . . . . . . . . . . . . . . .

Figure 24: Replacing the Compensation Box Cover 34. . . . . . . . .

Figure 25: Removing the Strain Relief Boot 35. . . . . . . . . . . . . . .

Figure 26: Removing the Top Half of the Probe 36. . . . . . . . . . . .

Figure 27: Removing the Probe Slide 37. . . . . . . . . . . . . . . . . . . .

Figure 28: Removing the Current Transformer 38. . . . . . . . . . . . .

Figure 29: TCP202 and Replaceable Accessories 46. . . . . . . . . . .

Figure 30: Replaceable Parts – Compensation Box 48. . . . . . . . .

Figure 31: TCP202 Optional Accessories 50. . . . . . . . . . . . . . . . .

TCP202 Instruction Manual iii

General Safety Summary

Review the following safety precautions to avoid injury and prevent

damage to this product or any products connected to it.

Injury Precautions

Do Not Operate in Wet/Damp Conditions. To avoid electric shock, do not

operate this product in wet or damp conditions.

Do Not Operate in an Explosive Atmosphere. To avoid injury or fire

hazard, do not operate this product in an explosive atmosphere.

Observe Maximum Working Voltage. Do not use this product on bare

wires above 300 V (DC + peak AC).

Product Damage Precautions

Do Not Drop the Probe Head. The probe head contains fragile

components that can be damaged by a high impact. Take care to

prevent the probe head from dropping on the floor or other hard

surface. Secure the probe head in a safe location when not in use.

Do Not Operate With Suspected Failures. If you suspect there is damage

to this product, have it inspected by qualified service personnel.

Do Not Immerse in Liquids. Clean the probe using only a damp cloth.

Refer to cleaning instructions.

Safety Terms and Symbols

Terms in This Manual. These terms may appear in this manual:

WARNING. Warning statements identify conditions or practices that

could result in injury or loss of life.

CAUTION. Caution statements identify conditions or practices that

could result in damage to this product or other property.

General Safety Summary

iv TCP202 Instruction Manual

Terms on the Product. These terms may appear on the product:

DANGER indicates an injury hazard immediately accessible as you

read the marking.

WARNING indicates an injury hazard not immediately accessible as

you read the marking.

CAUTION indicates a hazard to property including the product.

Symbols on the Product. These symbols may appear on the product:

ProtectiveGround

(Earth)Terminal ATTENTION

Refer to Manual Double

Insulated

DANGER

High Voltage

Certifications and Compliances

Refer to the specifications section for a listing of certifications and

compliances that apply to this product.

TCP202 Instruction Manual 1

Getting Started

This section describes the TCP202 Current Probe and gives

instructions on how to install and functionally test the probe.

Features and Accessories

The TCP202 Current Probe (Figure 1) is a 50 MHz current probe for

use with Tektronix oscilloscopes that have the TekProbe interface.

The probe can measure up to 15 A (DC + peak AC).

Figure 1: TCP202 Current Probe

Getting Started

2TCP202 Instruction Manual

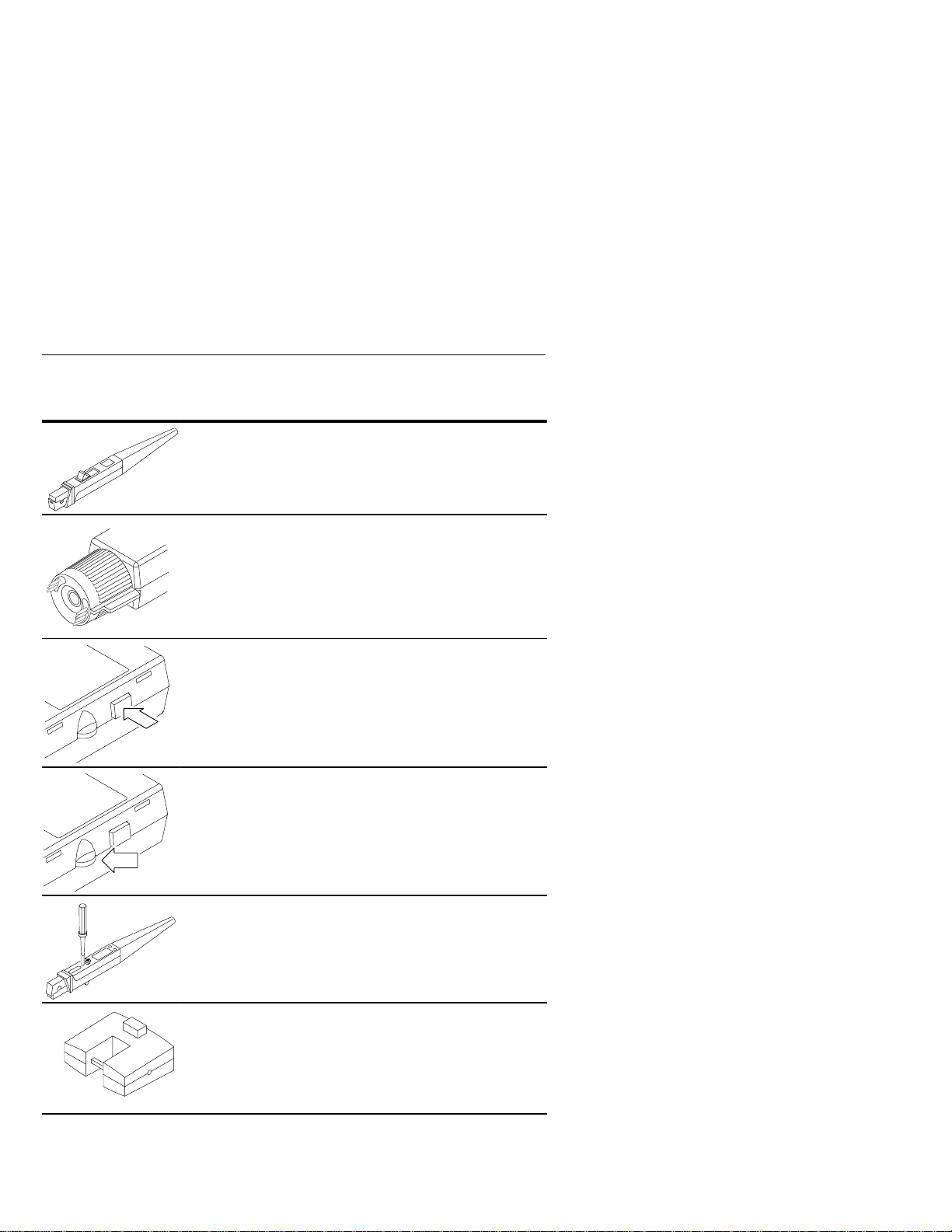

Probe Head. The probe head contains a Hall Effect

device for measuring current. The jaw of the probe

clamps on any wire (including insulation) that is less

than or equal to 3.8 mm (0.15 inches) in diameter.

TekProbe Interface. The TekProbe interface provides

power, signal, and probe characteristic data.

If your oscilloscope does not support the TekProbe

interface, you can use the optional 1103 probe power

supply as an effective interface. Contact your local

Tektronix representative for more information.

Degauss. The degauss button removes residual

magnetism from the probe core that would otherwise

cause measurement errors.

Balance Thumbwheel. The balance thumbwheel

compensates for minor DC offsets of the probe output.

Coarse Balance Adjustment. The coarse balance

adjustment centers the range of the balance thumb-

wheel. Use this adjustment only if the thumbwheel

does not have enough range.

Calibrator (optional). With some TDS oscilloscopes, you

can compensate the probe for maximum accuracy using

the optional calibrator. Use the calibrator only if your

oscilloscope displays the Asymbol when the current

probe is connected. (For ordering information, see

Replaceable Parts starting on page 44.)

Autres manuels pour TCP202

Table des matières

Autres manuels Tektronix Équipement de test

Tektronix

Tektronix 5440 Manuel utilisateur

Tektronix

Tektronix MTS400 Series Manuel d'utilisation et d'entretien

Tektronix

Tektronix TDS 500C Manuel utilisateur

Tektronix

Tektronix THS3024 Manuel utilisateur

Tektronix

Tektronix MSO56 Manuel d'utilisation et d'entretien

Tektronix

Tektronix 442 Manuel utilisateur

Tektronix

Tektronix 2230 Manuel utilisateur

Tektronix

Tektronix MSO2000 Series Manuel utilisateur

Tektronix

Tektronix TDS 620 Manuel utilisateur

Tektronix

Tektronix TDS 420A Manuel utilisateur

Tektronix

Tektronix 2236 Manuel utilisateur

Tektronix

Tektronix P6137 Manuel utilisateur

Tektronix

Tektronix P6245 Manuel utilisateur

Tektronix

Tektronix TDS1000B Series Manuel utilisateur

Tektronix

Tektronix MSO4000B Series Manuel d'utilisation et d'entretien

Tektronix

Tektronix 5 Series Guide de référence

Tektronix

Tektronix 7S12 Manuel utilisateur

Tektronix

Tektronix MSO4000B Series Manuel utilisateur

Tektronix

Tektronix P6136 Manuel utilisateur

Tektronix

Tektronix THDP0100 Manuel

Tektronix

Tektronix 7904A Manuel utilisateur

Tektronix

Tektronix TBS2000 Series Guide de configuration

Tektronix

Tektronix KEITHLEY 8010 Manuel utilisateur

Tektronix

Tektronix 2212 Manuel utilisateur

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur
