Tekon PLUS TWPH-1UT Manuel utilisateur
TEKON ELECTRONICS AVEIRO, PORTUGAL
PLUS TWPH-1UT
INSTALLATION GUIDE
TEKON ELECTRONICS AVEIRO, PORTUGAL
IG_PLUS_TWPH-1UT_E01A
PLUS TWPH-1UTPLUS TWPH-1UT
INSTALLATION GUIDEINSTALLATION GUIDE
PLUS TWPH-1UTPLUS TWPH-1UT
2
DUOS WIRELESS SYSTEM INSTALLATION GUIDE
01
step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION
Pages 3 to 11
02
step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION
Pages 12 to 19
PLUS TWPH-1UT
INSTALLATION GUIDE
Table of contents
03
step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION
Pages 20 to 22
04
step WRP001 PLUS WIRELESS REPEATER CONFIGURATION
Pages 23 to 28
05
step SITE SURVEY
Pages 29 to 31
01
step
WGW420 PLUS WIRELESS GATEWAY CONFIGURATION
4
PLUS TWPH-1UT INSTALLATION GUIDE
01
step
WGW420 PLUS WIRELESS GATEWAY CONFIGURATION
01 Connect the antenna to the Gateway.
02 Wiring
Connect the power supply and then the
RS485-USB cable to the Gateway.
TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft® Windows® Operating System.
03 Power ON the device.
Wire Indication:
Blue - GND; Brown - +24 VDC; Orange - Data+ (A); Black - GND; Yellow - Data - (B)
01
step
WGW420 PLUS WIRELESS GATEWAY CONFIGURATION
5
INSTALLATION GUIDE PLUS TWPH-1UT
04 Check device connection state by LED indication.
05 Open Tekon Configurator Software1and select PLUS >> Gateway >> Configuration
2
1
3
1 Tekon Configurator software is free of charge and available at www.tekonelectronics.com
10 Seconds to enter
configuration mode
WIRELESS GATEWAY
Normal mode
Green LEDs
permanently on
Red LEDs
permanently on
6
PLUS TWPH-1UT INSTALLATION GUIDE
01
step
WGW420 PLUS WIRELESS GATEWAY CONFIGURATION
07 Select corresponding Port name2.
2You can check device’s serial port name in “Device Manager” on Microsoft ® Windows® operating system.
06 Select serial port corresponding to WGW420 PLUS Wireless Gateway
Click on the Rescan Ports button.
01
step
WGW420 PLUS WIRELESS GATEWAY CONFIGURATION
7
INSTALLATION GUIDE PLUS TWPH-1UT
08 Perform a power cycle on the Gateway.
09 Click on Connect ( ) button to enter configuration mode.
( )
NOTE:
After power up, you have 10 seconds to enter configuration mode by clicking on Connect button ( )
(while green LEDs are permanently on).
In this mode, you can manage device parameters: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless
Network ID and Wireless Channel.
( )
8
PLUS TWPH-1UT INSTALLATION GUIDE
01
step
WGW420 PLUS WIRELESS GATEWAY CONFIGURATION
NOTE:
When the 10-second time frame to enter configuration mode is exceeded, the LEDs will turn permanently red and
the gateway will enter normal operation mode.
To get back in configuration mode, you need to perform a power cycle - step 8.
Green LEDs performing
scan animation
WIRELESS GATEWAY
Configuration mode
The status string at the bottom of the software window provides feedback on ongoing operations.
10
You can also verify configuration mode activation by checking LEDs on the gateway.
01
step
WGW420 PLUS WIRELESS GATEWAY CONFIGURATION

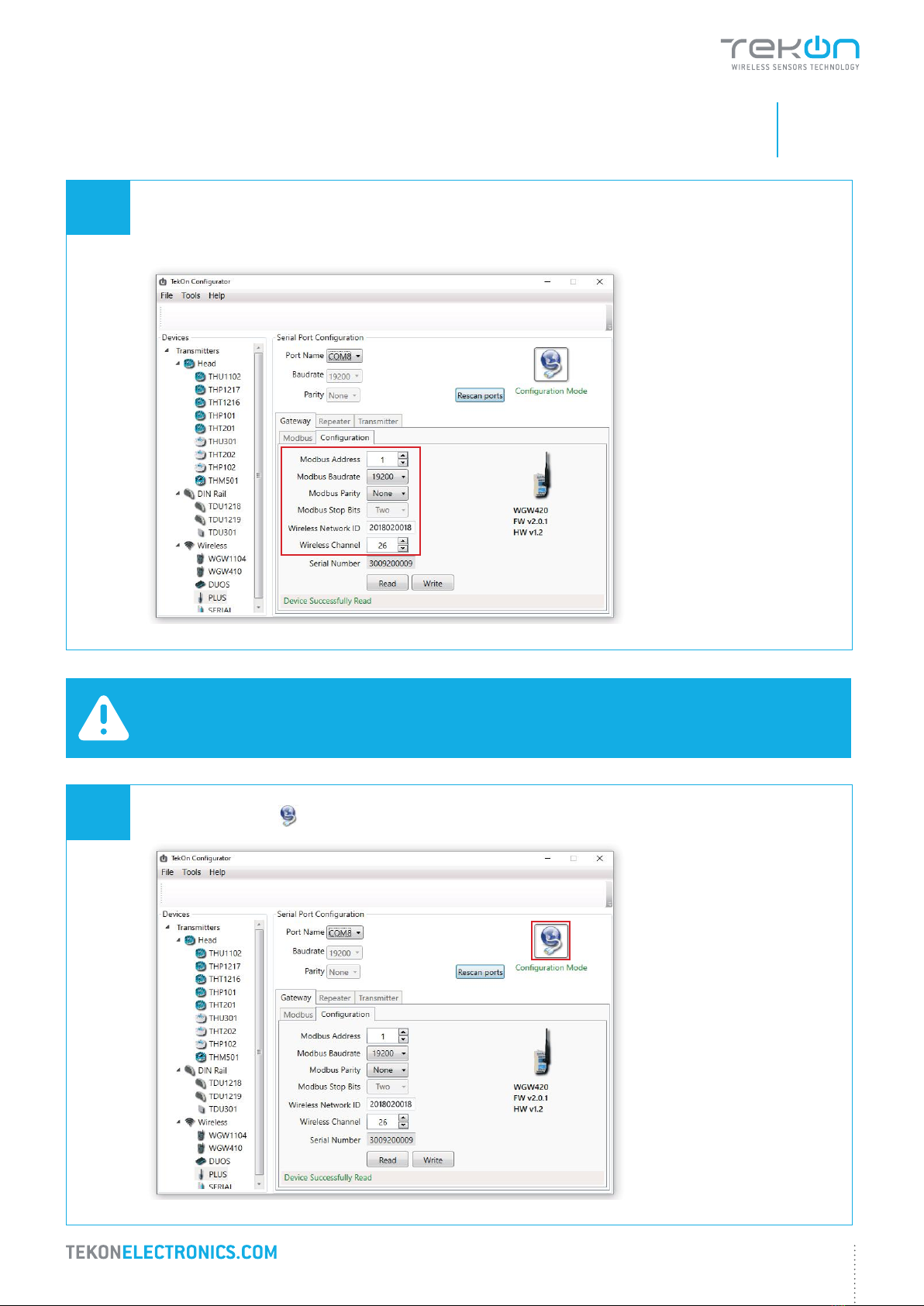

9
INSTALLATION GUIDE PLUS TWPH-1UT
12 Click on Disconnect ( ) button.
( )
11 Take note of device configuration data available, namely: Modbus Address, Modbus Baudrate, Modbus Parity,
Wireless Network ID and Wireless Channel.
NOTE:
The wireless network connection between devices is ensured by setting the same Wireless Network ID and
Wireless Channel parameters.
10
PLUS TWPH-1UT INSTALLATION GUIDE
01
step
WGW420 PLUS WIRELESS GATEWAY CONFIGURATION
13 Modbus Communication
Select Modbus tab of the Gateway and set the previously saved configurations.
Ensure that Port name, Baudrate, Parity and Modbus Address fields are the same as those obtained in
configuration mode.
14
The messages Connected to Modbus and Reading successfully will appear if Serial Port configuration
parameters are correct and the Modbus connection is established.
Click on Connect ( ) button and check operation status at the bottom of the window.
