Teknion Leverage Manuel utilisateur

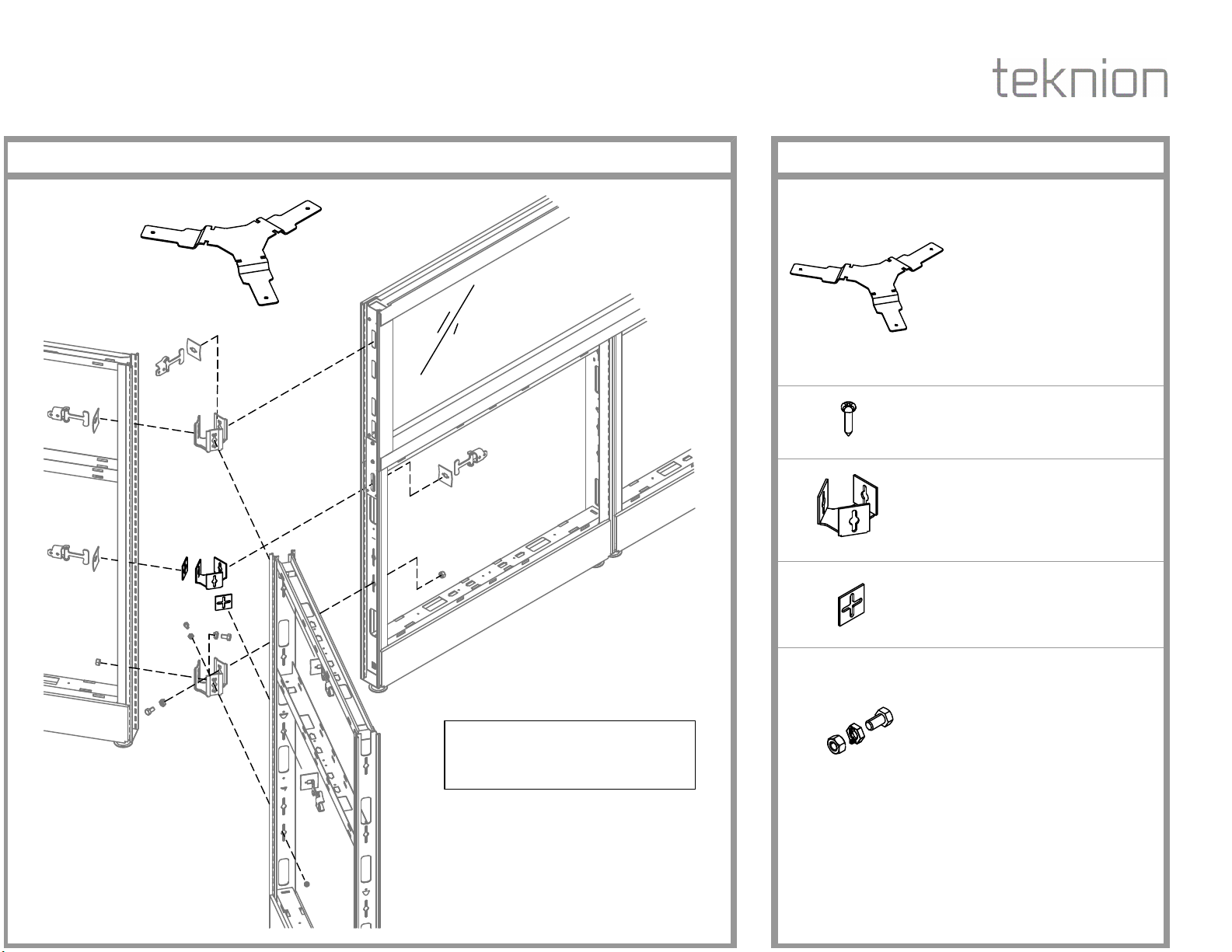

Three-Way Bracket for 30" High Panel 120 Deg (KP603) Part and Product Identification

A - Glass Windown Top Splicer Plate

Three Way 120 Deg

(A15-8573) x1

Section:

Description: Page No:

Date:

Rev. No: 1

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

May 2020 1 of 6

TLE_215b

leverage

Installation Guides

B - #8-18 x 3/4" Quad, Pan Head,

Self-drilling Screws

(E01-0072) x3

NOTE: Use KPJ3 with Glass Panel

Add-On: KPOGBS/KPOGBD. For

other Glass Panel Add-On, use standard

corner brackets.

D - Corner Bracket Spacer Plate

(A15-8538) x2

C - Three-Way 60 Deg Corner Bracket

(A15-8571) x1

E - Top Connection Hardware Kit

(X01-2025) x3

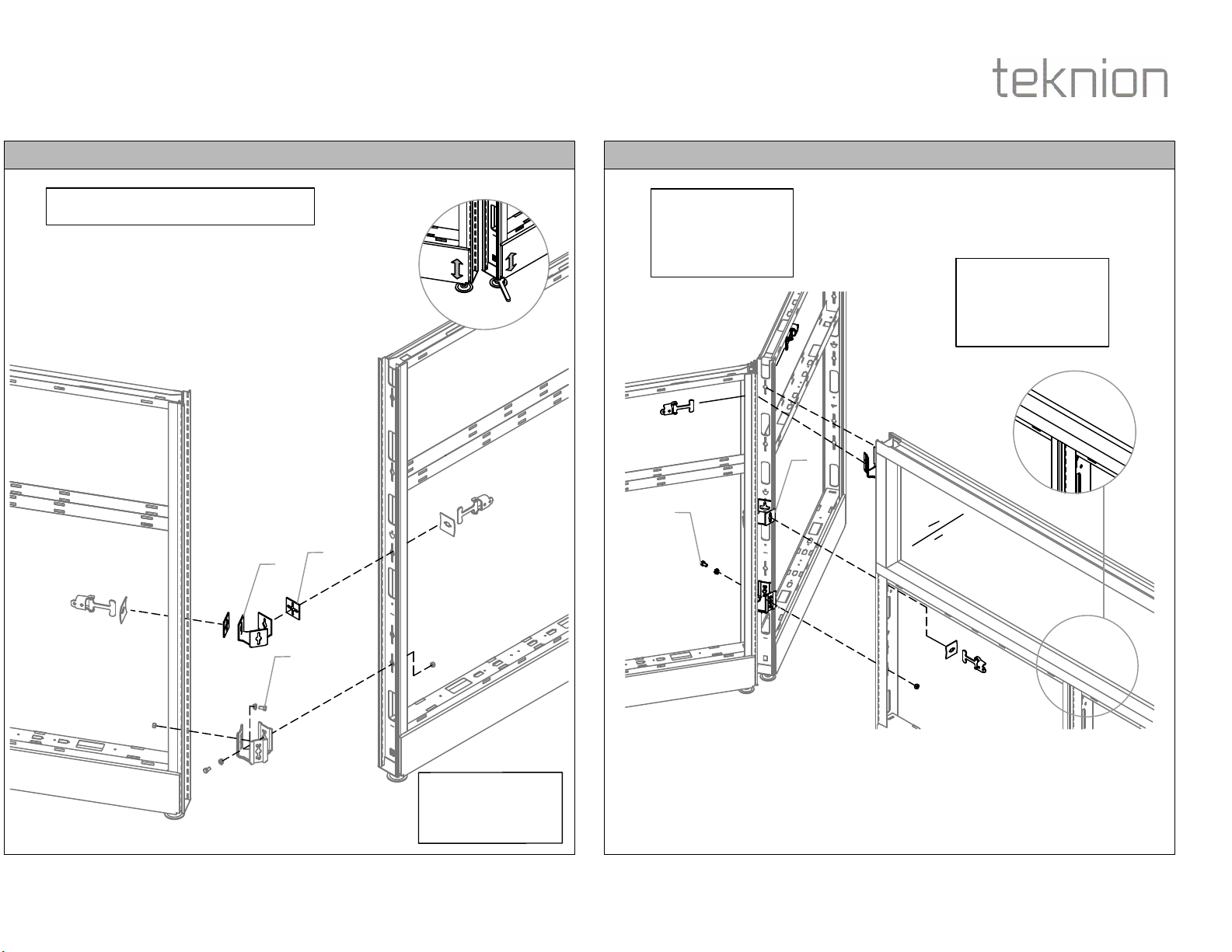

STEP 2a: Install Glass Panel Add-OnSTEP 1a: Connect Panels together. Ensure Panels are leveled before locking Posi-Locks at any

stage.

Section:

Description: Page No:

Date:

CONNECT PANELS TOGETHER INSTALL GLASS PANELS ADD- ON

TLE_215b

2 of 6

May 2020

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

Situation 1: Connection between Panels and

a Panel Add-On (KPOGPS/ KPOGBD)

NOTE: Orient all reveal

linestowards the

INSIDE of the cubicle

space or to face same

direction

NOTE: Install Bracket

at proper height for

connecting to Panel

Add-On next

NOTE: Reverse

positions of spring

washer and Posi Lock

when connecting to

Glass Panel Add-On

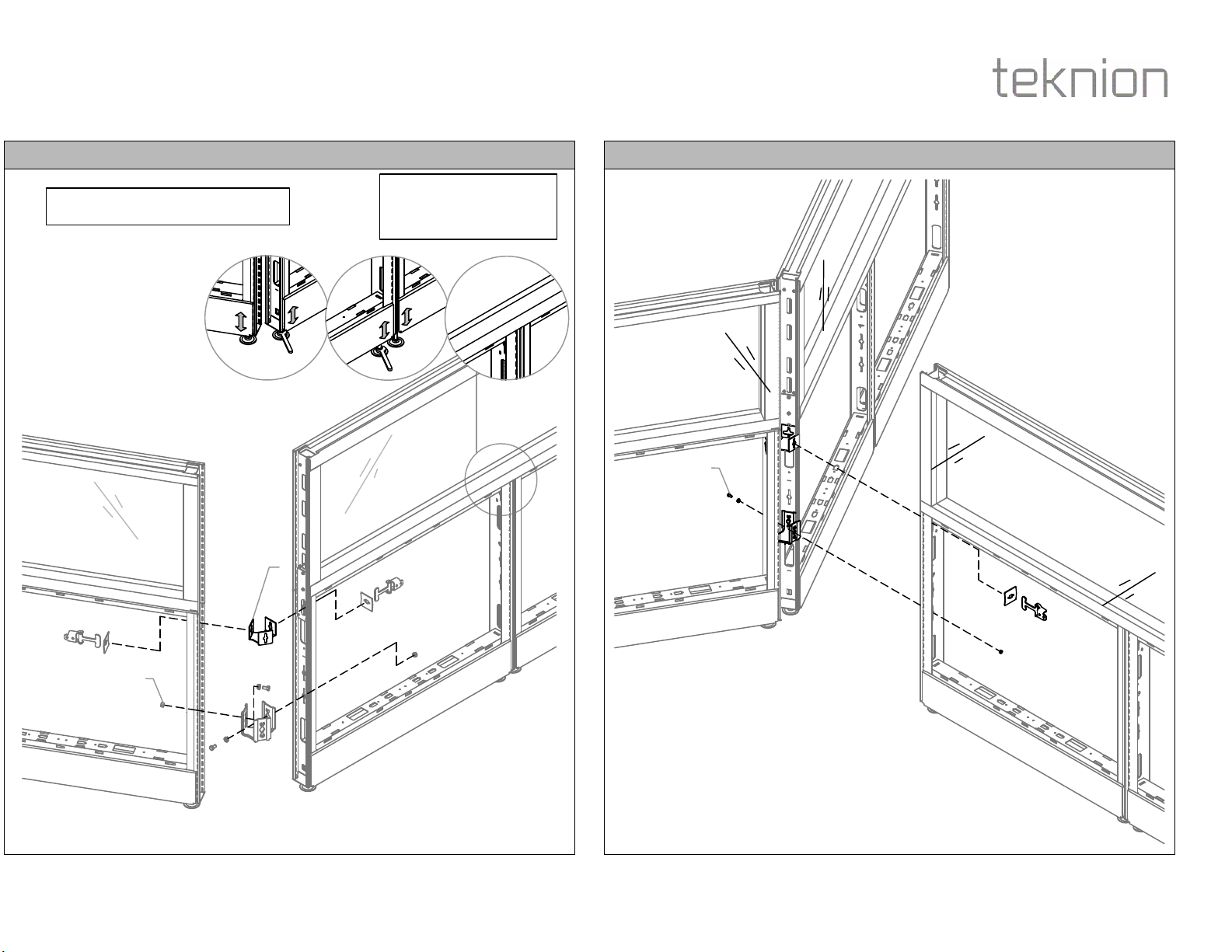

STEP 2b: Install Glass Panel Add-OnSTEP 1b: Connect Panels together. Ensure Panels are leveled before locking Posi-Locks at any

stage.

Section:

Description: Page No:

Date:

CONNECT PANEL AND GLASS PANEL TOGETHER INSTALL GLASS PANELS ADD- ON

TLE_215b

3 of 6

May 2020

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

Situation 2: Connection between a Panel

and Panels Add-On (KPOGBS/KPOGBD)

NOTE: Reverse

positions of spring

washer and Posi Lock

when connecting to

Glass Panel Add-On

NOTE: Orient all reveal

linestowards the INSIDE of

the cubicle space or to face

same direction

Section:

Description: Page No:

Date:

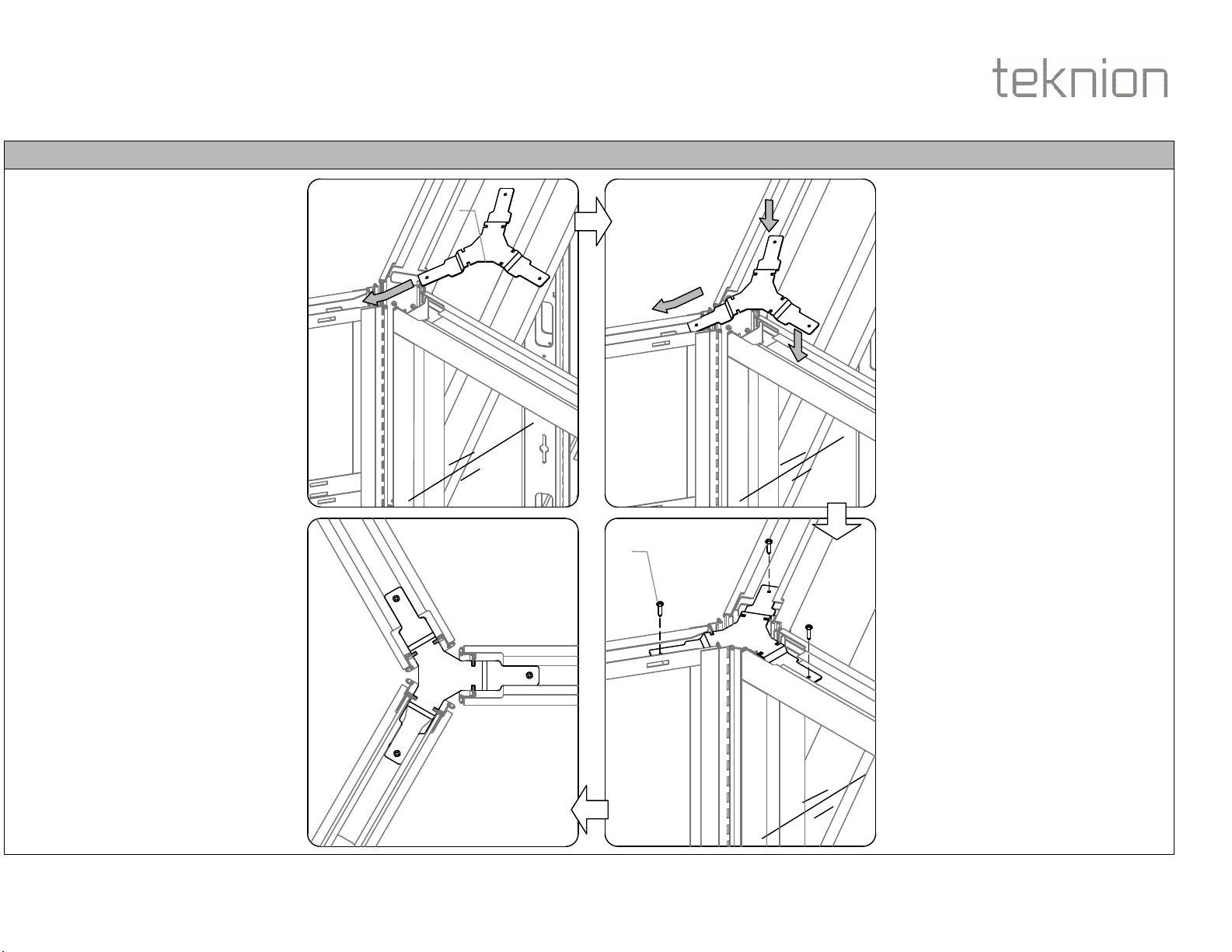

INSTALL TOP SPLICER PLATE

May 2020 4 of 6

TLE_215b

TWO-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

STEP 3b: Install Top Splicer Plate as shown.

Top View

STEP 2c: Install Glass Panel Add-OnSTEP 1c: Connect Panels together. Ensure Panels are leveled before locking Posi-Locks at any

stage.

Section:

Description: Page No:

Date:

CONNECT GLASS PANELS TOGETHER INSTALL GLASS PANELS ADD- ON

TLE_215b

5 of 6

May 2020

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

Situation 3: Connection of three Panels

Add-On (KPOGBS/KPOGBD)

NOTE: Orient all reveal

linestowards the INSIDE of

the cubicle space or to face

same direction

Section:

Description: Page No:

Date:

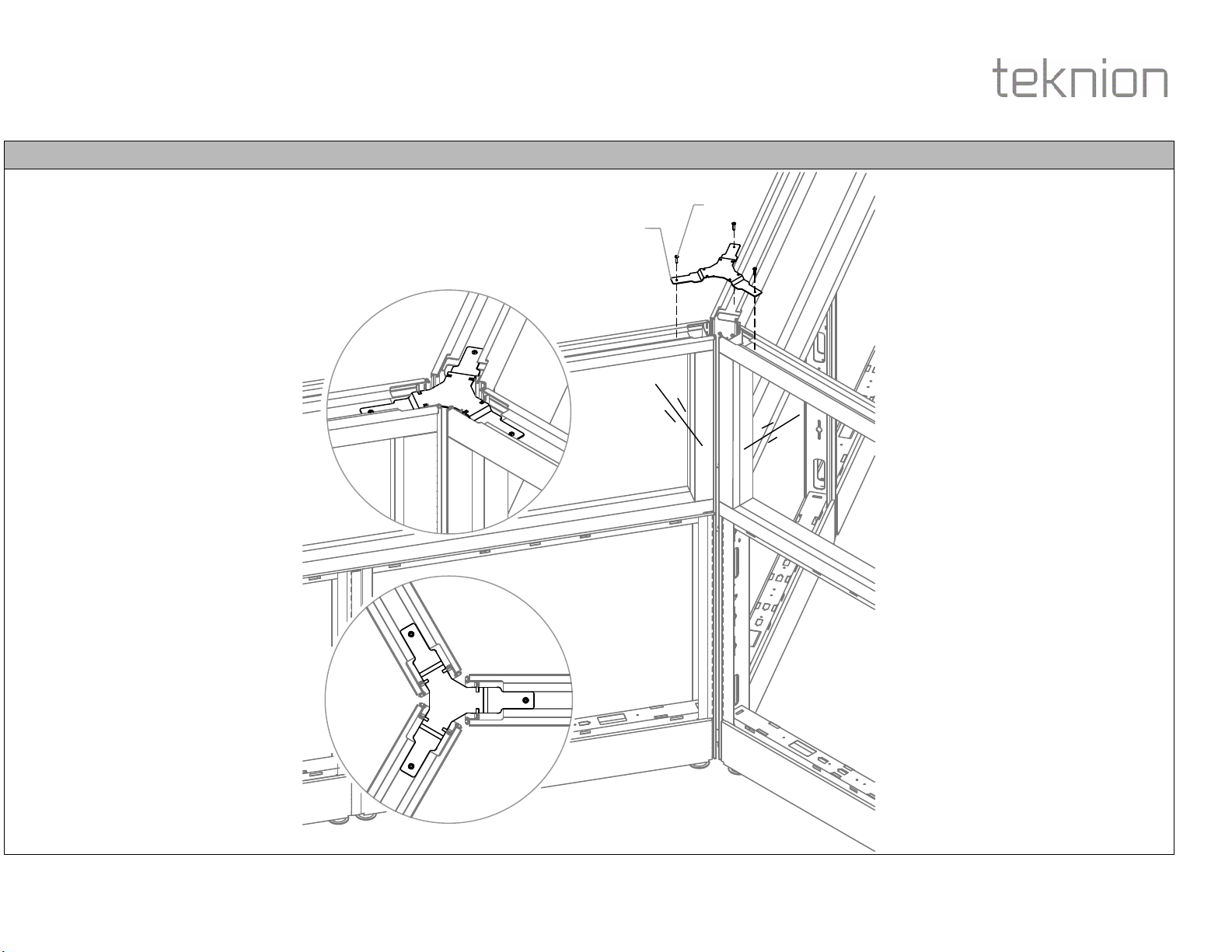

INSTALL TOP SPLICER PLATE

May 2020 6 of 6

TLE_215b

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

STEP 3c: Install Top Splicer Plate using screws provided.

Top View
