Teknion INTERPRET WORK TABLE Instructions d'utilisation et d'entretien
Beginning Work Table (WWTWB) Part and Product Identification
Section:
Description: Page No:
Date:
Rev. No: 1
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
Jan 2018 1 of 14
INT_504b
interpret

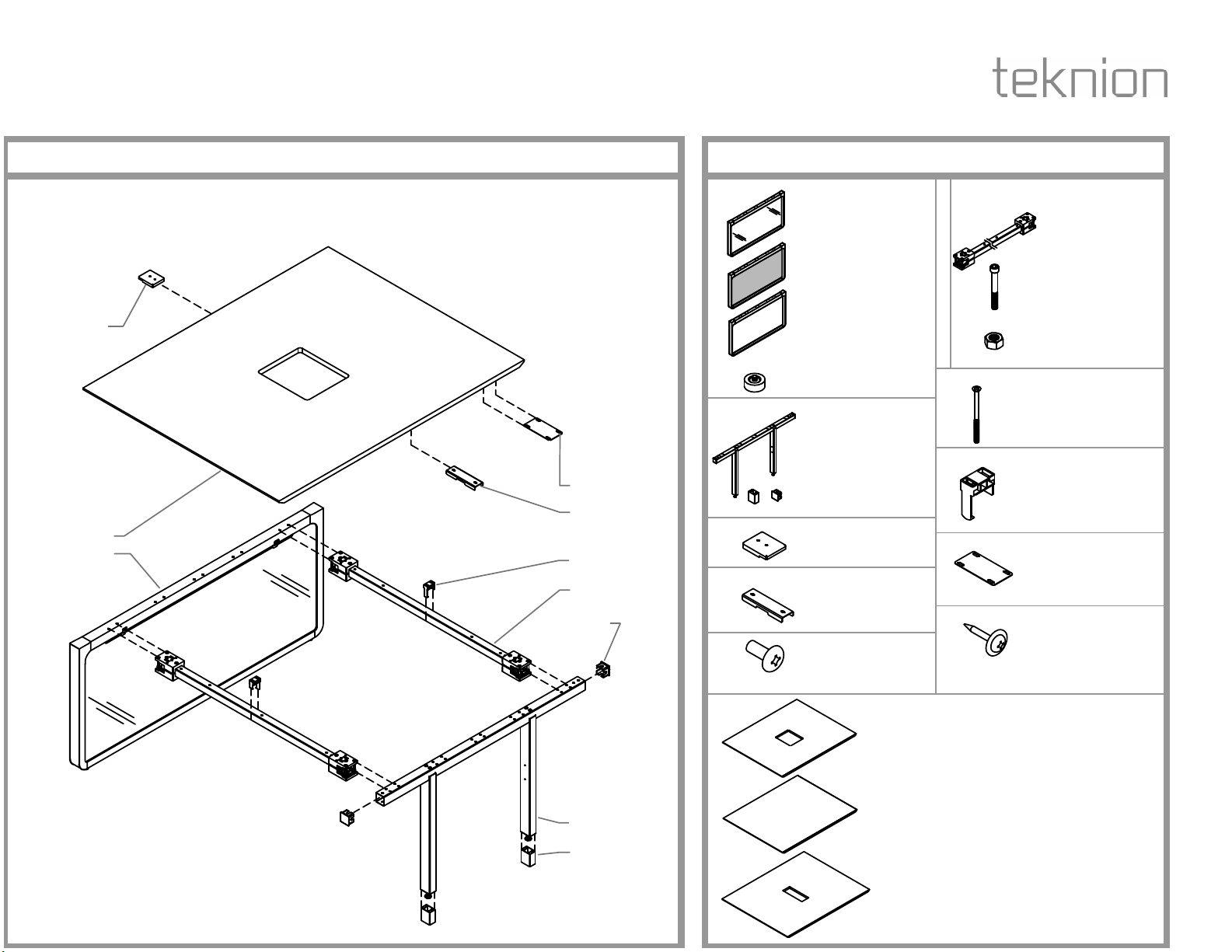

Installation Guides
AK1 - Worksurface for Beginning
Table with Cut-out
(C05-7490) x 1
or
AK2 - Worksurface for Beginning
Table without Cut-out
(C05-7356) x 1
AC -Centre Spacer
(A16-1652) x1
AE -1/4-20x5/8
Mach. Screw
(E01-0098) x4
AD -Mid Gable
Center Spacer
(A16-1653) x1
AI -Flush Plate
(A15-6948) x 1
AJ -#10 x .875" LG.
Quad Pan Screw
(E07-0077) x4
AF3 -5/16-18 Hex
Nut 1/2 A/F
.265 Thick
(E01-0755) x16
AF1 -Transverse Beam
Sub-Assembly
(N02-1935) x2
AF2 -5/16-18x2.5 Soc
Head Cap Screw
(E01-0756) x16
AG -1/4-20 x 3 -1/2
Flat Hd, Mac Sc.
(E01-0771) x4
AH -Front Standoff
(B02-0381)
widths 48"-72" x2
widths 72"-96" x4
AB1 -Mid Gable
(N02-2053) x1
AB2 -Leveler Cover
(A23-3670) x2
AB3 -End Cap
(B02-0389) x2
or Curve Leg with
Wood Infill
(N02-2365) x1
AB2
AB1
AC
AA1
AI
AD
AH
AF1
AB3
AK1
Beginning Table - Curve Leg with
Glass infill shown.
Pre assembled
AA1 -Curve Leg with
Glass Infill
(N02-2349) x1
AA2 -Curve Leg
Add-on Puck
(A18-0242) x8
or Curve Leg
Open
(N02-2363) x1
or
AK3 - Worksurface for Beginning
Table with CALA Cut-out
(C07-2519) x 1
Finish Work Table (WWTWF) Part and Product Identification
Section:
Description: Page No:
Date:
Rev. No: 1
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
Jan 2018 2 of 14
INT_504b
interpret
Installation Guides
BB
BI1 -Worksurface for Final
Table with Cut-out
(C05-7740) x 1
or
BI2 -Worksurface for Final
Table without Cut-out
(C05-7739) x 1
BB -Center Spacer
(A16-1652) x1
BC -1/4-20x5/8
Mach. Screw
(E01-0098) x2
BD -Flush Plate
(A15-6948) x 1
BH- #10 x .875" LG.
Quad Pan Screw
(E07-0077) x4
BE3 -5/16-18 Hex
Nut 1/2 A/F
.265 Thick
(E01-0755) x16
BE1 -Transverse Beam
Sub-Assembly
(N02-1935) x2
BE2 -5/16-18x2.5 Soc
Head Cap Screw
(E01-0756) x16
BF -1/4-20 x 3 -1/2
Flat Hd, Mach Sc.
(E01-0771) x4
BG -Front Standoff
(B02-0381)
widths 48"-72" x2
widths 48"-96" x4
or Curve Leg with
Wood Infill
(N02-2365) x1
BA1 -Curve Leg with
Glass Infill
(N02-2349) x1
BA2 -Curve Leg
Add-on Puck
(A18-0242) x8
or Curve Leg Open
(N02-2363) x1
Pre assembled
BG
BE1
BA1
BI1
BD
or
BI3 -Worksurface for Final
Table with CALA Cut-out
(C07-2513) x 1
Section:
Description: Page No:
Date:
REMOVE MOUNTING NUTS AND SCREWS
Jan 2018 3 of 14
INT_504b
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
interpret
Installation Guides

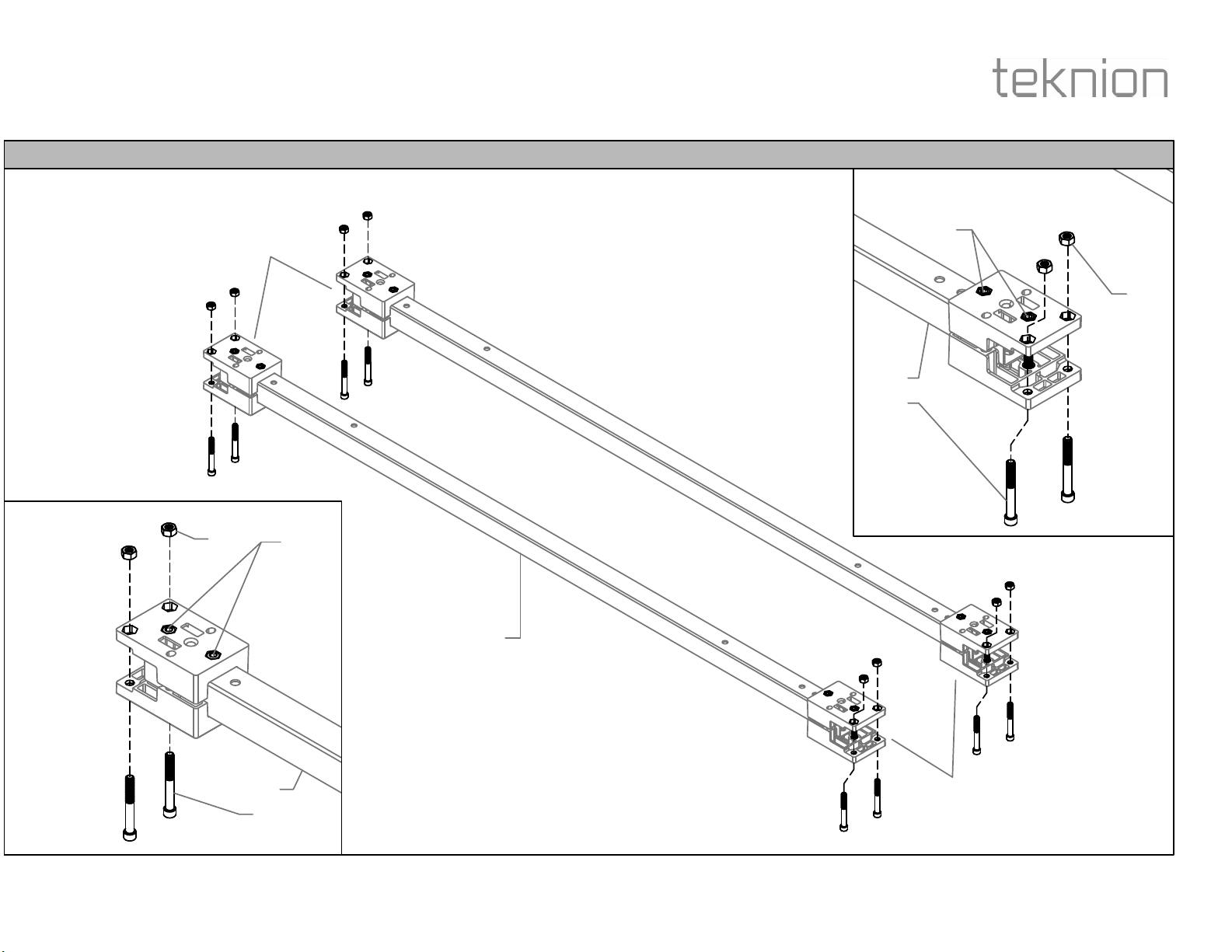

STEP 1: Remove Nuts and Screws as shown on Illustration from Beginning Transverse Beams. Save Screws and Nuts for future installation.
Do Not
Remove
Do Not
Remove
AF3
AF2
AF1
AF1
AF2
AF3
End Gable Connection
Mid Gable Connection
AF1
Section:
Description: Page No:
Date:
DETAIL
Jan 2018 4 of 14
INT_504b
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
interpret
Installation Guides

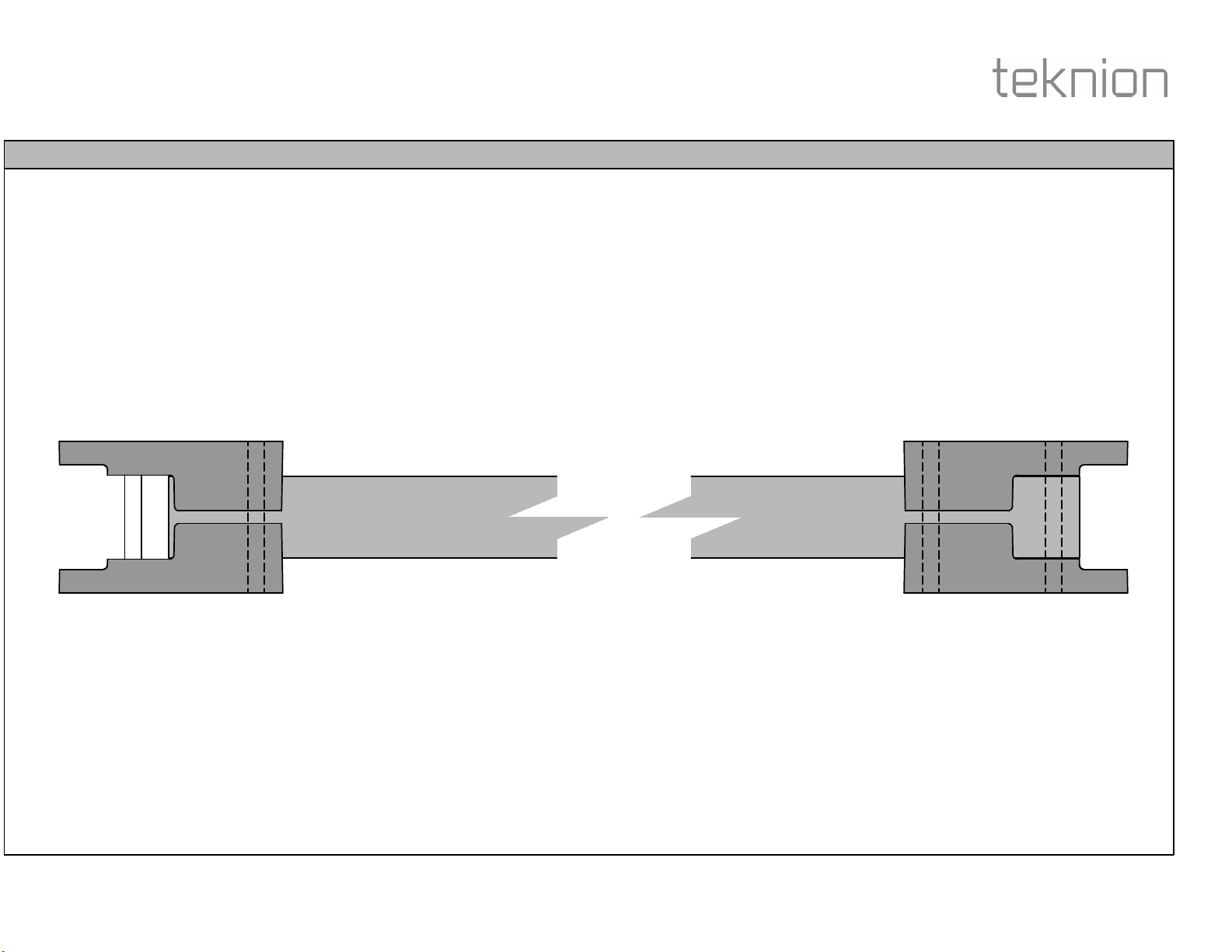

End Gable Connection
For Work Table Beginning Transverse Beams
Mid Gable Connection
Section:
Description: Page No:
Date:
CONNECT CURVE LEG GABLE AND BEAMS SECURE WITH FASTENERS
INT_504b
5 of 14
Jan 2018
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
interpret

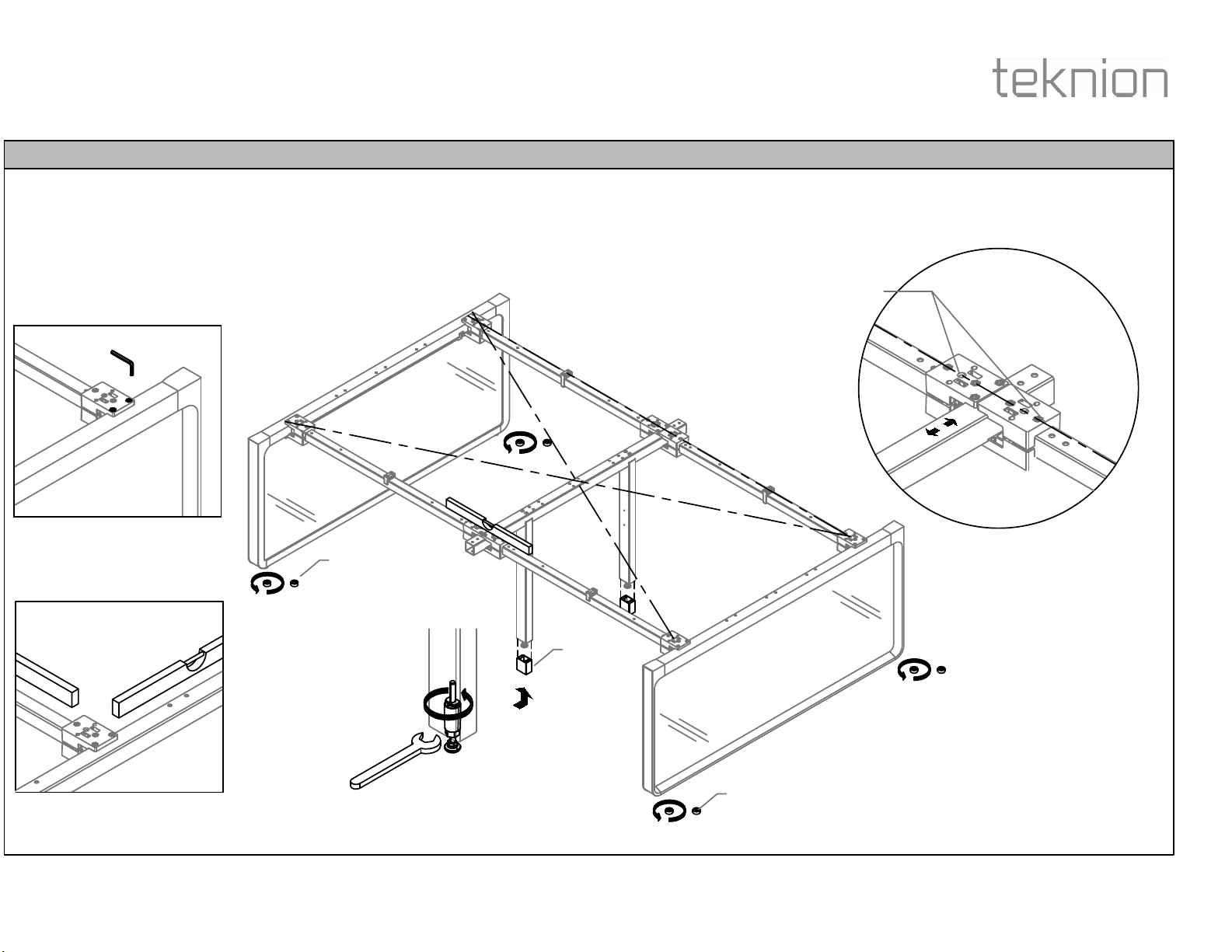

Installation Guides

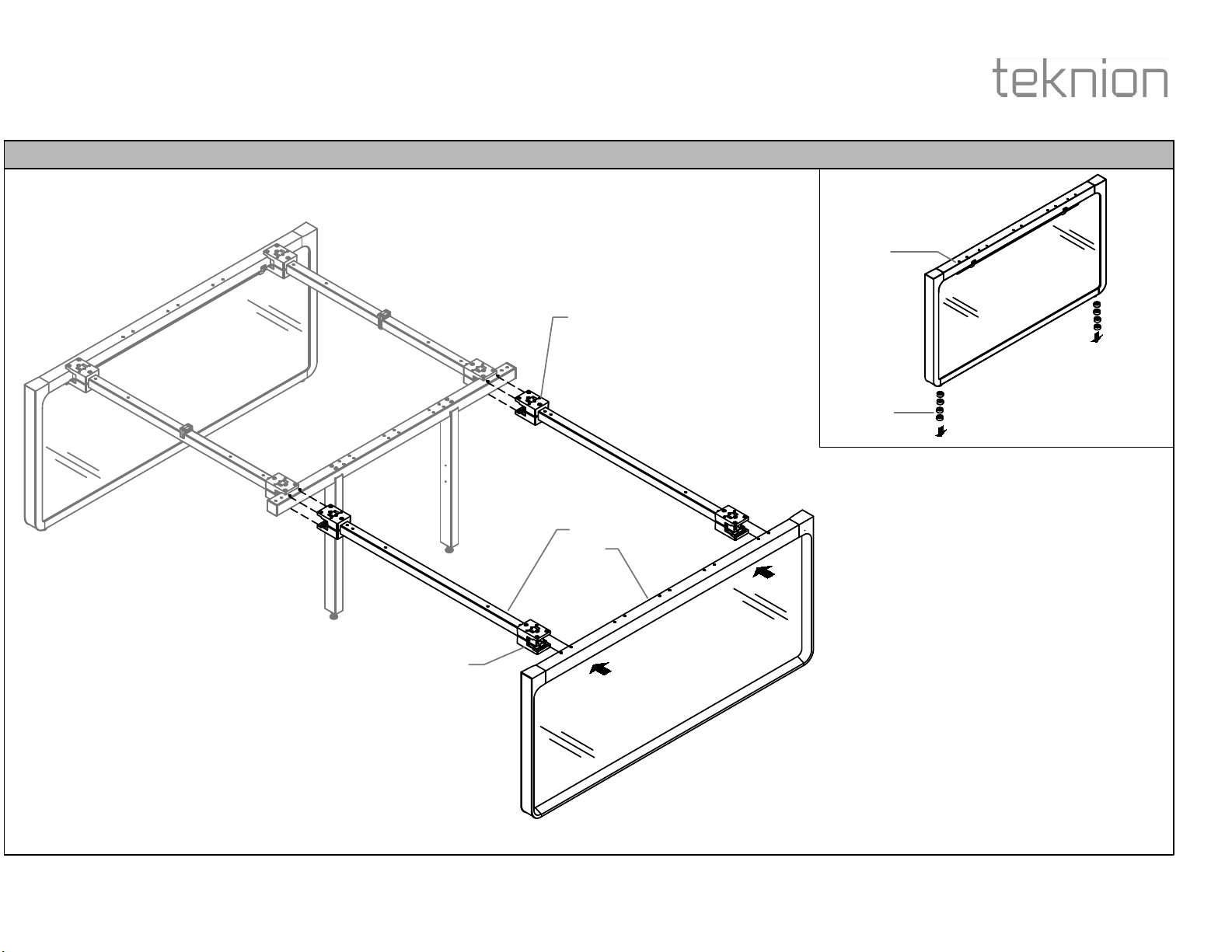

STEP 2: Remove all Leveler Pucks from Curve Leg. Connect Curve Leg Gable and Mid Gable
with Transverse Beams. Line up the set of holes on the top of Mid Gables with Clamp Brackets
holes as shown.
AB1
AF1
AA1
AA1
AA2
STEP 3: Fasten together using Socket Cap Screw and Nuts. Level and square the whole
assembly. Tighten Screws and Nuts. Inset Standoffs and Mid Gable End Caps.
NOTE: Make sure the lids open to the sides.
AF2
AF3
AH
(Side View)
AF1
NOTE: Reverse
screws and nuts
when Curve Leg
does not has
infill.
AB3
AH
Section:
Description: Page No:
Date:
REMOVE MOUNTING NUTS AND SCREWS
Jan 2018 6 of 14
INT_504b
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
interpret
Installation Guides
STEP 4: Remove Nuts and Screws as shown on Illustration from Transverse Beams. Save Screws and Nuts for future installation.
Do Not
Remove
Do Not
Remove
BE3
BE2
BE1
BE1
BE2
Mid Gable Connection
End Gable Connection
CE1
Section:
Description: Page No:
Date:
DETAIL
Jan 2018 7 of 14
INT_504b
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
interpret
Installation Guides
End Gable Connection
Mid Gable Connection
Section:
Description: Page No:
Date:
CONNECT FINAL GABLE AND BEAMS
Jan 2018 8 of 14
INT_504b
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
interpret
Installation Guides
BE1
Finish Gable (CA1)
BA1
BA2

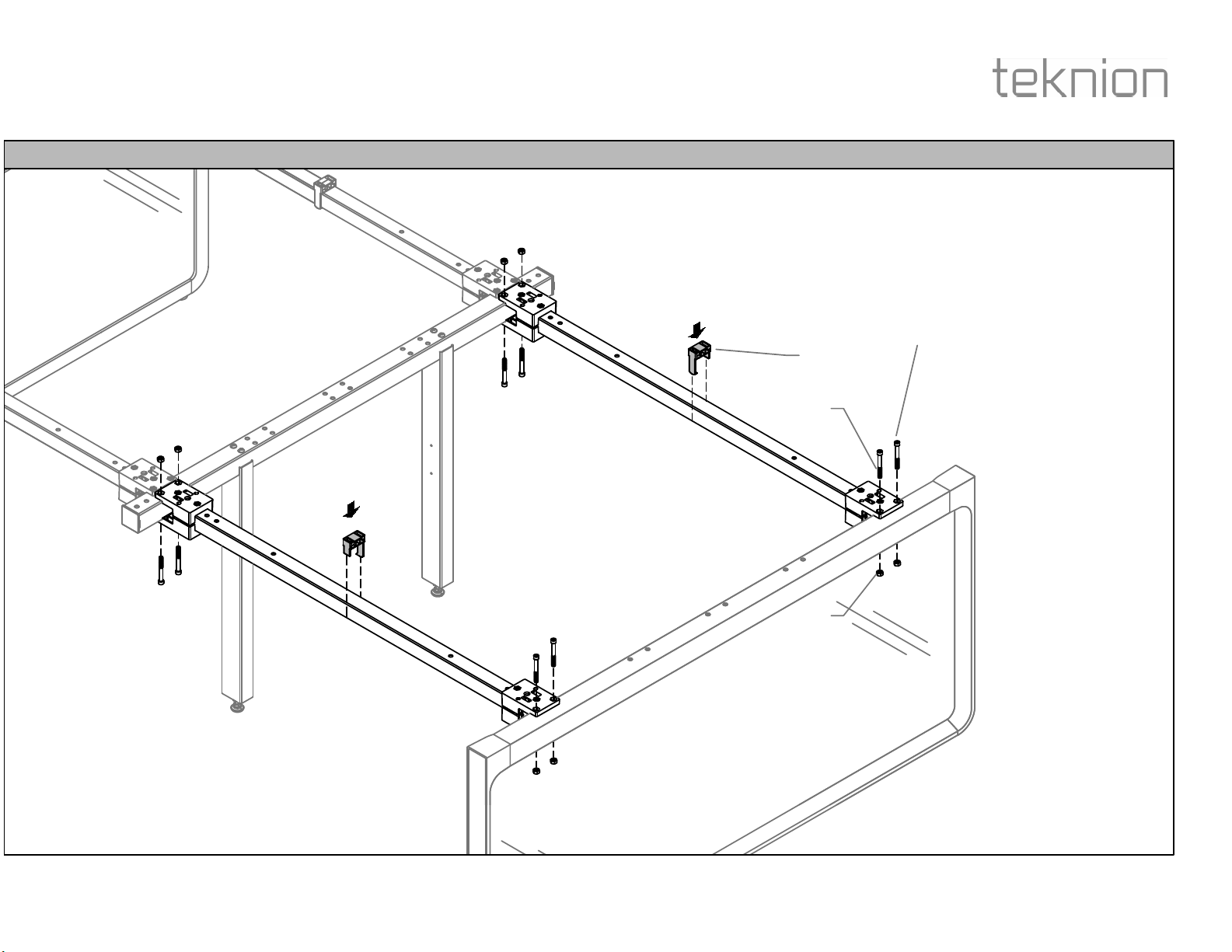

STEP 5: Remove Pucks from Curve Leg Gable. Then bring Curve Leg and Transverse Beams Assemblies to the Work Table Middle Frame. Line up the set of holes on the top of Gable Mid
Curve Leg Gable with Clamp Brackets holes.
End Gable
Connection
Beginning Work Table frame
Mid Gable
Connection
BA1
Section:
Description: Page No:
Date:
SECURE WITH FASTENERS
Jan 2018 9 of 14
INT_504b
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
interpret
Installation Guides
BG

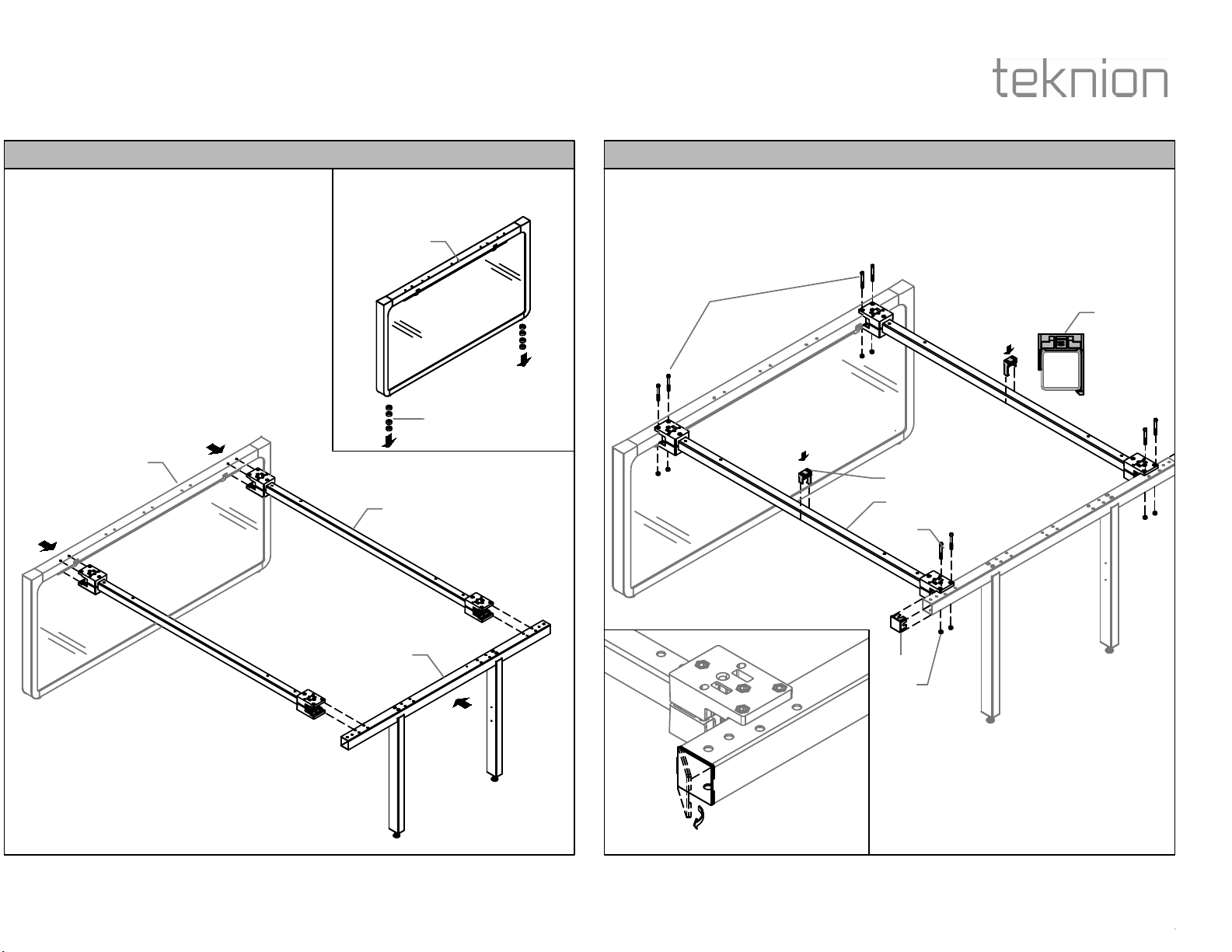

STEP 6: Fasten together using Socket Cap Screw and Nuts.
NOTE: Reverse
screws and nuts
when Curve Leg
does not has
infill.
BE2
BE3
Section:
Description: Page No:
Date:
INSTALL PUCKS AND LEVELER COVERS, TIGHTEN SCREWS
Jan 2018 10 of 14
INT_504b
BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
TABLES
interpret
Installation Guides
STEP 7: Level and square the whole assembly. Tighten Screws and Nuts. Lock levelers. Carefully Lift the frame and install Leveler Covers and Pucks.
BA2
AB2
AA2
NOTE: Pucks have to be
FULLY ENGAGED and
there should be no space
between Pucks and the bottom
of the Curved Leg Frame
Use string to
align holes
