Teknion Leverage Manuel utilisateur

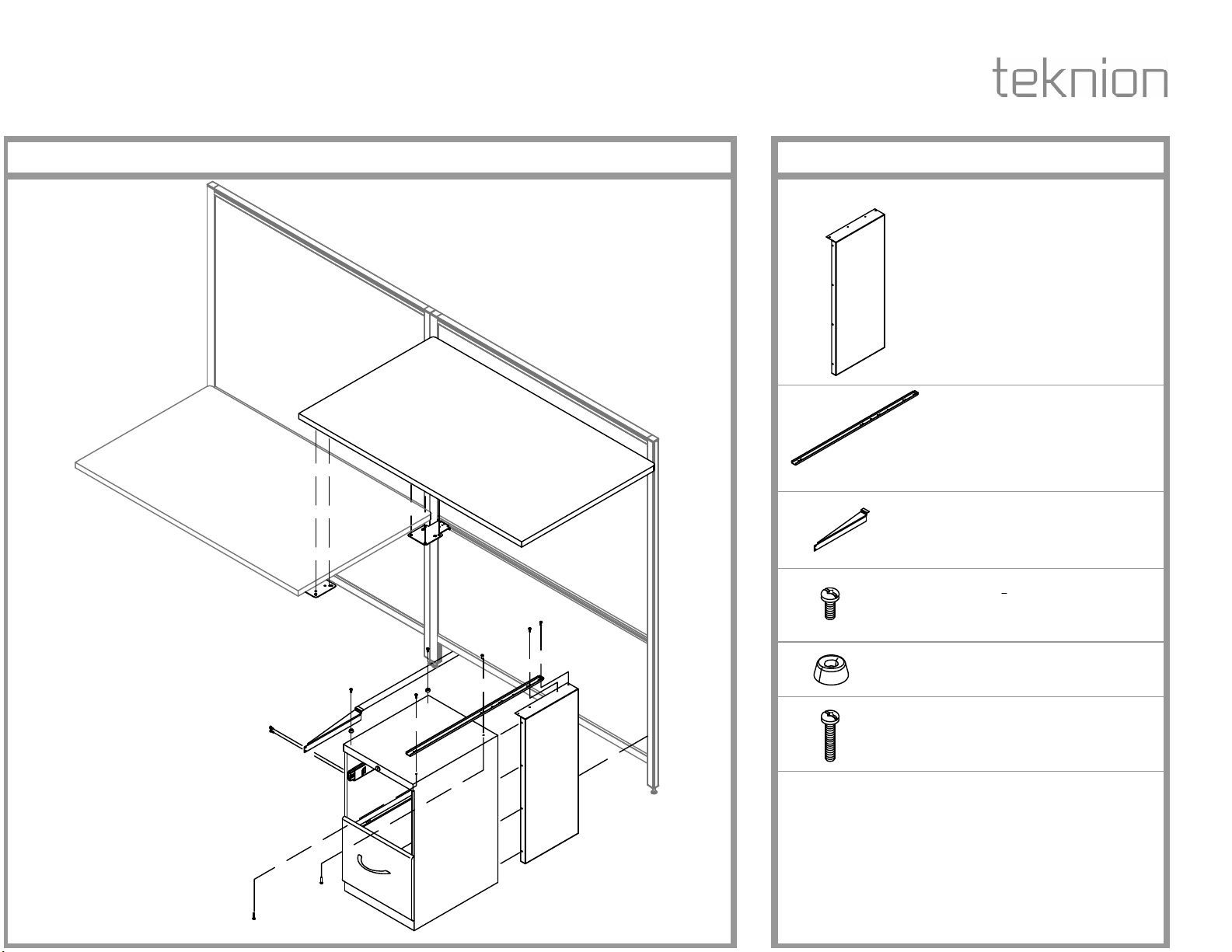

Worksurface Supporting Pedestal Kit (HWP) Part and Product Identification

A - Lyft Filler Panel

(CMFILER) x1

Section:

Description: Page No:

Date:

Rev. No: 0

WORKSURFACE SUPPORTING PEDESTAL KIT

WORKSURFACE SUPPORTS AND ACCESSORIES

May 2020 1 of 4

TLE_357

leverage

Installation Guides

B - Lyft Worksurface Support

Bracket

(CMSUPT) x1

C - Lyft Tether

(CMTETHER12) x1

D - #10 x 1

2" Self Tapping Screw

(PHSCRW1021) x13

E - Worksurface Support Bumper

(D06-4027) x2

F - #10 x 1" Quadrex, Pan Washer

Head, Wood Screw

(PHSCRW1020) x2

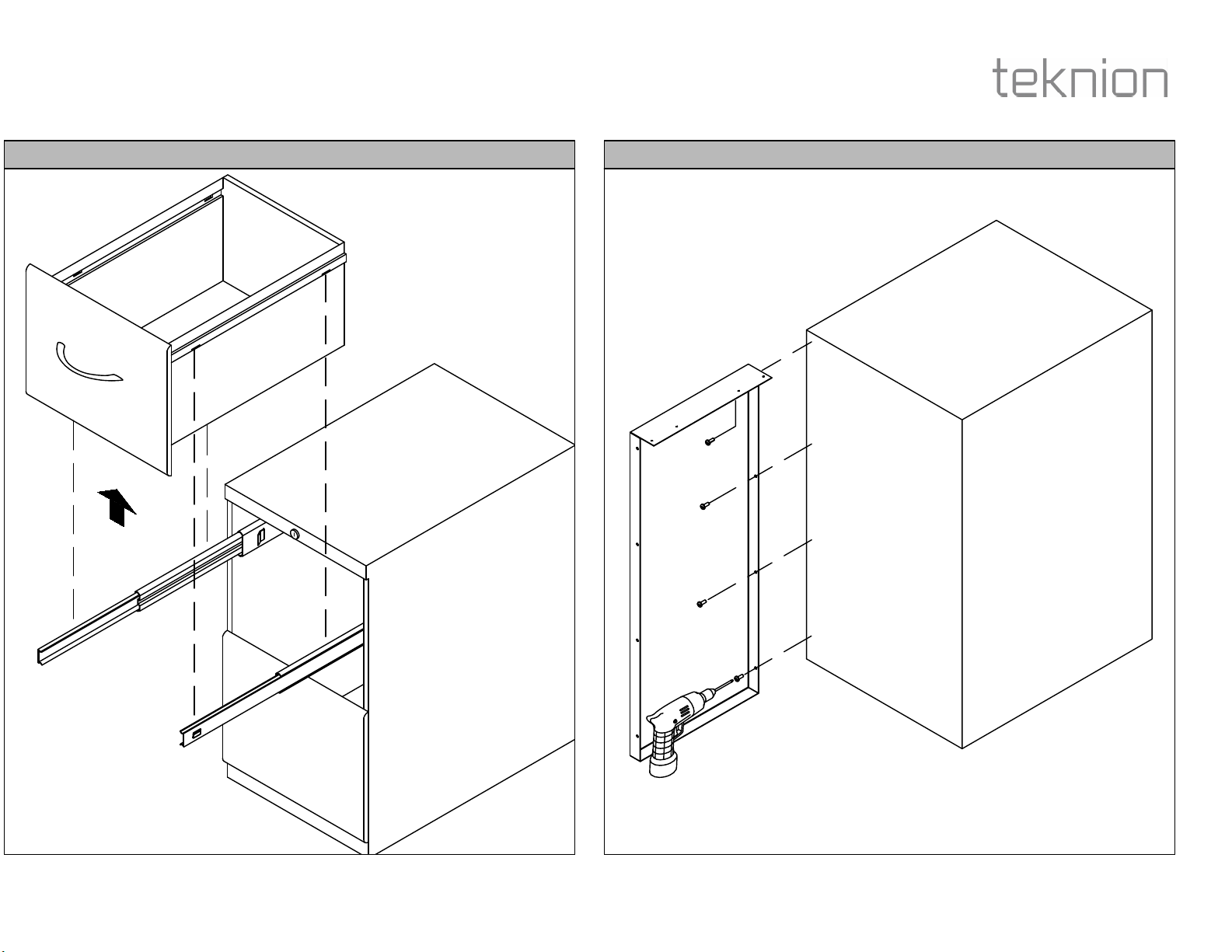

STEP 2: Fasten the panel to the back of the Pedestal.

STEP 1:Remove the Drawer.

Section:

Description: Page No:

Date:

REMOVE THE DRAWERS ATTACH THE PEDESTAL

TLE_357

2 of 5

May 2020

WORKSURFACE SUPPORT PEDESTAL KIT

WORKSURFACE SUPPORTS AND ACCESSORIES

leverage

Installation Guides

Section:

Description: Page No:

Date:

INSTALL THE PEDESTAL FIX THE SUPPORT BRACKET

TLE_357

3 of 5

May 2020

WORKSURFACE SUPPORT PEDESTAL KIT

WORKSURFACE SUPPORTS AND ACCESSORIES

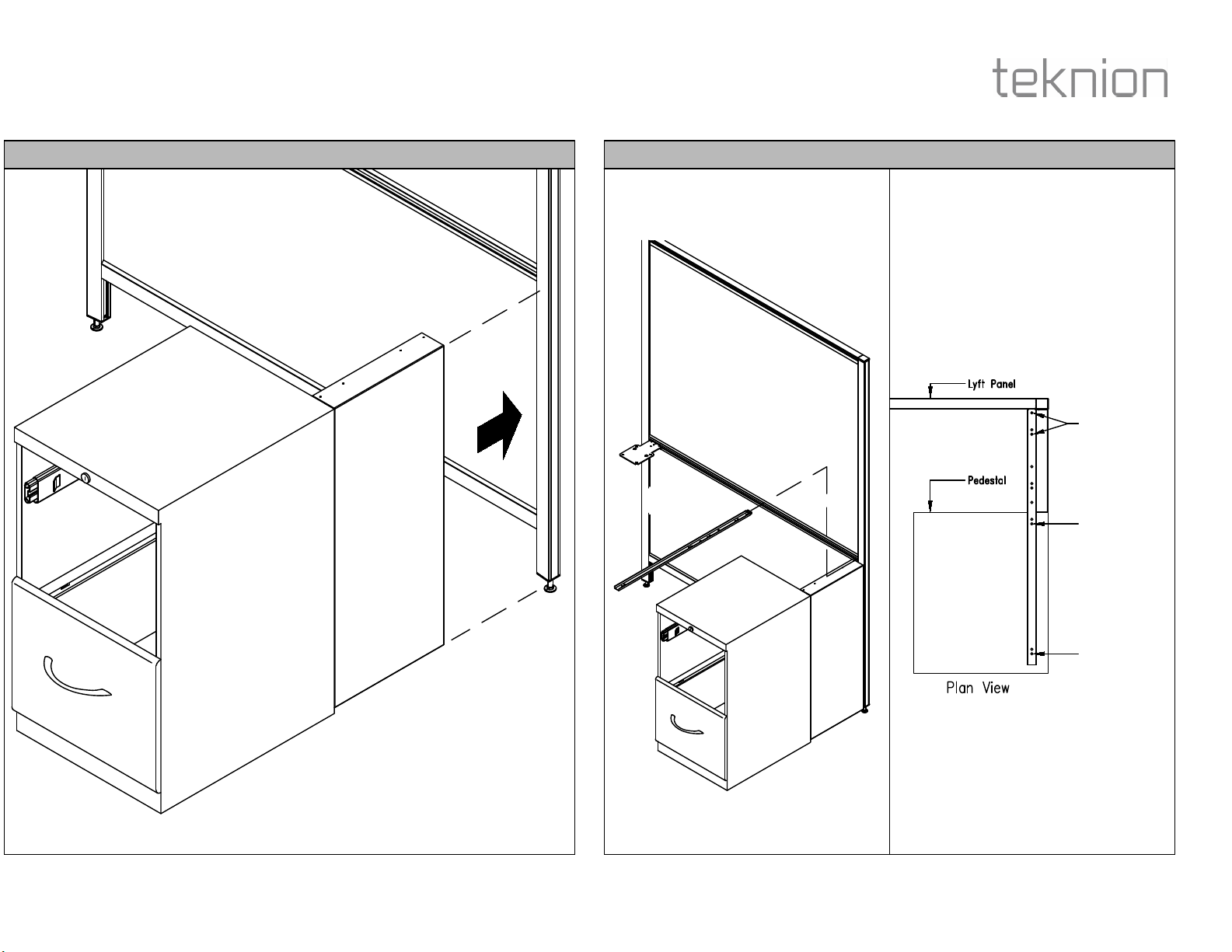

STEP 4: Secure the worksurface support bracket at the top of the Pedestal.STEP 3: Attach the Pedestal to the panel.

leverage

Installation Guides

Align holes of

Filler

Panel and

worksurface

Support

Bracket

Use Rail pilot

hole

to drill a

0.188"d

hole through

Ped top

Use Rail pilot

hole to drill a

Section:

Description: Page No:

Date:

LEVEL PEDESTAL

INSTALL RED HOOK

SECURE THE BUMPERS

TLE_357

0 of 4

May 2020

WORKSURFACE SUPPORTING PEDESTAL KIT

WORKSURFACE SUPPORTS AND ACCESSORIES

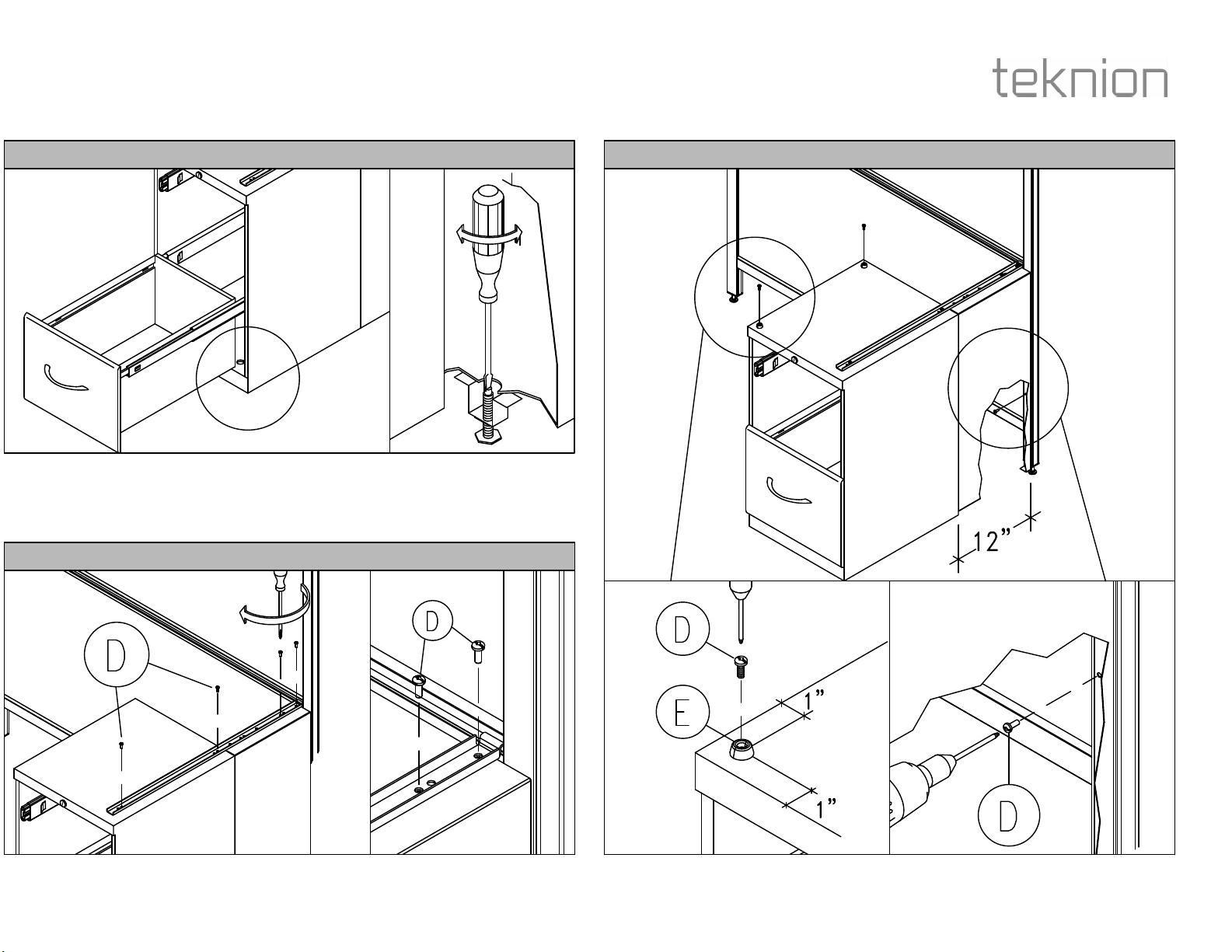

STEP 6: Engage Rail Hook into horizontal Panel Rail.

STEP 5: Level the Pedestal by turning the leveler screw.

STEP 7: Fix Bumpers on top of the Pedestal using Machine Screws.

leverage

Installation Guides

STEP 9: Secure the worksurface using Machine Screws provided.

STEP 8: Fix Lyft Tether at the onto the panel to mount the worksurface.

Section:

Description: Page No:

Date:

INSERT LYFT TETHER ASSEMBLE THE WORKSURFACE

TLE_357

4 of 4

May 2020

WORKSURFACE SUPPORTING PEDESTAL KIT

WORKSURFACE SUPPORTS AND ACCESSORIES

leverage

Installation Guides
