Teknion Interpret Instructions d'utilisation et d'entretien

Solid End Gable Overlay - Single Sided (WWCBSS) Part and Product Identification

For Customer Support please contact

[email protected]

Section:

Description: Page No:

Date:

Rev. No: 03

Feb. 2017 1 of 4

INT_210b

interpret

A - End Gable Screen - Single Sided, Flush,

No Rail

(C05-7400) x1

End Gable Screen - Single Sided, Flush,

Top Rail

(N09-4495) x1

End Gable Screen - Single Sided,

Overhang, No Rail

(C05-8089) x1

End Gable Screen - Single Sided,

Overhang, Top Rail

(N09-4496) x1

B1 - End Gable Mounting Bracket, Interpret

(N09-4739) x1

B - Bracket Kit (X03-0250) x2

NOTE: Single Sided Frame and End

Gable Screen, Single Sided, Flush,

No Rail Shown as an example.

C - Clear Bumper, BS37, Self Adhesive,

.560"H

(E03-0574) x2

B2 - 1/4ID x 1/2OD A 1/8Thick SBR

Flat Washer BLK

(E03-0582) x4

Single Sided End

Gable Frame

B3 - 1/4-20x5/8" Machine screw quad.

Truss HD

(E01-0098) x4

B4 - 1/4-20x7/8 QUADREX, Truss

Head Mach. Screw, Zinc

(E01-0872) x1

Section:

Description: Page No:

Date:

ATTACH BRACKETS (L-HANDED SIDE SCREEN) MOUNT SCREEN

INT_210b

2 of 4

Feb. 2017

interpret

STEP 2: Mount Screen onto the End Gable Frame.

NOTE: Make sure to align the End Gable Screen with the Center Rail as shown on

Top View.

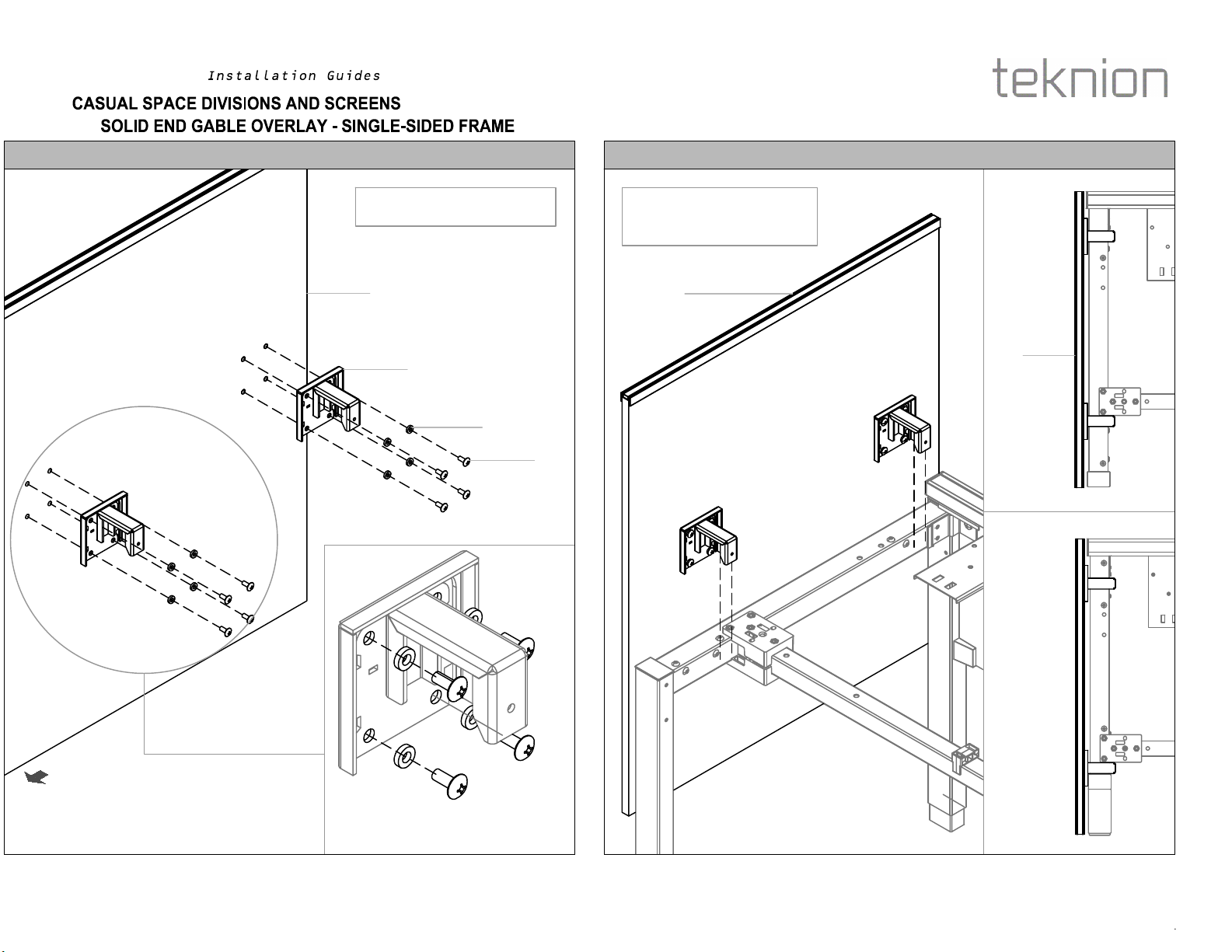

STEP 1: Fasten Brackets to Screen as shown.

NOTE: Left Handed Side Screen Bracket shown as an example.

Underside View

NOTE: Left Handed Side

Screen shown as an example.

Top

View of

Straight Leg

NOTE: Make sure to align

the End Gable Screen with

the Center Rail as shown.

Align

FRONT

Align

Top

View of

Angled Leg

Section:

Description: Page No:

Date:

BUMPER LOCATIONS ATTACH CLEAR BUMPERS

INT_210b

3 of 4

Feb.2017

interpret

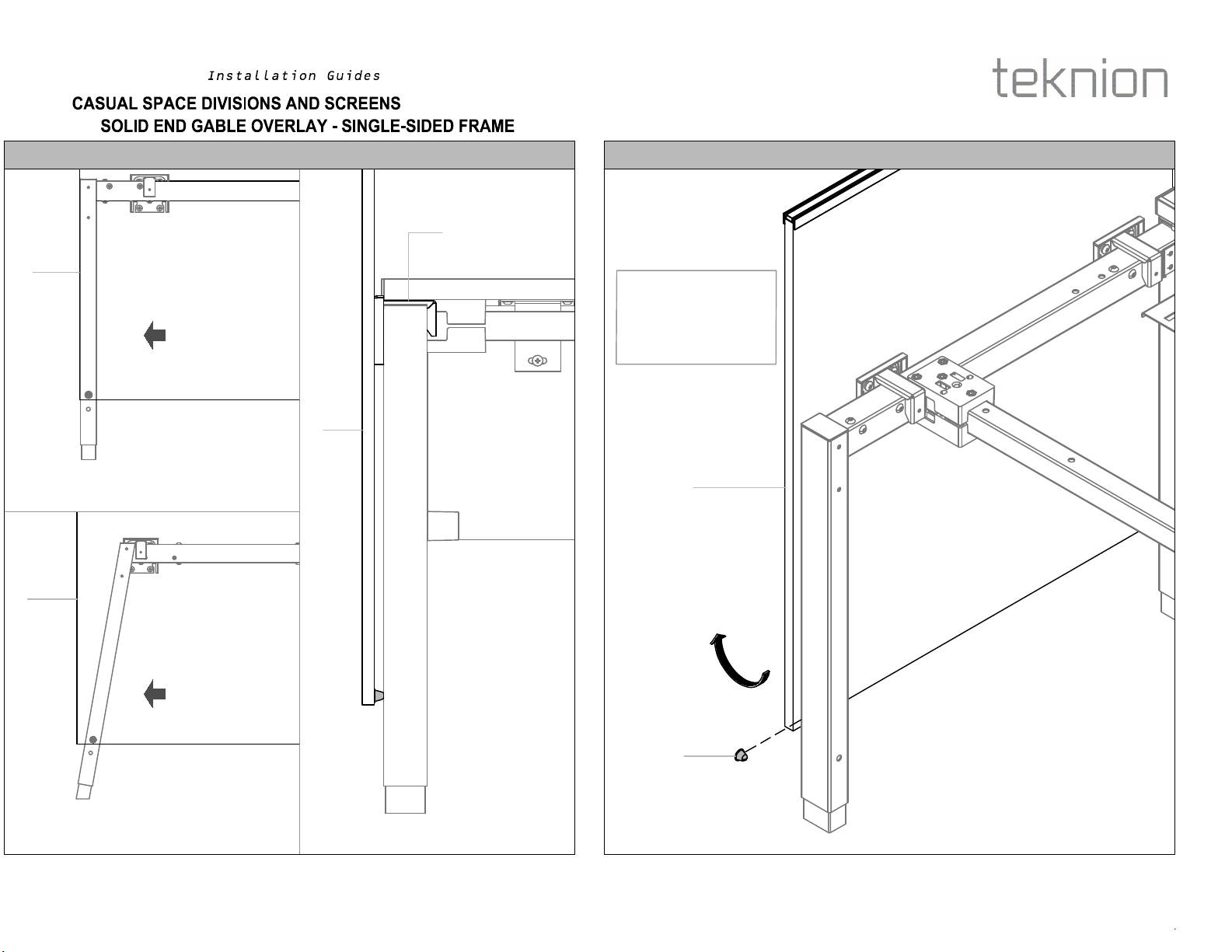

STEP 3: Pull Screen outward and attach Bumpers to the inside of the Screen as shown on the

illustration.

NOTE: Make sure Bumpers are on the location against the Legs and 1/4" away from

the edge of the Screen.

NOTE: Bumpers location illustration.

Front View

Side View Angled Leg

Side View Straight Leg

FRONT

NOTE: Make sure

Bumpers are on the

location against the Legs

and 1/4" away from the

edge of the Screen.

FRONT

Section:

Description: Page No:

Date:

SECURE SCREEN

Feb. 2017 4 of 4

INT_210b

interpret

STEP 4: Secure Brackets to the Frame with Screws provided.
