User Manual

Radiant Thermostat 519

Zoning

519

03/13

Replaces: New

2 of 4

A Watts Water Technologies Company

This brochure will provide you with the information you need to benefit the most from

your tekmar Thermostat. Please visit www.tekmarControls.com for more detailed

information on this or any other tekmar product.

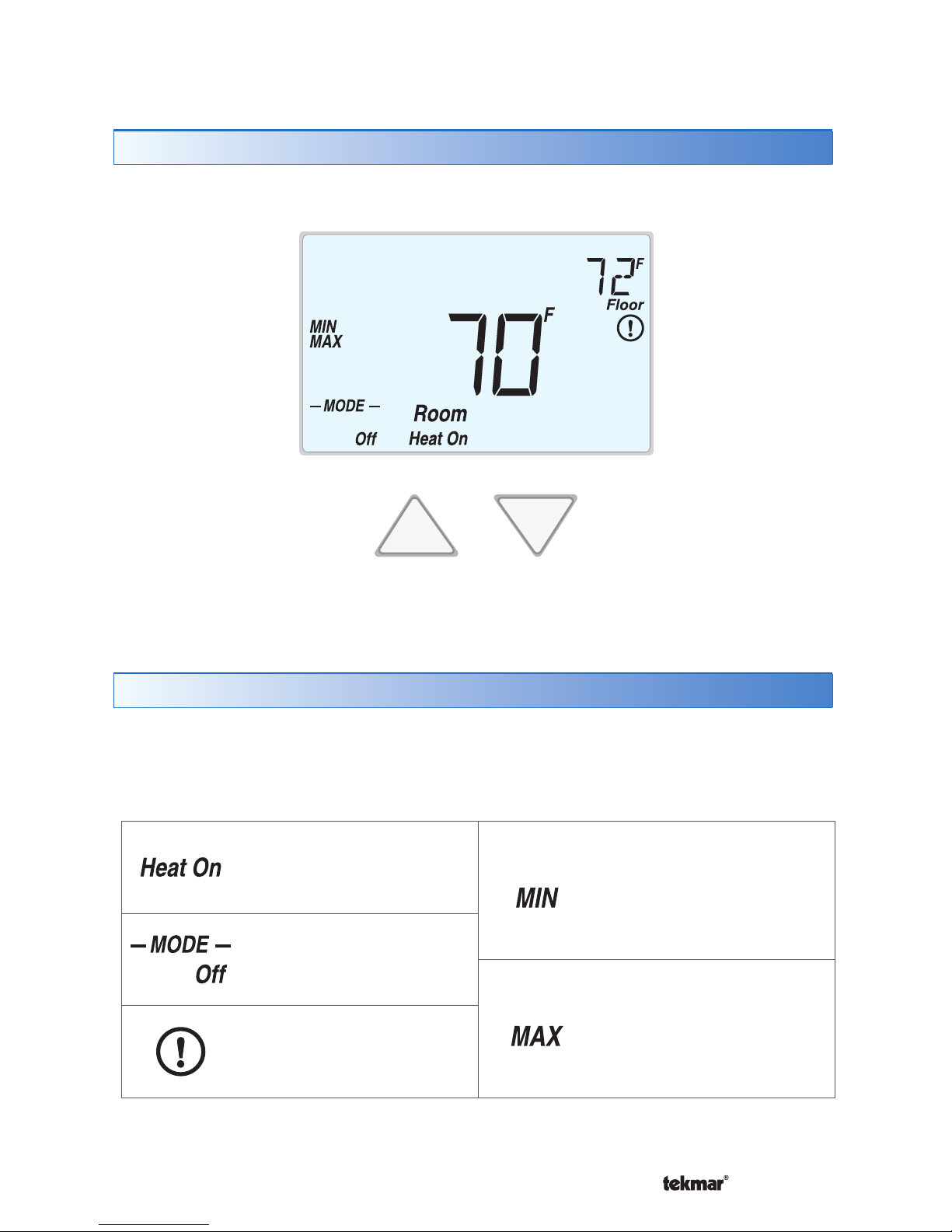

Display Symbols

This thermostat will display symbols on its screen in order to indicate what mode it

is in, what temperature it is operating at, or what equipment it is trying to turn on.

This section describes each of those symbols.

User Interface

HEAT ON

Heat is turned on.

MODE OFF

The heating system is off.

WARNING SYMBOL

Indicates an error is present.

MIN

The floor is at or below the

floor minimum temperature.

MAX

The floor has reached the

floor maximum temperature.

3 of 4

A Watts Water Technologies Company

Setting The Temperature

To change the heat temperature setting, push the

buttons to select a

preferred temperature setting.

Air Temperature Only

-----------------------------------------------

If there is only an air temperature sensor (no floor sensor), the thermostat operates

to control your desired air temperature.

Floor Temperature Only

--------------------------------------------

If the air sensor has been disabled, the thermostat will only maintain floor temperature

and ignore air temperature. This operation is recommended for areas such as

bathrooms to ensure that tile floors are warm to the touch.

Floor and Air Temperature

-----------------------------------------

If the air sensor is turned on and a floor sensor is connected, the thermostat will

maintain your desired air temperature as well as a minimum floor temperature.

This operation is recommended for areas with large windows that allow the sun to

shine into a room and keep it warm without the need for heat. This can allow the

floors to cool off during the afternoon. When the sun goes down, it can take a long

time for the floors to get warm again. This may cause the room to cool off too much in

the early evening. A floor minimum setting can help with this condition by maintaining

a floor minimum temperature. Keep in mind the floor minimum temperature will

override the air temperature, and if set too high, may overheat the room.

This operation is also recommended for rooms with hardwood floors. Setting floor

minimum and maximum temperatures is a way of enhancing the comfort of your

living space while protecting your floor coverings.

90°F (32°C)

Feels hot to the touch

80 to 85°F (26 to 30°C)

Feels warm to the touch

70°F (21°C)

Feels cool to the touch

40 to 45°F (5 to 7°C)

Feels cold to the touch

Suggested maximum for all floor

types other than wood.

Bathrooms and kitchens. Suggested

maximum for wood floors.

Rooms with large windows preventing

under heating in the evening.

Freeze protection for garages.

All specifications are subject

to change without notice

4 of 4 519_U - 03/13.

A Watts Water Technologies Company. Head Ofﬁce: 5100 Silver Star Road, Vernon, B.C.

Canada V1B 3K4, 250-545-7749, Fax. 250-545-0650

Web Site

: www.tekmarControls.com

More Information

This User Brochure contains standard information on how to make adjustments

to an installed product. More detailed information can be found in this product’s

Installation and Operation Manual (519_D) at www.tekmarControls.com

Settings

Display Setting

User settings.

MODE

Select heat or off.

UNITS

Select the temperature units in degrees Fahrenheit or

Celsius.

BACK LIGHT

Select when the display back light should operate. Options

are Off, Auto, On. Auto operates the backlight for 30 seconds

after a keystroke.

SET FLOOR

Set the floor minimum temperature. Available when an

auxiliary floor sensor is connected and the built-in room

temperature sensor is on.

TYPE

Device Type number.

ESCAPE

Release the

and

buttons to return to the home screen.

• Press and hold down both the and buttons for 3 seconds to change from

one step to the next.

• Release both buttons once the step has been reached.

• Press the

or the

button to change the setting, if available.

• Press and hold down both the

and

buttons for 3 seconds to go to the

next step, OR

• After 15 seconds of no button activity, the display goes back to normal

operation.
