TECshow BUBBLE MASTER Manuel utilisateur

P. 1

| Tecshow Bubble Master

BUBBLE MASTER

Double wheel Bubble Machine

USER MANUAL / MANUAL DE USUARIO

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE

POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR

P. 2

Tecshow Bubble Master |

Bubble Master

Double wheel Bubble Machine

Bubble Master is a double wheel bubble machine

that delivers more bubbles thanks to its eicient

wheel design. Bubble Master comes in a very resist-

ant, compact and light one-piece plastic case with

a 1L tank, that guarantees no rust & no leaking.

Remote control included.

Specications

Output

• Double Bubble Wheel

• Fluid Consumption Rate: 2 hours/liter

• Tank: 1 Liter

Control

• Operational mode: Analog

• Controllers: LC-3S (included) / RC-3, LC-3 (op-

tional)

Physical

• One-piece plastic case - No rust or leaking

• Dimensions: 352x176x209 mm. / 13.8x6.9x8.2 in.

• Weight: 2.0 Kg. / 4.4 Lbs.

1. OVERVIEW

English version

P. 3

| Tecshow Bubble Master

English version

2. WARNING

Like all electronic products, Bubble Mas-

ter must be used with safety precautions

in mind.

Fill enough bubble uid before plugging

in, empty uid tank when not in use or

moving.

• Products for inddor use only. Keep away from

liquids. Never operate in rain or in damp condi-

tions.

• Use only appropiate, grounded electric power

supply for your unit. See your product speci-

cation label for appropiate power supply. This

appliance must be earthed.

• Disconnect from electric mains power supply

when not in use, when lling the uid tank, or

when changing a fuse. Keep unit dry.

• Keep machine in at position, never put it in

tilted place.

• Before moving bubble machine, always drain

bubble uid into the exterior tank to avoid

spilling.

• Without user-serviceable part in the package,

please contact your local agent or qualied

technician for servicing.

• Without changeable structure by non-qualied

user, please do not open the rear cover or have

any change at will, otherwise, it may cause

accident.

• bubble machine is for adult use. Keep out of

reach of children. Never leave the unit running

unattended.

• Keep case closed while operating. Put bubble

machine in dray place, do not insert objects

into air vents. Allow 20cm space or above

around the machine for proper ventilations.

• Keep bubble machine away from ames and

ammable items. Never aim the mouth at open

ame or sparks. Use only high quality bubble

uid. Never put ammable substances into the

tank.

• Machine must cool down before cleaning, ser-

vicing or storing.

• Never put any ammable material (lipid, gas,

perfume, etc.) into the tank, read the user man-

ual thoroughly before operation.

• Better use out high quality bubble uid to maxi-

mize the bubble eect.

• Keep suicient bubble uid in tank, but please

do not overll bubble machine.

• If any abnormal running occurs, stop it imme-

diately, empty the uid, and bring the done up

unit (recommend original box) yo your agent or

dealer for servicing. Make sure all uid is empty

from the tank before moving or shipping.

• Never drink bubble uid. If ingested, call doctor

immediately. If uid contacts eyes or skin, rinse

skin thoroughly with water.

• Read user manual instructions thoroughly

before operating. Follow the instruction. Never

remove warning or informative labels from the

unit.

Caution

There are no user serviceable parts inside this unit.

Do not attempt any repairs yourself, doing so will

avoid your manufactures warranty. In the unlike

event your unit may require service please contact

your local dealer.

Pay attention to all warning labels and instructions

printed on the exterior of Bubble Master.

Do not overll your bubble machine. Overlling will

cause the unit to leak.

Important: When the bubble machine is not at

work, it is suggested to empty the bubble liquid

immediately and clean the tank with water. Please

note that the bubble liquid inside the bubble ma-

chine will get sticky aer being exposed to the air

for a period of time, which will result failure of bub-

ble blowing. Under such situation, please dilute the

P. 4

Tecshow Bubble Master |

bubble liquid with water to its proper concentration

for use. Bubble blowing will be revitalized then.

Please note

Specications and improvements in the desing of

this unit and this manual are subjects to change

without any prior written notice.

Important

Green and Yellow: Earthed (E)

Blue: Neutral (N)

Brown: Live (L)

Warining: This appliance must be

earthed.

3. THE PRODUCT

A. Handle

B. Bubble Fluid Tank

C. Bubble switch

D. Control Socket Connection

E. Fuse Holder

F. Electric Power Cord

G. Fan

H. Picket line of Overll

I. Liquid-level eyelet.

Description

The most wanted Bubble MAster makes dancing

parties full of fun. Equipped with Double Bubble

Wheel, Bubble Master constantly produces vol-

umes of rm bubbles. Its big mouth blows strongly

volumes of bubble to the air, and also recycles the

bubble liquid at the same to avoid liquid leaking.

The bottom base of the one-piece plastic case is

completely sealed, so that the liquid will not easily

spill when the machine is being moving. Easy for

bubble liquid supply plus the handle for direct hold-

ing make Bubble Master absolutely user-friendly

in dierent kinds of locations, celebration parties,

dancing parties, and shows.

Bubble Master can work with wire controller (LC-3S)

and wireless controller (RC-3). Without doubt, Bub-

ble Master is the best helper for creating the best

activity atmosphere.

English version

P. 5

| Tecshow Bubble Master

Getting Ready

All products are thoroughly tested at the factory

and shipped in perfect condition. If damage has

occurred during shipping, or if components are

missing, please contact your local dealer immedi-

ately. You package should include:

• One Bubble Master

• One LC-3S line controller

Set up

1. Open the shipping carton and carefully remove

the unit from the shipping carton.

2. Be sure to remove packing material from

around the bubble machine.

3. Set the bubble machine on a dry, at surface.

4. Fill the bubble uid to the bubble machine, Do

not overll. Use only high quality uid.

5. Firmly attach the remote control mechanism to

socket (item D on gure) on the back of the unit.

6. Plug mains power cord from the bubble ma-

chine into appropiate power supply socket.

7. Refer to your controller manual for operation

details (Appendix A, B).

Operation

1. Use bubble switch (C of gure) to switch unit´s

ON/OFF, switch "ON" to blows volumes of bub-

bles to the air, and "OFF" to stop.

2. Use controller LC-3S or RC-3 to operate Bub-

ble Master. Refer to your controller manual for

operation details (Appendix A & B).

4. TROUBLESHOOTING

This troubleshooting guide is meant to help solve

simple problems. If a problem occurs, carry out the

steps below in sequence until a solution is found.

Once the unit operates properly, do not carry out

followings steps. If the problem persists, refer ser-

vicing to a qualied technician.

Power Connected but No Bubble Is Blew

1. Check the power supply. Plug the unit into

grounded electric power supply socket with

proper voltage.

2. Check your controller if in correct connection,

test the battery if power enough for wireless

controller.

3. Disconnect bubble machine from electric pow-

er supply. Replace fuse with one of the same

type.

English version

P. 6

Tecshow Bubble Master |

6. APPENDIX - A LC-3S

5. MAINTENANCE

Wired Remote Control Operation:

The Bubble Master is designed with 3m wired

remote controller with JY cable. Once the bubble

machine is plugged, the red LED on this remote

controller will light up. When switch the button (B)

ON, the green LED lights up, and indicating the bub-

ble machine blows volumes of bubbles to the air.

Cable lengh: 3m

Connector: JY

Function: ON/OFF

Dimension (LxWxH): 90x50x24 mm

Weight: 0.28 kg

Before doing maintenance, please make sure that

the power is cut, the power cord is unplugged.

The maintenance must be done by qualied per-

son.

1. For cleaning the interior of the machine and

the hole of bubble-blowing, unscrew the two

screws on each of the right side and the le side

of the back panel. Dismantle the module and

disconnect the 2-pin motor wires.

2. Clean the fan with cloth.

3. Clean the plastic cover with cloth.

4. Aer cleaning, put the module back by reverse

direction according to the instruction of point

1, and be sure that the motor wires are well

connected.

Important: When the bubble machine is not at

work, it is suggested to empty the bubble liquid

immediately and clean the tank with water. Please

note that the bubble liquid inside the bubble ma-

chine will get sticky aer being exposed to the air

for a period of time, which will result failure of the

bubble blowing. Under such situation, please dilute

the bubble liquid with water to its proper concen-

trarion for use. Bubble blowing will be revitalized

then.

A. JY cable

B. Button

C. Green LED (blow)

D. Red LED (power)

English version

P. 7

| Tecshow Bubble Master

7. APPENDIX - B RC-3

Wired Remote Control Operation:

The Bubble Master is designed with wireless re-

mote controller. Workable remote distance possibly

extends to 25 meters. Get RC-3 properly connected

with Bubble Master, press down any button on the

remote to start blowing, unhand the button to stop

emission.

Operative Distance: 25m

Connector: JY

Function: Wireless ON/OFF

Dimension (LxWxH): 90x50x24 mm

Weight: 0.1 kg A. Remote control B. Radio receiver

English version

P. 8

Tecshow Bubble Master |

Bubble Master

Máquina de burbujas de doble rueda

Bubble Master es una máquina de burbujas de

doble rueda que genera un efecto mayor gracias a

efectivo diseño. El equipo viene en un gabinete de

una sola pieza, muy resistente, compacto y ligero

con un tanque de 1L que no se oxida ni tiene fugas.

Bubble Master incluye control remoto.

Especicaciones

Salida

• Doble rueda de burbujas

• Consumo de uido: 2 horas x litro

• Tanque: 1 litro

Control

• Modos de operación: Análogo

• Controladores: LC-3S (integrados) / RC-3, LC-3

(opcional)

Físico

• Un solo gabinete plástico - sin oxidación ni pér-

dida de líquidos

• Dimensiones: 352x176x209 mm. / 13.8x6.9x8.2 in.

• Peso: 2.0 Kg. / 4.4 Lbs.

1. DESCRIPCIÓN

Versión Español

P. 9

| Tecshow Bubble Master

Versión Español

2. ADVERTENCIA

Como todos los productos electróni-

cos, Bubble Master deben ser usada con

precauciones de seguridad. Rellenar el

tanque con líquido de búrbujas antes

de enchufar. Vaciar el tanque cuando no

esté usado o esté en movimiento.

• Este producto es solamente para uso en inte-

riores. Manténgalo alejado de líquidos. Nunca

opere el aparato en la lluvia o en condiciones

húmedas.

• Utilice solamente un suministro apropiado de

energía eléctrica con toma de tierra para su

aparato. Vea la etiqueta de especicación del

producto.

• Desconecte la energía eléctrica del aparato

cuando no lo utilice, cuando el tanque esté

lleno de líquido de Búrbujas, o cuando cambie

un fusible. Mantenga el aparato seco.

• Guarde la máquina en una posición plana.

Nunca la ponga en un sitio inclinado.

• Antes de mover la máquina de búrbujas, siem-

pre vacíe el uido del tanque y cierre bien la

tapa para evitar derrames.

• No se contienen partes que puedan ser repara-

das por los usuarios. Contactese con su agente

local o con un ténico calicado para servicios

necesarios.

• Sin estructura cambiable por usuarios no

calicados. No abra la cubierta trasera ni haga

ningún cambio para evitar accidente.

• Las máquinas de búrbujas deben ser utilizadas

por adultos. Mantenga fuera del alcance de

los niños. Nunca deje el aparato funcionar sin

atención.

• Mantenga la cubierta cerrada mientras está

operando el aparato. Guarde la máquina en un

sitio de ventilación. No inserte objetos dentro

de las aperturas de ventilación. Mantenga al

menos 20cm de espacio alrededor del aparato

para la ventilación apropiada.

• Manténga la máquina alejado de la ama o el

material inamable. Nunca apunte la boquilla a

la ama o la chispa. Utilice únicamente uido

de búrbujas de alta calidad. Nunca ponga sus-

tancias inamables en el tanque.

• La máquina tiene que estar enfriada para lim-

piar, servir o guardar.

• Nunca ponga materiales amables (grasa, gas,

perfume,…etc.) en el tanque. Lea el manual

de usuarios completamente antes de hacer la

operación.

• Mejor usar el líquido de alta calidad producido

por American Pro para lograr el major efecto de

burbujas.

• Mantenga suciente uido en el tanque, pero

no lo llene demasiado.

• En caso ocurre algún función abnornal, pare la

máquina inmediatamente. Lleve la máquina en

su caja original a su agente o dealer para servir.

Recuerde vaciar el tanque de líquido antes de

mover o enviar.

• Nunca beba el líquido. En caso de ingestión,

llame al doctor inmediatamente. Si ocurre

contacto del líquido con la piel y los ojos, lave

la piel y los ojos afectados con agua.

• Lea el manual de usuarios completamente an-

tes de operar. Siga la instrucción. Nunca quite

la etiqueta informativa o de advertencia.

Precaución

La máquina no contiene repuestos servibles por los

usuarios. No intente ningúna reparación por símis-

mo. En caso su unidad necesita servicio, contactese

con su dealer local. Tome atención a todas las eti-

quetas de advertencia e instrucciones imprimidas

en el exterior de Bubble Master. No sobre-llene el

tanque para evitar gotera.

Importante: En caso el próximo uso de la máquina

es en más de 24 horas, por favor tome la sugestión

P. 1 0

Tecshow Bubble Master |

de vaciar el líquido de burbujas y limpiar el tanque

con agua.

Nota

Cualquier cambio de las especiciones y mejorías

del diseño del producto no se avisan por escrito

con anticipacóin

Importante

Verde y Amarillo – Tierra (E)

Azul – Neutral (N)

Marrón – Vivo (L)

Advertencia: Este aparato tiene que

tener una toma de tierra.

3. EL PRODUCTO

A. Asa

B. Tanque

C. Switch de búrbujas

D. Enchufe para el Controlador

E. Receptáculo del fusible

F. Cable de la electricidad

G. Ventilador

H. Línea de sobre-lleno

I. Nivel de liquido

Descripción

La máquina de búrbujas más requerida, Bubble

Master, hace una  esta de baile llenar de diversion.

Equipada con doble ruedas de búrbujas, Bubble

Master produce constantemente búrbujas  rmes

en abundancia. Su boca grande sopla fuertemente

abundancia de búrbujas al aire, y al mismo tiempo

también recicla el líquido de búrbujas para evitar

gotera del líquido. El fondo del gabinete plástico

hecho de die-cut es completamente sellado, así

que el líquido no derrama fácilmente cuando se

está moviendo el aparato. Siendo fácil para sumi-

nistro de líquido, y conteniendo la asa para sostén

directo hacen Bubble Master ser absolutamente

amistosa de usuarios en diferentes tipos de loca-

lidades,  estas de celebración,  estas de bailes y

exposiciones. Bubble Master puede trabajar con el

controlador de cable LC-3 y con el controlador de

Versión Español

Table des matières

Langues :

Autres manuels TECshow Matériel de DJ

TECshow

TECshow NEBULA MAX 240 Manuel utilisateur

TECshow

TECshow MAGIC CUBE Manuel utilisateur

TECshow

TECshow ufotec Manuel utilisateur

TECshow

TECshow FRESNELED 3100 MKII Manuel utilisateur

TECshow

TECshow BLINDER LITE Manuel utilisateur

TECshow

TECshow ALFIE WASH BM Manuel utilisateur

TECshow

TECshow ALFIE SPOT 2 Manuel utilisateur

TECshow

TECshow RAZOR 7 QUAD Manuel utilisateur

TECshow

TECshow Ion 280 3-in-1 Manuel utilisateur

TECshow

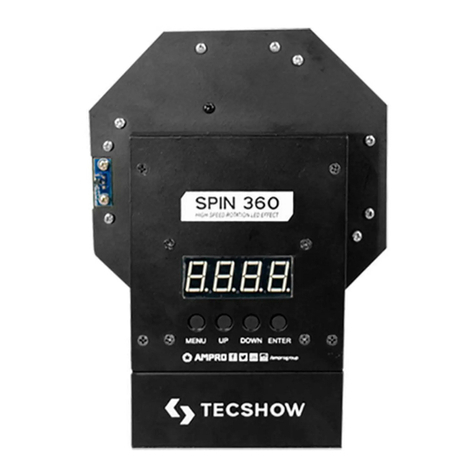

TECshow SPIN 360 Manuel utilisateur

TECshow

TECshow HALO 712 XL Manuel utilisateur

TECshow

TECshow octobeam Manuel utilisateur

TECshow

TECshow SATURN Manuel utilisateur

TECshow

TECshow BEAMPIX 14 Manuel utilisateur

TECshow

TECshow SPINNER Manuel utilisateur

TECshow

TECshow StickTriTEC Manuel utilisateur

TECshow

TECshow HALO 80 LED Manuel utilisateur

TECshow

TECshow Floor TEC Manuel utilisateur

TECshow

TECshow strobetec 2 Manuel utilisateur

TECshow

TECshow 4beamTEC Manuel utilisateur

TECshow

TECshow ION 575 Manuel utilisateur

TECshow

TECshow COSMO UV Manuel utilisateur

TECshow

TECshow NEBULA ZOOM Manuel utilisateur

TECshow

TECshow BEAMER 17R Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
