Techly IDATA EXT-465P Manuel utilisateur

P/N: IDATA EXT-465P

8059018366587

EN User's Manual

IT Manuale d’istruzione

WWW.TECHLY.COM

HDMI EXTENDER

4K@60HZ

Technical features

50 M

POINT

HDMI EXTENDER 4K@60HZ

Dear Customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions

carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

IMPORTANT SAFETY INSTRUCTION

INTENDED USE

We do not permit using the device in other ways like described in this user’s manual.

Use the product only in dry interior rooms. Not attending to these regulations and

safety instruction might cause fatal accidents, injuries, and damages to persons and

property. The manufacturer/supplier assumes no liability for damages caused by

failure to comply with the intended use.

To reduce risk of electric shock, this product should

ONLY be opened by an authorized technician when

service is required. Disconnect the product from mains

and other equipment if a problem should occur. Do not

expose the product to water or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

• Your product is not a toy and is not meant for children, because it contains small parts which can be

swallowed and can injure when used inappropriately!

• Please install the system and devices attached to it in a way that persons cannot be injured, or

objects not be damaged for example by dropping or stumbling.

• Please remove the packing materials, because children may cut themselves on them while playing.

Furthermore, there is a risk of swallowing and inhalation of incidentals and insulating material.

• Avoid places with high temperatures, or humidity, or places which might come into contact with

water. Do not install the product close to openings of air conditioners, or at places with an excessive

amount of dust or smoke. Do not place this apparatus near or over a radiator or heat register, or

where it is exposed to direct sunlight. Any liquid that goes into the apparatus may cause a failure,

fire, or electric shock.

• Do not install the product at places subject to vibration, or oscillation.

• Do not modify and alter the product and any accessories! Do not use any damaged parts.

• Keep enough space around all devices for a good ventilation and free motion and to avoid damages.

• Do not mix up HDMI to RJ45 transmitter and RJ45 to HDMI receiver before installation

EN - 2

WWW.TECHLY.COM

HDMI EXTENDER 4K@60HZ

• Do not unplug the device when it is in using, keep distance from flammable and explosive devices.

• Static electricity will cause damage of the device, please do ESD protection when using the device

• To prevent electric shock, please ensure that all apparatus is properly grounded and never insert

anything metallic into the open parts of this apparatus.

• If a three-party power supply is used, please ensure that the power supply specifications meet the

product requirements.

INTRODUCTION

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz

HDMI signal can be extended by 50m through CAT6/6A/7 network cable. It supports HDMI loop out, IR

passthrough, etc. This kit is a reliable, ultra-high-definition video transmission solution, which is widely

used in security monitoring, home theater, broadcasting, training and other fields.

FEATURES

1. Zero-latency transmission.

2. Extend 4K@60Hz HDMI signal up to 50m over Cat6/6A/7 cable.

3. Support HDR10.

4. Support EDID passthrough and auto downscaling.

5. Support PoC network cable power supply, only TX power supply is needed.

6. The transmitter supports HDMI loop out.

7. Support IR passthrough.

8. Lightning protection, surge protection, ESD protection.

9. Plug and play.

PACKAGE CONTENTS

• Transmitter x1 • Receiver x1 • Power Supply DC5V2A x1 • User manual x1 • IR blaster extension

cable x1 • IR receiver extension cable x1

INSTALLATION REQUIREMENTS

ITEM DESCRIPTION REQUIREMENT

Signal source Devices with HDMI port (PC, DVD, NVR, etc.) HDMI cable ≤5m

Cable CAT6/6A/7, following standard IEEE-568B CAT6/6A/7≤50m

Display device TVs, projectors, etc. with HDMI port HDMI cable ≤5m

EN - 3

WWW.TECHLY.COM

HDMI EXTENDER 4K@60HZ

H D M I O U T

H D M I D i sp la y

N e t w o r k c ab l e

H D M I D i sp la y

TX RX

Video So urce

Po C

D C 5 V

①②③⑤ ⑥④

⑦

①②③⑤ ⑥④

IR receiverIR blaster

H D M I O U T

H D M I D i sp la y

N e t w o r k c ab l e

H D M I D i sp la y

TX RX

Video So urce

Po C

D C 5 V

①②③⑤ ⑥④

⑦

①②③⑤ ⑥

④

IR receiverIR blaster

PANEL DESCRIPTION

1. Transmitter

Power input Connect with DC 5V power adapter

RJ45 output Connect with CAT6/6A/7 network cable

IR OUT Connect with IR blaster extension cable

Reset Hole Press the pinhole reset button with a straightened paper clip

Power Indicator When there is power, the indicator will light solid blue

HDMI Output Connect with local HDMI display device with HDMI cable

HDMI Input Connect with HDMI source device with HDMI cable

Power input

Spare power port (Powered by TX)

RJ45 output Connect with CAT6/6A/7 network cable

IR IN Connect with IR receiver extension cable

Reset Hole Press the pinhole reset button with a straightened paper clip

Power Indicator When there is power, the indicator will light solid blue

HDMI Output Connect with HDMI display device with HDMI cable

2. Receiver

EN - 4

WWW.TECHLY.COM

HDMI EXTENDER 4K@60HZ

H D M I O U T

H D M I D i sp la y

N e t w o r k c ab l e

H D M I D i sp la y

TX RX

Video So urce

Po C

D C 5 V

①②③⑤ ⑥④

⑦

①②③⑤ ⑥④

IR receiverIR blaster

INSTALLATION PROCEDURES

1. Connection Diagrams

2. Connection Instructions

1) Connect the source device to the HDMI IN port of the transmitter with an HDMI cable, and connect

the HDMI OUT port of the receiver to the display device with another HDMI cable.

2) Use a Cat6/6A/7 cable to connect the RJ45 port of the transmitter and receiver.

3) If using HDMI loop out, connect the display device to the HDMI OUT port of the transmitter.

4) If using IR passthrough, the IR blaster extension cable should plug in the IR OUT port of the

transmitter, the IR receiver extension cable should plug in the IR IN port of the receiver.

5) Plug the power supply into the devices to get started.

EN - 5

WWW.TECHLY.COM

HDMI EXTENDER 4K@60HZ

H D M I O U T

H D M I D i sp la y

N e t w o r k c ab l e

H D M I D i sp la y

TX RX

Video So urce

Po C

D C 5 V

①②③⑤ ⑥④

⑦

①②③⑤ ⑥④

IR receiverIR blaster

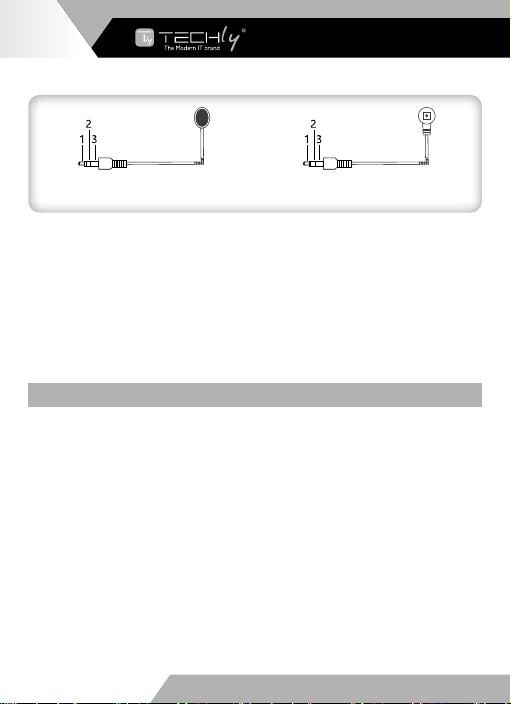

3. IR User Guide

1. Power

2. IR Signal

3. Null

1. Power

2. IR Signal

3. Grounding

1) IR blaster extension cable should plug in the IR OUT port of the transmitter, IR receiver extension

cable should plug in the IR IN port of the receiver.

2) The emitter of the IR blaster extension cable should be as close as possible to the IR receiving

window of the source device.

3) Point the remote control at the receiving head of the IR receiver extension cable to operate.

FAQ

Q: The devices are connected correctly, but why is there no image displayed?

A: 1) Please make sure the HDMI cable meets the transmission requirements. (e.g. 4K HDMI cable)

2) Please check and make sure the network cable is connected well.

3) Restart the transmitter or receiver by pressing the reset button.

Q: Why does the display occasionally have a black screen?

A: 1) Check if the length of the cable is within the specified range.

2) Reset the transmitter or receiver to re-built the connection.

Q: Why is the display color abnormal or no sound?

A: 1) Reset the transmitter or receiver to re-built the connection.

2) Check if the HDMI cables are connected well.

3) Reconnect the network cable.

EN - 6

WWW.TECHLY.COM

HDMI EXTENDER 4K@60HZ

TECHNICAL PARAMETERS

ITEMS TRANSMITTER RECEIVER

VIDEO

Input Interface

1x HDMI Type A Female 1x RJ45 Female

Output Interface

1x HDMI Type A Female;

1x RJ45 Female

1x HDMI Type A Female

HDMI Length

≤ 5m ≤ 5m

Maximum transfer rate

18Gbps

Maximum transmission

bandwidth

600MHz

EDID passthrough

Yes

Compatibility

HDMI 2.0 (Deep color, 4K, HDR, YUV4:4:4)

HDCP 2.2, HDCP1.4

Resolutions

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,

1080i@50/60Hz,1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz,

3440x1440, 2560x1440, 2560x1080, 2048x1080, 1920x1440, 1920x1080,

1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768,

1600x900,1024x768, 800x600

Transmission distance

4K transmission distance 50m;

1080p transmission distance 70m

AUDIO

Input interface 1x HDMI Type A Female N/A

Output interface

1x HDMI Type A Female 1x HDMI Type A Female

Audio formats

LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos

COMMAND SIGNAL

IR Interface

1x 3.5mm IR OUT Female 1x 3.5mm IR IN Female

Receiving range

≤5m

Infrared frequency

20KHz~60KHz

POWER

Power Supply

DC5V/2A PoC (Powered by TX)

Power Consumption

TX+RX<5.5W

OPERATING ENVIRONMENT

Working temperature

-20°~60°C

Storage temperature

-30°~70°C

Humidity

0~90% RH (No condensation)

PHYSICAL PROPERTIES

Housing

Metal

Weight

TX: 130g RX: 130g

Color

Black

Dimensions

75.0(L)*60.0(W)*21.0(H)mm

Protection

ESD protection; 1a Contact discharge level 2 (±4KV); 1b Air discharge level 3

(±8KV); Implementation of the standard: IEC61000-4-2

Lightning protection, Surge protection

EN - 7

WWW.TECHLY.COM

HDMI EXTENDER 4K@60HZ

Maintenance: clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty: no guarantee or liability can be accepted for any changes and modifications of the product

or damage caused due to incorrect use of this product.

In compliance with EU Directive WEEE this product is marked with this symbol. It means

that used electrical and electronic products should not be mixed with general household

waste.There is a separate collections system for these products in compliance with WEEE

directive, otherwise contaminative and hazardous substances can pollute the environment.

With the CE sign, Techly®ensures that the product is conformed to the basic European

standards and directives. CE declaration is available on web site at the product page.

EN - 8

WWW.TECHLY.COM

HDMI EXTENDER 4K@60HZ

EXTENDER HDMI 4K@60HZ

Gentile Cliente

Grazie per aver acquistato questo prodotto. Per ottenere il massimo delle prestazioni nella salvaguardia della

sua sicurezza, le consigliamo di leggere con attenzione il presente manuale prima di collegare e mettere in

funzione il prodotto. Tenga sempre a disposizione il presente manuale per ulteriori esigenze future.

IMPORTANTI INFORMAZIONI SULLA SICUREZZA

USO PREVISTO

Non è consentito l’uso dell’apparecchio in modi diversi da quello indicato nel

presente manuale. Utilizzare il prodotto solo in luoghi interni asciutti. Non rispettare

le istruzioni e le precauzioni di sicurezza riportate nel presente manuale potrebbe

causare incidenti mortali, lesioni e danni a persone e cose. Il costruttore/fornitore non

risponde dei danni risultanti da un utilizzo non conforme all’uso previsto.

Per ridurre il rischio di shock elettrico, questo prodotto

dovrebbe essere aperto SOLO da un tecnico autorizzato

quando è necessario ripararlo. Scollegare il prodotto

dall’alimentazione e da altri apparecchi se dovesse

esserci un problema. Non esporre il prodotto ad acqua o umidità.

ATTENZIONE

RISCHIO DI SCOSSE ELETTRICHE

NON APRIRE

• Questo prodotto non è un giocattolo e non è pensato per i bambini, contiene piccole parti che

potrebbero venir ingerite o inalate e provocare danni se non utilizzato correttamente!

• Installare l’apparecchio e le periferiche ad esso collegate in modo che non possano provocare danni

a persone e oggetti come far inciampare o causare cadute.

• Rimuovere tutti gli imballi che potrebbero causare soffocamento se manipolati da bambini.

• Evitare di installare l’apparecchio in luoghi con temperature o umidità eccessive, o luoghi che

potrebbero venire a contatto con l’acqua. Non installare vicino a bocchette dell’aria condizionata o in

luoghi che presentano polvere o fumi eccessivi. Non posizionare questo apparecchio vicino o sopra

un radiatore o un termosifone o dove è esposto alla luce solare diretta. Qualsiasi liquido che penetri

nell'apparecchio può causare guasti, incendi o scosse elettriche.

• Non utilizzare l’alimentatore se risultasse danneggiato.

• Non installare il prodotto in luoghi soggetti a vibrazioni o oscillazioni.

• Non modificare o alterare il prodotto e i suoi accessori! Non utilizzare parti danneggiate.

• Mantenere sufficiente spazio attorno alla periferica per garantire una buona ventilazione, permettere

una maggiore libertà di movimento ed evitare danni.

• Non invertire il trasmettitore da HDMI a RJ45 con il ricevitore da RJ45 a HDMI prima dell'installazione.

WWW.TECHLY.COM

IT - 9

EXTENDER HDMI 4K@60HZ

• Non scollegare la periferica durante l’uso, mantenere il prodotto distante da materiali infiammabili

ed esplosivi.

• L'elettricità statica può danneggiare il dispositivo, si prega di usare una protezione contro le cariche

elettrostatiche quando si utilizza il dispositivo.

• Per evitare scosse elettriche, assicurarsi che tutti gli apparecchi siano adeguatamente messi a terra

e non inserire mai oggetti metallici nelle parti aperte di questo apparecchio.

• Se si utilizza un alimentatore di terze parti, assicurarsi che le specifiche dell'alimentatore soddisfino

i requisiti del prodotto.

INTRODUZIONE

Questo è un kit di estensione punto-punto HDMI, può realizzare una trasmissione a latenza zero. Il

segnale HDMI 4K@60Hz può essere esteso di 50 m tramite cavo di rete CAT6/6A/7. Supporta loop

out HDMI, passthrough IR, ecc. Questo kit è una soluzione di trasmissione video affidabile e ad

altissima definizione, ampiamente utilizzata nel monitoraggio della sicurezza, nell'home theater, nella

trasmissione, nella formazione e in altri campi.

CARATTERISTICHE

1. Trasmissione a latenza zero.

2. Estendi il segnale HDMI 4K@60Hz fino a 50 m tramite cavo Cat6/6A/7.

3. Supporta HDR10.

4. Supporta il passthrough EDID e il downscaling automatico.

5. Supporta l'alimentazione del cavo di rete PoC, è necessaria solo l'alimentazione TX.

6. Il trasmettitore supporta l'uscita loop HDMI.

7. Supporta il passaggio IR.

8. Protezione contro i fulmini, protezione contro le sovratensioni, protezione ESD.

9. Collega e usa.

CONTENUTO DELLA CONFEZIONE

• Trasmettitore x1 • Ricevitore x1 • Alimentatore DC5V2A x1 • Manuale utente x1 • Cavo di prolunga

blaster IR x1 • Cavo di prolunga del ricevitore IR x1

REQUISITI DI INSTALLAZIONE

ARTICOLO DESCRIZIONE REQUISITI

Sorgente del segnale Dispositivi con porta HDMI port (PC, DVD, NVR, etc.) Cavo HDMI ≤5m

Cavo CAT6/6A/7, seguono standard IEEE-568B CAT6/6A/7≤50m

Dispositivo di

visualizzazione TV, proiettori, ecc. con porta HDMI Cavo HDMI ≤5m

WWW.TECHLY.COM

IT - 10 EXTENDER HDMI 4K@60HZ

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Techly Extenseur

Techly

Techly IDATA MSV-AU8B Manuel utilisateur

Techly

Techly EXTIP-383IR4 Manuel utilisateur

Techly

Techly IDATA EXT-E70S Manuel utilisateur

Techly

Techly IDATA HDMI-WL50D Manuel utilisateur

Techly

Techly IDATA EXTIP-373V Manuel utilisateur

Techly

Techly IDATA-EXTIP-373 Manuel utilisateur

Techly

Techly IDATA HDMI-KVM223 Manuel utilisateur

Techly

Techly IDATA VGA-WL200 Manuel utilisateur

Techly

Techly IDATA EXTIP-3834KP6 Manuel utilisateur

Techly

Techly IDATA EXT-676E Manuel utilisateur

Techly

Techly IDATA EXTip-383V Manuel utilisateur

Techly

Techly IDATA HDMI-KVM2 Manuel utilisateur

Techly

Techly IUSB-EXTEND1504P Manuel utilisateur

Techly

Techly IDATA HDMI2-WL200 Manuel utilisateur

Techly

Techly IDATA EXT-E40 Manuel utilisateur

Techly

Techly EXT-EF3000 Manuel utilisateur

Techly

Techly IDATA EXTIP-383V4 Manuel utilisateur

Techly

Techly IDATA EXTip-383POE Manuel utilisateur

Techly

Techly IDATA EXTIP-3834KV4 Manuel utilisateur

Techly

Techly USB LINE EXTENDER Manuel utilisateur

Techly

Techly IDATA EXT-E70-4K Manuel utilisateur

Techly

Techly IDATA EXT-E70POE Manuel utilisateur

Techly

Techly IDATA HDMI-KVM60 Manuel utilisateur

Techly

Techly IDATA HDMI-WL55 Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
