Tech Controllers EU-M-9t Manuel utilisateur

EU-M-9t

TABLE OF CONTENTS

I. Safety ...............................................................................................................................................................................3

II. Device description ...........................................................................................................................................................4

III. How to install the controller ...........................................................................................................................................5

IV. Main screen description..................................................................................................................................................8

V. Controller functions.......................................................................................................................................................10

1. Operation modes..........................................................................................................................................................11

2. Language ......................................................................................................................................................................11

3. Time settings ................................................................................................................................................................11

4. Screen settings .............................................................................................................................................................11

5. Screensaver ..................................................................................................................................................................11

6. Theme...........................................................................................................................................................................11

7. Sound............................................................................................................................................................................11

8. Registration ..................................................................................................................................................................11

9. Module Wi-Fi................................................................................................................................................................11

10. Protections...............................................................................................................................................................12

11. Factory settings........................................................................................................................................................12

12. Software version ......................................................................................................................................................12

VI. How to control the heatingsystem via www.emodul.eu .............................................................................................12

1. Registration ..................................................................................................................................................................12

2. Home tab......................................................................................................................................................................13

3. Zones tab......................................................................................................................................................................15

4. Menu tab......................................................................................................................................................................16

5. Statistigs tab.................................................................................................................................................................16

6. Settings tab...................................................................................................................................................................16

VII. Protections and alarms..................................................................................................................................................17

VIII. Technical data................................................................................................................................................................19

JG.2021.01.07

I. SAFETY

Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules

included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place

for further reference. In order to avoid accidents and errors it should be ensured that every person using the device has

familiarized themselves with the principle of operation as well as security functions of the controller. If the device is to be

sold or put in a different place, make sure that the user’s manual is there with the device so that any potential user has access

to essential information about the device.

The manufacturer does not accept responsibility for any injuries or damage resulting from negligence; therefore, users are

obliged to take the necessary safety measures listed in this manual to protect their lives and property.

WARNING

High voltage! Make sure the controller is disconnected from the mains before performing any activities involving

the power supply (plugging cables, installing the device etc.).

The device should be installed by a qualified electrician.

Before starting the controller, the user shoud measure earthing resistance of the electric motors as well as the

insulation resistance of the cables.

The controller should not be operated by children.

NOTE

The device may be damaged if struck by a lightning. Make sure the plug is disconnected from the power supply

during storm.

Any use other than specified by the manufacturer is forbidden.

Before and during the heating season, the controller should be checked for condition of its cables. The user should

also check if the controller is properly mounted and clean it if dusty or dirty.

Changes in the merchandise described in the manual may have been introduced subsequent to its completion on 07.01.2021.

The manufacturer retains the right to introduce changes to the structure. The illustrations may include additional equipment.

Print technology may result in differences in colours shown.

We are committed to protecting the environment. Manufacturing electronic devices imposes

an obligation of providing for environmentally safe disposal of used electronic components and

devices. Hence, we have been entered into a register kept by the Inspection For Environmental

Protection. The crossed-out bin symbol on a product means that the product may not be

disposed of to household waste containers. Recycling of wastes helps to protect the

environment. The user is obliged to transfer their used equipment to a collection point where

all electric and electronic components will be recycled.

II. DEVICE DESCRIPTION

EU-M-9t control panel is intended for cooperation with EU-L-9r external controller and controlling subordinate room

regulators, sensors and thermostatic actuators.

EU-M-9t control panel may be used to adjust the settings in other zones - pre-set temperature, floor heating.

NOTE

Only one EU-M-9t control panel may be installed in a heating system. The panel may control up to 32 heating zones.

Controller functions and equipment:

possibility of controlling the operation of main controllers and thermostatic actuators, room regulators, wired

temperature sensors (EU-R-9b, EU-R-9z, EU-R-9s, EU-C-7p) and wireless temperature sensors (EU-C-8r, EU-R-8b, EU-

R-8z, EU-C-mini ) registered in the controllers.

Built-in Wi-Fi module

Possibility of controlling the heating system online via https://emodul.eu

Large, colour display made of glass

The set includes the EU-MZ-RS power supply

NOTE

The control panel itself does not measure the temperature. It forwards temperature readings from room regulators

and sensors to the external controller in which they have been registered.

There are 2 color versions:

WHITE

BLACK

III. HOW TO INSTALL THE CONTROLLER

WARNING

The device should be installed by a qualified electrician.

WARNING

Risk of fatal electric shock from touching live connections. Before working on the controller switch off the

power supply and prevent it from being accidentally switched on.

WARNING

Incorrect connection of cables may lead to controller damage.

In order to mount the panel on the wall, screw the rear part of the housing onto the wall (1) and slide the device into to (2).

The EU-M-9t panel works with an additional MZ-RS power supply (3) included in the set, mounted near the heating device.

In order to mount another control panel, connect a four-core cable to appropriate ports using the diagram below.

NOTE

Make sure the wires are connected properly.

IV. MAIN SCREEN DESCRIPTION

The touch screen enables convenient and intuitive operation of the controller.

1. Enter controller menu

2. WiFi signal strength

3. Question mark icon – tap here to open up a screen with current external temperature, contact status and pump

status.

4. Tab change

5. Current time

6. Zone status:

External temperature

Contact status

Pump status

Number of registered

external sensors

7. Zone icon

8. Zone name

9. Current zone temperature

10. Pre-set zone temperature

EU-M-9t control panel is a master controller, which enables the user to change the pre-set zone parameters regardless of the

regulator or room sensor used in the zone.

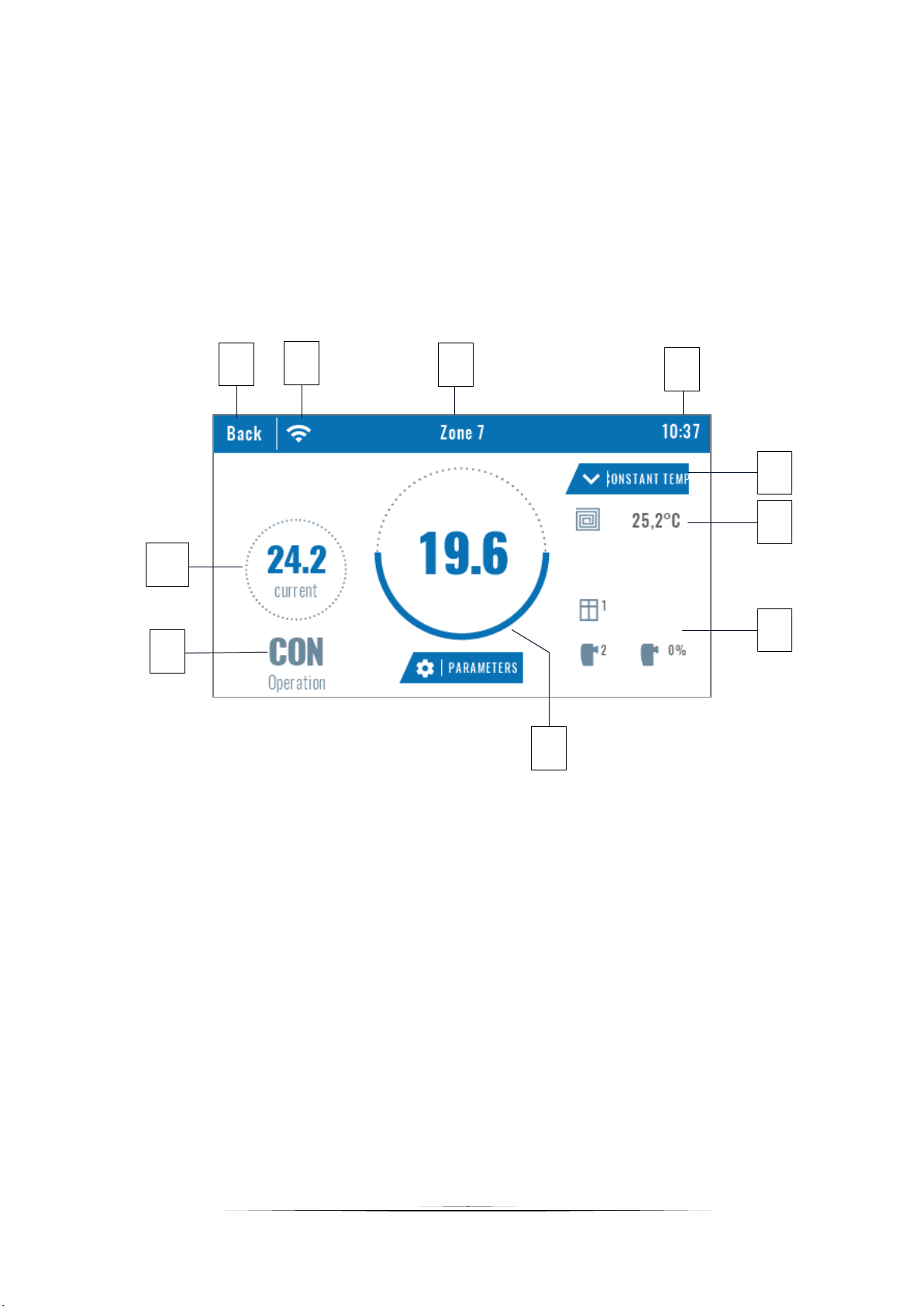

In order to enter the settings of a given zone, tap on the zone status. The screen will show basic zone editing screen:

1. Return to the main screen

2. WiFi signal strength

3. The number of the zone which the displayed information refers to.

4. Current time

5. Mode change icon: schedules (local, global) or constant temperature.

6. Floor temperature

7. Information about the registered window sensor and actuators

8. Pre-set zone temperature

9. Current schedule type

10. Current zone temperature

V. CONTROLLER FUNCTIONS

Operations mode

Normal mode

Eco mode

Holiday mode

Comfort mode

Language

Time settings

Download

Clock

Date

Screen settings

Screen brightness

Blank screen time

Screen blanking time

Select animation

Animation duration

Screensaver

No screensaver

Clock

Date

External temperature

Theme 1-3

Sound ON

Frequency

Registration 1-4 module

Wi-Fi

Disconnect

Select Wi-Fi network

Registration

DHCP

Address IP

Gate adress

Address DNS

Adsress MAC

Subnetwork mask

Module version

Protections Auto-lock ON

Auto-lock PIN code

Factory settings

Software version

Blok diagram –controller menu
