Tecfluid FLOMID Series Manuel utilisateur

R-MI-FIMX4 Rev.: 2 English version

Series FLOMID

Sensor FLOMID-FX

Converter MX4

Instructions manual

The art of measuring

Thank you for choosing a product from Tecﬂuid S.A.

This instruction manual allows the installation, conﬁguration,

programming and maintenance. It is recommended to read it before

using the equipment.

• This document shall not be copied or disclosed in whole or in any

part by any means, without the written permission of Tecﬂuid S.A.

• Tecﬂuid S.A. reserve the right to make changes as deemed

necessary at any time and without notice, in order to improve the

quality and safety, with no obligation to update this manual.

• Make sure this manual goes to the end user.

• Keep this manual in a place where you can ﬁnd it when you need

it.

• In case of loss, ask for a new manual or download it directly from

our website www.tecﬂuid.com Downloads section.

• Any deviation from the procedures described in this instruction

manual, may cause user safety risks, damage of the unit or cause

errors in the equipment performance.

• Do not modify the equipment without permission. Tecﬂuid S.A. are

not responsible for any problems caused by a change not

allowed. If you need to modify the equipment for any reason,

please contact us in advance.

PREFACE

WARNINGS

TABLE OF CONTENTS

FLOMID-FX SENSOR

1 WORKING PRINCIPLE ................................................................... 6

2 RECEPTION .................................................................................. 6

2.1 Unpacking .......................................................................... 6

2.2 Storage temperatures ......................................................... 6

3 HANDLING ................................................................................... 7

4 INSTALLATION ............................................................................. 7

4.1 Sensor position .................................................................. 8

4.2 Straight pipe sections .......................................................... 8

4.2.1 Mixtures ................................................................ 9

4.3 Valves ............................................................................... 9

4.4 Pumps ................................................................................ 9

4.5 Aeration ............................................................................. 10

4.6 Reduction of DN ................................................................. 10

4.7 Vibrations ............................................................................ 10

4.8 Magnetic ﬁelds ................................................................... 11

4.9 Temperature ...................................................................... 11

5 MOUNTING .................................................................................. 12

5.1 Parallelism .......................................................................... 12

5.2 Gasket position .................................................................. 12

5.3 Sensor earth connection ...................................................... 13

5.4 Tightening torque ................................................................ 14

6 MAINTENANCE ............................................................................ 14

MX4 CONVERTER

1 INTRODUCTION ........................................................................... 15

2 INSTALLATION .............................................................................. 15

2.1 Sensor connection .............................................................. 15

2.1.1 Compact converter ................................................ 15

2.1.2 Remote converter ................................................... 16

2.2 Electrical connection ............................................................ 16

2.2.1 Power supply wiring ................................................ 17

2.2.2 Relay output wiring ................................................. 17

2.2.3 Remote reset input wiring ....................................... 18

2.2.4 Analog output wiring ................................................ 19

2.2.5 Pulse output wiring ................................................. 20

3 REMOTE SENSOR ......................................................................... 21

3.1 Preparing the cable ............................................................ 21

3.2 Cable installation ................................................................. 23

3.3 Cable connection to sensor .................................................. 23

3.4 Cable connection to converter .............................................. 24

3.5 Cable speciﬁcations ............................................................ 25

4 CONVERTER INTERFACE .............................................................. 26

5 MAIN MENU .................................................................................. 27

5.1 Passwords to access the menus .......................................... 27

6 INSTALLATION PARAMETERS ....................................................... 29

6.1 Language ........................................................................... 30

6.2 Sensor factor ...................................................................... 30

6.3 Converter factor .................................................................. 30

6.4 Nominal diameter ................................................................ 30

6.5 Diagnosis ........................................................................... 30

6.5.1 Parameters ............................................................ 31

6.5.2 Simulator ............................................................... 31

6.5.3 Mains frequency .................................................... 32

6.5.4 Coil current ............................................................ 32

7 CONVERTER PROGRAMMING ...................................................... 33

7.1 Language ........................................................................... 33

7.2 Units .................................................................................. 34

7.3 Flow rate decimals .............................................................. 34

7.4 Flow rate ............................................................................. 35

7.4.1 Empty pipe ............................................................. 35

7.4.2 Cut off .................................................................... 35

7.4.3 Reversal ﬂow rate ................................................... 36

7.4.4 Damping ............................................................... 36

7.4.5 Offset .................................................................... 37

7.5 Outputs ............................................................................. 37

7.5.1 Relay 1 and relay 2 ................................................ 37

7.5.1.1 Alarm ...................................................... 38

7.5.1.2 Empty pipe ............................................... 38

7.5.1.3 Negative ﬂow ............................................ 38

7.5.2 Pulse output ........................................................... 38

7.5.2.1 Pulse output conﬁguration ......................... 38

7.5.2.2 Units ....................................................... 39

7.5.2.3 Pulses ..................................................... 39

7.5.2.4 Duty cycle ............................................... 39

7.5.3 Analog output ......................................................... 39

7.5.3.1 4-20 mA output conﬁguration ................... 40

7.5.3.2 Programming of the 4-20 mA output .......... 40

7.5.3.3 Current calibration for 4 and 20 mA .......... 40

7.6 Working screen ................................................................... 40

7.7 Totalizer ............................................................................. 41

7.8 Modbus ............................................................................. 42

8 SERIAL NUMBER ......................................................................... 42

9 SOFTWARE VERSION .................................................................... 42

10 WORKING SCREEN ....................................................................... 42

11 STARTING CURRENT ................................................................... 43

12 MAINTENANCE ............................................................................ 43

12.1 Fuse .................................................................................. 43

13 ASSOCIATED SOFTWARE WINSMETER MX4 ................................ 44

13.1 USB cable connection and drivers installation ...................... 44

13.2 Port connection ................................................................... 45

13.3 Access to installation and programming ................................ 46

13.4 Datalogger ......................................................................... 49

13.5 Visualization ....................................................................... 51

13.6 Firmware updates ............................................................... 52

14 TECHNICAL CHARACTERISTICS .................................................... 53

15 SAFETY INSTRUCTIONS ............................................................... 55

15.1 Pressure equipment directive .............................................. 55

15.2 Certiﬁcate of conformity TR CU (EAC marking) ..................... 55

16 DIMENSIONS ............................................................................... 56

17 TROUBLESHOOTING .................................................................... 69

ANNEX A Flow rate diagram ................................................................. 70

1 WORKING PRINCIPLE

The FLOMID electromagnetic ﬂowmeters are based on Faraday’s induction law.

When an electrically conductive liquid ﬂows through a magnetic ﬁeld, perpendicular to the

ﬂow direction, it induces a voltage Vm proportional to the liquid velocity.

Two electrodes in contact with the liquid and positioned perpendicularly to the magnetic

ﬁeld, sense this voltage V.

2 RECEPTION

The FLOMID electromagnetic ﬂowmeters are supplied conveniently packaged for

transportation together with their instruction manual for installation and operation.

All the ﬂowmeters have been veriﬁed in our calibration rigs to obtain the Fc factor for each

sensor.

2.1 Unpacking

Unpack the instrument carefully, removing any remains of the packing from the inside of the

sensor. Do not remove the grease from the neck that couples to the electronics housing.

2.2 Storage temperatures

Sensors linings of : PTFE and PVDF -20ºC ...... +60ºC

PP and EBONITE -5ºC ...... +50ºC

V = B·vm·D

Where:

V = Measured voltage in the electrodes

B = Magnetic ﬁeld

vm= Average liquid velocity

D = Pipe diameter

4 INSTALLATION

This should be made in a point that guarantees that the pipe is always completely full.

Avoid high points of the pipes where air pockets usually form, or pipes with falling ﬂow where

vacuums can form.

Partially full pipes can produce important reading errors.

Flow rate measurement with open discharge makes it necessary to install the ﬂowmeter in a

pipe section with a siphon which avoids stagnation of air in the sensor.

3 HANDLING

It should always be done with care and without knocks.

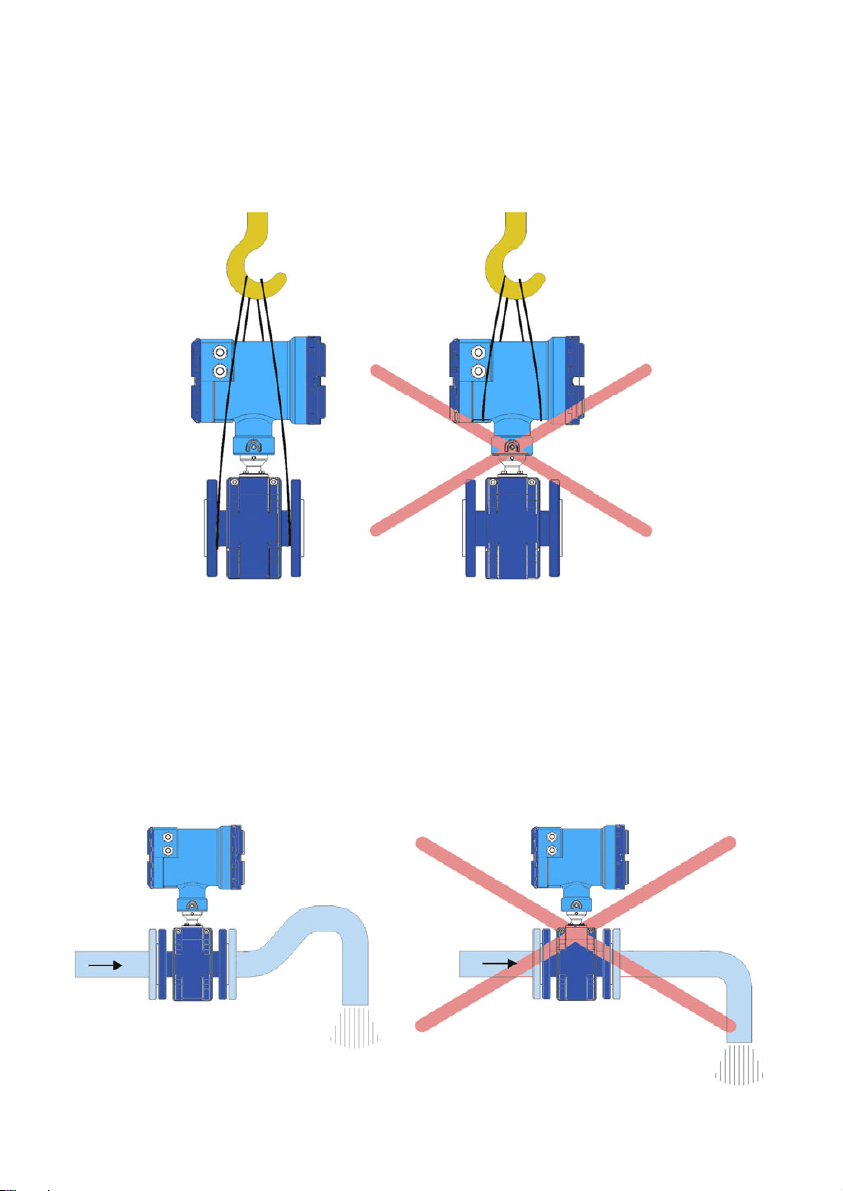

The large diameter sensors have rings for holding the elevation elements. If the ﬂowmeter is

held using slings, these should hold on the sensor and not on the electronics housing (see

drawing).

4.2 Straight pipe sections

They are necessary before and after the sensor. The minimum distances are the following:

Upstream 5 DN

Downstream 3 DN

In installations with turbulent ﬂow it may be necessary to increase these distances.

4.1 Sensor position

The most adequate position is with the electrodes in a horizontal plane. In this way,

deposits of particles on the electrodes are avoided.

4.2.1 Mixtures

If liquids of different conductivities are mixed it is necessary to install the sensor a minimum

of 30 DN from the point of mixture in order to obtain a uniform conductivity of the liquid and

stabilize the readings.

If this distance is shorter, readings may be unstable.

4.4 Pumps

Pumps should be mounted upstream from the sensor to avoid the suction of the pump

(vacuum) that could damage the sensor liner.

4.3 Valves

Control valves or shut-off valves should always be installed downstream from the sensor to

assure that the pipe is always full of liquid.

4.5 Aeration

If there is a point where the difference in level is higher than 5 m an air inlet valve should be

installed after the sensor to avoid a vacuum effect that could damage the sensor liner.

4.6 Reduction of DN

In installations where, due to reasons of the ﬂow rate to be measured, a sensor of a smaller

DN than the pipe DN must be mounted, the reduction must be done with an angle smaller

than 4º to avoid turbulences that can give false readings.

If the angle cannot be so small, straight pipe sections indicated in point 4.2 must be kept.

4.7 Vibrations

Vibrations of the pipes should be avoided by anchoring the pipe before and after the sensor.

The vibration level should be less than 2.2 g in the range of 20-150 Hz according to IEC 068-

2-34.

Autres manuels pour FLOMID Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tecfluid Instrument de mesure

Tecfluid

Tecfluid FLOMAT Series Manuel utilisateur

Tecfluid

Tecfluid FLOMID Series Manuel utilisateur

Tecfluid

Tecfluid 2100 Series Manuel utilisateur

Tecfluid

Tecfluid Series LT Manuel utilisateur

Tecfluid

Tecfluid CU Series Manuel utilisateur

Tecfluid

Tecfluid LTDR series Manuel utilisateur

Tecfluid

Tecfluid LS Series Manuel utilisateur

Tecfluid

Tecfluid AD Series Manuel utilisateur

Tecfluid

Tecfluid 60 M-1 Series Manuel utilisateur

Tecfluid

Tecfluid FLOMAT FX FlomatFX Manuel utilisateur

Tecfluid

Tecfluid M21 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
