TECALEMIT W85 Manuel

GO WITH THE FLOW.

HARDWARE INSTALLATION

GUIDE - W85 DIESEL PUMP

www.tecalemitusa.com I [email protected] Tel: (281)446-7300 I Fax: (281)619-5613

Revised: 4/8/2021

INSTALLATION GUIDE

GO WITH THE FLOW.

www.tecalemitusa.com I [email protected] Tel: (281)446-7300 I Fax: (281)619-5613

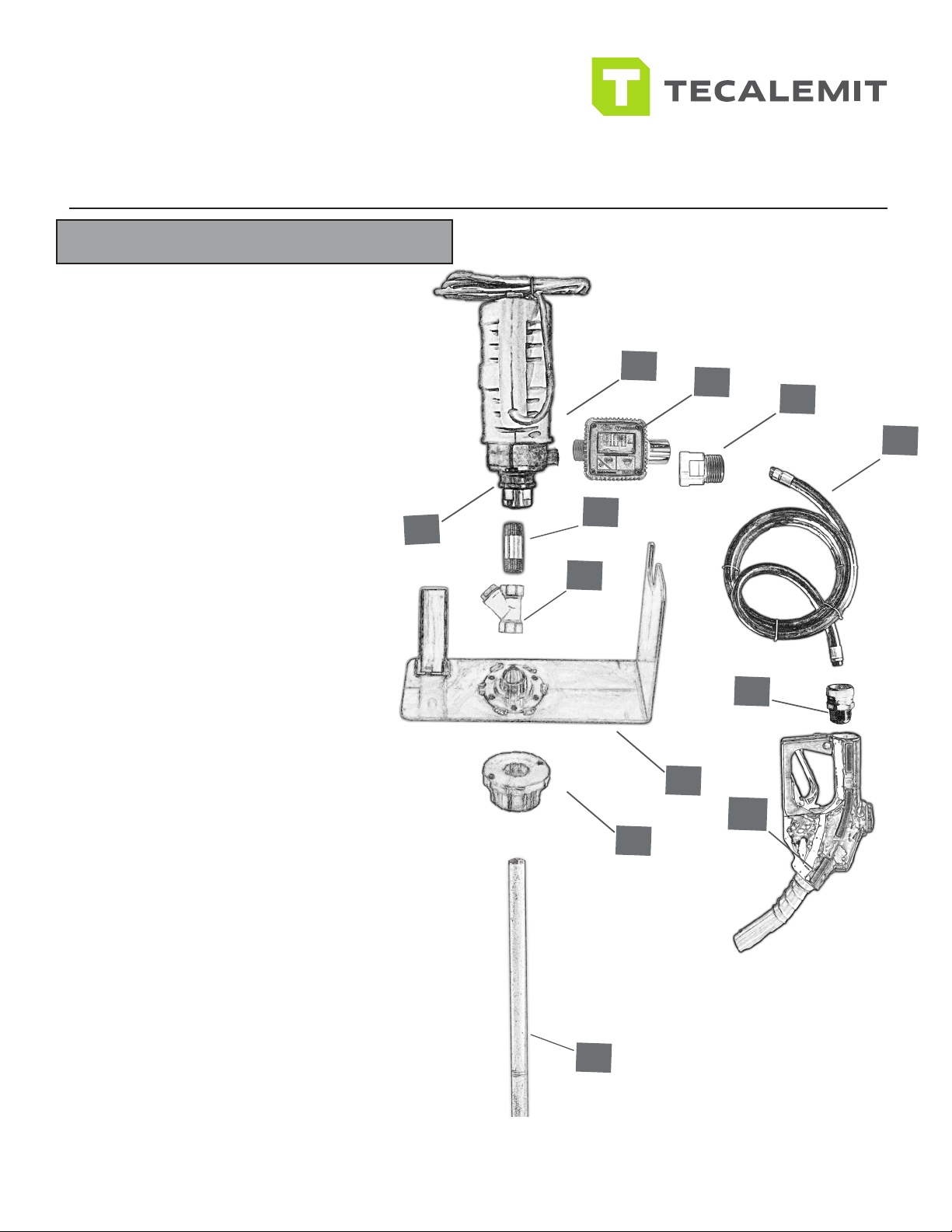

TO ATTACH PUMP TO TANK:

TO CONNECT BRACKET AND PUMP:

1. Connect downtube ﬁtting* [1] to

bulkhead adapter.

2. Connect bulkhead adapter [2] to

bulkhead ﬁtting on tank. Make

sure to use thread sealant (not

included). Connect bracket [3] to

adapter [2].

3. Connect y-strainer [4] to top of

bracket [3]. Make sure to use

thread sealant (not included).

4. Connect pipe extender [5] to top

of y-strainer [4]. Make sure to use

thread sealant.

5. Connect pipe extender [5] to pump

suction [6]. Make sure to use

thread sealant (not included).

6. Connect meter [8] to pump dis-

charge [7] - no sealant necessary.

7. Connect hose [10] to meter [8].

Make sure to use thread sealant

(not included).

• If using a ﬁlter, use ﬁlter adapt-

er [9] to connect ﬁlter housing

to meter (ﬁlter housing/ﬁlter

not included).

8. Connect swivel [11] to hose [10].

Make sure to use sealant (not in-

cluded).

9. Connect automatic nozzle [12]

to swivel [11]. Make sure to use

thread sealant (not included).

*Rigid 1” MNPT pipe

is recommended for

downtube. Pipe not

included.

Diesel Fuel Only
