TE Connectivity PDT-48-00 Manuel utilisateur

Instruction Sheet

1 of 7

TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.

PRODUCT INFORMATION

1-800-522-6752

This controlled document is subject to change.

For latest revision and Regional Customer Service,

visit our website at www.te.com.

408-35208

22 JUN 2021 Rev B

Figure 1: DEUTSCH Field Maintenance Crimp Tool PDT-48-00

1. INTRODUCTION

The PDT-48-00 is a Pneumatic DEUTSCH Tool version of the HDT-48-00 (Hand DEUTSCH Tool).

The PDT-48-00 is for production crimps.

The HDT-48-00 is for field repairs only.

NOTE

Dimensions in this instruction sheet are in millimeters with [inches in brackets]. Figures are for reference only and are not

drawn to scale.

Read these instructions thoroughly before crimping connectors.

DEUTSCH Field Maintenance

Crimp Tool PDT-48-00

408-35208

Rev B

2 of 7

2. INSTALLATION

1. Use hardware to secure the base of the bench mount. This reduces the risk of damage from the tool

falling onto the operator or the floor.

2. Adjust the bench mount for efficiency and ergonomics.

a. Loosen by rotating the knob lever.

b. Move the tool to the desired position.

c. Lock the ball mount by rotating the knob lever.

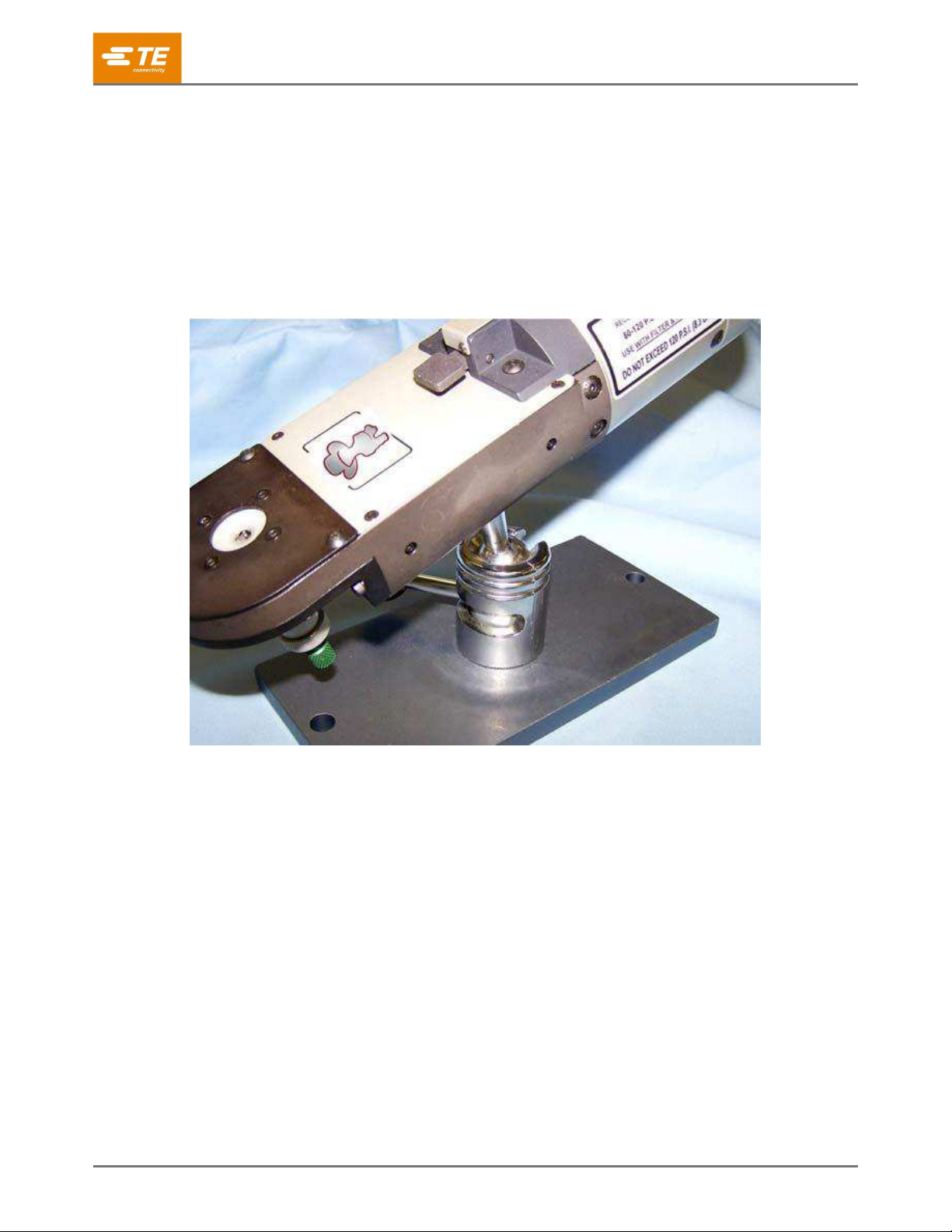

Figure 2: Ergonomics adjustment bench mount with locking arm to select tool angle

408-35208

Rev B

3 of 7

3. CRIMPING WITH TOOL PDT-48-00

3.1. Wire selection

Use Envelope Drawing PDT-48-00 for all wire/contact combinations. Table 1 simplifies popular sizes.

NOTE

The dial position is normally the same as the wire size (see Envelope Drawing for exceptions).

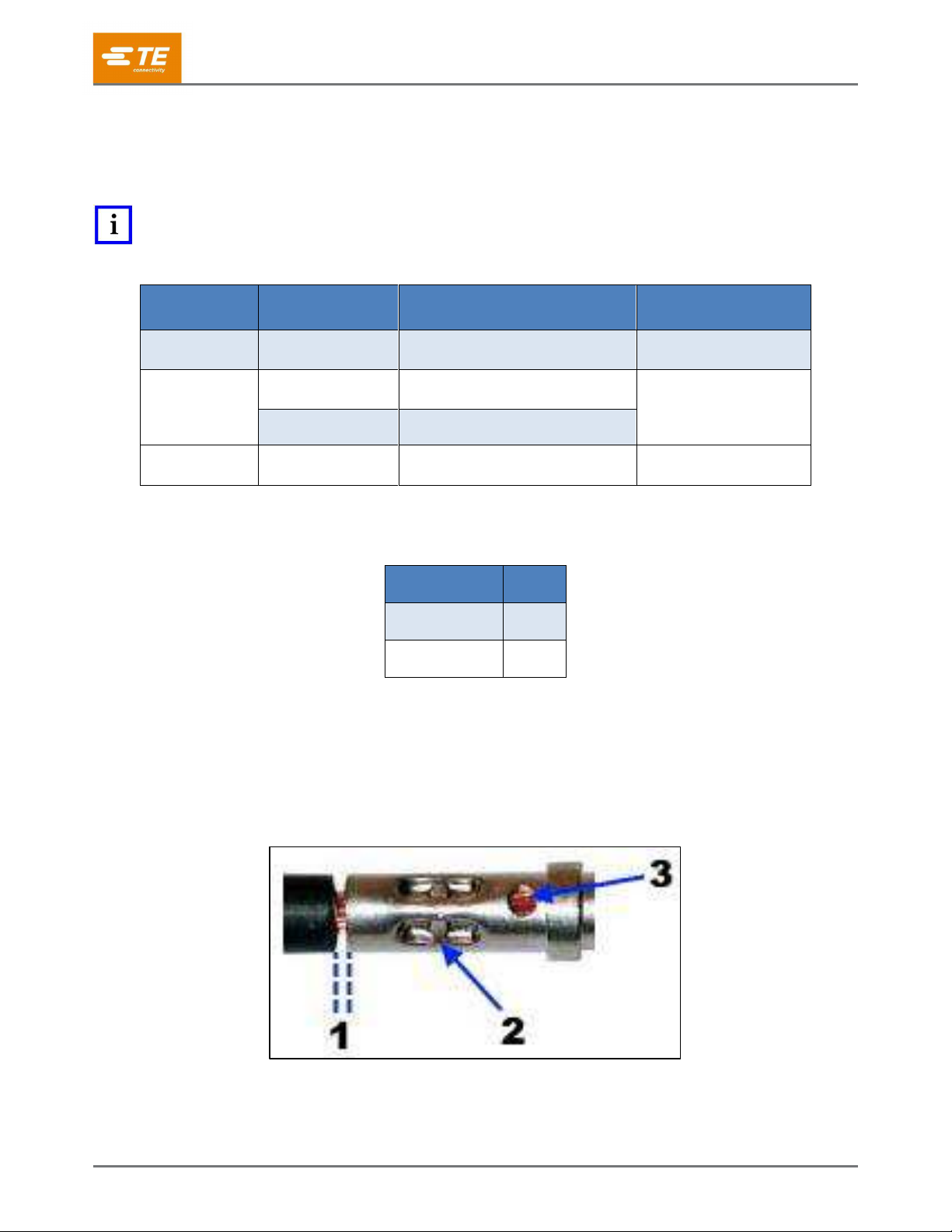

Table 1: Wire sizes

Contact size

Contact part

number

Wire range

AWG [mm2]

Strip length

in. [mm]

20 pin

20 socket

0460-202-20**

0462-201-20**

20 [0.50]

.156-.218 [3.96-5.54]

16 pin

16 socket

0460-202-16**

0462-201-16**

16, 18, 20 [1.5, 1.0, 0.75, 0.50]

.250-.312 [6.35-7.92]

0460-202-16**

0462-201-16**

14 [2.50, 2.00]

12 pin

12 socket

0460-202-12**

0462-201-12**

12, 14 [3.0, 2.5, 2.0]

.222-.284 [5.64-7.21]

**: The contact part number ends with a two- or three-digit plating code. This code indicates the metal with

which the contact is plated (Table 2).

Table 2: Plating codes

Plating code

Metal

Gold

141

Nickel

3.2. Wire preparation

1. Strip the wire to the appropriate length (Table 1).

2. Check for missing, nicked, or damaged strands.

3. Verify sufficient wire length by checking that all wire strands are inside the crimp barrel and visible at

the inspection hole (Figure 3).

Figure 3: Verifying wire length

.025 to .100” [0.63 to 2.54 mm] gap between crimp barrel and insulation

Crimp is centered between end of wire barrel and inspection hole

Strands are visible through inspection hole

408-35208

Rev B

4 of 7

3.3. Adjusting the tool

1. Cycle the tool to open the indenters.

2. Remove the locking clip (Figure 4).

3. Raise and rotate the dial (Figure 4) to select a wire size.

Minimum 22 AWG [0.35 mm²]

Maximum 12 AWG [3.00 mm²]

NOTE

The tool must be open prior to selecting a wire size.

4. Reinstall the locking clip.

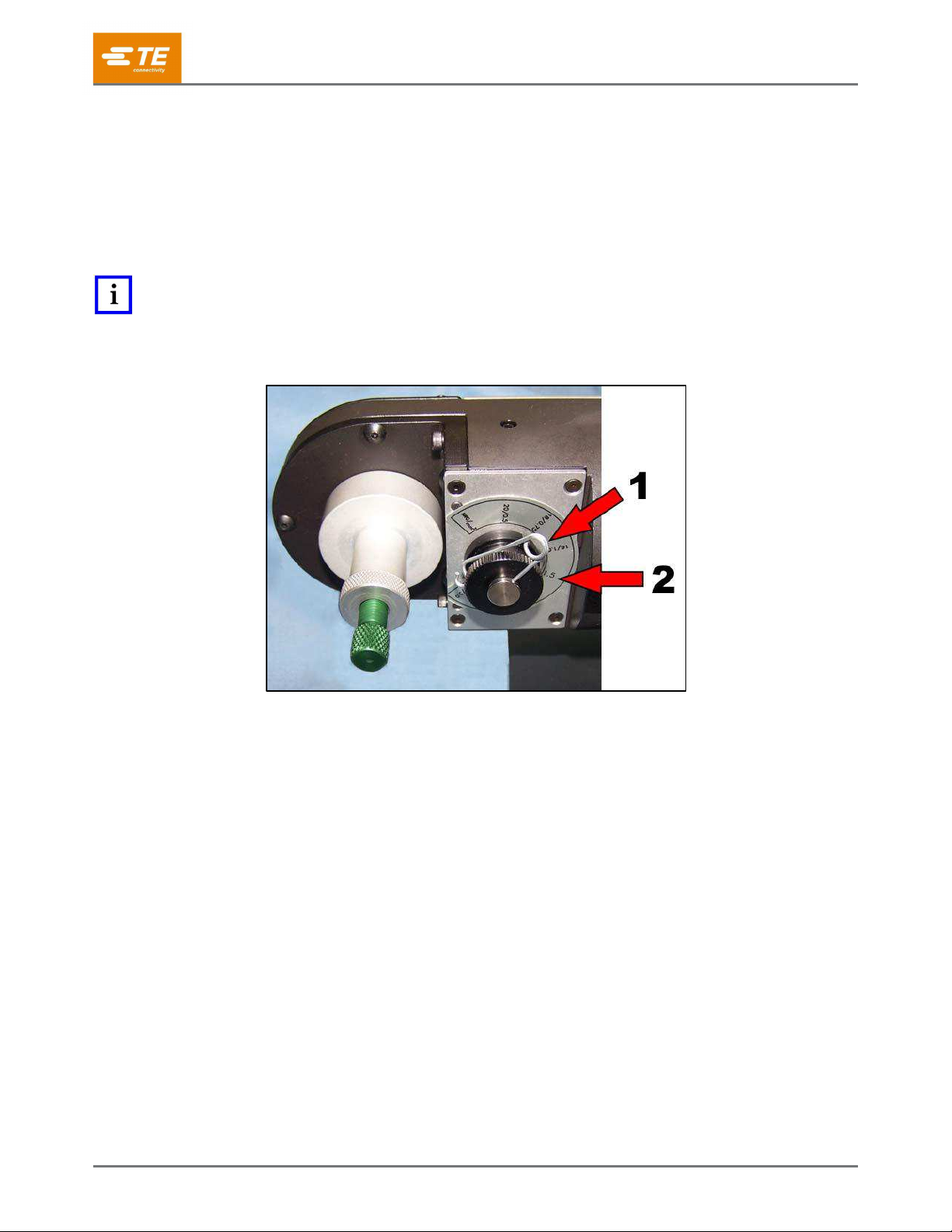

Figure 4: Dial and locking clip

Locking clip

Wire size selection dial

408-35208

Rev B

5 of 7

5. Loosen the locking ring (Figure 5).

6. Adjust the contact depth locator (Figure 5) to produce crimps as shown in Figure 3 by performing test

crimps using the procedure described in section 1.4.

7. Tighten the locking ring.

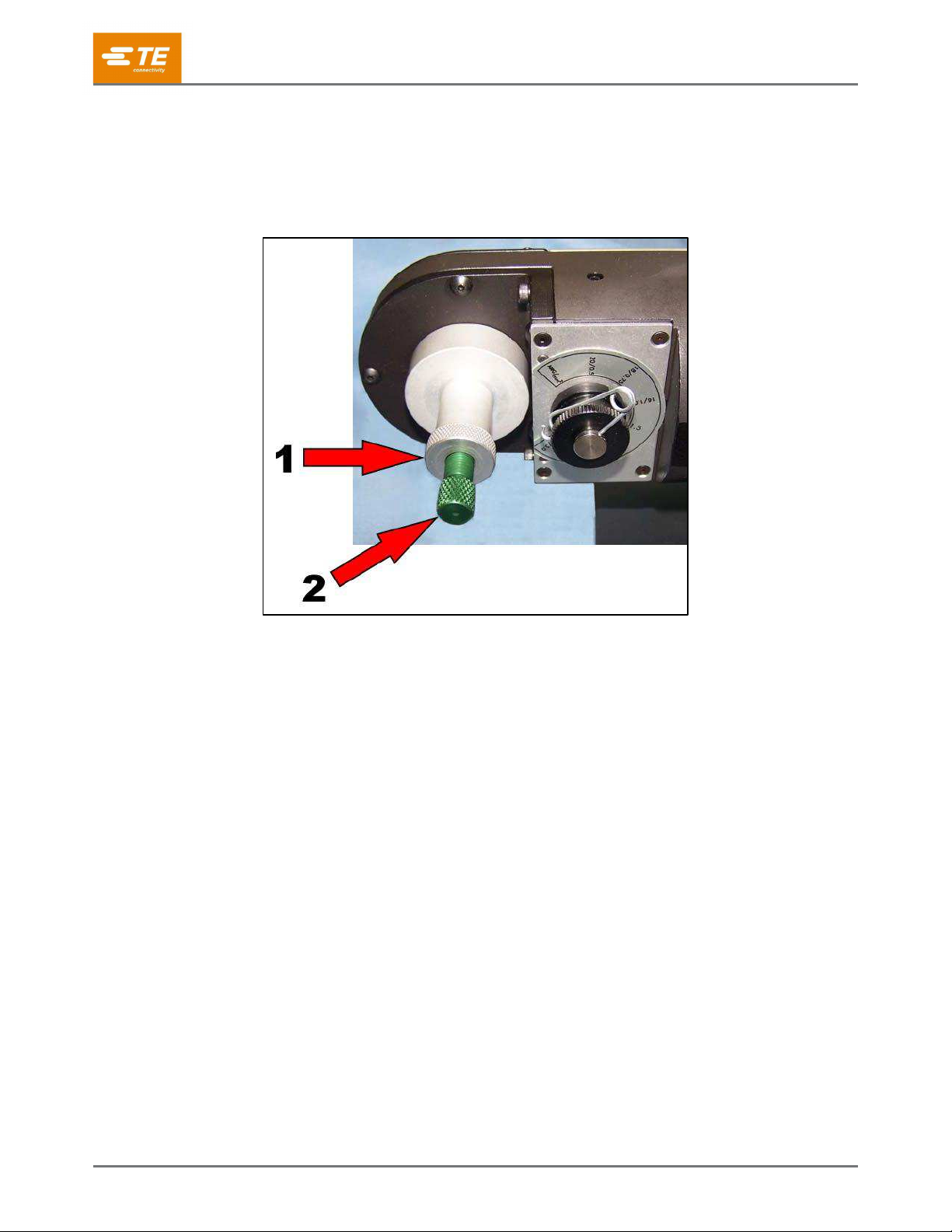

Figure 5: Locator and locking ring

Locking ring

Contact depth locator

3.4. Crimping procedure

1. Open the tool by squeezing the tool handles until the ratchet releases (allowing the tool handles to fully

open).

2. Place the contact into the tool.

3. Insert the stripped wire into the contact.

4. While holding the wire in place, depress and hold the trigger until the contact or ferrule is fully deformed

and the tool indenters stop moving.

5. Release the trigger to allow the indenters to return to the resting position.

6. Remove the crimped contact from the tool.

408-35208

Rev B

6 of 7

4. MAINTENANCE AND INSPECTION

4.1. Maintenance

Clean tool and remove debris regularly.

Check for missing or loose hardware.

Do not immerse tool in cleaners. Vacuum or wipe clean.

Do not spray oil into tool to lubricate. Use in-line lubricator.

Do not open tool or make repairs. Doing so voids your warranty.

Use gage G454 (Figure 6) in dial position 16/1.0 to check wear. Under normal conditions, this check should be

performed monthly. Check more often with high-volume use.

Figure 6: Gage G454

NOTE

Never close the tool on gage G454. This damages the indenters and voids the warranty. Close the tool first, then insert gage

G454.

NOTE

Do not use gage G454 with the HDP-400 Power Crimper.

Figure 7: GO and NO-GO gaging

Fully inserted G454

Green end (GO)

Gage should not insert any further

Red end (NO-GO)

408-35208

Rev B

7 of 7

4.2. Air supply

The air supply is 80 to 120 PSI (5.5 to 8.3 BAR) and needs filter, dryer, and regulator. Lubricator is

recommended. Check hoses and fittings for integrity and fix leaks as required.

The inlet port has a ¼” NPT fitting. Apply thread sealing tape or compound to avoid leakage or damage. Adjust

1/16” hex set screw OUT for a hand valve or IN for a foot switch.

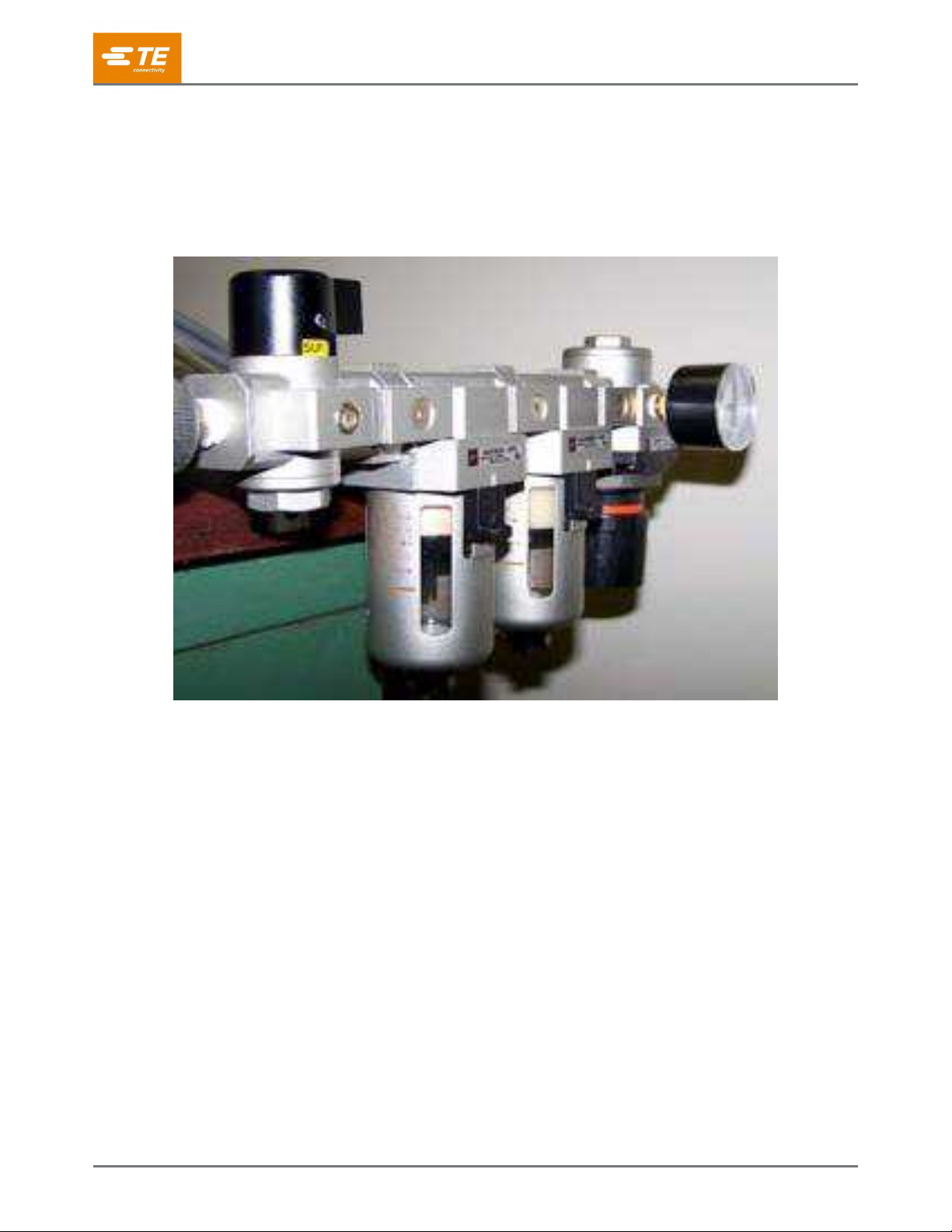

Figure 8: Air fittings

5. REPLACEMENT AND REPAIR

If parts are damaged or worn excessively, they must be replaced. Order replacement parts through your TE

representative. You can also order parts by any of the following methods:

Go to TE.com and click the Shop TE link at the top of the page.

Call 800-522-6752.

Write to:

CUSTOMER SERVICE (038-035)

TE CONNECTIVITY CORPORATION

PO BOX 3608

HARRISBURG PA 17105-3608

For customer repair services, call 800-522-6752.

6. REVISION SUMMARY

Revisions to this instruction sheet include:

Replaced Figure 1 with a more accurate drawing.
