TE Connectivity 2359761-1 Manuel utilisateur

Instruction Sheet

1 of 6

TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.

PRODUCT INFORMATION +

1 800 522 6752

This controlled document is subject to change.

For latest revision and Regional Customer Service,

visit our website at www.te.com.

408-35334

16 APR 2023 Rev A

Figure 1: Crimping Die and Terminal Locator Assembly for HVP800-90 Terminals

1 Introduction

The crimping die assemblies listed in Table 1 are designed to be installed into the modular tool holders listed in

Table 1. The crimping die assemblies are designed to crimp HVP800-90 Terminals. Refer to application

specification 114-94083 for detailed information about these terminals.

Table 1: Crimping die assemblies

Crimping die

assembly

Wire size

Terminal

part number

Modular tool

holders

2359761-1

16.0 mm2

2355358-3

2305470-1

2326378-1

25.0 mm2

2359762-1

35.0 mm2

2-2141211-2

50.0 mm2

3-2141211-2

NOTE

Dimensions in this instruction sheet are in millimeters with [inches in brackets]. Figures are for reference only and are not

drawn to scale.

Read these instructions thoroughly before crimping connectors.

Crimping Die and Terminal Locator

Assembly for HVP800-90 Terminals

408-35334

Rev A

2 of 6

2 Description

Each die assembly consists of a crimper, anvil, wire stopper, and terminal locator assembly (Figure 2).

NOTE

The terminal locator assembly is designed to maintain terminal position during the crimping process and is supplied pre-

assembled to the crimping die.

Figure 2: Components

Shank

Handle

Crimper

Terminal locator assembly

Wire stopper

Anvil

408-35334

Rev A

3 of 6

3 Installing and removing the die assembly

For information concerning die installation or removal, or general performance of the Modular Tool Holder, refer

to the applicable 408 series instruction sheet packaged with the tool holder (Table 2).

Table 2: Instruction sheets

Modular tool holder

Instruction sheet

2305470-1

408-35048

2326378-1

408-35049

Disconnect electrical power before performing maintenance or repair on this equipment.

Disconnect air supply before performing maintenance or repair on this equipment.

During installation, orient the dies so that the alignment dots face toward the wire clamp on the modular tool

holder (Figure 3).

Figure 3: Alignment dots

Alignment dots

Wire clamp

408-35334

Rev A

4 of 6

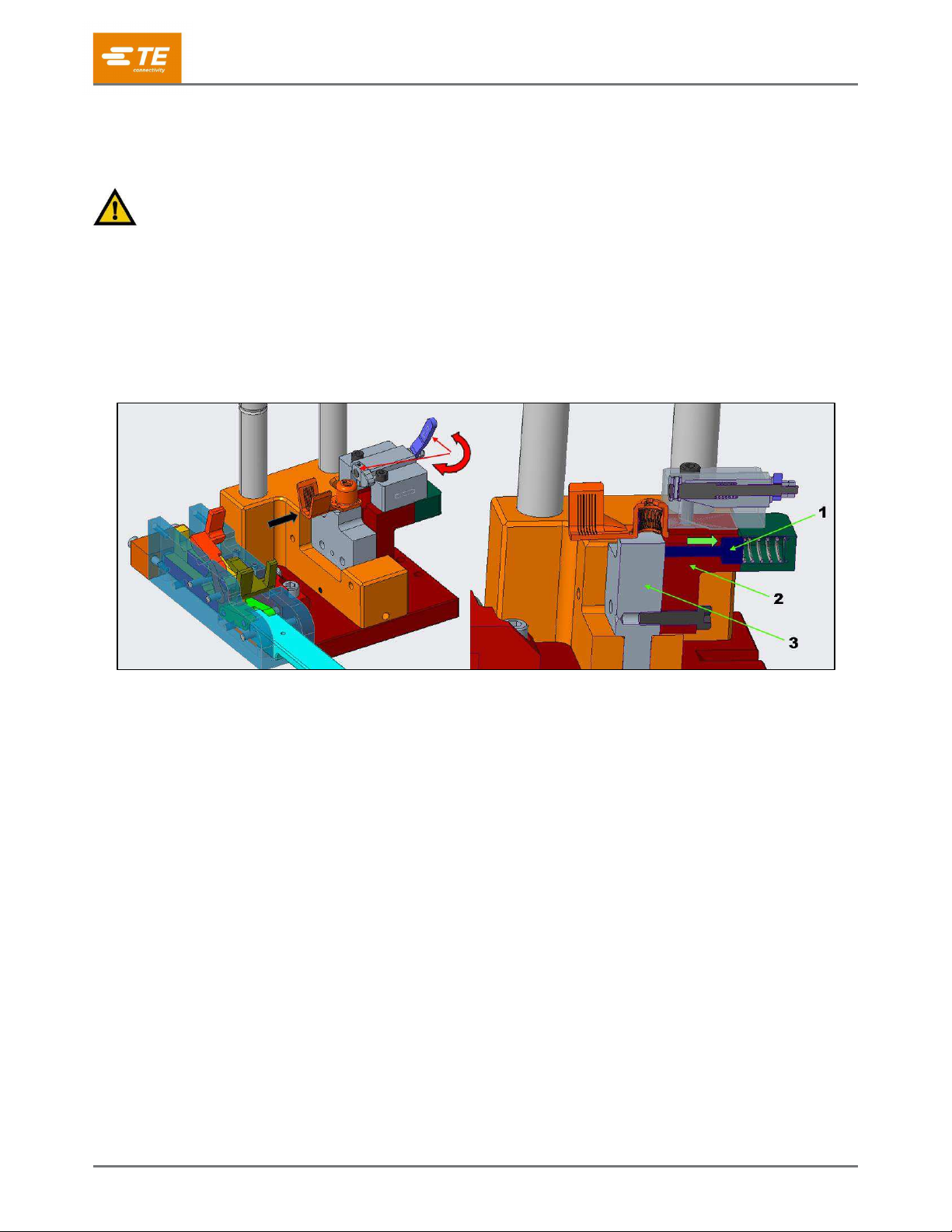

4 Crimping

For wire strip length and specific crimp information for each terminal being crimped, refer to the 114 series

application specification listed in section 1.

CAUTION

If the tool holder is equipped with a crimp height (fine adjust) adjustment, you can prevent damage to the terminator, modular

tool holder, or die assembly by starting at setting A on the crimp disc and incrementally adjusting to the specified crimp height.

If the machine has crimp height/shut height adjustment, refer to the applicable 412 series customer manual for guidance.

1. Rotate the handle to lift the wire stopper

2. Insert the terminal into the die assembly and place it on the anvil with the socket end facing the locator.

3. Slide the terminal into the locator until it touches the extrusion pin (Figure 4).

4. Turn the handle back to lower the wire stopper.

Figure 4: Pushing terminal against extrusion pin

Extrusion pin

Locator

Anvil

408-35334

Rev A

5 of 6

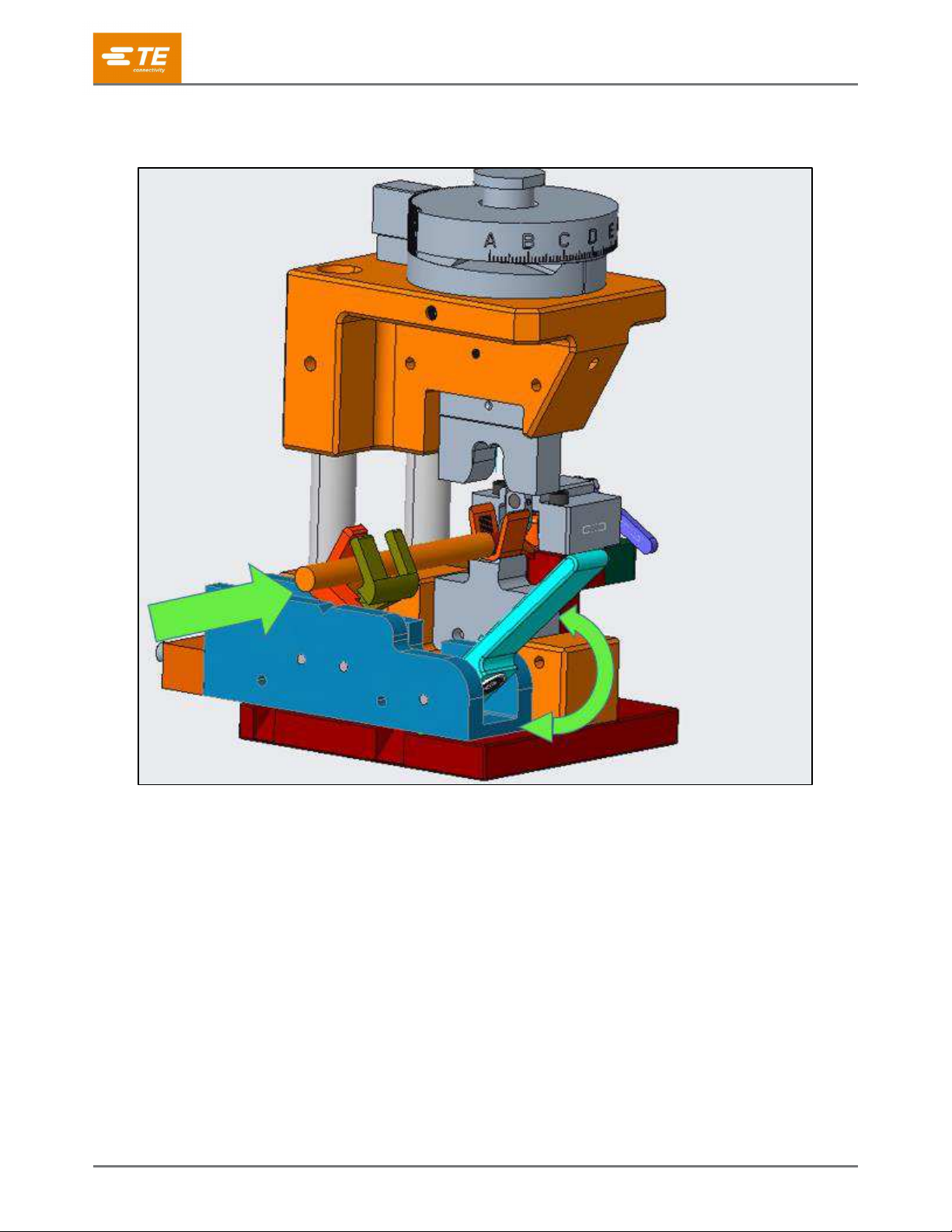

5. Open the wire clamp by pressing down on the wire clamp lever (Figure 5).

Figure 5: Wire clamp lever

6. Insert the properly stripped wire into the wire barrel of the terminal.

7. Release the lever to clamp the wire in place.

8. Cycle the terminator to perform the crimp.

9. Remove the crimped product from the terminator.

408-35334

Rev A

6 of 6

5 Inspecting the crimp

For crimp inspection information, refer to the 114 series application specification listed in section 1.

6 Maintenance and inspection

Each die assembly is inspected before shipment. When it arrives at your facility, inspect it immediately to

ensure that it was not damaged during shipping.

6.1 Daily maintenance

Make each operator aware of (and responsible for) the following daily maintenance requirements:

Remove dust, moisture, and other contaminants with a clean, soft brush or soft, lint-free cloth. Do not

use objects that could damage the dies or tool.

When the dies are not in use, store them in a clean, dry area.

6.2 Periodic inspection

Regular inspections should be performed by quality control personnel. A record of scheduled inspections

should remain with the dies or be supplied to personnel responsible for the dies. Perform at least one

inspection per month. Base your inspection frequency on the amount of use, ambient working conditions,

operator training and skill, and established company standards. Perform the inspection as follows:

Remove all contaminants with a clean, soft brush or soft, lint-free cloth. Do not use objects that could

damage the dies.

Inspect the crimp area for flattened, chipped, cracked, worn, or broken areas.

If damage or abnormal wear is evident, replace the tool or dies. Refer to section 7, Replacement and

repair.

7 Replacement and repair

If the dies are damaged or worn excessively, they must be replaced. Order replacement dies through your TE

representative. You can also order parts by any of the following methods:

Go to TE.com and click the Shop TE Store link at the top of the page.

Call +1 800 522 6752.

Write to:

CUSTOMER SERVICE (038-035)

TE CONNECTIVITY CORPORATION

PO BOX 3608

HARRISBURG PA 17105-3608

For customer repair services, call +1 800 522 6752.

8 Revision summary

Since the last revision of this document, the following changes were made:

Initial release
