TCT Mobile U10C Manuel utilisateur
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 1
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.

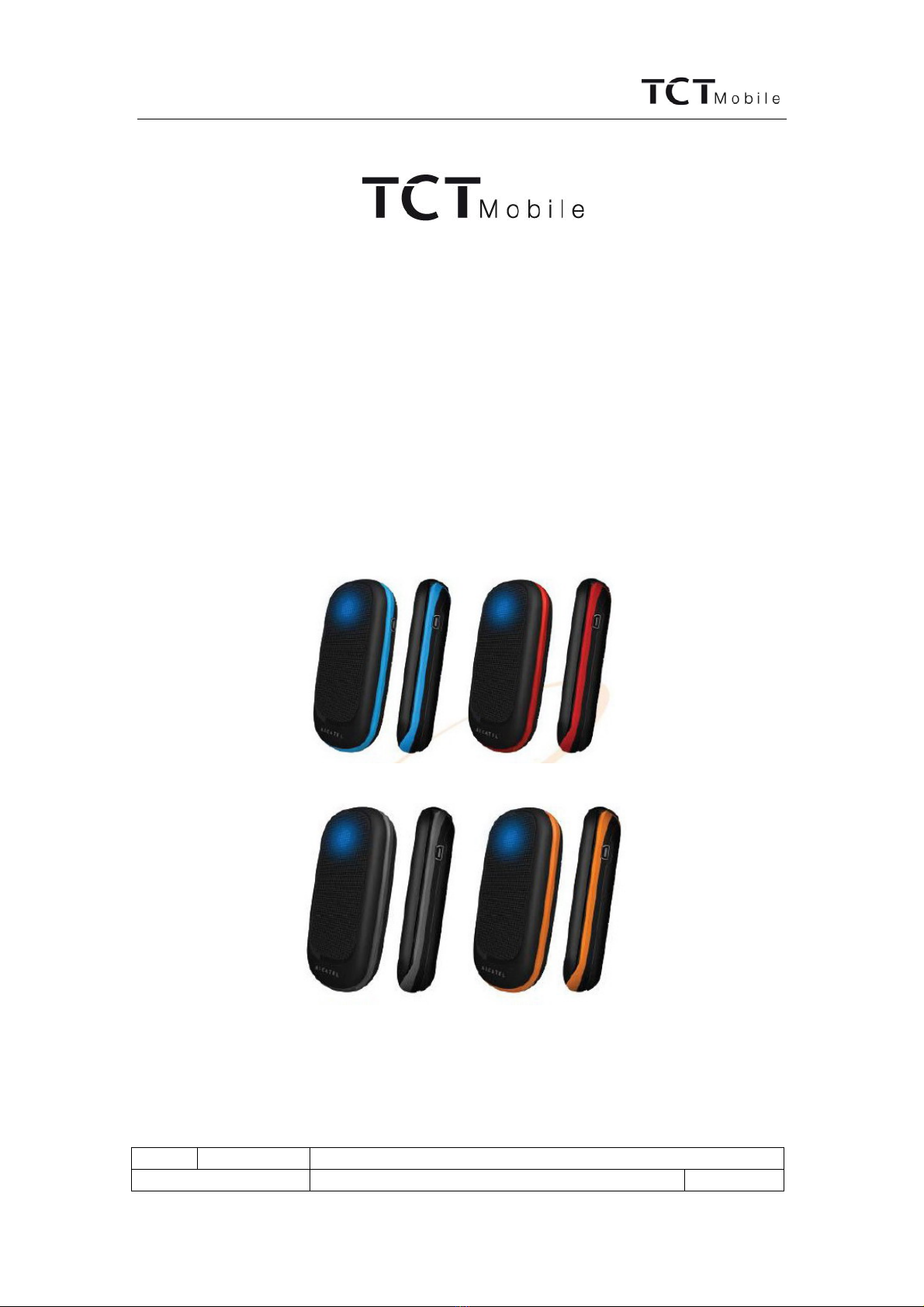

Service Manual
U10C / OT-222(A)
1. Product presentation
2. L1 Maintenance guide
Note: This manual is non-contractual and TCT Mobile phones can modify without
prior notice the characteristics of described equipments.
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 2
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.
HISTORY
Date Version Author Comments
20/07/2009 0.1 Hao Zhang Creation of the draft
25/07/2009 0.2 Wendy Update language spec and headset info
11/08/2009 0.5 Hao Zhang Add explode drawing pic
28/08/2009 1.0 Wendy
Update tools information
Function Name Date Signature
Written by GCS TS Hao Zhang 22/07/2009 Hao Zhang
Verified by CPM Wendy Gong 28/08/2009 Wendy Gong
Approved by PM Ben Li 31 /08/2009 Ben Li
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 3
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.
CONTENTS
1.1 GENERAL............................................................................................................................5
1.2 PORTABLE STICKERS.......................................................................................................6
1.2.1 COMMERCIAL LABEL MARKING (IMEI STICKER)................................................6
1.2.2 UNIT BOX MARKING (CU STICKER).........................................................................7
1.3 EXPLODED VIEW..............................................................................................................9
1.4 RADIO SPECIFICATION&LANGUAGE SEPECIFICATION ........................................11
1.4.1 U10C RADIO SPECIFICATION ...................................................................................11
1.4.2 U10C GUAGE SPECIFICATION..................................................................................13
1.5 ACCESSORIES..................................................................................................................16
1.5.1 BATTERY.......................................................................................................................16
1.5.2 CHARGER......................................................................................................................17
1.5.3 HEADSET ......................................................................................................................18
2.5.1 MAINTENANCE POLICY............................................................................................19
2.2 GENERAL..........................................................................................................................19
2.3 CELLPHONE MAINTENANCE.......................................................................................20
2.3.1 REQUIRED TOOLS.......................................................................................................20
2.3.2 HUMIDITY STICKER CHECK.....................................................................................21
2.3.3 CELLPHONE MANTENANCE PROCEDURE............................................................21
2.3.4 REPLACING CELLPHONE PARTS.............................................................................22
2.3.4.1 PRELIMINARY..............................................................................................................22
2.3.4.2 PRECAUTIONS.............................................................................................................22
2.4 BATTERY TEST.................................................................................................................23
2.4.1 CHARGING PROCESS .................................................................................................23
2.5 CHARGER TEST...............................................................................................................25
2.6 USER INFORMATION TRANSFER.................................................................................26
2.7 SOFTWARE UPGRADE....................................................................................................27
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 4
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.
List of Figures
Figure 1.1 Commercial Label............................................................................................7
Figure 1.2 CU Label...........................................................................................................8
Figure 1.3 Exploded View................................................................................................10
Figure 1.4 Battery Presentation......................................................................................16
Figure 1.5 Charger Structure Chart...............................................................................17
Figure 1.6 Charger Presentation.....................................................................................18
Figure 1.7 Headset Presentation .....................................................................................18
Figure 2.1 Humidity Sticker............................................................................................21
Figure 2.2 Removing the battery cover and battery .....................................................22
Figure 2.3 ProtectionAgainst Electrostatic Discharges................................................23
Figure 2.4 Galvamometry Meter....................................................................................25
Figure 2.5 Connection Diagram.....................................................................................26
List of Tables
Table 1.1 Battery Features...............................................................................................16
Table 1.2 Usable Time Of Battery (Rate Range) ...........................................................16
Table 1.3 Typical Charge Time .......................................................................................17
Table 2.1 Battery Charge Status On The Cellphone.....................................................24
Table 2.2 Battery Typical Charge Time.........................................................................25
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 5
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.
CHAPTER 1
PRODUCTS PRESENTATION
1.1 GENERAL
U10C cellphone is a clamshell product, MTK platform, uses MTK6223D
chip, It supports FM, Hand-free, Game, Calculator and calendar. U10C works
with the GSM Dual Band (900/1800 MHz for EU version)
and (850/1900MHz for US version).

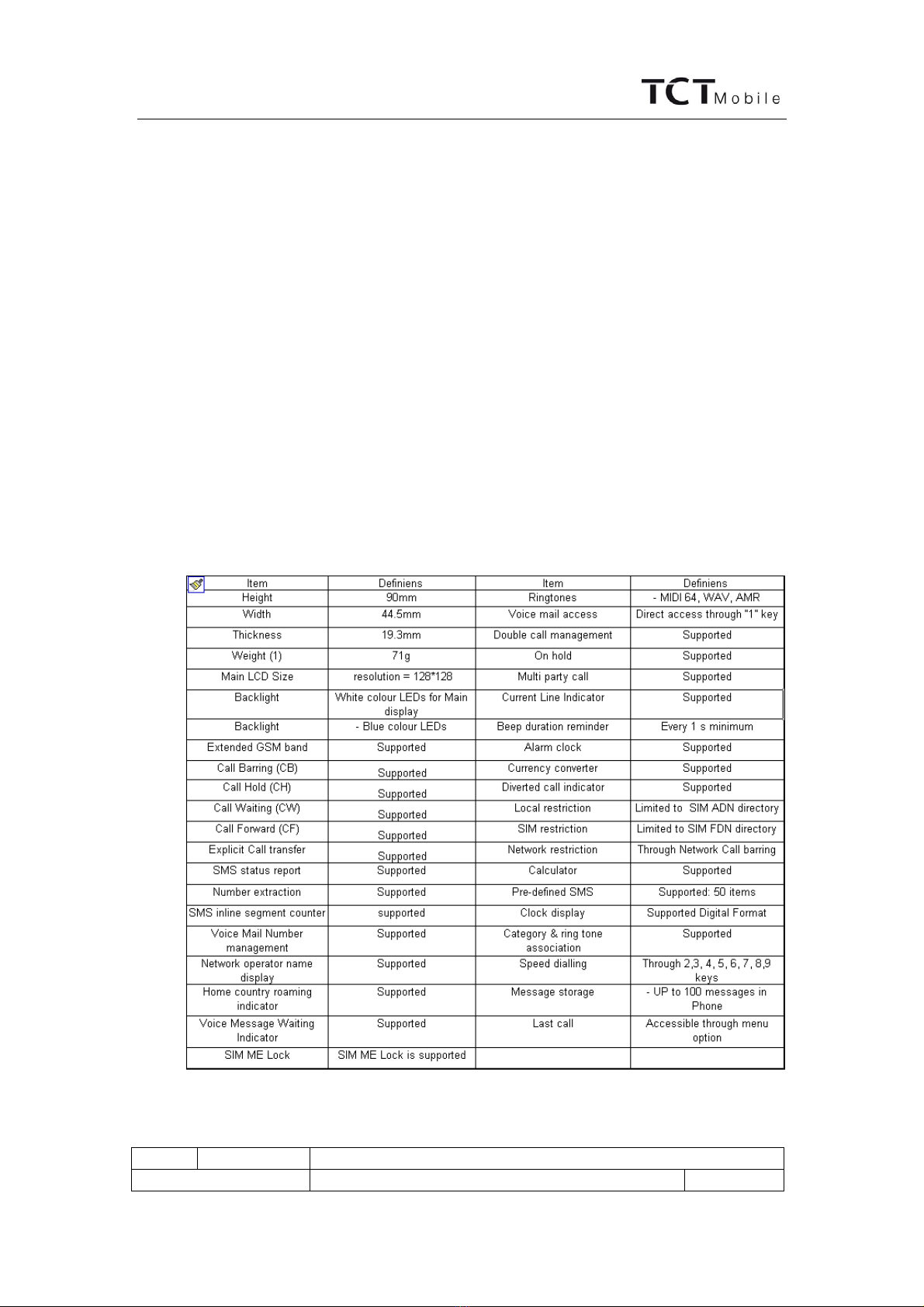

Detail features of OT-222
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 6
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.
1.2 PORTABLE STICKERS
1.2.1 COMMERCIAL LABEL MARKING (IMEI STICKER)

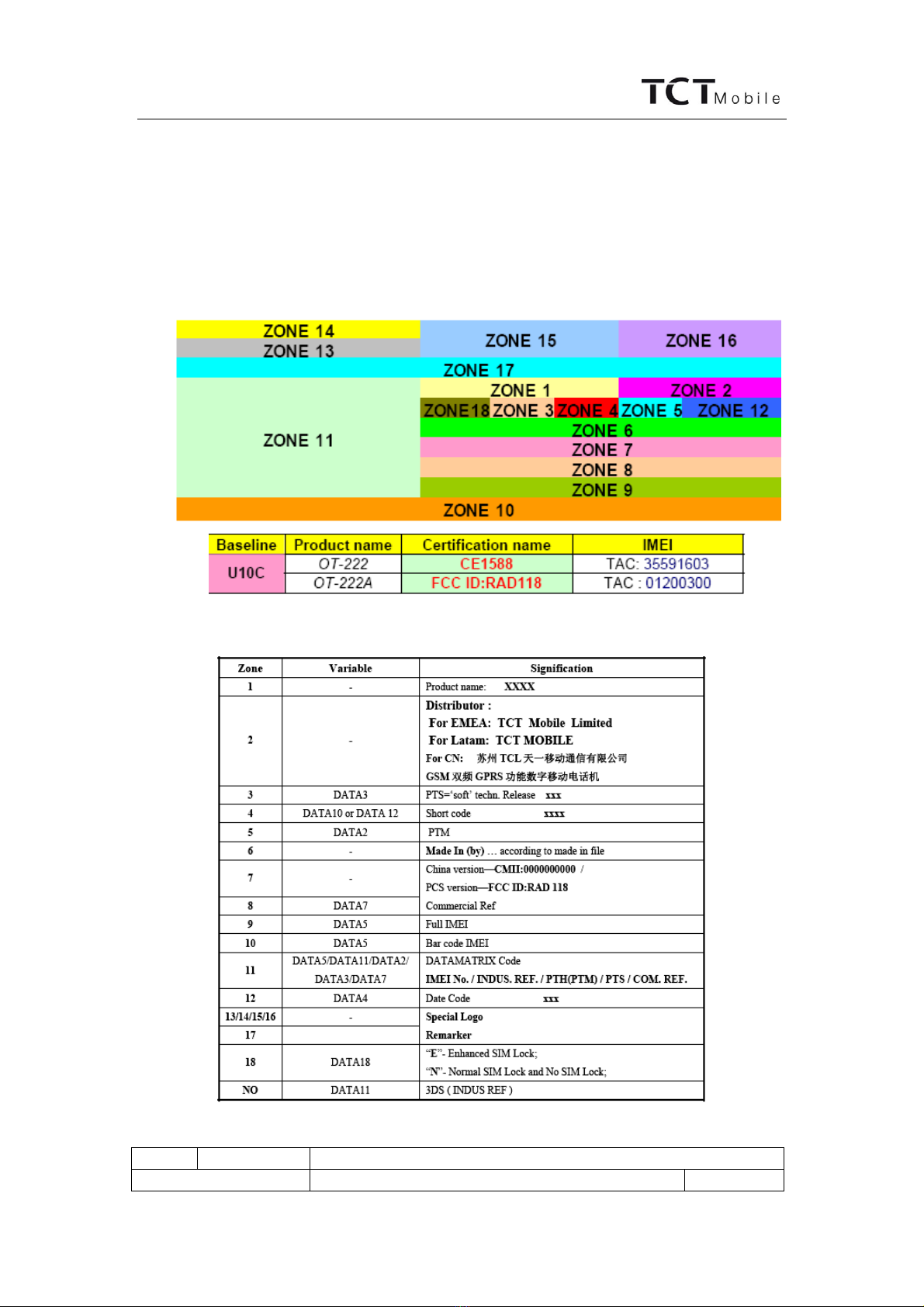

Printing zone definition (CPE0000006C0 -------- For General, 33x16mm)
For general countries:
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 7
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.

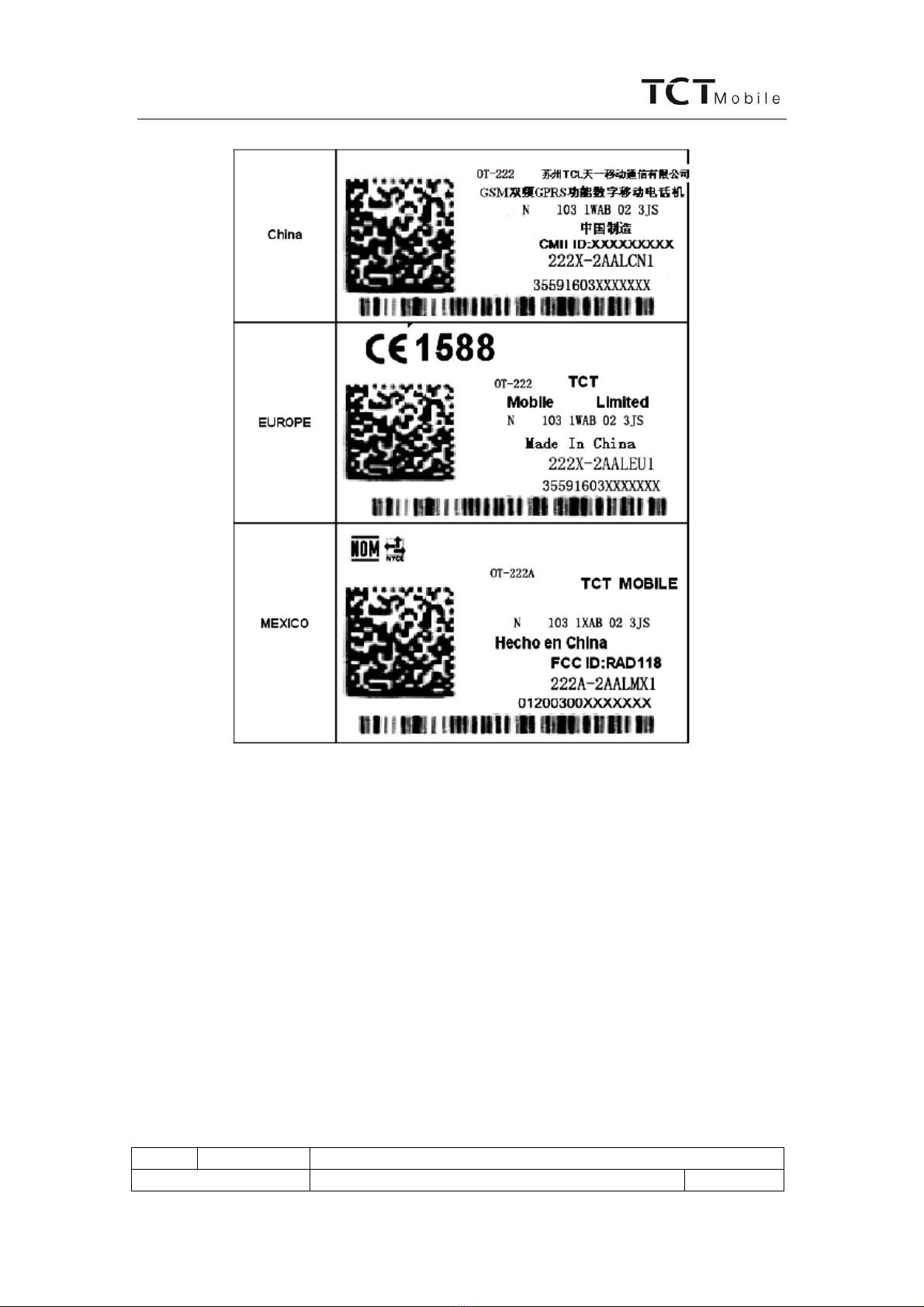

Samples for Commercial Label:
Figure 1.1 Commercial Label
1.2.2 UNIT BOX MARKING (CU STICKER)
Label Dimension: 80mm x 38mm
Blank Label Reference: 3DS 04792AAAA
Dimensions of information:
Code 13: Height x Length = 13mm x 26mm
Code 128: height = 6mm
CU Label Format (Sample):
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 8
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.

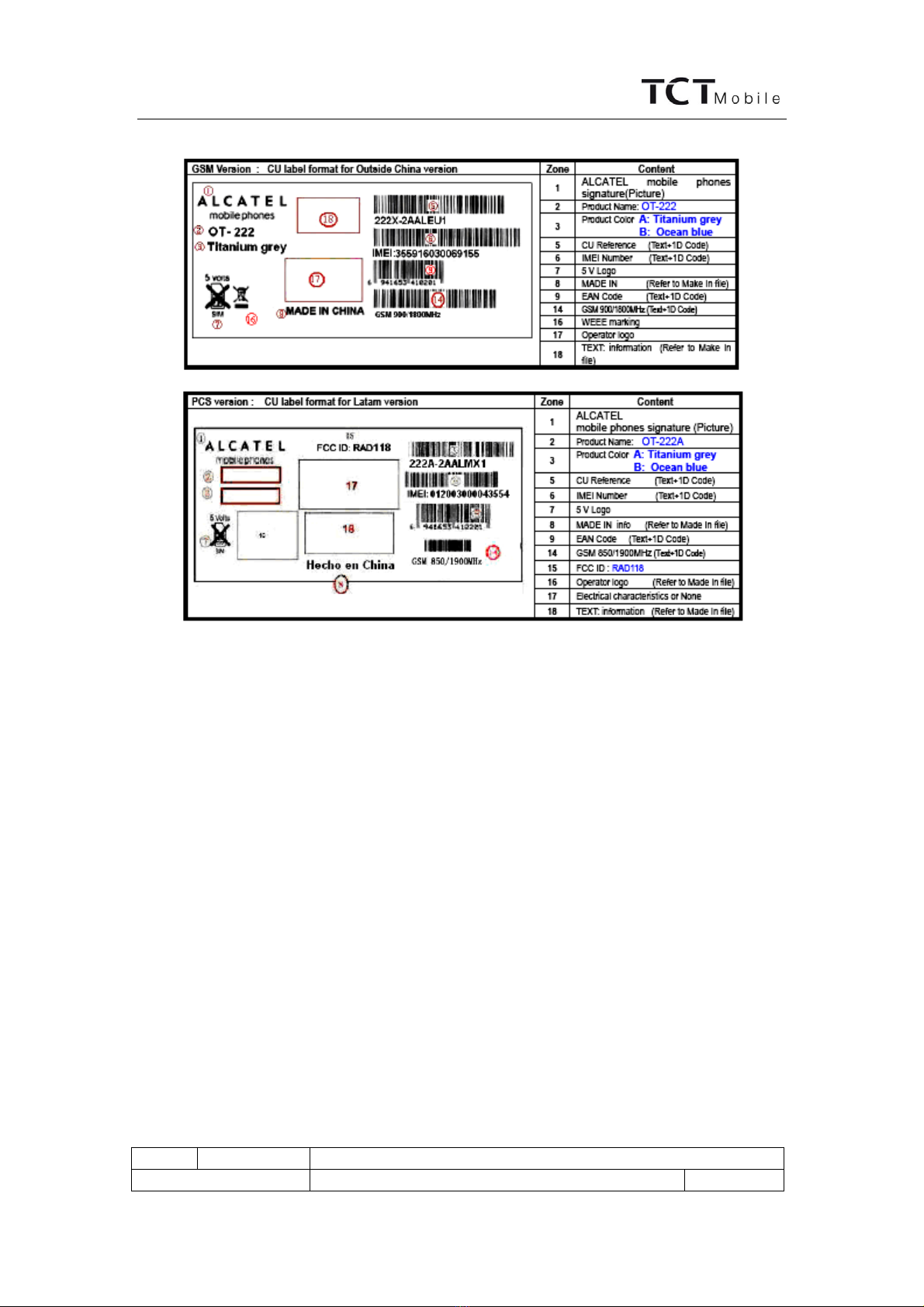

Figure 1.2 CU Label
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 9
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.

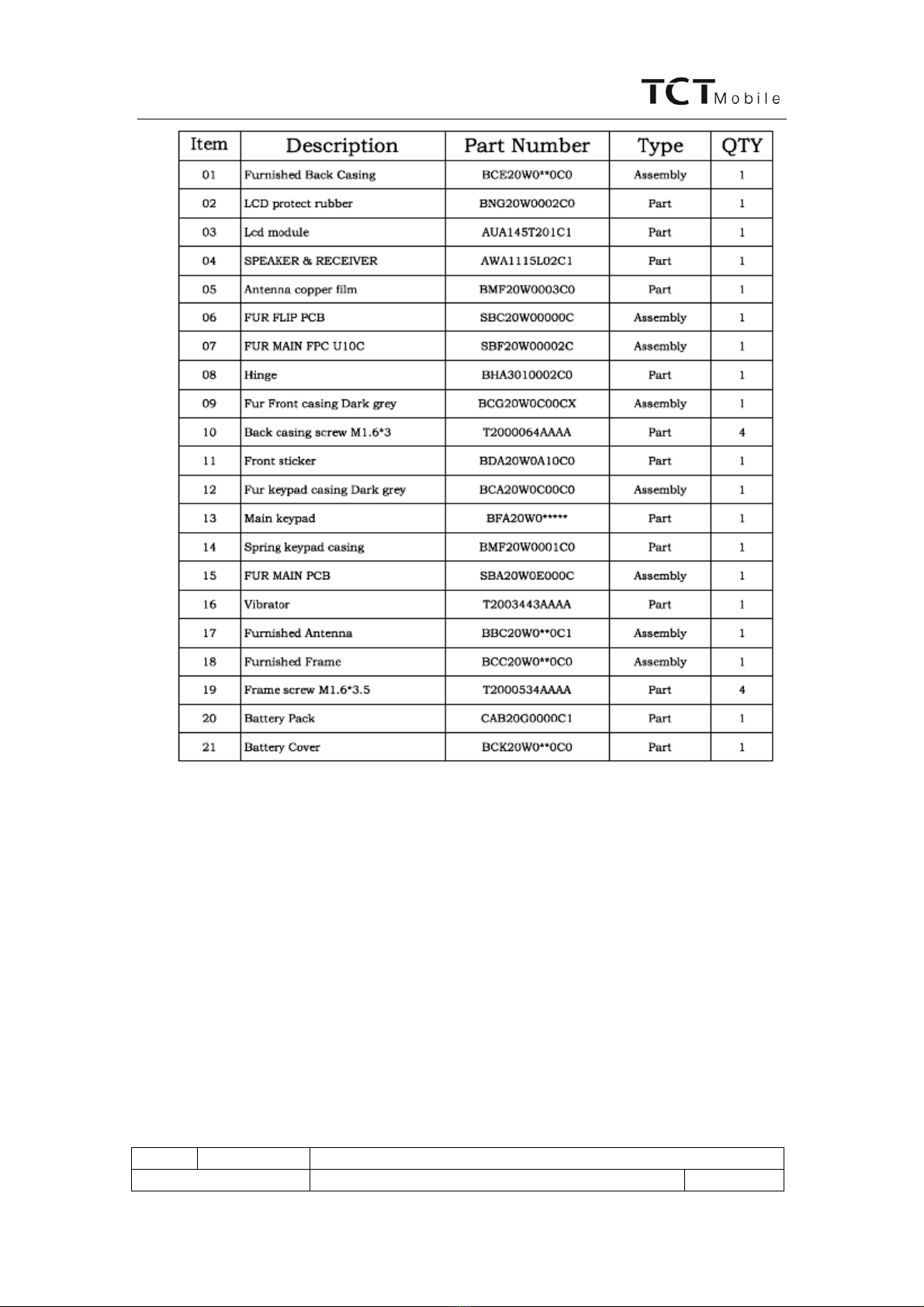

1.3 EXPLODED VIEW
U10CServiceManual
ED 1.0 OT-222 Service Manual
TCT mobile phones Page: 10
All rights reserved. Passing on and copying this document, use and communication are not
permitted without authorization.

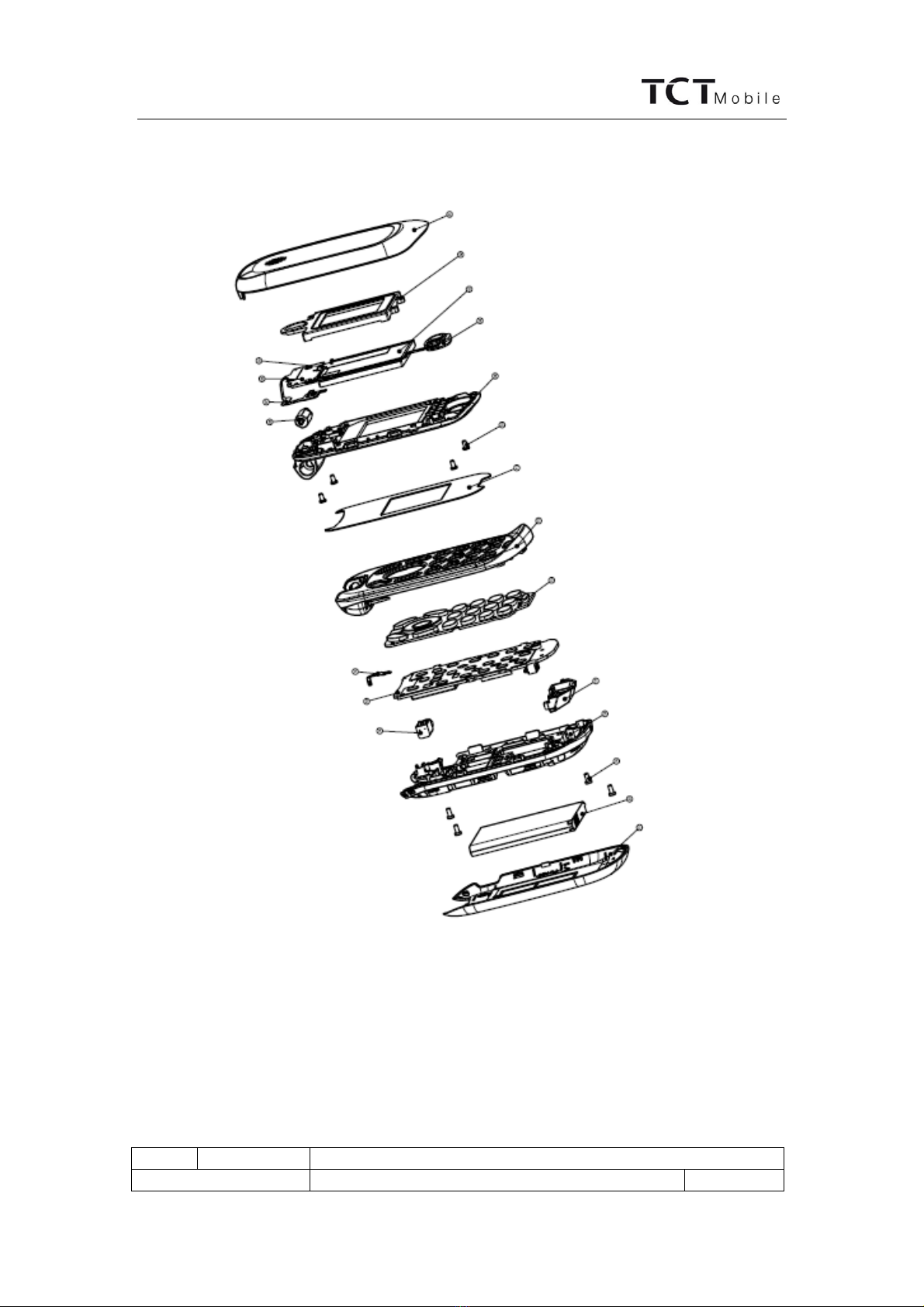

Figure 1.3 Exploded View
