TC Electronic FLASHBACK Manuel utilisateur

DELAY AND LOOPER

USER’S MANUAL

Important Safety Instructions

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

8 Do not install near heat sources such as radiators, heat

registers, stoves, or other apparatus (including ampli-

fiers) that produce heat.

9 Only use attachments/accessories specified by the

manufacturer.

10 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally,

or has been dropped.

Warning!

• Toreducetheriskoffireorelectricalshock,donot

expose this equipment to dripping or splashing and

ensure that no objects filled with liquids, such as vases,

are placed on the equipment.

• Donotinstallinaconfinedspace.

Service

• Allservicemustbeperformedbyqualifiedpersonnel.

Caution:

You are cautioned that any change or modifications

not expressly approved in this manual could void your

authority to operate this equipment.

When replacing the battery follow the instructions on

battery handling in this manual carefully.

EMC/EMI

Thisequipmenthasbeentestedandfoundtocomplywith

the limits for a Class B Digital device, pursuant to part 15

of the FCC rules.

Theselimitsaredesignedtoprovidereasonableprotection

against harmful interference in residential installations.

Thisequipmentgenerates,usesandcanradiateradio

frequency energy and – if not installed and used in

accordance with the instructions – may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception – which can

be determined by turning the equipment off and on –, the

user is encouraged to try correcting the interference by

one or more of the following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentand

the receiver.

• Connecttheequipmenttoanoutletonacircuit

different from the one to which the receiver is

connected.

• Consultthedealeroranexperiencedradio/TV

technician for help.

For the customers in Canada:

ThisClassBdigitalapparatuscomplieswithCanadian

ICES-003. Cet appareil numérique de la classe B est

conforme à la norme NMB-003 du Canada.

AUSTIN ECHOES AMBIENT SLAP

EDGY ECHO DUAL DELAY

www.tcelectronic.com - www.youtube.com/tcelectronic

(EN) Introduction

Congratulations! You have just bought a delay pedal that is a stepping stone to a world of

inspiration, innovation, and tone.

WeareproudtopresentFlashbackDelay,providingTCElectronic’slegendarydelaysounds,intuitive

controls and instant satisfaction. Our delays are widely heralded as the best for a reason, but that’s not

all. We love tone as much as any guitarist out there, so we are very excited to present a brand new,

groundbreakingconcept:TonePrint!

TonePrintgivesinstantaccesstocustom-tweakedsounds.Wehavegatheredanimpressivelist

of guitar heroes and had them tailor their signature sounds – the tones that made them famous.

TonePrintswillnotjustbringyouclosetothesoundsofyouridols,theygiveyoutheiractualsounds!

UsingTonePrintsisbotheasyandfun.JustdownloadtheTonePrintyouwantfromwww.tcelectronic.

comand,voila,yourfavoriteartisthasjustputaTonePrintinyourpedal.Forgetemulation–let’stalk

collaboration!

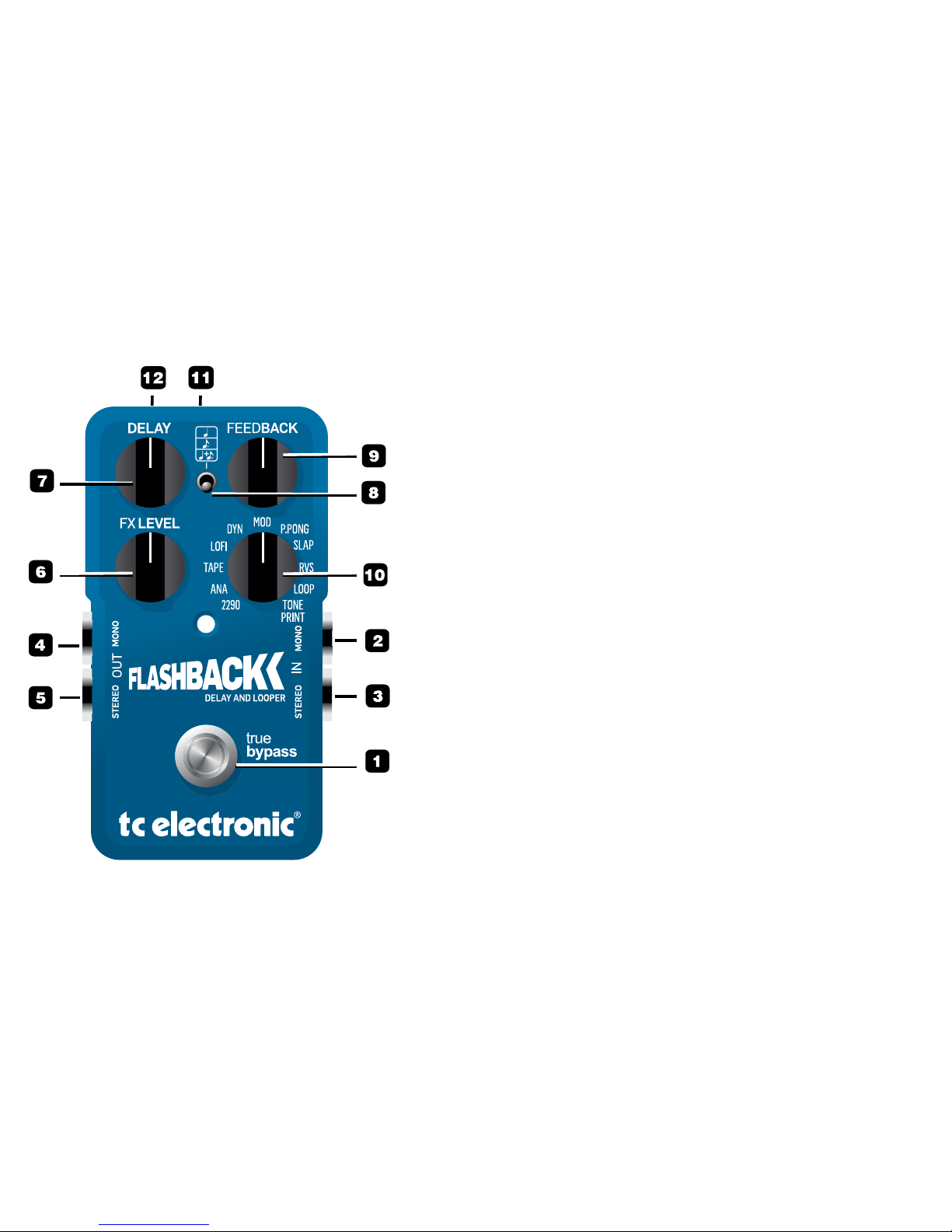

1 - Effect on/off (true bypass)

2 - 1/4 inch mono jack input

3 - 1/4 inch mono jack input (for stereo in)

4 - 1/4 inch mono jack output

5 - 1/4 inch mono jack output (for stereo out)

6 - FX level control

7 - Delay time control

8 - Subdivision selector

9 - Feedback control

10 - Delay type selector

11 - Power in (9VDC)

12 - USB connection for uploading TonePrint

settings and software updates.

Connecting

Input jacks - Use MONO for mono input and both MONO

andSTEREOinputsifconnectingastereosource.

If the pedal runs on battery, we recommend removing the

mono input jack to preserve battery power when you don’t

play.

Output jacks - Connect to another pedal or directly into

an amp or mixer. Use MONO for mono setups and both

MONOandSTEREOforstereosetups.

Note that it is possible to select between true bypass and

buffered bypass mode via a dip switch located under the

battery cover.

Power in-Usea9VDCpowersupplywiththefollowing

symbol:

USB

Connect to a computer using the supplied USB cable for

upload of TonePrint settings.

Theconnector-typeisMini-B.

The controls

FX LEVEL

Controls the level of the delay repeats. Notice that the direct signal is always passed at the original

level (unity gain). Only the level of delay repeats are changed when turning the FX level knob.

DELAY

Thedelayknobcontrolsthedelaytime.Apartfrom“Slapback”,alldelaytypeshaveadelayrangeof20

ms to 7000 ms (that’s 7 seconds). Slapback has a range from 20 ms to 300 ms.

FEEDBACK

Feedback determines how many repetitions you will hear by controlling the amount of the delay that is

fed back to the input.

Delay Type selector

TheDelayTypeselectorallowsyoutoselectbetween9delaytypes,looper,andTonePrint.

Delay Audio Tap function & Subdivision

ThedelaytimecanofcoursebesetusingtheDELAYknobasdescribedabove.However,fortiming

the delay repeats to the tempo of the song you are playing, you can also tap in a the tempo via audio.

Once you have tapped the songs tempo, the subdivision selector switch allows you to chose between

letting Flashback play 1/4, 1/8. or 1/4+1/8., according to the tapped tempo.

Tosetthetempo:

• HolddowntheON/OFFswitch.Withtheswitchhelddown,playsteadyshort1/4notesonyour

instrument.

PleasenotethefollowingregardingAudioTap:

 –Theoutputisalwaysmutedwhileyoustrumforaudio-tap

– In Buffered Bypass mode, your delay repeats ring out when the pedal is bypassed (spill-over)

• Playsteadyshort1/4notesonyourinstrument.

• Releasetheswitchagain.

That’sit-youhavenowenteredtheglobaltempo,andthedelayrepeatswillplayaccordingtothe

selectedsubdivision.Theoptionsare:1/4,1/8.and1/4+1/8.

2290 - Digital Delay

Inputequalsoutput.SuperbdigitaldelaybasedonthelegendaryTC2290.Noprocessingofthedelay

repeats.Pureandclearunaltereddigitaldelay.

ANA - Analog

TheAnalogDelaydelicatelyrollsofhigh-endfrequencies,givingyoudelayrepeatswithlessedgethat

blend in perfectly with the music, even when long relatively loud repeats are used.
