TC Electronic VORTEX FLANGER Manuel utilisateur
USER’S MANUAL
2
Important Safety Instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8 Do not install near heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampli-
fiers) that produce heat.
9 Only use attachments/accessories specified by the
manufacturer.
10 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
Warning!
• Toreducetheriskoffireorelectricalshock,donot
expose this equipment to dripping or splashing and
ensure that no objects filled with liquids, such as vases,
are placed on the equipment.
• Donotinstallinaconfinedspace.
Service
• Allservicemustbeperformedbyqualifiedpersonnel.
Caution:
You are cautioned that any change or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
When replacing the battery follow the instructions on
battery handling in this manual carefully.
EMC/EMI
Thisequipmenthasbeentestedandfoundtocomplywith
the limits for a Class B Digital device, pursuant to part 15
of the FCC rules.
3
Theselimitsaredesignedtoprovidereasonableprotection
against harmful interference in residential installations.
Thisequipmentgenerates,usesandcanradiateradio
frequency energy and – if not installed and used in
accordance with the instructions – may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception – which can
be determined by turning the equipment off and on –, the
user is encouraged to try correcting the interference by
one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentand
the receiver.
• Connecttheequipmenttoanoutletonacircuit
different from the one to which the receiver is
connected.
• Consultthedealeroranexperiencedradio/TV
technician for help.
For the customers in Canada:
ThisClassBdigitalapparatuscomplieswithCanadian
ICES-003. Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
4

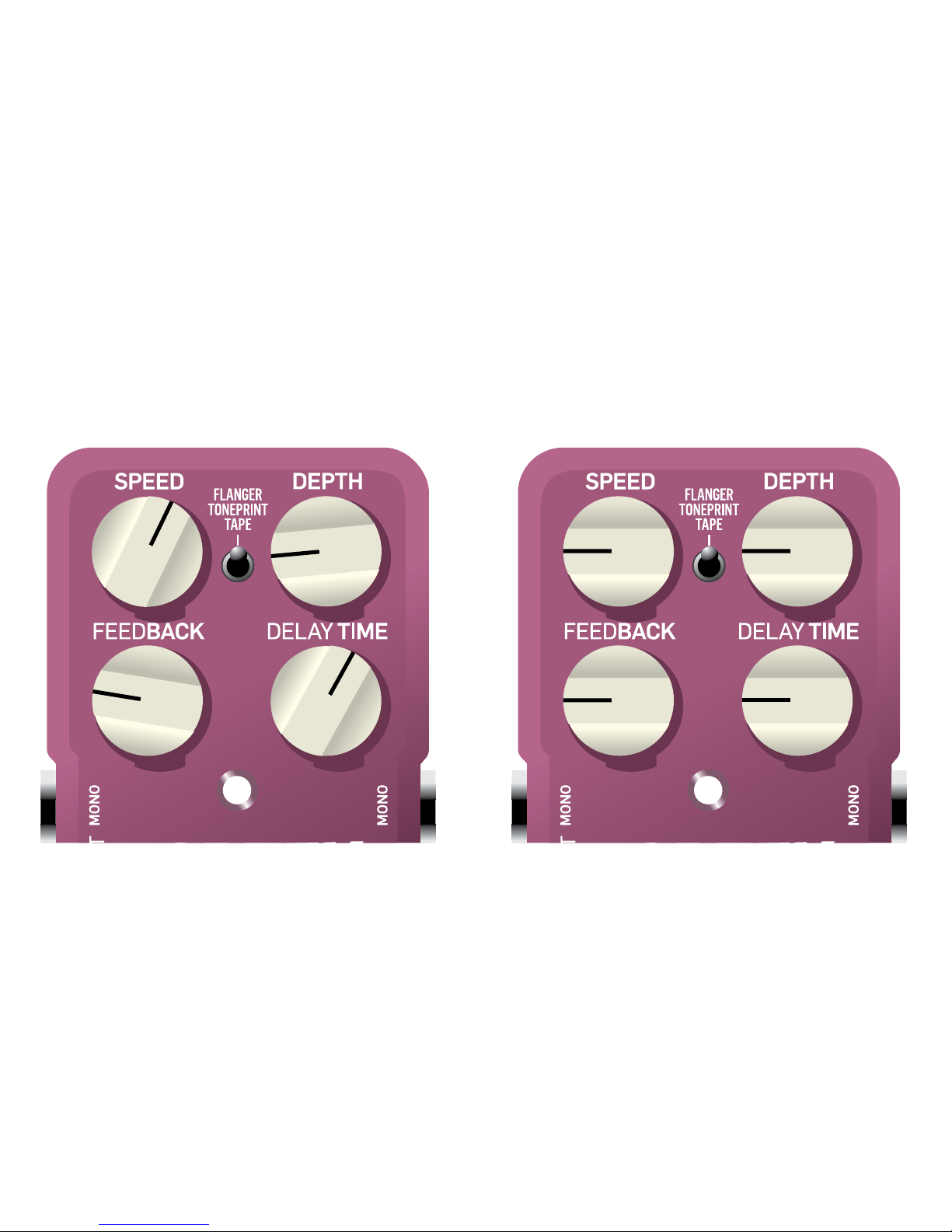

BOLD AS JIMI (TAPE) WARM TAPE (TAPE)
5
SUMMERS TIME (FLANGER) UNCHAIN MY FLANGE (FLANGER)
6
www.tcelectronic.com - www.youtube.com/tcelectronic
(EN) Introduction
Congratulations! You have just bought a flanger pedal that is a steppingstone to a world of
inspiration, innovation and tone.
WeareproudtopresentVortexFlanger,providingawesomeflangersounds,intuitivecontrolsand
instantsatisfaction.WithVortexFlangeryouaresetforanysituationthatcallsforsomeserious
flanging, from subtle two-tape-machines-simultaneously to full-on 747-take-off sounds. But that’s not
all! We love tone as much as any guitarist out there, so we are very excited to present a brand new,
groundbreakingconcept:TonePrint!
TonePrintgivesinstantaccesstocustom-tweakedsounds.Wehavegatheredanimpressivelistof
guitarheroesandhadthemtailortheirsignaturesounds–thetonesthatmadethemfamous.Toneprint
will not just bring you close to the sounds of your idols, they give you their actual sounds!
UsingTonePrintsisbotheasyandfun.JustdownloadtheTonePrintyouwantfromwww.tcelectronic.com
and,voila,yourfavoriteartisthasjustputhisTonePrintinyourpedal.Forgetemulation–let’stalk
collaboration!
7

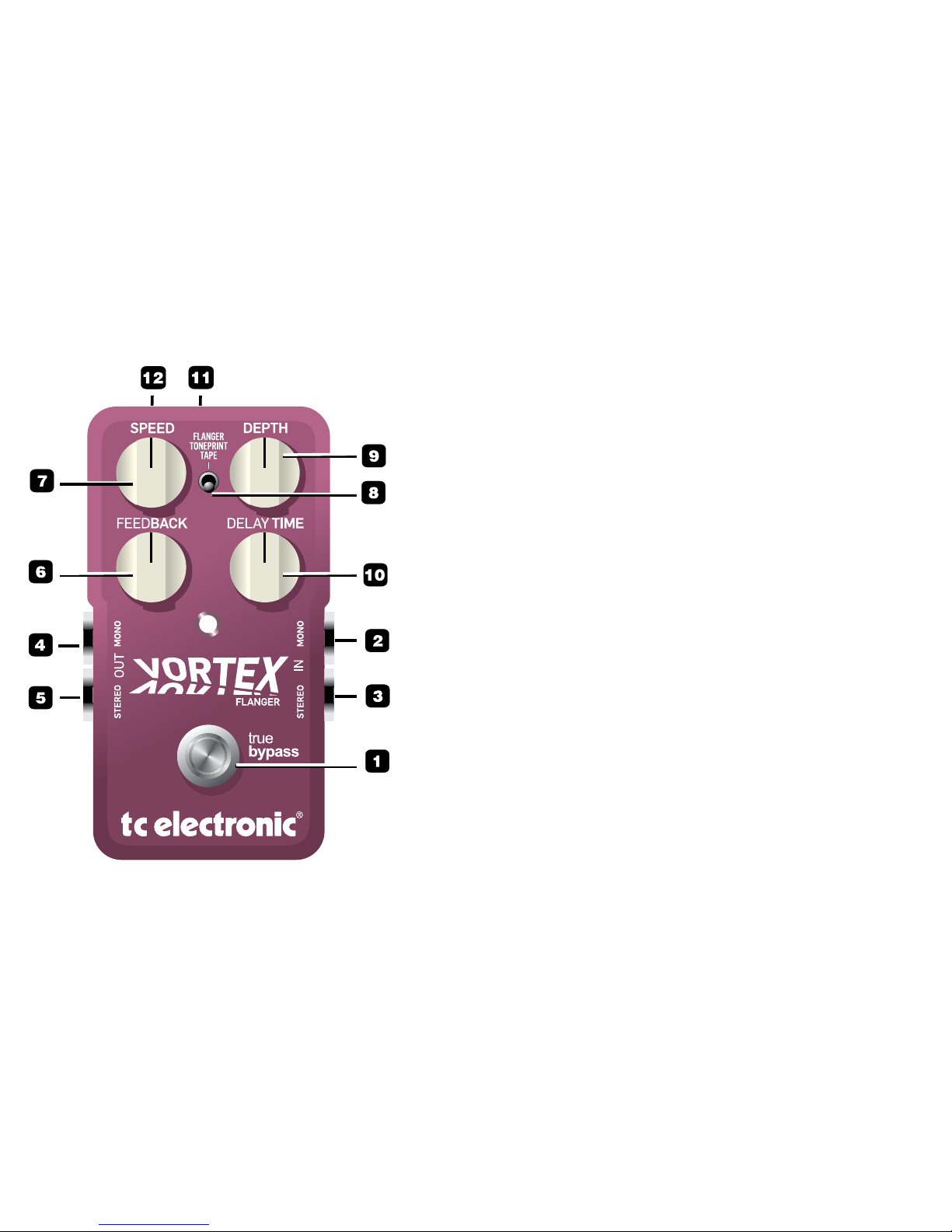

1 - Effect on/off (true bypass)
2 - 1/4 inch mono jack input
3 - 1/4 inch mono jack input (for stereo in)
4 - 1/4 inch mono jack output
5 - 1/4 inch mono jack output (for stereo out)
6 - Feedback control
7 - Speed control
8 - Flange/TonePrint/Tape selector
9 - Depth control
10 - Delay time control
11 - Power in (9VDC)
12 - USB connection for exchanging TonePrint
settings and software updates.
8

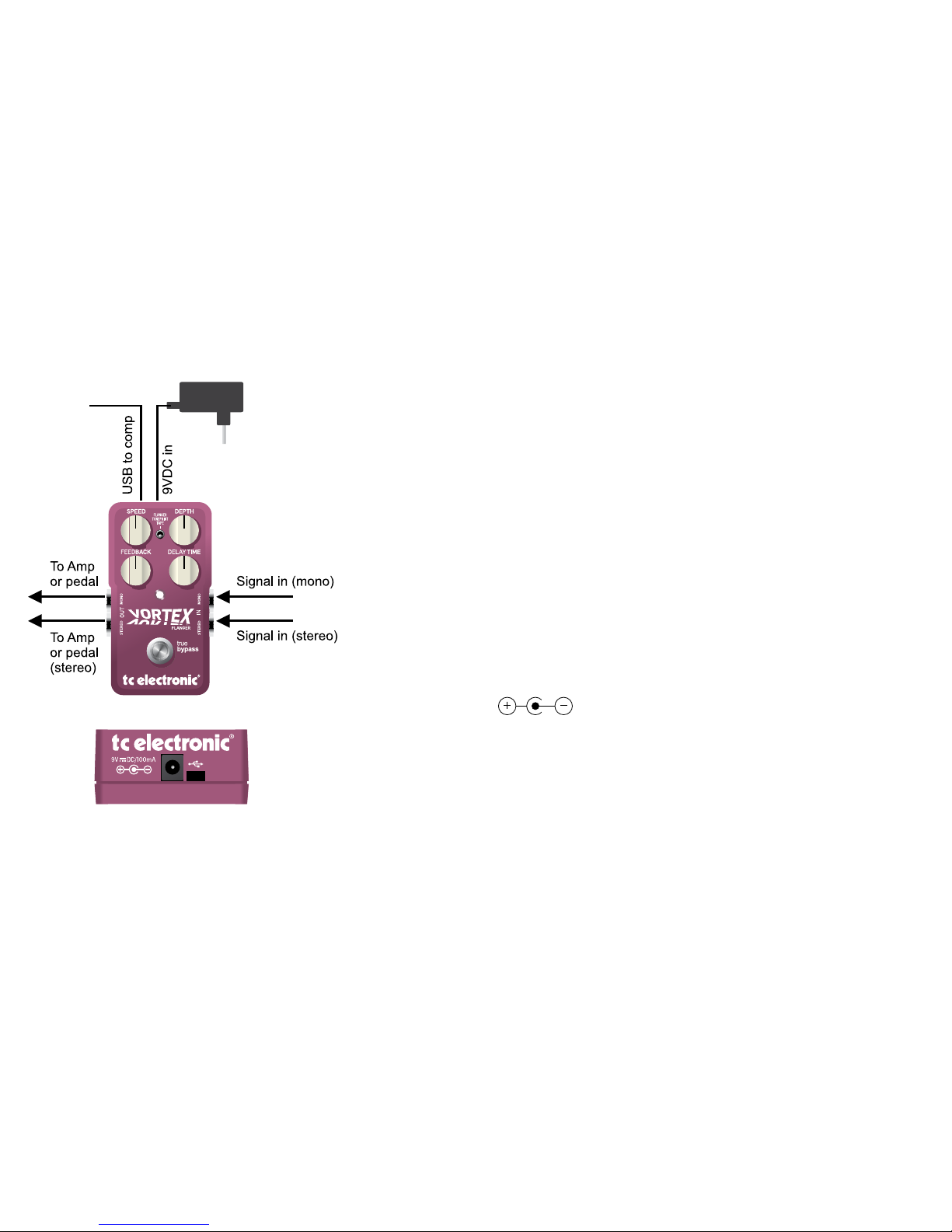

Connecting
Input jacks - Use MONO for mono input and both MONO
andSTEREOifconnectingastereosource.
If you run on battery we recommend removing the mono
input jack to preserve battery power when you don’t play.
Output jacks - connect to another pedal or directly into
an amp or mixer. Use MONO for mono setups and both
MONOandSTEREOforstereosetups.
Notice that it is possible to select between true bypass and
buffered bypass mode via a dip switch located under the
battery cover.
Power in-usea9VDCpowersupplywiththefollowing
symbol:
USB
Connect to a computer using the supplied USB cable for
uploadofTonePrintsettings.
Theconnector-typeisMini-B.
9
The controls
FEEDBACK
UsetheFEEDBACKknobtocontroltheamountoffeedbackoftheshortmodulateddelaythatcauses
theFlangingeffect.Turntheknobcounter-clockwisetogetnegativefeedbackandclockwisetoget
positive feedback. Where the positive range gives a traditional studio-type feedback the negative range
givesmoreextremeand“tube-like”sound.Trythemout!12o’clockpositionisneutral=nofeedback.
Notice that too high settings might introduce internal feedback, resulting in a squealing noise that in
most cases is unwanted in flanging effects.
SPEED
UsetheSPEEDknobtosetthespeedoftheeffect.
DEPTH
UsetheDEPTHknobtosettheintensityoftheeffect.Themoreyouturntheknobclock-wise,themore
“out of tune” the modulated part of the signal is.
DELAY TIME
Typicaldelayvaluesforflangingeffectsarearound1-2mswhereasChoruseffectsoccurwithdelay
times around 10 ms. Short delay times give very intense, “jet engine”-type sounds with plenty high-end
frequencies. Longer delay times give the slightly darker more “tube”-type sounds.
10
FLANGER TYPE Selector:
SwitchbetweenstandardFlange,TapetypeandTonePrint
FLANGE
Thecharacteristic“flanging”soundoccurswhenapitch-modulatedpartofthesignalisslightlydelayed
and fed back to the input of the effect algorithm. Experiment with the Feedback parameter to get an
idea of the effects you can achieve.
TAPE
- also know as the “through-zero-flange” emulates the original way of creating a flange effect, with
two identical pieces of audio material being played back simultaneously on two tape decks and then
beingmixedonathirddeck.Theflangingeffectwasachievedbyslowingdownandspeedingupthe
twodecksatdifferenttimes.Anessentialpartofthespecialeffectcreatedthiswayistheuniquephase
cancellation occurring when the two signals pass each other in time (the zero point).
