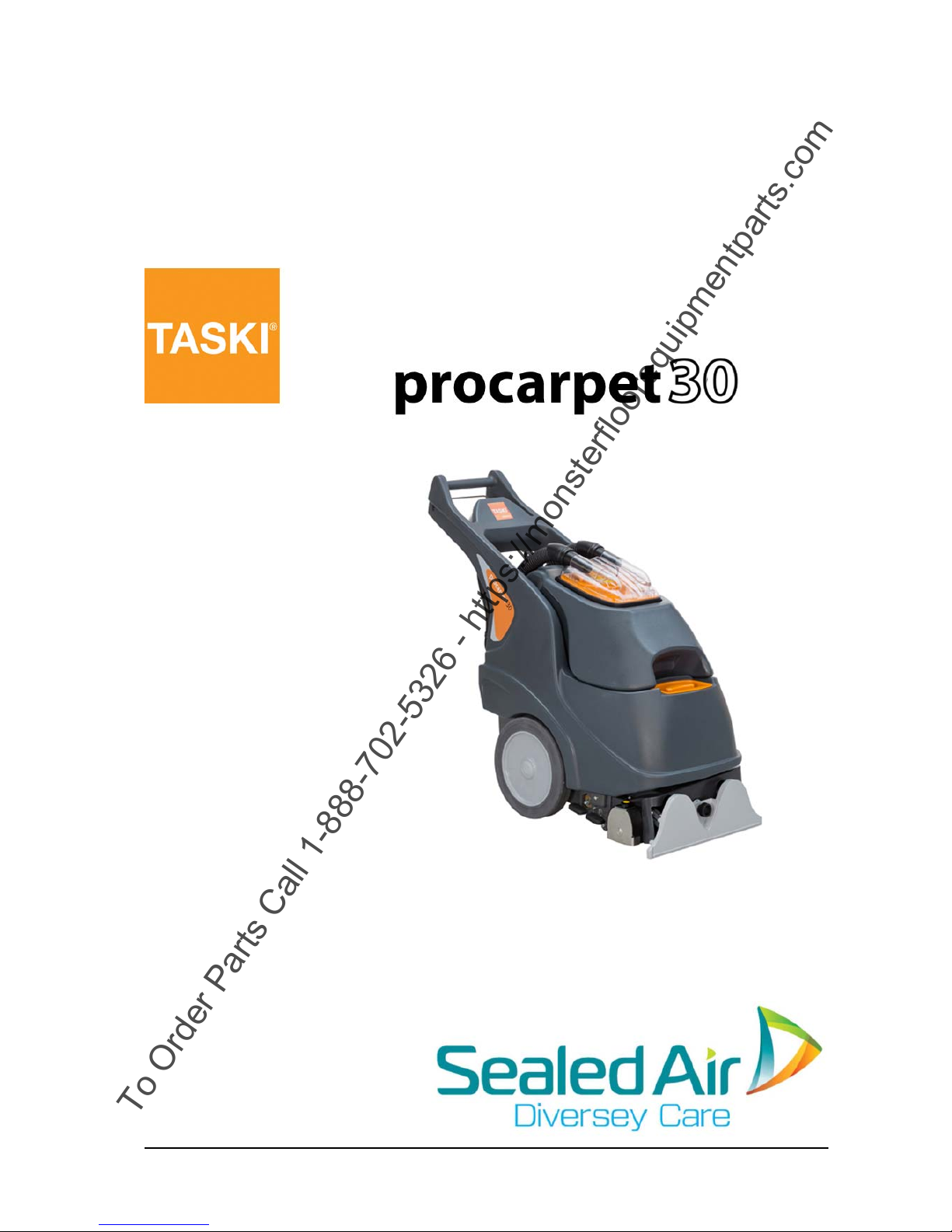

Taski Procarpet 30 Manuel utilisateur

Edition: V1.00/2014

Technical Manual

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

GTS Technical Manual

tecnical manual procarpet 30_V1.00IVZ.fm

14. March 2014 Edition: V1.00/2014

Index

1Forward

1.1 Target 1

1.2 Technical Training 1

1.3 Technical Manual 1

1.4 Summary 2

2Elementary

2.1 Health & Safety 1

2.2 ESD 1

3 General

3.1 General information 1

3.1.1 Part reference 1

3.1.2 Consumable supplies 1

3.1.3 Direction description 1

3.1.4 Power source 1

3.2 Required material 2

3.2.1 Tools 2

3.2.2 Material 2

4Technicaldata

4.1 Machine range 1

4.2 Technical information 2

4.2.1 Machine profile 2

4.2.2 Technical data 2

4.2.3 Dimensions and weights 3

4.2.4 Brush system 4

4.2.5 Suction power 4

4.3 Accessories & Additional parts 4

4.3.1 Accessories 4

5 Mechanical

5.1 Handle 1

5.1.1 Removing of housing 1

5.1.2 Mounting of housing 2

5.1.3 Removing of microswitch 3

5.1.4 Mounting of microswitch 5

5.1.5 Removing of switching bow 6

5.1.6 Mounting of switching bow 7

5.2 Tank cover and tank 8

5.2.1 Removing of fresh water tank assembly 8

5.2.2 Mounting of fresh water tank assembly 10

5.3 Brush & Motor 12

5.3.1 Removing of brush motor belt 12

5.3.2 Mounting of brush motor belt 13

5.3.3 Removing of brush motor 14

5.3.4 Mounting of brush motor 15

5.3.5 Removing of brush pulley 16

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

GTS Technical Manual

tecnical manual procarpet 30_V1.00IVZ.fm

14. March 2014 Edition: V1.00/2014

5.3.6 Mounting of brush pulley 17

5.3.7 Adjusting of brush height 18

5.4 Vacuum unit & squeegee 19

5.4.1 Removing of vacuum motor 19

5.4.2 Mounting of vacuum motor 20

5.4.3 Removing of shackle 21

5.4.4 Mounting of shackle 22

5.4.5 Removing of squeegee 23

5.4.6 Mounting of squeegee 24

5.4.7 Removing of brush level adjustment 25

5.4.8 Mounting of brush level adjustment 27

5.5 Magnetic valve & water outlet 28

5.5.1 Removing of pump 28

5.5.2 Mounting of pump 29

5.5.3 Removing of fresh water filter 30

5.5.4 Mounting of fresh water filter 31

5.5.5 Removing of bypass valve 32

5.5.6 Mounting of bypass valve 33

5.5.7 Removing of valve unit 34

5.5.8 Mounting of valve unit 35

6 Electrical

6.1 System architecture 1

6.1.1 Motor circuit 1

6.2 Main cord & cable inlet inbox 2

6.2.1 Removing of rockingswitch 2

6.2.2 Mounting of rockingswitch 3

6.2.3 Rockingswitch connections 4

6.3 Contactor 6

6.3.1 Removing of contactor 6

6.3.2 Mounting of contactor 7

6.3.3 Contactor connections K1/K2 8

6.3.3.1 Contactor connections K1 9

6.3.3.2 Contactor connections K2 10

6.4 Electrical schematics 11

6.4.1 Electrical schematics 11

7 Additional information

7.1 Available GTS Newsletter/Instructions 1

8Revision

9Appendix

10 Notes

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

14. March 2014 Edition: V1.00/2014

Technical Manual

1 Forward

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

GTS Technical Manual

14. March 2014 Edition: V1.00/2014 1-1

01.0 TASKI - foreword_V1.00.fm

1 Foreword

1.1 Target

To serve our customers faster and more efficient it is important to achieve a general

standard of technical know how with our partners in the market.

Therefore we developed a Technical Training concept which is based on e-spares. The

concept consists of a Technical Manual and a Technical Training.

These two tools will be produced for each newly launched machine with a certain com-

plexity. The Technical Manual will be available as PDF file and can be downloaded from

e-spares. The Technical Training documentation will be distributed after having attend-

ed the technical training.

1.2 Technical Training

The Technical Training is addressed as reference book for the technical training sessions

and will be distributed to the floor care responsible and/or to the technical training re-

sponsible after attending a training session provided by GTS (max. 2 persons per coun-

try).

The intension is, that after this session, a technical trainer is able to perform technical

training for their local technical staff and in this way to transfer the knowledge to all

service technicians.

The Technical Training is not intended as manual for the service technicians and will be

distributed only to the training responsible of each country.

1.3 Technical Manual

The Technical Manual is addressed to the service technicians and should be translated

and distributed after a technical training.

It contains a summary of procedures, hints and suggestions etc. which are helpful and

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

GTS Technical Manual

14. March 2014 Edition: V1.00/2014 1-2

01.0 TASKI - foreword_V1.00.fm

essential for the daily business. The Technical Manual can be downloaded from e-

spares/documents.

1.4 Summary

We are convinced that the Technical Manual concept together with the Technical Training

are powerful tools, which will help our service organisations to achieve a higher level of

quality in repairs and customer satisfaction.

If you have any comments or questions do not hesitate to contact your country respon-

sible.

Sincerely yours

GTS Team

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

14. March 2014 Edition: V1.00/2014

Technical Manual

2 Elementary

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

GTS Technical Manual

14. March 2014 Edition: V1.00/2014 2-1

02.1 TASKI - elementary_V1.00.fm

2Elementary

2.1 Health & Safety

Scrubber dryers may be powered by mains electricity or batteries. There are risks asso-

ciated with both, which call for proper precautions, such as the provision of good venti-

lation and the elimination of risk of ignition.

All work, carried out on such machines, should only be performed by trained personnel

in accordance with local regulations.

Before working on such a machine, isolate it from any electrical power source.

Always wear the required personal protective equipment (including gloves and goggles)

that must be worn when potentially exposed to any hazardous material and when carry-

ing out hazardous tasks.

Note that parts may be contaminated with chemical product. If possible flush hoses out

with fresh water prior to carrying out any maintenance. For information on chemical

products that are used in this machine, please carefully read the product label and Ma-

terial Safety Data Sheet (MSDS).

Empty water tanks prior to carrying out any maintenance. Ensure contaminated water is

emptied into an approved drain. Avoid pollution.

2.2 ESD

Static electricity is electricity at rest or the accumulation of electric charge, as opposed

to an electric current which is the movement of electricity. The flow or movement of peo-

ple and/or materials in and through the environment causes separation of electrons and

therefore static electricity. A familiar example of static electricity is when a person walks

across a carpeted floor. Static electricity/electrostatic charge is generated simply by the

contact and separation of the soles of that individual's shoes from the carpeted floor.

Electrostatic Discharge (ESD) occurs when the electrostatic charge is transferred from a

material that carries the charge to an electrostatic sensitive device. In the example above,

this electrostatic discharge is the „shock“ felt after walking across the carpeted floor and

then touching a door knob. It is this electrostatic discharge, which comes in varying de-

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

GTS Technical Manual

14. March 2014 Edition: V1.00/2014 2-2

02.1 TASKI - elementary_V1.00.fm

grees, that can be most damaging to electronical devices.

Static electricity, is a natural phenomenon and consequently electrostatic discharge is

the primary cause of countless problems affecting industry, business and personal life.

These problems can be as simple as the shock resulting from walking across a carpet; as

costly as the destruction of sensitive electronic components.

Almost any material can generate static electricity. The ability to store or unload the

charge depends on the type of material. 

Static discharge can damage devices, this can result in immediate product failure or in a

latent failure. Latent failures can go undetected for a period of time, the results are prod-

uct failure in the field. 

Electrostatic fields are associated with charged objects. 

The degree of severity of ESD events depends on the type of discharge which occurs. The

three most common ESD charge transfers are:

• from an external object to the device.

• from a device to another object.

• resulting from electrostatic fields.

Please do not store electronics without ESD bags at any time.

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com

14. March 2014 Edition: V1.00/2014

Technical Manual

3 General

ToOrderPartsCall1-888-702-5326-https://monsterfloorequipmentparts.com
