USB-2.0 Mobile

Mini Hub

USER’S GUIDE

Making Your Mobile Life Easier.

Visit our Web site at: www.targus.com

400-0093-001A

USB 2.0 Mobile Mini Hub

Introduction

Congratulations on your purchase of the Targus Noteworthy

USB 2.0 Mobile Mini Hub. This ultra portable mini hub is

USB 2.0 compliant and connects to a Universal Serial Bus

(USB) port on your desktop or notebook computer.

The mini hub has four ports for connecting USB (high-speed

2.0 or standard 1.1) devices to your computer. One or more of

these devices can be additional hubs. You can daisy-chain up to

127 USB (high-speed 2.0 or standard 1.1) devices to your

computer in this way.

The mini hub also provides a maximum bandwidth of 480

Mbps, which enables you to connect devices that consume a

large amount of bandwidth, such as an external storage device,

printer, scanner, DVD or CD-RW drive or digital camera, to

your computer.

In addition to this user’s guide, this package contains the USB

2.0 Mobile Mini Hub, a high-speed USB 2.0 cable and an AC

power adapter and cord.

System Requirements

To use the mini hub, your computer must meet the following

hardware requirements and run one of the operating systems

listed below.

Hardware Operating System

• PC with a 233 MHz or faster Intel®

Pentium®processor or equivalent

and a hard disk drive

• Windows®98SE/Me/

2000/XP

• 64 MB RAM or higher, depending

on the operating system

• Mac OS X and higher

• USB version 2.0 interface

NOTES: The USB 2.0 Mobile Mini Hub is backward

compatible, so you can connect it to a computer with either a

version 1.1 or 2.0 USB interface.

When using the mini hub with a computer that has a version

1.1 USB interface, all of the devices attached to the mini hub

will run at a version 1.1 USB speed.

Connecting the Mini Hub to Your

Computer and Installing the

Default Device Drivers

To connect the mini hub to your computer and install the

operating system’s default drivers:

1 Plug the supplied high-speed cable’s USB connector end

(type A) into a USB port on your computer.

2 Plug the cable’s other connector end (type B) into the mini

hub.

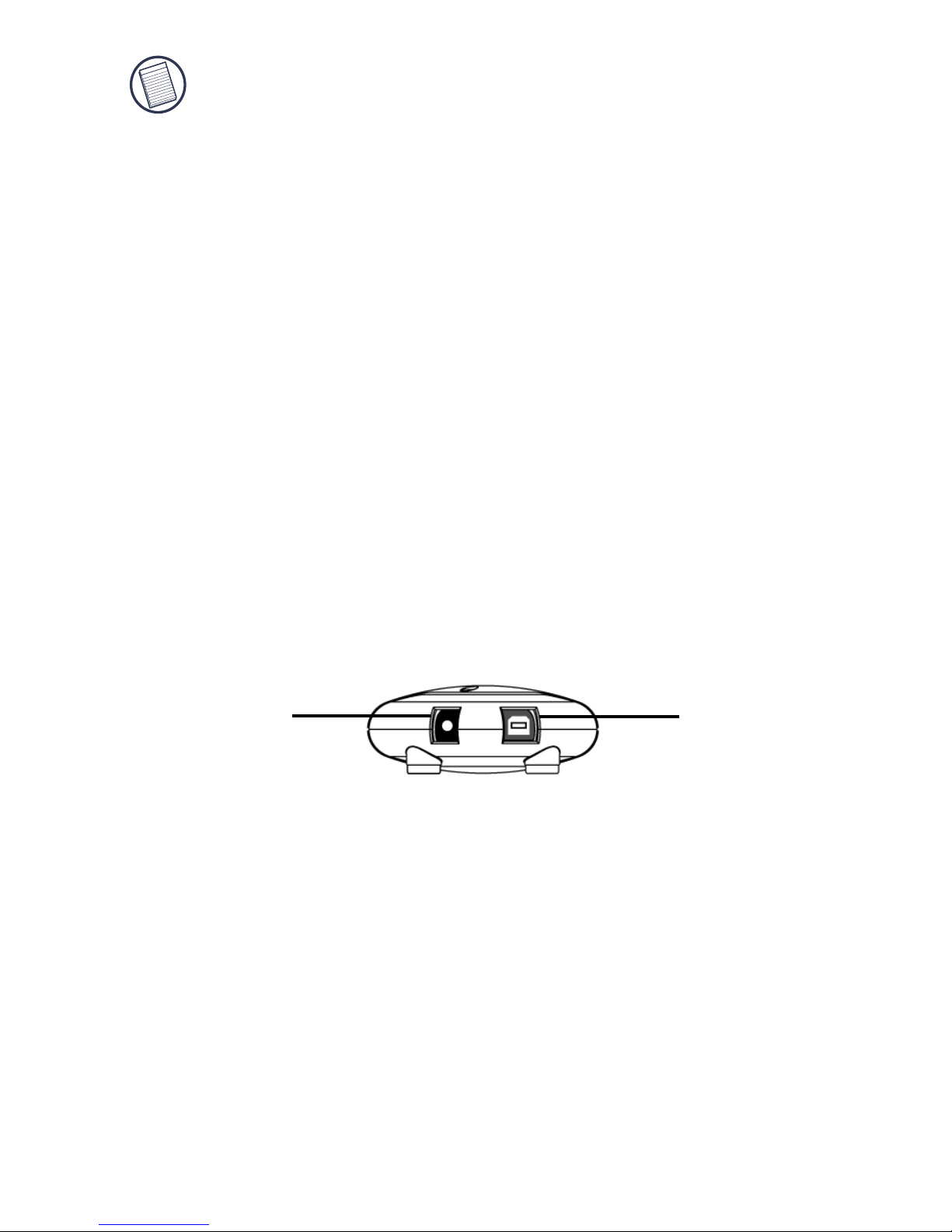

Mini hub - AC power jack and USB port (type B)

3 Connect the supplied AC power adapter to the AC power

jack on the mini hub, then plug the adapter into an

available electrical outlet.

Your computer’s operating system automatically detects

the new hardware and begins installing the appropriate

default drivers.

4 Follow the on-screen instructions to complete the driver

installation.

You can now connect USB devices to the mini hub or daisy-

chain additional hubs.

AC power

jack

USB port

(type B)

Connecting Devices to the Mini Hub

To connect a USB device, plug it into a USB port on the mini

hub and follow any additional instructions provided with the

device.

When connecting new devices to the mini hub, consider the

following guidelines:

• If your computer is running the Windows®98 operating

system, a series of screens appear, beginning with the Add

New Hardware Wizard, to guide you through the driver

installation process.

• If your computer is running the Windows®Millennium

Edition, Windows®2000 or Windows®XP operating

system, the device drivers may install automatically.

• When connecting a new device to the mini hub, you must

run the Setup or Install program for that device.

• When connecting a device to the mini hub, to avoid possible

damage, never force the cable connector into the port on the

mini hub. If the cable connector does not attach smoothly,

remove the connector, turn it over and try attaching it again.

LED Status Indicator Lights

Once the default drivers are installed, the LED status indicator

lights glow and you can connect devices to the mini hub.

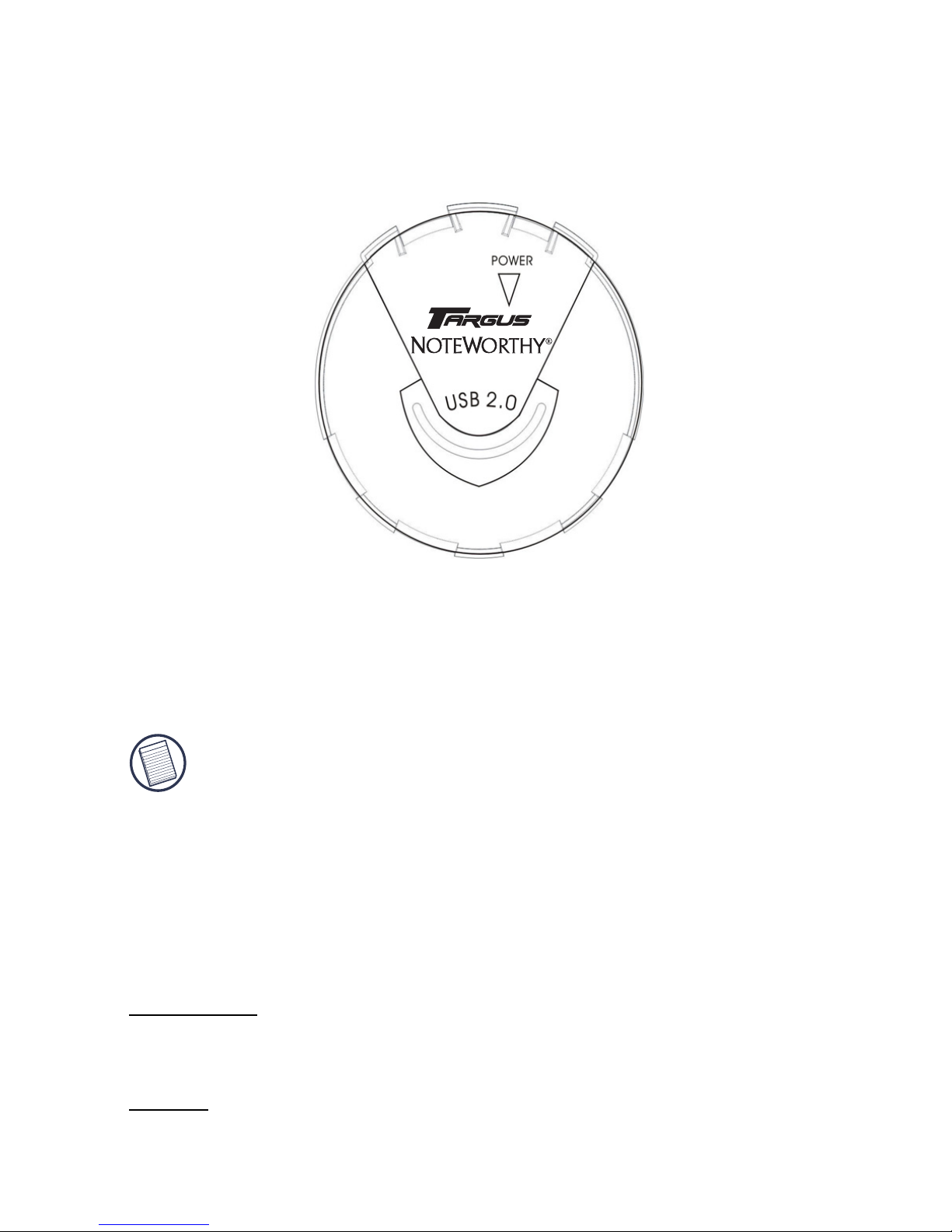

Mini hub - LED status indicator lights

The LED lights display as follows:

• Power light glows red when the mini hub is receiving power

from an external power source

NOTE: Use only the supplied AC power adapter with the mini

hub to avoid possible damage.

• Each USB light glows blue when a device is connected to the

port.

Specifications

Dimensions

2 inches (diameter)

Weight

2.5 ounces (70.9 g)

Operating Temperature

32 to 158 degrees Fahrenheit (0 to 70 degree Celsius)

Standards

USB Specification Revision 2.0 and 1.1 compatibility

Data Speed

USB v1.1: 12 Mbps

USB v2.0: 480 Mbps

Connector Ports

Hub to computer: 1 (series B receptacle)

Hub to devices: 4 (series A receptacle)

LED Indicators

Power: 1 (Red)

Hub to devices: 4 (White/blue)

Per-Port Current

500 mA (with the AC power adapter)

External Power - AC Power Adapter

DC 5 Volt

Cable length

6-foot (1.83 m)

Troubleshooting

General

Can I connect USB 1.1 compatible devices to the mini hub?

Yes, the mini hub is backward compatible with USB 1.1

devices.

Can I use the mini hub without the AC power adapter?

No, you must use the supplied AC power adapter to ensure that

the devices work properly.

Device Not Working

• Make sure that the device is firmly connected to the port on

the mini hub.

• Plug the device into a different port on the mini hub. If it still

doesn’t work, test the device by connecting it directly to your

computer.

• Check that you ran the Setup or Install program for the

device.

• Make sure that the device appears in Device Manager. See

“Verifying Device is Installed” below.

• Disconnect all devices from the mini hub and reconnect

them, one at a time. Check that each device works before

plugging in the next one.

Verifying Device is Installed

Windows®Operating System

To check that the mini hub is installed properly, use Device

Manager to locate the Generic USB Hub on USB 2.0 Bus

device.

To access Device Manager for the Windows®98/Me operating

system, right-click My Computer, Properties, and then click the

Device Manager tab.

For the Windows®2000/XP operating system, right-click My

Computer, Properties, click the Hardware tab, then click the

Device Manager button.

To test that the mini hub is working properly, in the Device

Manager window:

1 Select the Generic USB Hub on USB 2.0 Bus device.

2ClicktheProperties button or icon, depending on your

operating system.

3 Verify that the message “This device is working properly”

appears.

Macintosh Operating System

To verify that the mini hub is installed properly, locate the

Generic USB Hub on USB 2.0 Bus device by opening Apple

System Profiler and clicking Devices and Volumes.

USB Hub Current Limit Exceeded Warning

If a device exceeds the power available for its hub port, the

following screen appears with the offending device

highlighted.

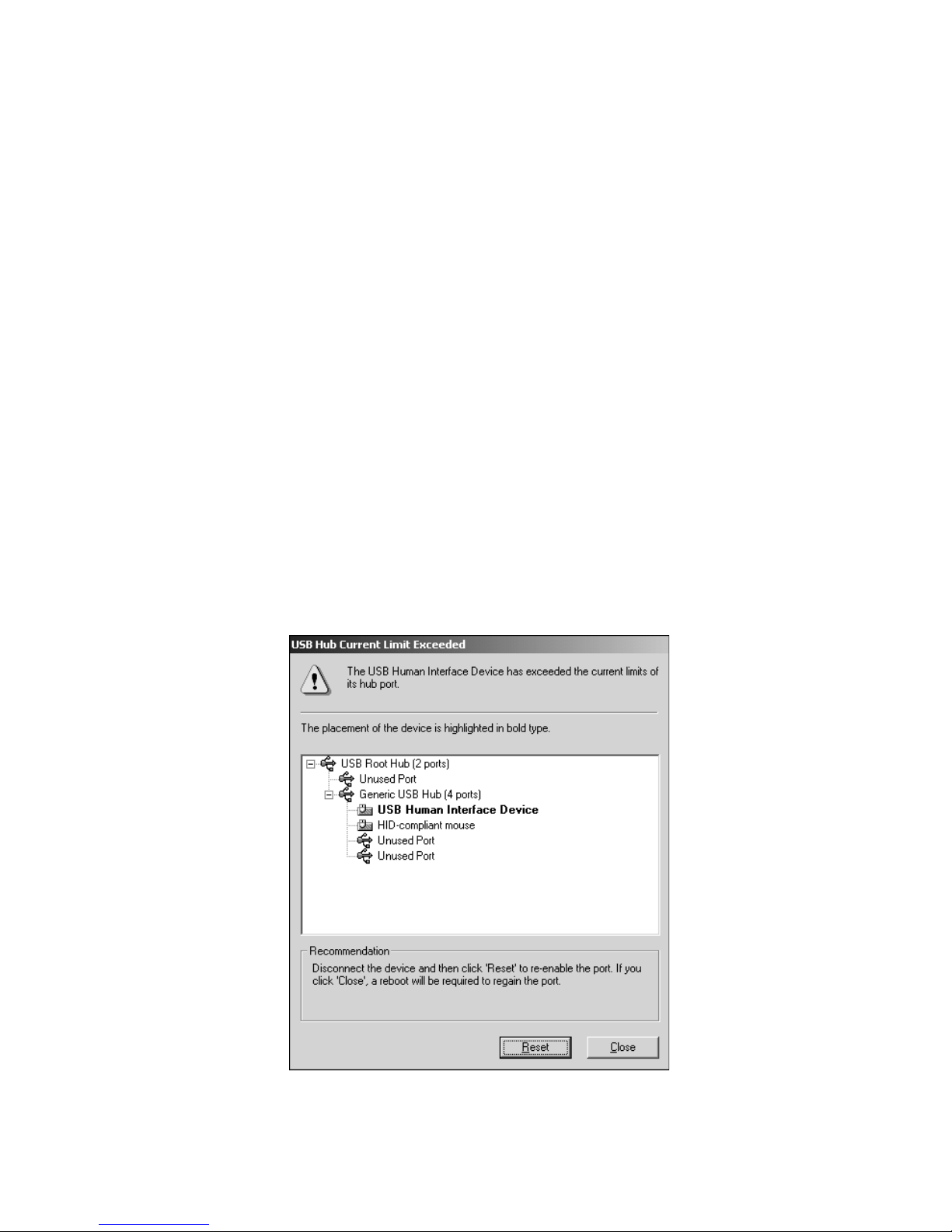

USB Hub Current Limit Exceeded screen

To re-enable the hub port for the affected device, follow the

on-screen instructions.

Technical Support

In the unlikely event that you encounter a problem with your

Targus accessory, please contact our technical support team at:

Email: techsupport@targus.com

Internet: http://www.targus.com/support.asp

Our knowledgeable staff is also available to answer your

questions through one of the following telephone numbers.

Monday through Friday, 8:00 a.m. (08:00) to 8:00 p.m. (20:00)

Eastern time: 800-283-6325

Canada

Monday through Friday, 9:00 a.m. (09:00) to 5:00 p.m. (17:00)

Eastern time: 888-827-4877

Europe

Belgium +32 0 02-717-2451

Denmark +45 0 35-25-8751

France +33 0 1-64-53-9151

Germany +49 0 21-16-579-1151

Italy +39 0 24-827-1151

Netherlands +31 0 53-484-9470

Spain +34 0 91-745-6221

Sweden +46 0 8-751-4058

Switzerland +41 0 1-212-0007

United Kingdom +44 0 20-7744-0330

Eastern Europe & others +31 0 53-484-9479

Product Registration

For more efficient customer service and to activate the product’s

warranty, Targus recommends that you register your Targus accessory

shortly after purchasing it.

To register your Targus accessory, go to:

http://www.targus.com/registration.asp

You will need to provide your full name, email address, phone number,

and company information (if applicable).

Warranty

Targus warrants this product to be free from defects in materials and

workmanship for one year. If your Targus accessory is found to be

defective within that time, we will promptly repair or replace it. This

warranty does not cover accidental damage, wear and tear, or

consequential or incidental loss. Under no conditions is Targus liable for

loss of, or damage to a computer; nor loss of, or damage to, programs,

records, or data; nor any consequential or incidental damages, even if

Targus has been informed of their possibility. This warranty does not

affect your statutory rights.

Warranty Registration at:

http://www.targus.com/registration.asp

Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

FCC Statement

Tested to Comply

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation.
