Tannoy DVS speaker Manuel utilisateur

DVS Series

Stylish Surface Mount Loudspeakers

Operation Manual

DVS Series Operation Manual rev 2.0.0

Table of Contents

1. Introduction 4

2. Safety Instructions 4

3. Product Feature Identication 5

4. Standard Accessories 6

5. Installation Guidelines 7

6. DVS Dimensions 8

7. Technical Specications 11

8. Warranty 14

Table of Contents

1. Introduction

DVS Series Operation Manual rev 2.0.0

1. Introduction

Designed for a wide variety of sound reinforcement applications the Tannoy DVS is an ultra compact loudspeaker

system capable of delivering high sound pressure levels with extremely low distortion, resulting in outstanding

clarity, denition and detail. A truly universal solution, the DVS offers outstanding durability and resistance to scuffs

and knocks. Able to deliver consistent performance under a wide range of adverse conditions the DVS is suited

to applications indoors or out. Available in black or white the DVS will effectively blend into most backgrounds.

Utilisation of the point source loudspeaker allows the DVS to be mounted on a wall or ceiling in either horizontal

or vertical orientations without affecting its performance. A range of hardware options ensures simple and

effective installation. Only available with built-in line transformer. For applications requiring extended low frequency

enhancement, a range of Tannoy sub-bass systems are available and can be used in conjunction with the DVS.

2. Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. The user is responsible for xing the hardware to the surface to ensure safe operation. The xings must

support the weight of the product – please consult the manual’s specication page for the appropriate weights.

Please consult the relevant construction codes in your region for further information on suitable hardware

xing methods.

Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

3. Product Feature Identiﬁcation

DVS Series Operation Manual rev 2.0.0

3. Product Feature Identiﬁcation

INPUT CONNECTOR

Fit rubber grommet to ensure the

rear of the product is kept sealed

4. Standard Accessories

DVS Series Operation Manual rev 2.0.0

4. Standard Accessories

DINKLE SEAL

YOKE BRACKET

(SUPPLIED WITH

FIXINGS)

5. Installation Guidelines

DVS Series Operation Manual rev 2.0.0

5. Installation Guidelines

1. Fix the yoke bracket to the surface using a suitable xing method. (Fig.1)

2. Feed the speaker cable through the cable clamp cover then connect the

Euro-type plug to the wires, observing the correct polarity. (Fig.2)

3. For connection to the loudspeaker, use Pins 1 (+) and 2 (-).

Pins 3 (-) and 4 (+) are in parallel for connection to additional speakers

in a distributed line. (Fig.3)

4. Offer the speaker up to the bracket and attach using the thumb

screws provided (Fig.4)

5. Connect the Euro-type plug then replace the rubber grommet to

ensure the speaker is sealed. (Fig.5)

6. The DVS 4t models are tted with 30 W transformers. (Fig.6)

THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE.

NEVER CONNECT THE SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE

IT IS SET FOR LOW IMPEDANCE.

7. The DVS 6t and DVS 8t models are tted with 60 W transformers. (Fig.7)

THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE.

NEVER CONNECT THE SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE

IT IS SET FOR LOW IMPEDANCE.

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

6. DVS Dimensions

DVS Series Operation Manual rev 2.0.0

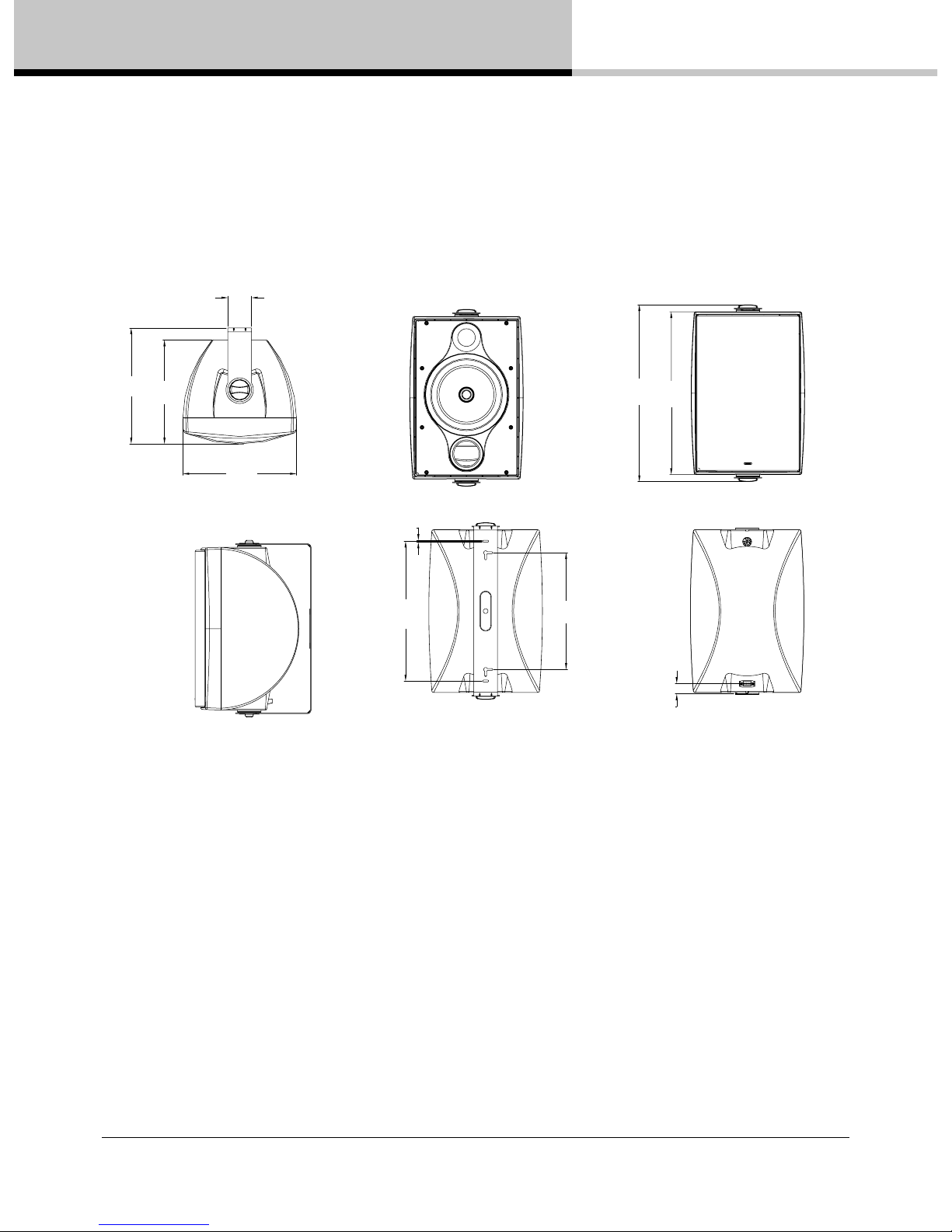

6. DVS Dimensions

DVS 4

165.6

(6.52”) 153.6

(6.05”)

170.4

(6.71”)

51.0

(2.01”)

277.0

(10.91”)

246.4

(9.70”)

259.0

(10.20”)

4.6

(0.18”)

182.0

(7.17”)

143.0

(5.63”)

6. DVS Dimensions

DVS Series Operation Manual rev 2.0.0

6. DVS Dimensions

DVS 6

53.0

(2.09”)

216.5

(8.52”) 206.3

(8.12”)

212.2

(8.36”)

340.5

(13.41”)

304.5

(11.99”)

4.6

(0.18”)

246.0

(9.69”) 206.5

(8.13”)

31.0

(1.22”)

6. DVS Dimensions

DVS Series Operation Manual rev 2.0.0

6. DVS Dimensions

DVS 8

296.0

(11.65”) 265.1

(10.44”)

60.5

(2.38”)

290.0

(11.42”)

451.8

(17.79”) 415.7

(16.37”)

357.0

(14.06”)

4.6

(0.18”)

298.0

(11.73”)

26.7

(1.05”)
