Tannoy DVS Series Manuel utilisateur
DVS OWNER MANUAL_01
Series
OWNER’S MANUAL
Series
02_ DVS OWNER MANUAL
CONTENTS
INTRODUCTION 02 PRODUCT DIMENSIONS 06-07
SAFETY INSTRUCTIONS 02 TECHNICAL SPECIFICATIONS 08-09
PRODUCT IDENTIFICATION 03 WARRANTY STATEMENT 10
STANDARD ACCESSORIES 04 DECLARATION OF CONFORMITY 11
INSTALLATION GUIDELINES 05
INTRODUCTION
Designed for a wide variety of sound reinforcement applications the Tannoy DVS is an ultra compact loudspeaker
system capable of delivering high sound pressure levels with extremely low distortion, resulting in outstanding
clarity, denition and detail. A truly universal solution, the DVS offers outstanding durability and resistance to scuffs
and knocks. Able to deliver consistent performance under a wide range of adverse conditions the DVS is suited
to applications indoors or out. Available in black or white the DVS will effectively blend into most backgrounds.
Utilisation of the point source loudspeaker allows the DVS to be mounted on a wall or ceiling in either horizontal
or vertical orientations without affecting its performance. A range of hardware options ensures simple and effective
installation. Also available with built-in line transformer. For applications requiring extended low frequency
enhancement, a range of Tannoy sub-bass systems are available and can be used in conjunction with the DVS.
SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. The user is responsible for xing the hardware to the surface to ensure safe operation. The xings must support
the weight of the product – please consult the manual’s specication page for the appropriate weights. Please
consult the relevant construction codes in your region for further information on suitable hardware xing methods.
6. Tannoy will not be held accountable for any damage caused by incorrect installation.
Series
DVS OWNER MANUAL_03
Series

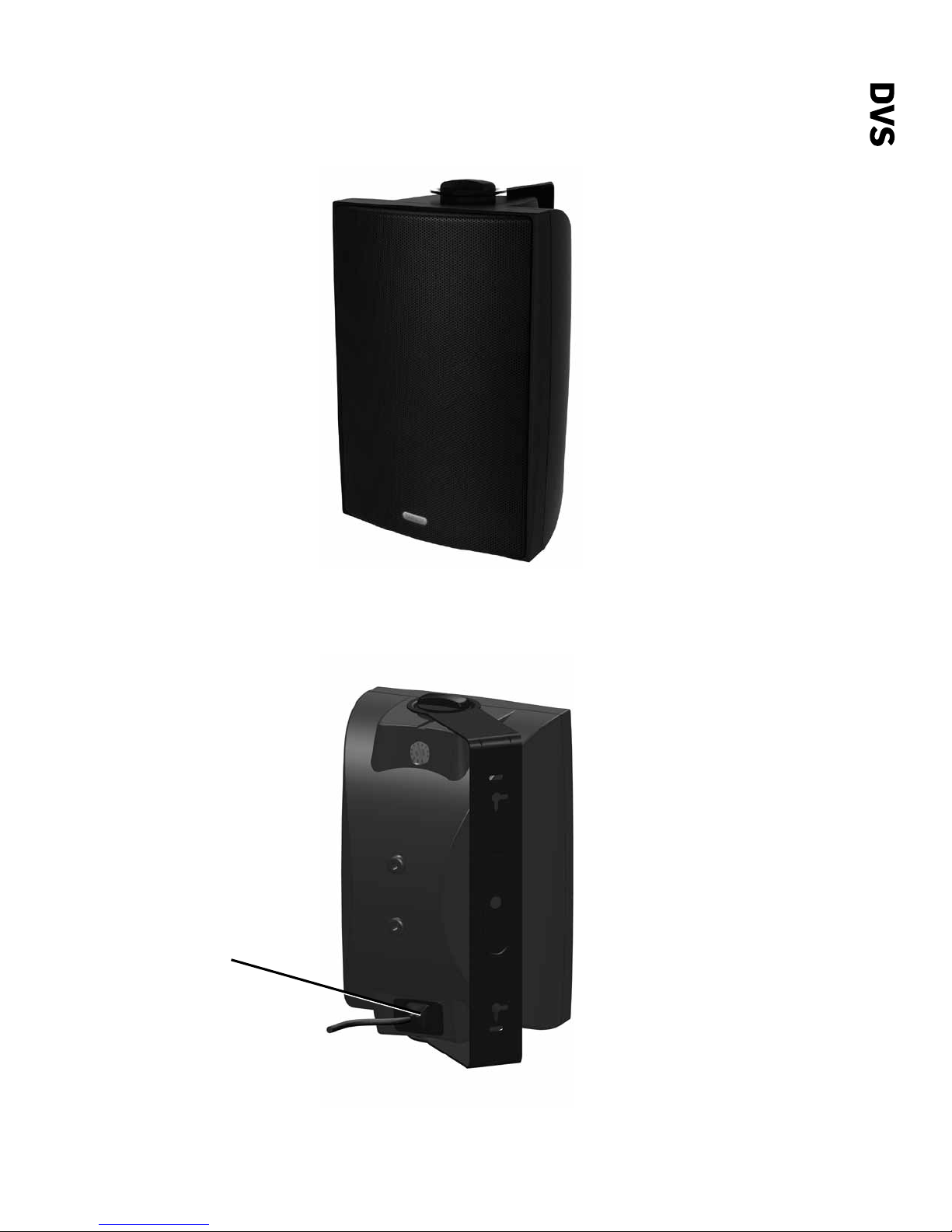

PRODUCT IDENTIFICATION
INPUT CONNECTOR
Fit rubber grommet to ensure the
rear of the product is kept sealed
04_ DVS OWNER MANUAL
STANDARD ACCESSORIES
YOKE BRACKET
(SUPPLIED WITH
FIXINGS)
DINKLE SEAL
DVS OWNER MANUAL_05
Series
INSTALLATION GUIDLINES
1. Fix the yoke bracket
to the surface using a
suitable xing method.
2. Feed the speaker
cable through the rubber
grommet then connect
the euro-type plug to the
wires, observing the
correct polarity.
3. For connection to the
loudspeaker, use pins
1 (+) and 2 (-).
Pins 3 (-) and 4 (+) are
in parallel for connection
to additional speakers in
a distributed line.
4. Offer the speaker up
to the bracket and
attach using the thumb
screws provided.
5. Connect the euro
plug then replace the
rubber grommet to
ensure the speaker is
sealed.
6. The DVS 4t models are
tted with 30W transformers.
THE SPEAKER IS
SUPPLIED IN LOW
IMPEDANCE MODE.
NEVER CONNECT THE
SPEAKER TO A 70/100
VOLT AMPLIFIER WHILE
IT IS SET FOR LOW
IMPEDANCE.
7. The DVS 6t and DVS 8t
models are tted with 60W
transformers.
THE SPEAKER IS SUPPLIED
IN LOW IMPEDANCE MODE.
NEVER CONNECT THE
SPEAKER TO A 70/100
VOLT AMPLIFIER WHILE IT
IS SET FOR LOW IMPEDANCE.
06_ DVS OWNER MANUAL
PRODUCT DIMENSIONS DVS 4
PRODUCT DIMENSIONS DVS 6
165.6
(6.52”) 153.6
(6.05”)
170.4
(6.71”)
51.0
(2.01”)
277.0
(10.91”)
246.4
(9.70”)
259.0
(10.20”)
4.6
(0.18”)
182.0
(7.17”)
143.0
(5.63”)
29.7
(1.17”)
53.0
(2.09”)
216.5
(8.52”) 206.3
(8.12”)
212.2
(8.36”)
340.5
(13.41”)
304.5
(11.99”)
4.6
(0.18”)
246.0
(9.69”) 206.5
(8.13”)
31.0
(1.22”)
DVS OWNER MANUAL_07
Series
PRODUCT DIMENSIONS DVS 8
296.0
(11.65”) 265.1
(10.44”)
60.5
(2.38”)
290.0
(11.42”)
451.8
(17.79”) 415.7
(16.37”)
357.0
(14.06”)
4.6
(0.18”)
298.0
(11.73”)
26.7
(1.05”)
08_ DVS OWNER MANUAL
TECHNICAL SPECIFICATIONS
DVS 4 DVS 6 DVS 8
PERFORMANCE
Frequency Response (-3dB) (1) 75Hz - 20kHz 80Hz - 20kHz 75Hz - 20kHz
Frequency Range (-10dB) (1) 60Hz - 30kHz 65Hz - 30kHz 60Hz - 30kHz
System Sensitivity (1W @1m) (2) 84dB 88dB 90dB
Dispersion (-6dB) 110 degrees conical 90 degrees conical 80 degrees conical
Transducers Coaxial Coaxial Coaxial
Low Frequency 100mm (4.00”) mineral 165mm (6.5”) mineral 200mm (8.00”) mineral
loaded cone material loaded cone material loaded cone material
High Frequency 20mm (0.79) 20mm (0.79) 20mm (0.79)
Crossover 3.9kHz - 2nd order LF, 4.3kHz - 2nd order LF, 3.4kHz - 2nd order LF,
2nd order HF 2nd order HF 2nd order HF
Directivity (Q) 6.5 averaged 1kHz to 10kHz 10.6 averaged 1kHz to 10kHz 12.3 averaged 1kHz to 10kHz
Directivity (DI) 5.3 averaged 1kHz to 10kHz 9.6 averaged 1kHz to 10kHz 10.0 averaged 1kHz to 10kHz
Rated Maximum SPL (2) 100dB (average) 105dB (average) 108dB (average)
106dB (peak) 111dB (peak) 114dB (peak)
Power Handling
Average 40W 60W 70W
Programme 80W 120W 140W
Peak 160W 240W 280W
Recommended Amplier Power 80W @ 6 Ohms 120W @ 6 Ohms 140W @ 6 Ohms
Nominal Impedance 6 Ohms 6 Ohms 6 Ohms
Distortion 10% Full Power (4.9V) 2nd Harmonic 3rd Harmonic (6.0V) 2nd Harmonic 3rd Harmonic (6.48V) 2nd Harmonic 3rd Harmonic
250Hz 0.738% 0.772% 0.934% 0.316% 1.86% 0.12%
1kHz 0.145% 0.234% 0.292% 0.560% 1.17% 0.54%
10kHz 0.070% 0.070% 0.740% 0.050% 1.10% 0.04%
Distortion 10% Full Power (5.5V) 2nd Harmonic 3rd Harmonic (1.9V) 2nd Harmonic 3rd Harmonic (2.05V) 2nd Harmonic 3rd Harmonic
250Hz 0.320% 0.311% 0.225% 0.326% 1.86% 0.12%
1kHz 0.078% 0.174% 0.082% 0.363% 1.17% 0.54%
10kHz 0.087% 0.087% 0.147% 0.066% 1.10% 0.04%
CONSTRUCTION
Enclosure ABS ABS ABS
Grille Steel, plated and painted Steel, plated and painted Steel, plated and painted
Connectors Euroblock type removable Euroblock type removable Euroblock type removable
locking connector with locking connector with locking connector with
screw terminals with screw terminals with screw terminals with
“loop through” facility “loop through” facility “loop through” facility
Supplied Accessories Yoke Bracket Yoke Bracket Yoke Bracket
Dimensions 277.0 x 170.4 x 165.6mm 340.5 x 212.2 x 216.5mm 451.8 x 290.0 x 296.0mm
(H x W x D) (10.91” x 6.71” x 6.52”) (13.41” x 8.36” x 8.52”) (17.79” x 11.42” x 11.65”)
Net Weight 1.8kg (3.96lbs) 3.1kg (6.83lbs) 5.3kg (11.67lbs)
Shipped Weight 5.4kg (11.9lbs) 8.6kg (11.9lbs) 14.6kg (32.16lbs)
Packed quantity 2 2 2
DVS OWNER MANUAL_09
Series
TECHNICAL SPECIFICATIONS
DVS 4t DVS 6t DVS 8t
TRANSFORMER VERSIONS
Transformer setting Rotary switch Rotary switch Rotary switch
Transformer Taps
70V 30W / 115W / 7.5W / 3.75W / 60W / 30W / 15W / 7.5W 60W / 30W / 15W / 7.5W
& low Impedance operation & low Impedance operation & low Impedance operation
100V 30W / 7.5W / 15W & 60W / 30W / 15W & 60W / 30W / 15W &
low Impedance operation low Impedance operation low Impedance operation
Net Weight 2.3kg (5.07lbs) 4.1kg (9.03lbs) 6.3kg (13.88lbs)
Shipped Weight 6.2kg (13.66lbs) 10.6kg (23.35lbs) 16.6kg (36.56lbs)
Packed quantity 2 2 2
Notes
(1) Average over stated bandwidth. Measured at 1 metre on axis in an anechoic chamber
(2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber
A full range of measurements, performance data, and Ease™ Data can be downloaded from www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or
exceed the published specications, which Tannoy reserves the right to alter without prior notice. Please verify the latest specications when dealing with
critical applications.
010_ DVS OWNER MANUAL
WARRANTY
No maintenance of the DVS loudspeaker is necessary.
All of our products have been produced and tested with care and precision to give rst-class service.
All passive components are guaranteed for a period of ve years from the date of purchase from an authorised Tannoy
dealer subject to the absence or evidence of misuse, overload, or accidental damage.
If at any time during this warranty period the equipment proves to be defective for any reason other than accident,
misuse, neglect, unauthorised modication or fair wear and tear, we will repair any such manufacturing defect or, at our
option, replace it without charge for labour, parts or return carriage.
If you suspect a problem with a Tannoy product then, in the rst instance, discuss it with your Tannoy dealer. If you
require further assistance then we ask that you deal directly with your local Tannoy distributor. If you cannot locate your
distributor please contact Customer Services, Tannoy Ltd at the address given below.
Customer Services, Tannoy Ltd., Rosehall Industrial Estate, Coatbridge, Strathclyde ML5 4TF, Scotland
Telephone: 01236 420199 (National)
+44 1236 420199 (International)
Fax: 01236 428230 (National)
+44 1236 428230 (International)
E-mail: enquiries@tannoy.com
service@tannoy.com
Service Info, TC Group Americas
Telephone: (800) 565-2523 (toll free)
(519) 745-1158
Fax: (519) 745-2364
E-mail: [email protected]
Web: www.tcgroup-americas.com
DO NOT SHIP ANY PRODUCT TO TANNOY WITHOUT PREVIOUS AUTHORISATION
PLEASE NOTE: In order to direct you to the appropriate service facility a return authorization and instructions must be
issued in advance- do not send any equipment to any Tannoy or TC Group Americas facility without prior authorization or
it will be refused. In some cases a local service facility can be recommended.
Our policy commits us to incorporating improvements to our products through continuous research
and development. Please conrm current specications for critical applications with your supplier.
