i5 MP

USER MANUAL

Contents

1.Introduction ................................................................................................

..........................

2. Unpacking ................................................................................................

.............................

3. Power Requirements ................................................................................................

...........

4. Operation .............................................................................................................................. 4

4.1. Connectors/Cabling ................................................................................................

......

4.2. Powering ................................................................................................

........................

4.3. Controls ................................................................................................

..........................

5. Operation close to TV screens and video monitors ................................

.........................

6. Equalisation ................................................................................................

..........................

7. Dimensions ................................................................................................

...........................

8. Hardware ............................................................................................................................... 6

9. Performance Data ................................................................................................

................

10. Technical Specifications ................................................................................................

...

11. IMPORTANT SAFETY INFORMATION ................................................................

............

12. i5 MP Service Parts & Accessories ................................................................

................

13. Warranty............................................................................................................................ 11

1.Introduction

Thank you for purchasing Tannoy i5 MP.

The Tannoy i5 MP is a powered loudspeaker and has been designed to be both

sonically and cosmetically pleasing for a range of applications from AV presentations

to public address.

ICT TM or Inductive Coupling Technology offers point source operation, and can h ence

be used in both landscape and vertical positions without affecting the sound quality.

The ICT™ utilises a wireless electromagnetic tweeter that does not require a

crossover and cannot be burned out from heavy or abusive use. The 1" aluminium

high frequency dome has a deep drawn skirt which sits inside the low frequency voice

coil in the same magnetic gap. The skirt is like a single shorted turn, which is induced

with high frequency information generated by the low frequency voice coil, which is

fed a full bandwidth signal. The ICT TM dome is at the heart of our i5 MP transducer

which utilises a moulded plastic cone and nitryl rubber surround to further enhance

its' durability and long term reliability.

The ICTTM driver is housed in a plastic enclosure that has been optimally tuned to

achieve maximum bass response and tonal balance.

For applications requiring extended low frequency enhancement, a range of Tannoy

sub-bass systems are available and can be used in conjunction with the i5 MP.

2. Unpacking

Every Tannoy i5 MP is carefully tested and inspected before packing. After

unpacking, please inspect your i5 MP for any damage sustained during transit. In the

unlikely event of any damage, would you please notify your dealer immediately and

retain your shipping carton, as your dealer may ask you to return the faulty unit for

inspection.

3. Power Requirements

After unpacking check that the voltage rating is correct. The selector can be found

on the rear panel at the back of the speaker, Figure 3a. If the voltage is incorrect,

move the voltage selector to the appropriate voltage. Check that the panel mounted

fuse is also correct for the correct operating voltage , which is located on the same

panel, and can be removed by unscrewing it from the panel. The fuse rating should

match the operating voltage: 500mA/250V for 220- 240V operation and 1A/125V for

100- 120V operation. The fuse is 5mm ´ 20mm Time Delay, low rupture type. The

fuse should, however, correspond to the set voltage when shipped.

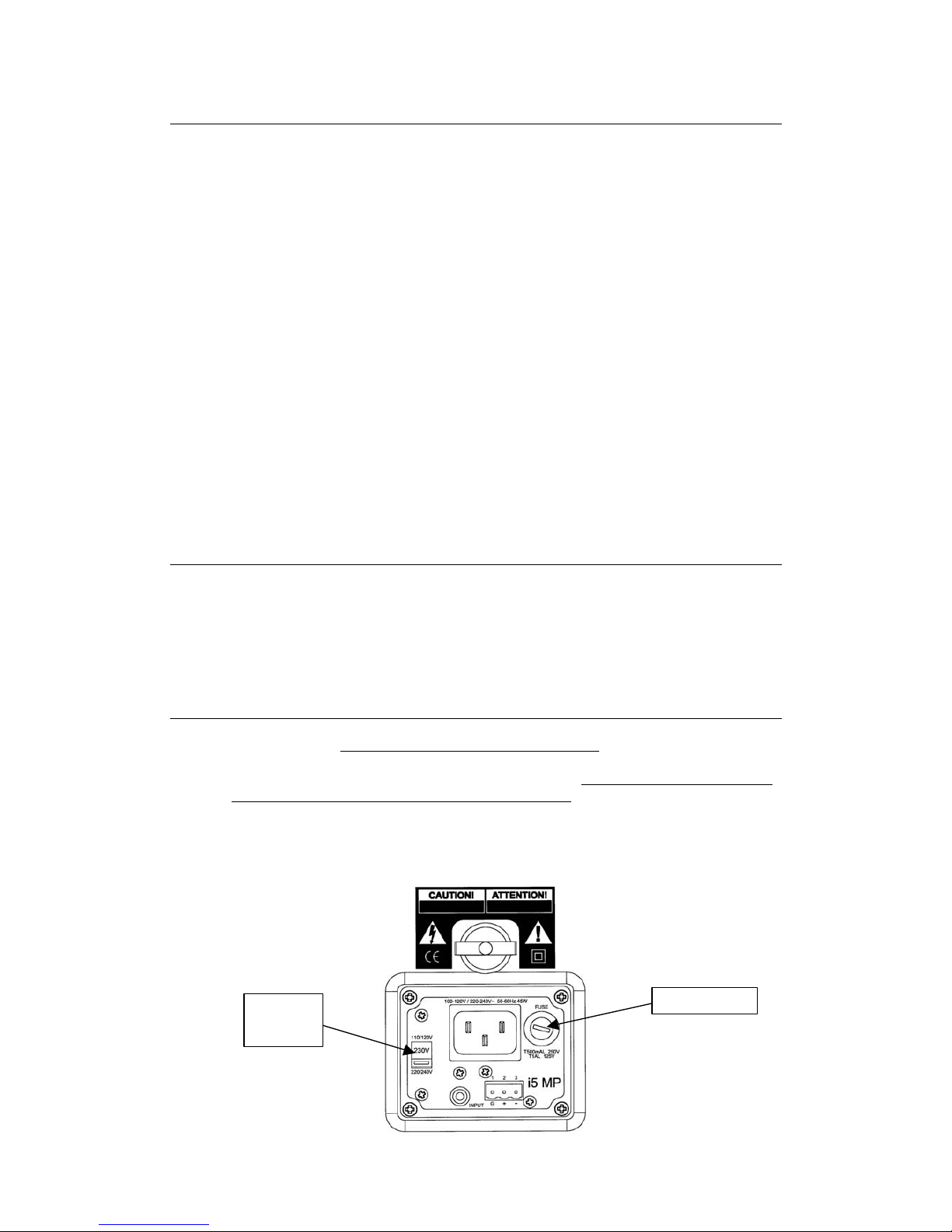

Figure 3a

Fuse Holder

Voltage

Selector

4. Operation

4.1. Connectors/Cabling

The i5 MP is supplied with a Phono (RCA) and European Pluggable type connectors,

for both balanced and unbalanced operation. The Phono plug is used for unbalanced

operation, and the European type can be used for both balanced and unbalanced

operation. The unit is powered via an IEC mains socket. See Figure 4a.

When shipped, the unit is set for unbalanced operation. For this, the European type

plug must be connected with pins 1 and 3 linked. Use shielded single conductor cable

and simply plug a phono connector into the phono socket. Alternatively, if the

European pluggable type plug is used, wire the positive wire to pin 2 and the ground

wire to pin 1 and leave the link in place.

For balanced operation, use twin conductor shielded cable (microphone cable) and

wire the European pluggable type connector as shown in the chart below:

Pin 1 Ground (Screen)

Pin 2 Positive (+ve, Red)

Pin 3 Negative (-ve, Blue)

4.2. Powering

Before connecting th e i5 MP to a mains inlet socket, ensure all other connections are

correctly made. The i5 MP may be supplied with an IEC mains cable. Connect this

cable into the IEC mains socket on the back of the unit. If a cable is not supplied, use

an IEC mains cable wi th the correct plug and rating for your country.

The i5 MP is designed to be powered continuously, but we recommend it is

disconnected from the mains if it is to be left unused for a considerable period of time.

An all pole mains switch with a contact separation of at least 3mm shall be

incorporated in the electrical installation of the building.

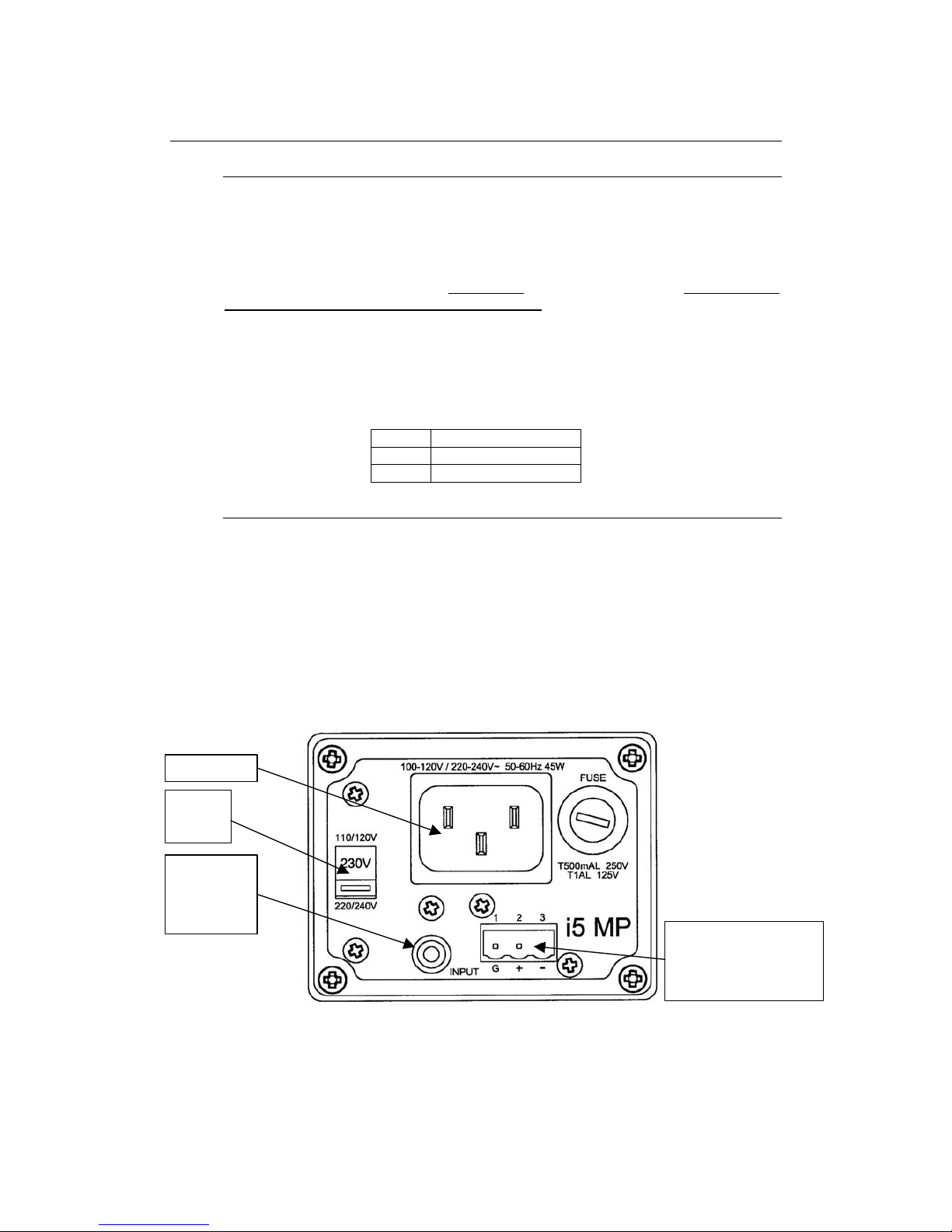

Figure 4a

European Pluggable

type connector for

balanced/unbalanced

operation

Phono/RCA

for

unbalanced

operation

Mains In

Voltage

Selector

4.3. Controls

The input level volume control is located on the front of the unit. This has been se t to

maximum when shipped. To adjust the level, simply remove the badge and adjust the

gain using a screw driver.

5. Operation close to TV screens and video monitors

As the i5 MP contains a powerful magnet, avoid placing the unit closer than 6" to a

TV s creen or video monitor in order to avoid any picture distortion.

6. Equalisation

The i5 MP is designed to need no equalisation or correction to overcome system

limitations. As a result, it will only need equalisation to compensate for difficult

acoustic environments.

Excess equalisation can reduce system headroom, and introduce phase distortion

resulting in greater problems than it cures. If equalisation is required then it should be

applied gently and smoothly. Violent equalisation will be detrimental to the overall

sound quality. If the loudspeakers were being used consistently at high levels it would

be beneficial to introduce a high-pass filter at 70Hz to protect the loudspeaker from

any unnecessary subsonic frequencies.

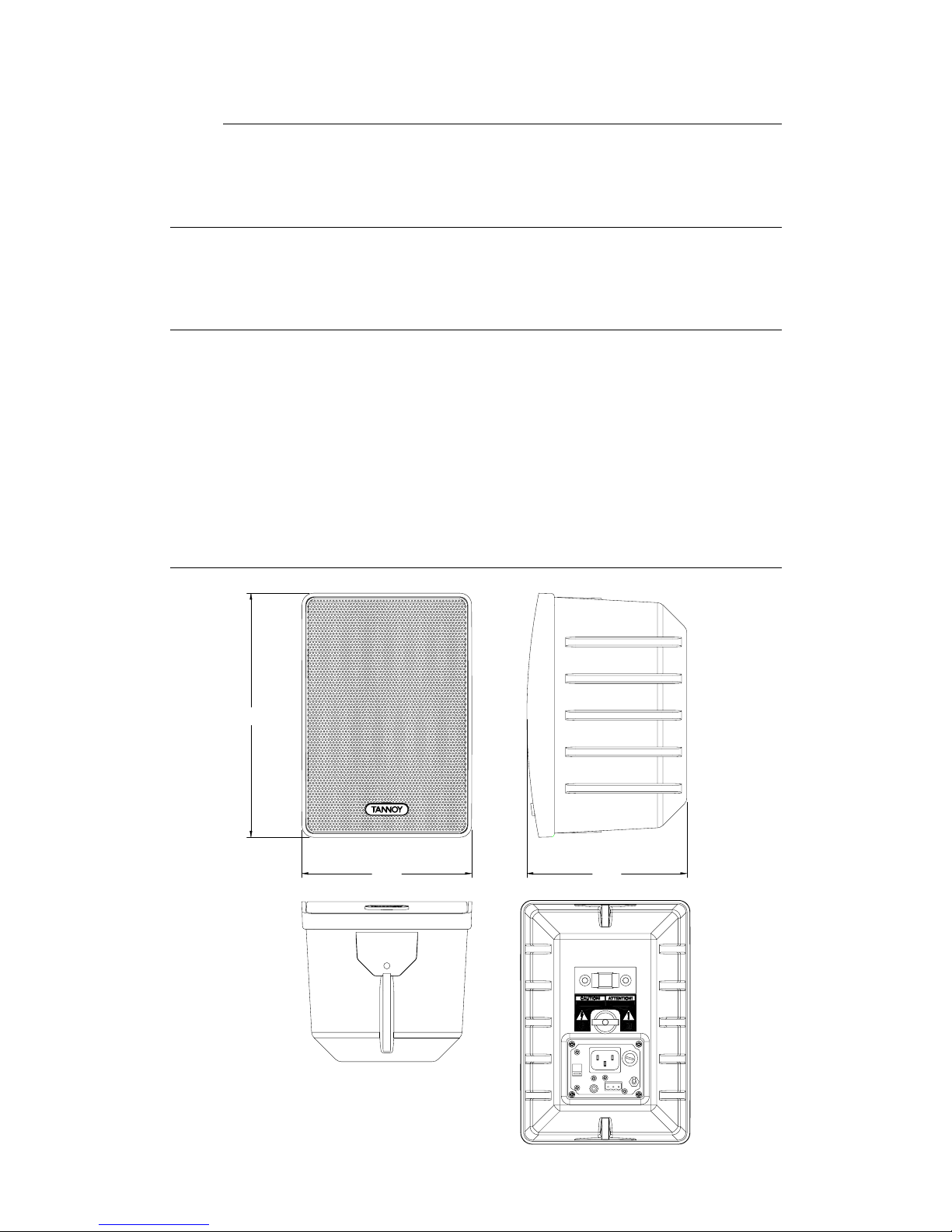

7. Dimensions

100-120V / 220-240V~ 50-60Hz 45W

110/120V

230V

220/240V

INPUT

21 3

G-

T1AL 125V

T500mAL 250V

FUSE

OFF

224mm

87/8"

163mm

63/8"

153mm

61/8"

8. Hardware

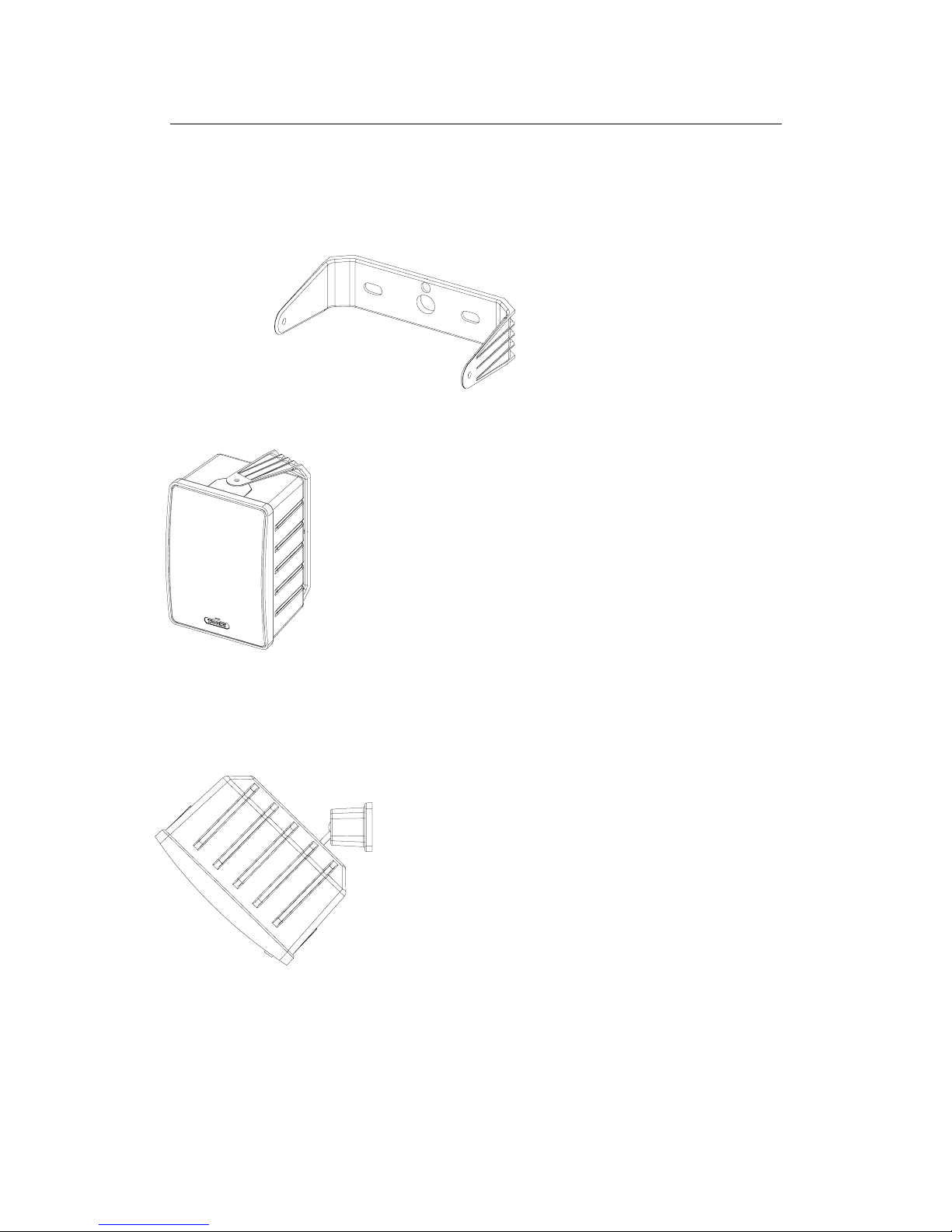

The i5 MP can be wall or ceiling mounted using the MB5Y bracket (Figure 8a) or the

MB5B (Figure 8c). Both are designed to offer maximum flexibility in selecting the

desired angles. Methods of mounting have been demonstrated in Figures 8b & 8c.

Figure 8a

Figure 8b

Figure 8c

NOTE: The installation of this product

must be carried out in conformity with

local building codes and standards. If

necessary consult your local safety

standards officer before installing any

product. Alternatively, check any laws

or bylaws. Tannoy will not be held

responsible for any damages caused

by the improper installation of any

bracket or loudspeake r.

9. Performance Data

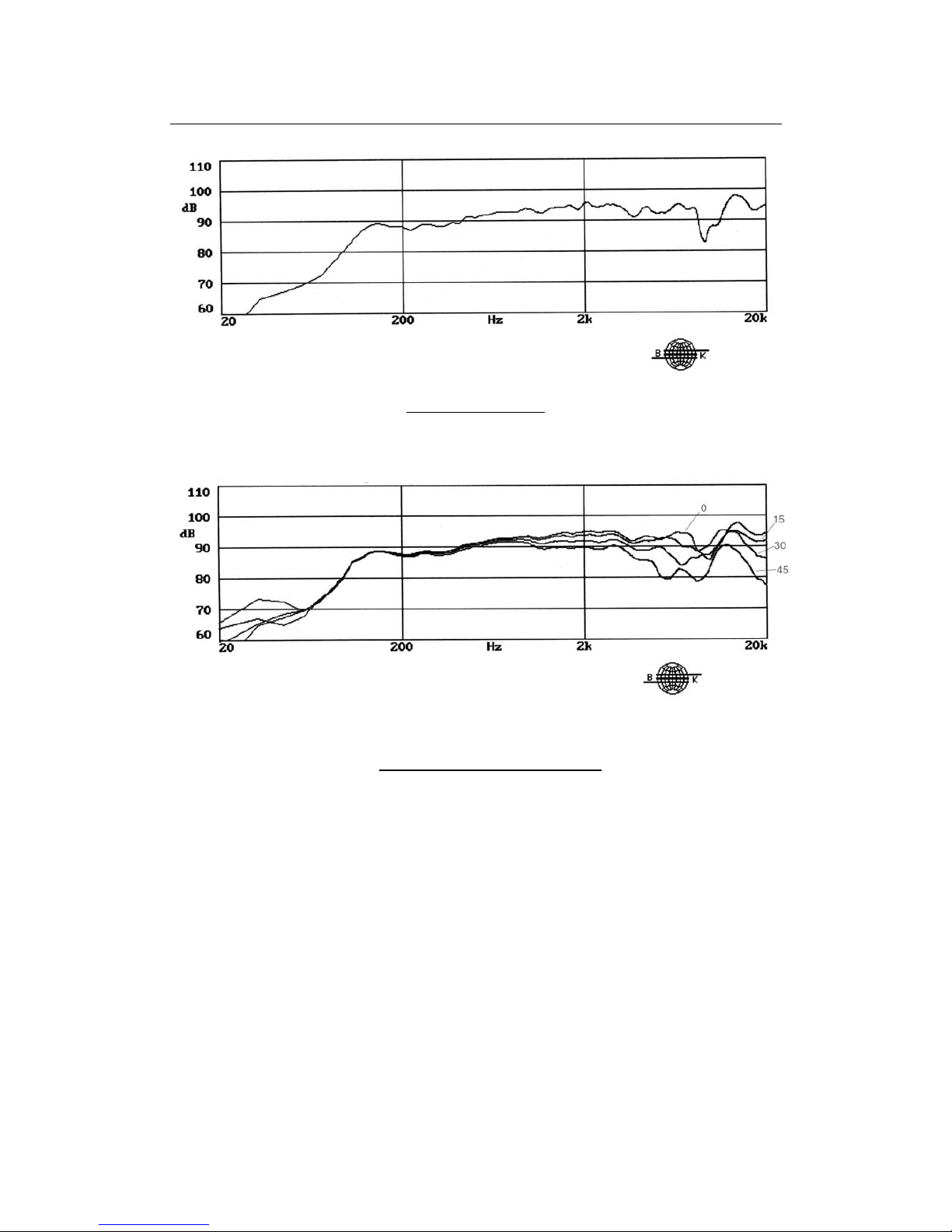

Frequency Response

Off Axis Frequency Response

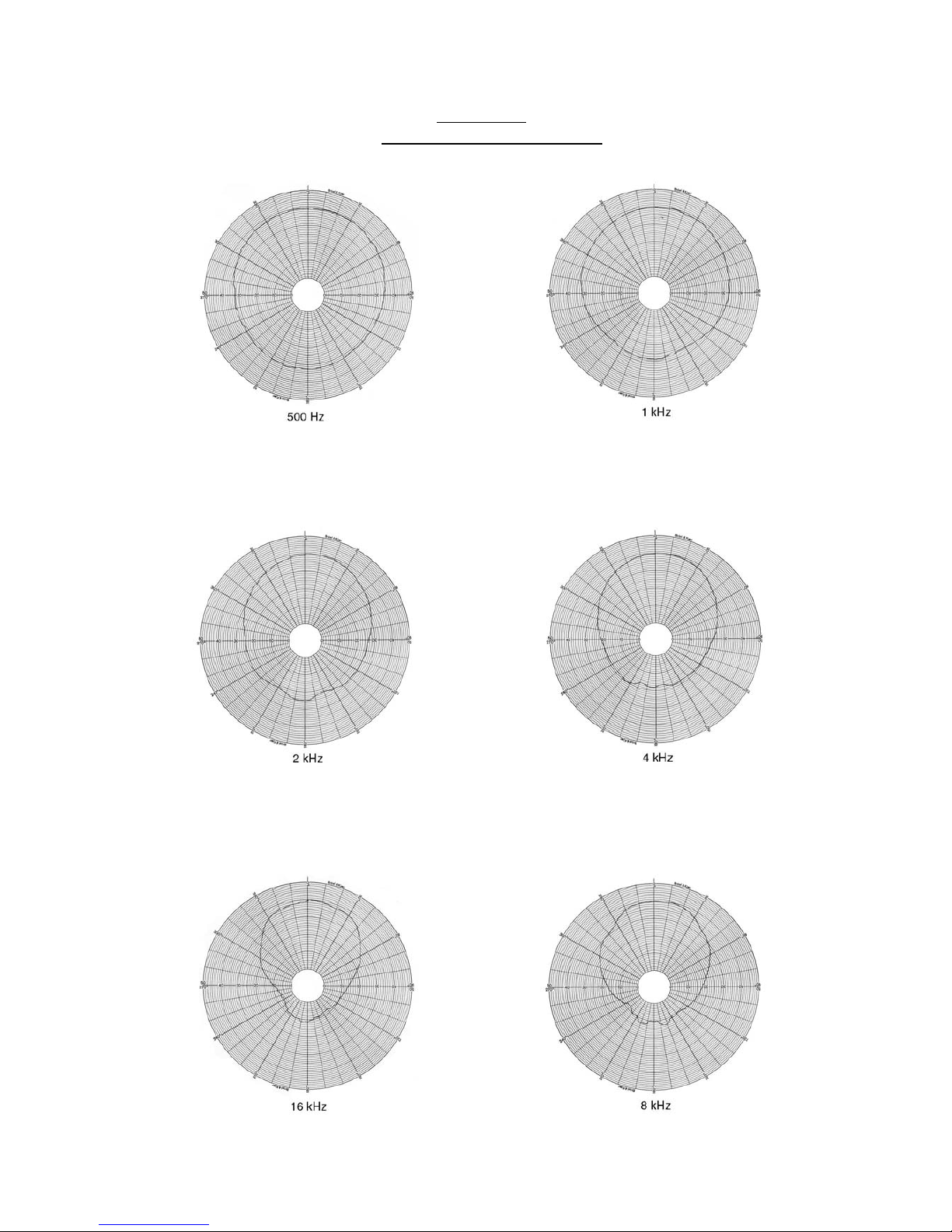

Polar Plots

1 Octave Band Pink Noise

10. Technical Specifications

System Type Multi-Purpose Loudspeaker

Frequency Response +/- 3dB (1) 100Hz - 20kHz

Maximum SPL (2) 105dB (average) 108dB (half-space)

DI Averaged @1kHz (ISO) 3.9

@2kHz (ISO) 7.9

@4kHz (ISO) 8.6

@8kHz (ISO) 10.3

@16kHz (ISO) 9.2

Q Averaged @1kHz (ISO) 2.5

@2kHz (ISO) 6.1

@4kHz (ISO) 7.2

@8kHz (ISO) 10.7

@16kHz (ISO) 8.3

Input Sensitivity (for Maximum Input) 375mV (balanced)

750mV (unbalanced)

Input Impedance 10 kWatt

Power Output 30 Watt

Protection Circuitry Thermal

Supply Mains voltage adjustable to 220-240V or

100-120V AC.

Fuse: 250mV/250V for 220-240V

500mV/125V for 100-120V

Power Consumption 45VA

Driver Complement 1 x 127mm (5”) ICT™ Point Source

Enclosure 4.6 litre polypropylene

Finish Black or White

Connectors Balanced, Phoenix™ style 3 terminal in / unbalanced RCA in

Fittings 2 x yoke fixing points

1 x female gimble plate

Dimensions 223.5(H)´ 162.6(W)´ 153.0(D)mm

8.81"(H)´ 6.41"(W)´ 6.03"(D)

Weight 2.9kg (6lbs 5oz)

Accessories MB5Y and MB5B mounting brackets

Shipping Dimensions 302 x 168 x 168mm

(12 7/8x63/8x63/8“)

Shipping Weight 3.1kg (6lbs 15oz)

NOTES: (1) Average over stated bandwidth. Measure d at 1m on axis, in an anechoic chamber.

(2) Long term power handling capacity as defined in EIA standard RS - 426A.

(3) Unweighted pink noise input, measured at 1m

Tannoy operates a policy of continuous research and development. The introduction of new m aterials or manufacturing methods will

always equal or exceed the published specifications which Tannoy reserve the right to alter without prior notice. Please verify the

latest specifications when dealing with critical applications.

11. IMPORTANT SAFETY INFORMATION

· Never expose the unit to moisture, water and extremes of temperature or

humidity. Specifically, the unit must not be exposed to dripping or splashing

and that no objects filled with liquids, such as glasses, shall be placed on the

unit. Do not operate adjacent to a radiator or heater. No naked flame

sources, such as lighted candles, should be placed on the apparatus. The

unit must not be covered by articles such as newspapers, table cloths,

curtains etc.

· Never open the unit, as there is a risk of electric shock.

· There are no user serviceable parts inside the unit. Always refer servicing to

your Tannoy dealer or authorised service agent.

· Avoid violent shocks to the unit during packing or transportation.

· Do not plug the unit into the mains until all other connections have been

made and checked.

· Due to the powerful magnet within the i5 MP, do not place within 0.5m of a

television or computer monitor, unless your model is provided with magnetic

screening.

· If not used for a long period of time, it is recommended that the apparatus is

completely disconnected at the AC mains socket.

· This apparatus is designed for use in moderate climates.

A mains cable may be supplied with the product, having a moulded plug at one end

and a moulded mains plug appropriate to the country of use at the other end. Where

the moulded plug is fitted with a mains fuse, always replace with the same type and

rating.

If the fitted plug is unsuitable for your type of outlet sockets, it should be cut off and

disposed of safely, in case it is inserted into a live socket elsewhere. The wires in the

mains cable are coloured in accordance with the following code:

GREEN AND YELLOW EARTH

BLUE NEUTRAL

BRO WN LIVE

AS THE COLOURS OF THE WIRES IN THE MAINS CABLE MAY NOT

CORRESPOND WITH THE COLOURED MARKINGS IDENTIFYING THE

TERMINALS IN YOUR PLUG, PROCCED AS FOLLOWS:

The wire which is coloured GREEN AND YELLOW must be connected to the

terminal in the plug which is marked either by the letter E, the earth safety symbol

(), or coloured GREEN or GREEN and YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug

which is marked by the letter N or coloured BLACK.

The wire which is coloured BRO WN must connected to the terminal in the plug

which is marked by the letter L or coloured RED.

Ensure the terminals are tightened securely, and no loose strands of wire are

present. Ensure cord grip is clamped over outer sheath of cable, rather than over the

wires.

This equipment has undergone safety and EMC testing, and

complies with the European Law Voltage Directive and

Electromagnetic Compatibility Directive.

Table des matières

Autres manuels Tannoy Intervenants

Tannoy

Tannoy SuperTweeter ST-100 Manuel utilisateur

Tannoy

Tannoy VX 5.2 Manuel utilisateur

Tannoy

Tannoy PRECISION PC/IP Manuel utilisateur

Tannoy

Tannoy DVS Series Manuel utilisateur

Tannoy

Tannoy SuperTweeter Prestige GR ST-300Mg Manuel utilisateur

Tannoy

Tannoy Ellipse 8 Passive Manuel utilisateur

Tannoy

Tannoy System 1000 Manuel utilisateur

Tannoy

Tannoy i5 AW Manuel utilisateur

Tannoy

Tannoy CVS Series Manuel utilisateur

Tannoy

Tannoy CMS 601 DC BM Manuel utilisateur

Tannoy

Tannoy AMS 5 Manuel utilisateur

Tannoy

Tannoy VQ 100 Manuel utilisateur

Tannoy

Tannoy POWER V12 Manuel utilisateur

Tannoy

Tannoy iW 62 BACKCAN Manuel utilisateur

Tannoy

Tannoy CMS801 DC BM Manuel utilisateur

Tannoy

Tannoy Power Dual iQ 10 Manuel utilisateur

Tannoy

Tannoy VXP SERIES Manuel utilisateur

Tannoy

Tannoy iw6 DS Discrete Manuel utilisateur

Tannoy

Tannoy Definition Install DC6i Manuel utilisateur

Tannoy

Tannoy PCI 7DC RB Manuel utilisateur

Tannoy

Tannoy CMS6 TDC Manuel utilisateur

Tannoy

Tannoy V12HP Manuel utilisateur

Tannoy

Tannoy arena Highline 500 LCR Manuel utilisateur

Tannoy

Tannoy SYSTEM 600a Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur

Tannoy i5 MP Manuel utilisateur

Manuels Intervenants populaires d'autres marques
