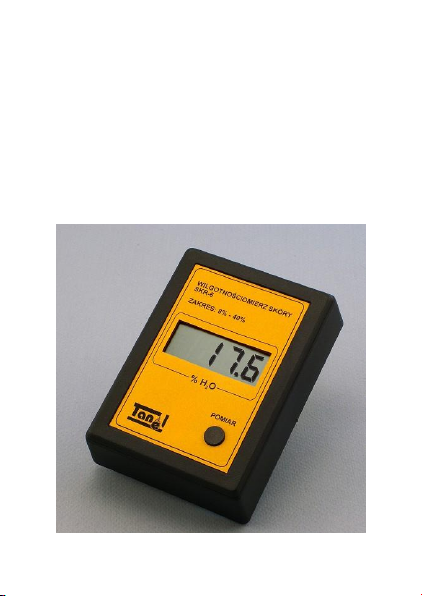

MOISTURE METER
FOR LEATHER
SKR-6
USERS MANUAL
- 3-
1. Application
Moisture Meter SKR-6 is a modern
electronic device for quick measuring
of moisture contents of natural leather
(e.g. velour, leather for gloves,
clothes and furniture etc.). It is very
useful during drying and moistening
processes and allows to minimize
deformations and strains of the
material.
2. Operation
The Moisture Meter measures the
resistance of a sample. The resistance
characteristic has been developed
through extensive research and
testing and is an average for both soft
and hard types of leather.
- 4 -
3. Technical data
Range 8% - 30%
Electrodes 0.9x2.5 mm (4 pcs)
Resolution 0.1%
Display type LCD
Power 9V (battery 6F22)
Battery life approx. 5000
measurements
Low battery
indication yes
Size 110 x 80 x 55 mm
Weight 0.2 kG
Warning: The measuring range of
the device is 8% - 30%. For moisture
contents below 6% a „LO” sign is
displayed. Results between 6% and
8% should be considered very
approximate. For moisture contents
above 30% a „HI” sign is displayed.
- 5 -
4. Measurements
To conduct a measurement:
- remove the protective cap from
the electrodes,
- place the leather sample on a flat
surface (table) made of a good
insulator (e.g. polyethylene,
Styrofoam, very dry wood),
- insert the electrodes into the
leather,
- press and hold the „ON”button,
- after 10 –15 seconds read the
result.
When measuring loosely hanging
leathers hold the device by the sides.
Ensure proper contact of all 4
electrodes with the leather.
- 6 -
5. Battery replacement
and storage
The device is equipped with active
power level control circuit. If the
power level drops below acceptable
level a sign “LO BAT” is displayed on
the left side of the LCD. This indicates
that the battery has expired and
should be replaced. Battery can be
replaced after removing 4 screws and
gentle separation of both parts of the
casing.
Store the device in a well ventilated,
dry place in a chemically neutral
atmosphere.
- 7 -
6. Guarantee and repairs
Tanel Electronics & IT warrants the SKR-6 to be
free from malfunction and defects in both materials
and workmanship for one year (12 months) from
the date of purchase. If the SKR-6 does not
function properly during the warranty period due to
defects in either materials or workmanship, our
company will, at its option, either repair or replace
the instrument without charge, subject to the
conditions and limitations stated herein. Such
repair service will include any necessary
adjustments and replacement part. The producer
conducts:
•guarantee repairs –within 7 days after
receiving the device,
•other repairs –within 10 days after receiving
the device.
The Moisture Meter is shockproof and
can be sent by post.
7. Producer
TANEL
Electronics & IT, G.P.
PL 44-100 Gliwice, Kopernika 121
tel./fax +48 32 234-96-15
GUARANTEE
This User’s Manual is a guarantee
certificate of Moisture meter for
leather SKR-6 with a serial number
................................
production date .................
Limitations
This warranty becomes null and void if you fail to
pack your SKR-6 in a manner consistent with the
original product packaging and damage occurs
during product shipment.
This warranty does not cover: circumstance beyond
our company's control; service required as the
result of unauthorized modifications or service;
misuse, abuse; failure to follow our company
operating or maintenance instructions.
Repair or replacement without charge is our
company's only obligation under this warranty. Our
company will not be responsible for any special,
consequential or incidental damages resulting from
the purchase, use, or improper functioning of this
equipment regardless of the cause. Such damages
for which our company's will not be responsible
include, but are not limited to, loss of revenue or
profit, downtime costs, loss of use of the
equipment, cost of any substitute equipment,
facilities of services, or claims of your customers
for such damages.
