Tamron 360EM Manuel utilisateur

SP AF 300mm

F/2.8 LD (IF)

(Model 360EM: Minolta)

(Model 360EN: Nikon)

Thank you very much for buying this Tamron lens.The Tamron SP AF 300mm

F/2.8 LD (IF) (Model 60E for Minolta,Model 360E for Nikon) lens is a large

aperture telephoto lens developed for Minolta and Nikon AF single lens

reflex cameras.Please read this instruction manual carefully before using

your lens.Proper care and maintenance of this lens will result in years of

enjoyable use.

ATTENTION: these documentations are published only for purpose of study and search,

they are not published for purpose of profit, all the rights and relative copyrights are of

the respective owners. Free documentation not to sell.

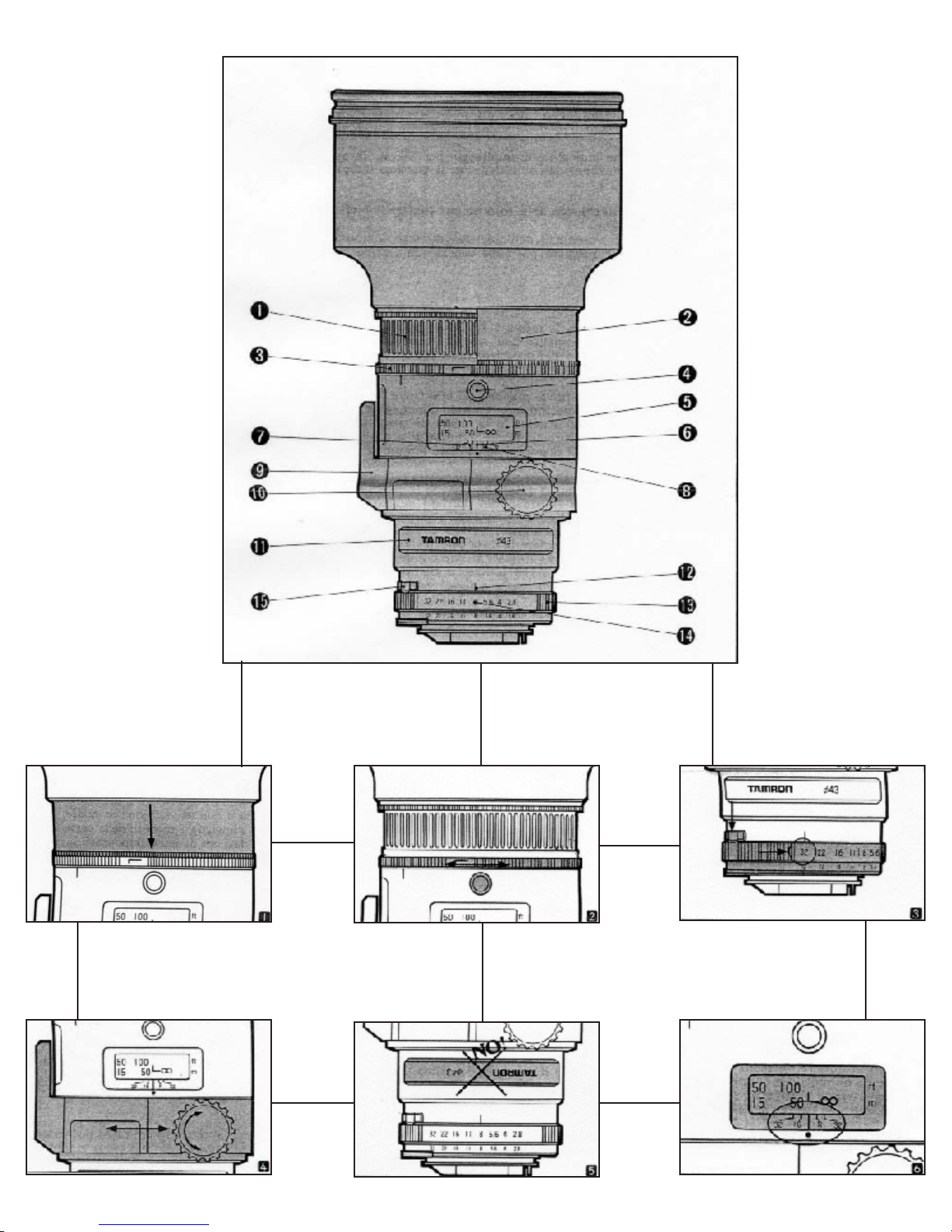

NAMES OF PARTS

1. ocuFsing ring

2. ocuFsing ring cover

3. ocuFs range selector ring

4. ocuFs range selector ring fixing screw

5. ocuFs distance scale window

6. ocuFs distance index

7. eptDh-of-field scale

8. aIrnefdr socket

9. ripoTd socket

10. ripTod socket fixing screw

11. ilteFr frame

12. Aptuerre index

13. Aptuerre ring

14. Aptuerre scale

15. AE (minimum aptuerre) lock

* 12-15 for Nikon only

* 3-4 are only for Model 60E (for Minolta)

360EN,360EM

Focal Length 300mm

F/number F/2.8

Optical Construction 7 groups,10 elements

Angle of View 8°

Minimum Focus Distance 2.5m

Filter Diameter rear 43mm (front 112mm)

Overall Length 217mm (8.6")

Maximum Diameter 120mm (4.7")

Weight 2250g (79.2oz)

* Overall length,maximum diameter and weight values are on Nikon basis.

SPECIFICATIONS

INSTALLATION ON CAMERA

Installation

After removing the rear lens cap from the lens,align the mount positioning point on the lens with

that on the camera,and rotate the lens clockwise (counterclockwise when using Nikon model)

until you hear a click,which indicates the lens being securely locked in place.

There is no mount-positioning index marking on the lens to fit Nikon.Please align the

aperture/zoom index line on the lens with the mount-positioning index point on the camera

(same as AF Nikkor lenses) accordingly.

Detaching

While pressing the lens release button on the camera,turn the lens counterclockwise (clockwise

when using Nikon model.)

* Be careful not to touch the signal terminals of the lens during installation or removal.A stained

or damaged terminal may cause poor contact and malfunction.

FOCUSING [1]

Automatic Focusing

When the camera is used in the auto focus mode,the lens focuses automatically.During the AF

(Auto Focus) operation,the focusing ring will rotate and its movement should not be hindered.For

this reason,we recommend using the focusing ring cover.To use,pull it out to its fullest extent.

Manual Focusing

Switch the camera to the manual focus mode and turn the focusing ring to focus while looking

through the viewfinder.The correct focus position is determined when the picture in the viewfind-

er becomes sharp.If the focusing ring is rotated while pressing the shutter release button halfway

down,the focus indicator in the viewfinder will light up when the subject comes in focus.In manu-

al photography,focusing should always be checked through the viewfinder even when shooting

at infinity.

How to use the AF Range Selector (Model 60E for Minolta) [2]

When the Selector ring is turned clockwise (viewing from the mount side),the AF operation range

is set from 2.5m to the selected distance,while it is set from the selected position to infinity when

turned counter-clockwise.

Rotate the focusing ring to align the distance scale to the focus distance index line where you

would like to set a limit in AF operation range.Loosen the AF Range Selector ring fixing screw and

turn the Selector ring until it comes to a mechanical stop (please be sure to hold the focusing ring,

avoiding its simultaneous movement with the Selector ring.)

Tighten the AF Range Selector ring fixing screw after the above procedures are completed.For

your information,the AF Range Selector is set to the infinity range when shipped from our factory.

APERTURE SETTING

With Minolta AF

The aperture is set on the camera side in accordance with the exposure mode.

With Nikon AF

When shooting on programmed AE or shutter-priority AE mode,rotate the aperture to minimum

position.For aperture-priority or manual mode,turn the aperture ring to the desired setting.In

case of F401 series models the camera side,in accordance with the given instructions,sets the

aperture.

AE (Minimum Aperture) Lock [3]

For Nikon,it is possible to fix the aperture ring to the minimum aperture when using the program

AE mode or shutter-priority AE mode.If the aperture ring is set to the minimum aperture, and the

AE lock lever is depressed,the aperture ring is fixed at the minimum aperture position.

TRIPOD MOUNT [4]

If the tripod mount fixing screw is loosened,the lens can be turned 120° right and left from the

center position and can be fixed at any position in between.If the circular mark of the tripod

mount ring is adjusted to the circular mark on the side of the lens,it will be 90° from the center.

FILTER

The filter is the rear insertion type.The filter frame can be inserted in the cutout just behind the tri-

pod mount and at the time of shipment from the factory,a43mm normal filter is placed in the fil-

ter frame.With a rear filter inserted,the flange back dimensions (standard dimension from the

abutting joint surface of the mount to the film surface) is set,so a rear filter must always be in

place when photographing.To protect the front lens,it is recommended to always install the

112mm normal filter (sold separately.)

Filter Fitting Method [5]

To install the rear filter,pull out the filter frame from the main body,change the filter (remove the

normal filter and install the desired filter),and then insert it so that the TAMRON logo of the filter

frame will be at the correct position.Please note if the filter is inserted upside down,the aperture

blades will fail.

CHECKING DEPTH-OF-FIELD [6]

The lens has a depth-of-field scale when the aperture is F32 and F16,and an approximate depth of

field can be known.For depth of field at each aperture and photographing range,you can check it

out on our website.http://www.tamron.com

LENS HOOD

A slip-on type lens hood comes with the lens.Since the lens hood is effective for eliminating harm-

ful rays,we recommend using it when photographing.When storing,the lens hood should be put

over the lens in reverse.

The lens hood is provided with two opposing lock screws.When using the hood,loosen the screw,

attach the lens body to the hood,and then tighten the lock screws.

INFRARED INDEX

When black & white infrared film is used,ared filter should also be used.The nature of red filters

requires focus correction.The red scale R mark in the range scale is the infrared index.Focus in a

normal way,and then read the range scale and shift to the infrared index.Then install the red filter

and photograph.To make any focusing corrections,switch the focus mode to manual and turn the

focusing ring.

CAUTION

To the customers who use a camera with an incorporated strobe:

For flash photographs,please use an externally installed strobe.If the built-in strobe is used for

flash photography,the lens will interrupt the light path of the strobe and semicircular shading will

appear at the bottom of the picture. Also,see the "Built-in Strobe" section in the instruction manu-

al of your camera.

TO ENSURE LONG-TERM SATISFACTION

1. Avoid touching the lens surface.Use a photographic brush or blower to remove dust from the

lens surface.When not using the lens,put a cap on for protection.

2. Use a lens cleaning tissue or lint cloth with a drop of cleaning solution to clean fingerprints or

dirt on the lens surface with a rotary motion from the center to edge.Use a silicon cloth to clean

your lens barrel.

3. Fungus is an enemy of your lens.Clean the lens after shooting at seaside or in a humid place.

Store your lens in a clean,cool and dry place.If you find fungus on your lens,please consult a

repair shop or nearby photographic store.

4. Do not touch the lens' camera-interface contact since dust,dirt,and/or stains may cause a con-

tact failure between the lens and camera.

5. When using your equipment [camera(s) and/or lens(es)] in an environment where the tempera-

ture changes from one extreme to another,make sure to put your equipment temporarily in a case

or a plastic bag for some duration in order for them to go through a gradual temperature shift.This

will reduce potential trouble of your equipment.

ATTENTION: these documentations are published only for purpose of study and search,

they are not published for purpose of profit, all the rights and relative copyrights are of

the respective owners. Free documentation not to sell.
