Taarup 4024 Manuel utilisateur
1
No.68.031.505 / Index 114-02 From serial No.: 387.064
Taarup 4024-4028-4028C
4032-4032C-4036-4036C
Operator's manual
2
3
4
5
Contents
Page
Technical data (Fitting to the tractor)................................................................ 7
Machineidentification....................................................................................... 8
Introduction ....................................................................................................... 9
Safety ................................................................................................................ 11
General safety instructions..................................................................... 11
Supplemental safety instructions............................................................ 15
Safety instructions during crane lift ....................................................... 21
New machine, - be careful................................................................................. 23
Technicaldescription/function........................................................................... 25
"Swivel hitch" - Mounting - coupling................................................................ 27
"Drawbar with wide angle shaft" - Mounting - coupling .................................. 31
Operation - adjustment ...................................................................................... 35
Optionalequipment ........................................................................................... 43
Maintenance ...................................................................................................... 49
Lubrication ........................................................................................................ 55
Directions for repair .......................................................................................... 63
Problem/Fault Analysis and Correction ............................................................ 72
Winter storage ................................................................................................... 74
Diagram ............................................................................................................ 75
Scrapping of machines ...................................................................................... 76
TechnicalInformation ....................................................................................... 77
Subject index ..................................................................................................... 78
6
Alle mål er ca.mål og er angivet i mm. /All measurements are approximate and stated in mm. / Toutes les dimensions
sont données en millimètres. / Alle Maßangaben sind annähernd und in mm. / Alla mått är ca mått och angivet i
mm.
4028 C = 5700
4032 C = 6100
4036 C = 6500
ij
d
c
gf
e
Transport 4028 C - 4032 C - 4036 C = 7140
4028 C - 4032 C - 4036 C = 6350
l
k
m
355
h = transport
650
1180
1220
1200
2450
*) Does not apply to 4028 C, 4032 C & 4036 C.
Models 4024 - 4028 - 4028 C - 4032 - 4032 C - 4036 - 4036 C
4024 4028+C4032+C 4036+C
c 2400 2800 3200 3600
d 2740 3120 3500 3880
e 2580 3050 3350 3730
f 580 620 620 620
g 1900 2280 2580 2960
h 2390 2770 3150 3530
min. 1115 1115 1115 1115
max. 1195 1195 1195 1195
min. 960 *) 1140 *) 1300 *) 1300
max. 1115 *) 1305 *) 1480 *) 1480
min. 4555 *) 4440 *) 4860 *) 5070
max. 4625 *) 4545 *) 4965 *) 5175
min. 5190 *') 5205 *) 5620 *) 5830
max. 5205 *) 5225 *) 5645 *) 5855
min. 4835 *) 4850 *) 5265 *) 5475
max. 4850 *) 4870 *) 5290 *) 5500
o *)1370 *)1570 *)1770
m
Model
s
i
j
k
l
o
7
XXXX
}
Technical data (Conversion table for SI-units, - see page 77).
Model 4024 Model 4028 + C Model 4032 + C Model 4036 + C
Weight with swivel hitch .............................................. kg 1380 1480 1650 1760
**) 1530 **) 1700 **) 1810
Weight with wide angle shaft ....................................... kg 1320 1420 1580 1680
P.T.O. (power take off - number of revolutions):
Machines with swivel hitch ............................. r.p.m. 540/1000 540/1000 540/1000 540/1000
Machines with wide angle shaft....................... r.p.m. 540 540 540 540/1000
Hydraulic connection: 1 set double-acting..................
+ 1 pc. single-acting................
Power requirement........................................................ kW (HP) 45 (60) 50 (70) 60 (80) 70 (90)
Number of discs............................................................ pcs. 6 7 8 9
Number of knives replaceable ...................................... pcs. 12 14 16 18
Stubble height (continously variable adjustable) ......... mm 30 - 40 30 - 40 30 - 40 30 - 40
high cut skids (optional equipment) ................ mm max. 80 max. 80 max. 80 max. 80
Speed conditioner, ........................................................ r.p.m. 600 or 900 600 or 900 600 or 900 600 or 900
Speed of discs ............................................................... min-13000 3000 3000 3000
Tyre sizes ...................................................................... 10.00 - 12 10.00 - 15 10.00 - 15 10.00 - 15
or 10.00 - 15 or 15.00 - 17 or 15.00 - 17 or 15.00 - 17
Working speed (depending on crop) ............................ kph 6 - 15 6 - 15 6 - 15 6 - 15
Cutting width ................................................................ mm approx. 2400 2800 3200 3600
Transport width............................................................. mm approx. 2400 2850 3150 3550
Model 4028 C - model 4032 C - model 4036 C cannot be fitted with a wide-angle hitch.
The weight applies to the models 4028 C - 4032 C & 4036 C.
We reserve the right to make alterations without notice. We also make reservations as to possible misprints in this manual.
Fitting to the tractor
The tractor must be of a suitable size, adhere to the local laws. The minimum kW/HP are shown
above.Whenoperatingonhillygroundoroperatingwithheavycropsa bigger tractor is recommend-
ed.
Machines with swivel hitch: Couple the drawbar to the lift arms of the tractor. The lift arms must be equipped with
stabilizing chains.
Machines with wide angle shaft: Couple the drawbar to the drawbar of the tractor. The drawbar must be fitted
with a clevis and should be longitudinally adjustable, - see page 33 top.

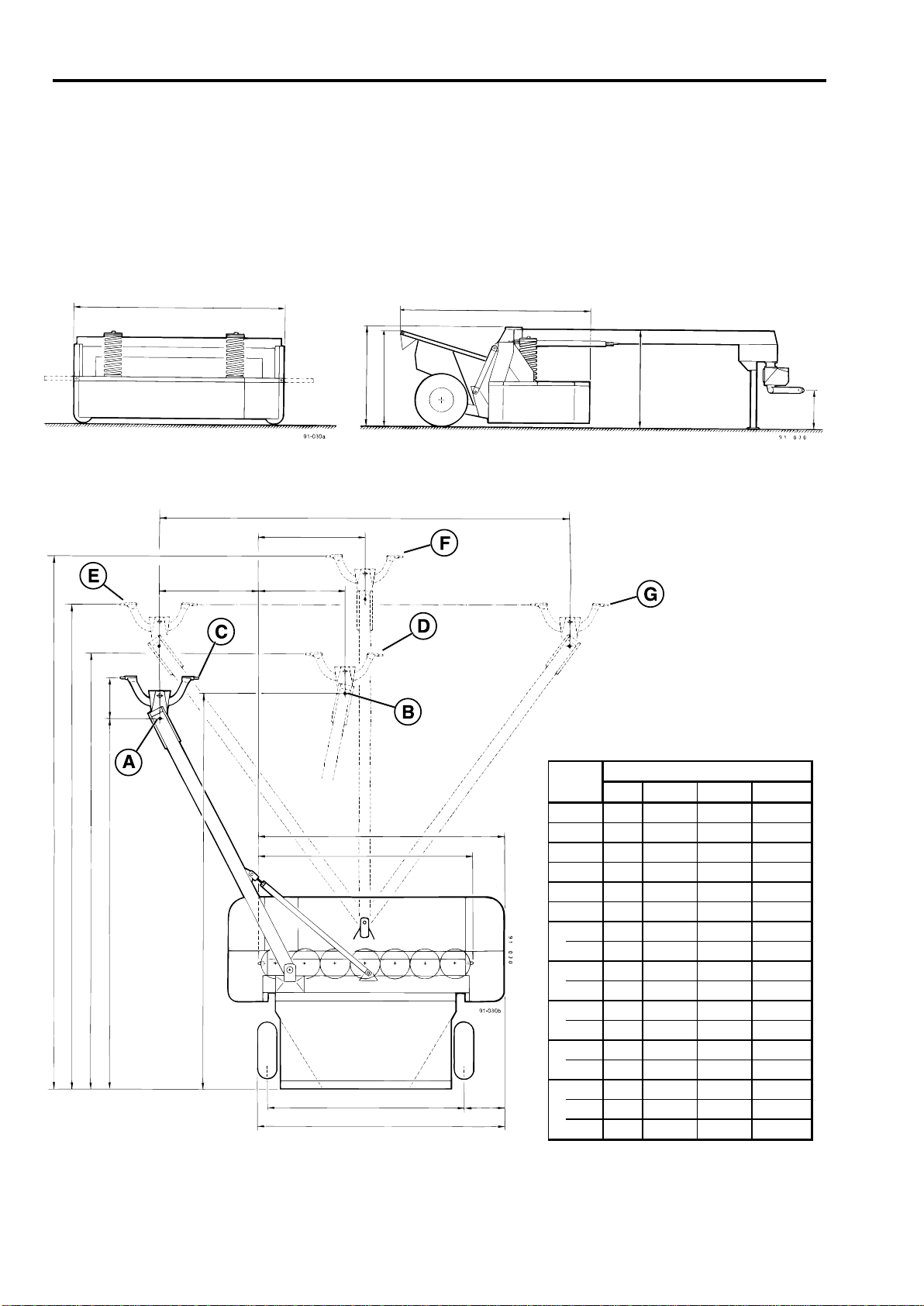

Dimensions drawing, page 6:
Models 4024 - 4028 - 4032 - 4036: The position of the towing eye for machines with wide-angle hitch is shown by
Aand B. The position of the towing eye for machines with swivel hitch is shown by Cand D.
Models 4028 C - 4032 C - 4036 C: The position of the towing eye is shown by E, Fand G.
*)
a
*)
*)
**)
8
Machine identification

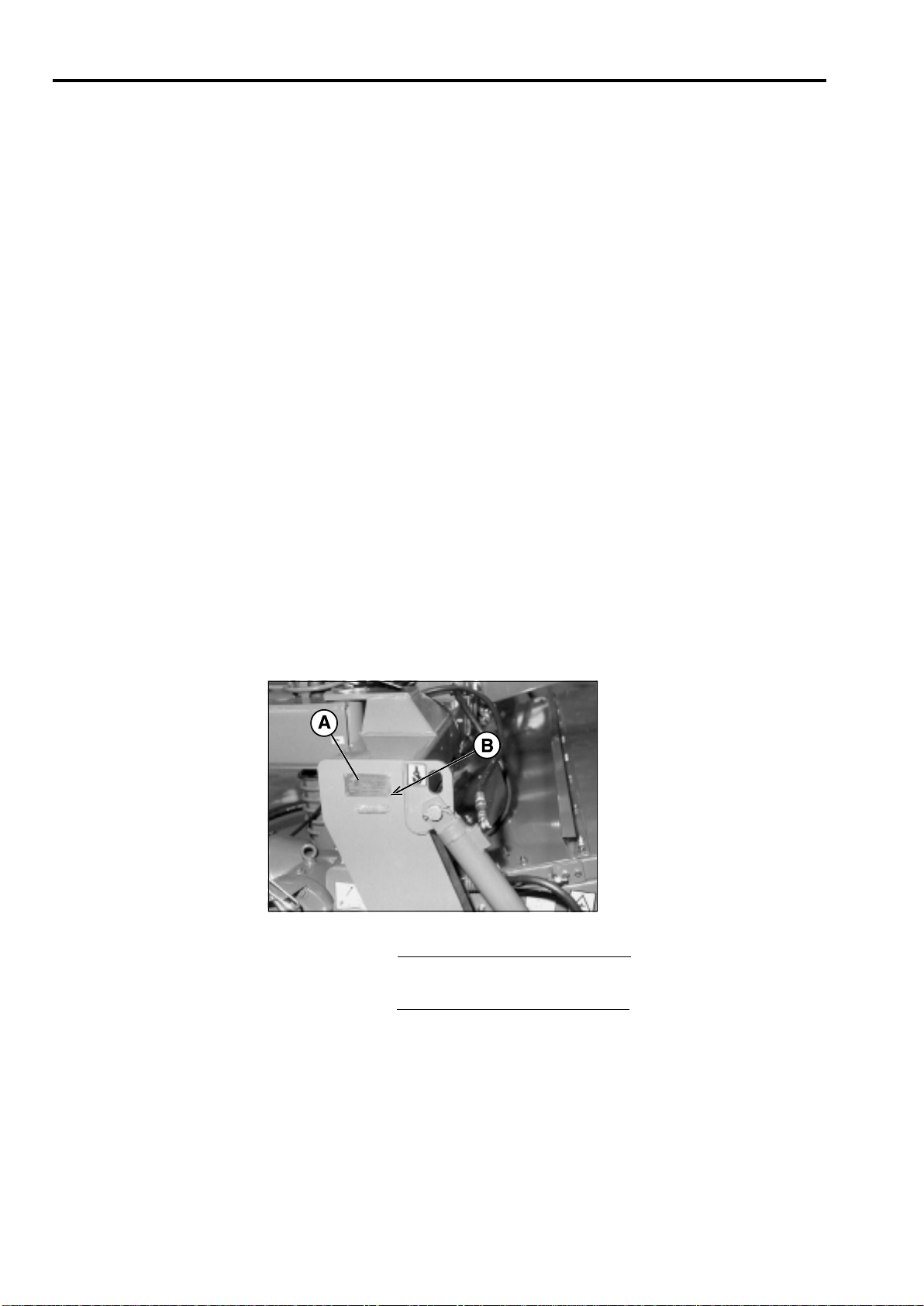

The machine number and manufacturer can be found on the metal plate A.
Immediately after delivery of the machine the machine number and year of delivery
must be registered in the following scheme. Please quote this number on all service
matters.
The machine is marked CE, shown at B. This marking with appurtenant EU
statement of agreement means that the machine complies with substantial health and
safety demands, and that it is in accordance with the directives 89/392/EEC and
additional directives.
Machine No. :
Year of delivery :
9
Introduction
We congratulate you on your new Taarup machine. You have chosen a
product which will give you satisfaction through a network of efficient
dealers where function, finish, follow up service, and spare parts are always
at hand.
AllTaarup machines are constructed and tested in association with farmers
and contractors to ensure optimal function and reliability.

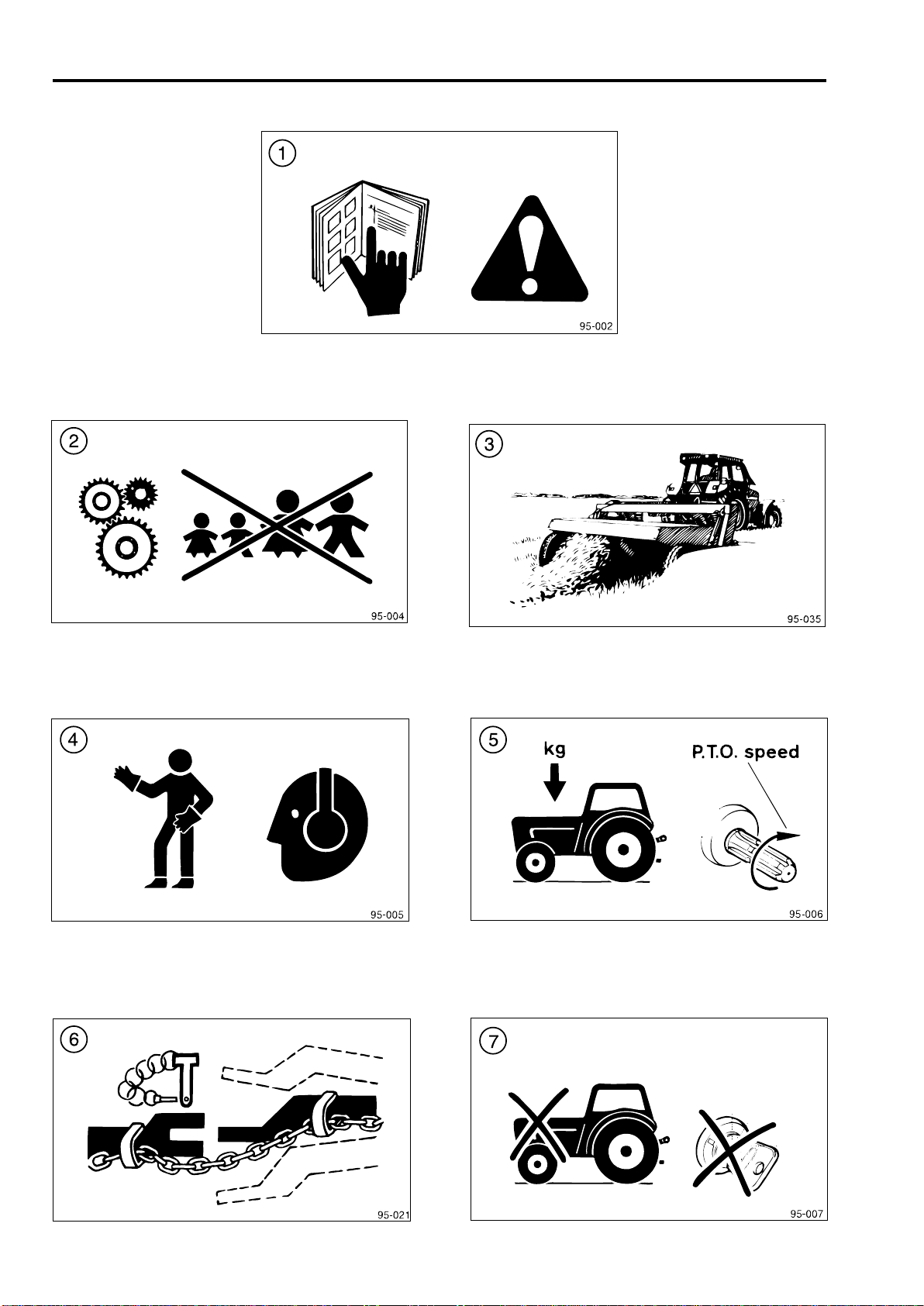

Please read this manual before using your machine.
We wish you good luck - and a successful harvest.
Kverneland Group KertemindeAS
DK-5300 Kerteminde - Denmark
Phone +45 65 19 19 00
Fax +45 65 19 19 99
