T-Eye ADR-3000 Manuel utilisateur

Main Features

Unlike other in-car recording systems, the T-eye Drive Recorder is used to record both video and

audio data in a continuous loop fashion. If the vehicle is involved in an accident such as a

collision, impact, and sudden acceleration-related incident, this data is marked and stored. One

may thereafter analyze the data to find its root cause by playing back the scenes of interest and

where acceleration, vehicle speed, direction, and location are available for review.

Continuous recording

The video and audio data from the front and interior views is continuously recorded while

power on. When the capacity of the SD Card has been reached, the older files are overwritten

by the latest file.

Pre and post event recording

When impact or unusual acceleration or deceleration is detected by the built-in G-Sensor and

has exceeded the preset limit or one activates the emergency record button, the recorded video

data is locked-in and is erased only by an authorized party. Event data records 1 minute before

and 1 minute after. (User may set pre-event time 1 minute, 2 minutes or 3 minutes). Stored

event recording data in SD card will not be erased unless user cancels the event (in-car), or the

files are erased by the person reviewing the SD card.

Night-time recording with Infra-Red Light

The included IR (Infra-Red) Light module with adjustment used this invisible light source to assist

in recording nighttime views from the interior facing camera.

Playback of video/audio data

The recorded data can be played back using the provided playback software which is found on

the SD card. The Record resolution is 640x480. Maximum 20 frames per second for 2 channels

(Max 10 fps @ VGA for each channel)

Data analysis

The recorded data can be easily analyzed for speed, vehicle location and direction of travel

including impact by using the T-eye Player that is found on conveniently on the supplied SD card.

Contents

Safety Instructions 4

Components 5

Part Numbers 6

Front face of Body ..............................................................................................6

Rear side of body................................................................................................7

IR (Infra-red) light module ...................................................................................7

Technical Specifications 8

Memory specifications ........................................................................................8

Installation: 9

1. Mounting the Unit.......................................................................................9

2. Installing the IR light Module..........................................................................10

3. Installing the External Remote button .............................................................10

4. Connecting the power cord............................................................................10

Tips before Using the Product 11

Unit Preparation for video recording................................................................... 11

Continous recording while driving ...................................................................... 11

SD Card related information............................................................................... 11

Functions of each part.......................................................................................12

Using T-eye Player: Playback, SD Card and Initial System Set-Up 13

Minimum Requirements....................................................................................13

Buttons............................................................................................................14

Controls...........................................................................................................14

System configuration ........................................................................................15

Playback ..........................................................................................................16

Converting into AVI file format...........................................................................17

Interfacing with a GIS/City map..........................................................................18

Viewing the pop-up display window...................................................................19

Analyzing G-SENSOR data ..................................................................................20

Displaying T-eye status using the built-in Display 21

Information and Status Display 21

Firmware and Playback SW Update 22

Safety Instructions

Take note of the information below and be sure to read the following for correct use and care of

the product.

Do not clean the product with

water or volatile solvents.

This may damage the product, cause a

fire or electric shock.

Do not apply excessive shock or

never insert foreign materials into

the product.

This may cause product damage, a fire

or electric shock.

Video quality is affected by

lighting conditions. GPS is

affected by signal receipt.

Nighttime or use in tunnels

affects system operation

Do not arbitrarily change the

product location.

This may cause a GPS communication

error.

Do not disassemble, repair or

modify the product.

This voids the warranty and where we

take no responsibility for product

damage or problems caused by the user.

Any excessive window tinting may

cause an unclear or distorted

image on playback.

First record and then play back the

video to see if the recorded video is

acceptable.

Do not cover the camera lens with

any materials or objects.

Thismay affect recording quality.

Once installed, do not manipulate

the product while you’re driving a

car.

Thismay cause a traffic accident.

Ensure that the capacity of the SD

Card is not exceeded.

A full SD card will not allow one to

record manual alarms or G-sensor based

triggers.

Use only the provided cables and

specified power input.

A cable not supplied by the

manufacturer may cause product

damage, a fire or electric shock.

Do not obstruct the view of the

product through the front

windshield.

The GPS receiver may not work

properly.

Only use factory approved parts.

Use the approved power cable.

Contact your authorized Reseller for

assistance.

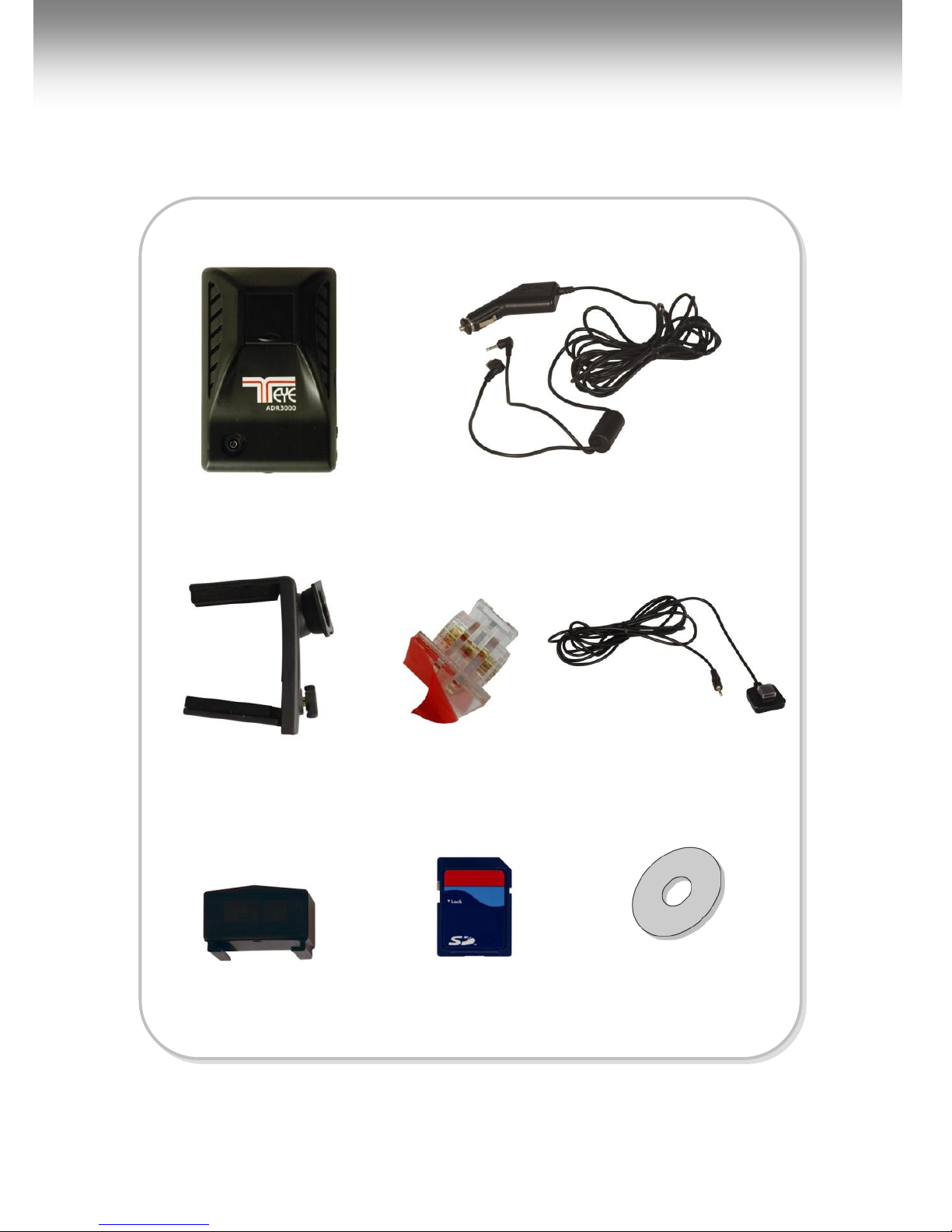

Components

Body

External Alarm Button

Cigarette Lighter Plug for Power Supply

SD Card

Fixed-type Holder

IR Light Module

Mirror Mount

Users Guide CD

Part Numbers

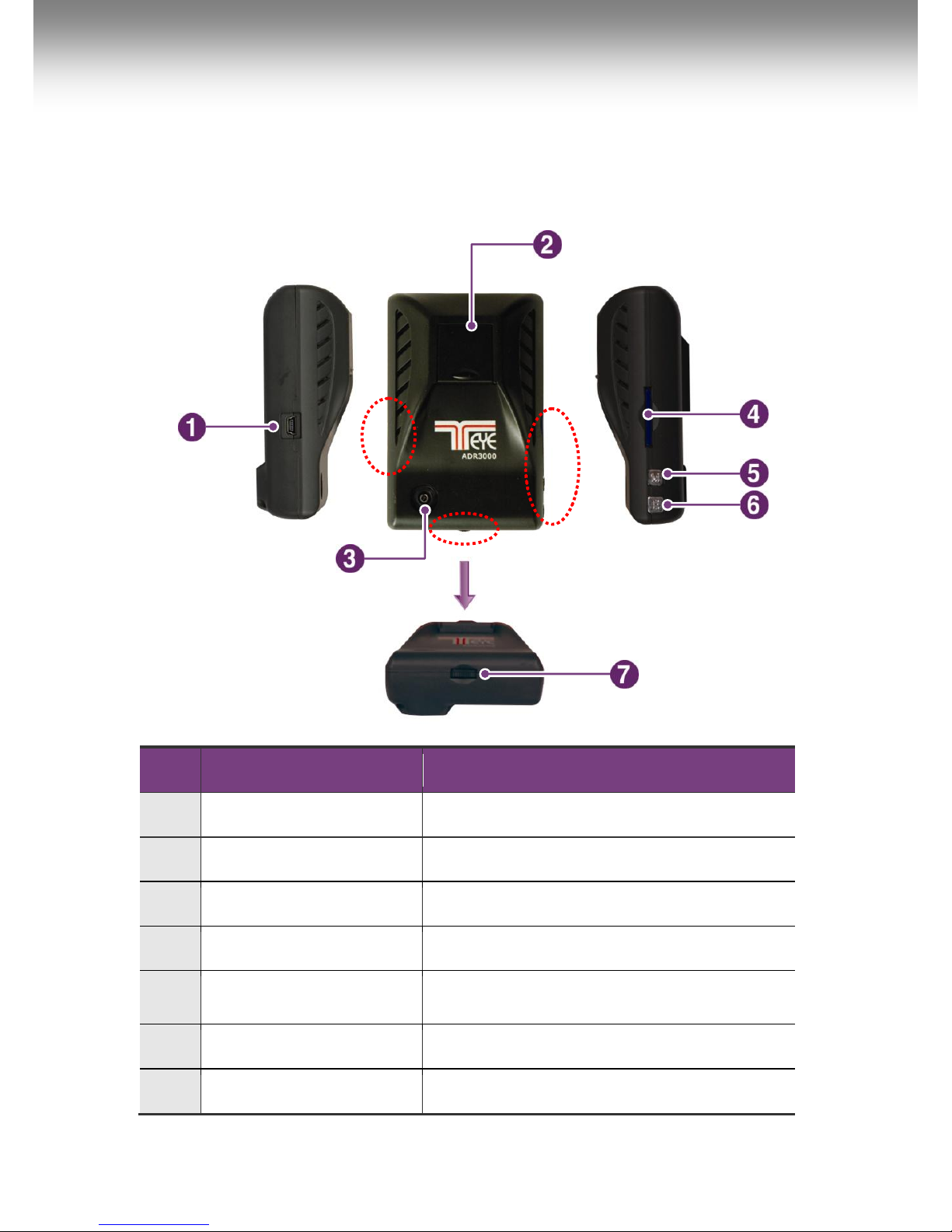

Front face of Body

No.

Name

Description

Power Connection Port

Used to connect the power cord with the unit.

Front Mounting connection

Used to mate with the selected mount.

Forward Facing Camera

Used to record scenes through the windshield.

SD Card Slot

Used to insert the SD Card into unit.

Emergency Record Protection

Cancel Button

Used to cancel protection of all the emergency recording

data.

Emergency Record Button

Used to perform an emergency recording.

Volume Control

Used to adjust the audio volume for information.

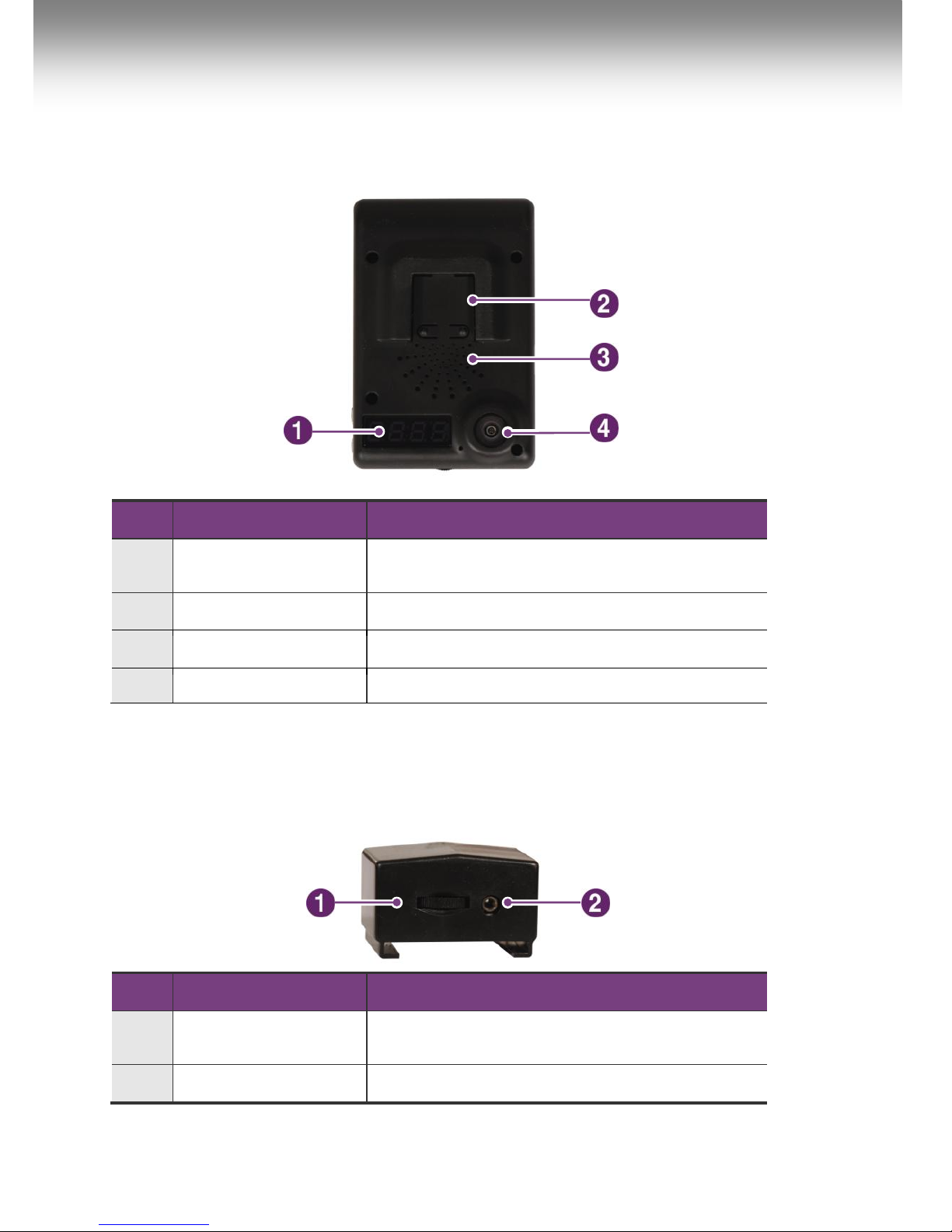

Rear side of body

No.

Name

Description

Status Display

Used to display the status of T-eye or traffic information by

using English text or symbols.

Rear Mount Connection

Used to mate with the selected mount.

Built-in Speaker

Provides audio output for chime and any information.

Interior Facing Camera

Records video from inside your vehicle.

IR (Infra-red) light module

No.

Name

Description

Infrared LED light

adjustment

Used to adjust the output level of the IR auxiliary light to assist

in recording nighttime views from the interior facing camera.

Power Connection

Used to connect the power cord to the IR light module.

*The effective range of the IR light module covers the first row of back seats.

Technical Specifications

Item

Specification

Camera Type

CMOS sensor

Video Resolution

VGA (640 x 480) up to 20 frames per second, 2 channels

Audio

Built-in microphone

GPS

Built-in GPS module

Automatic Event Sensor, Alarm input

G-sensor (3-axis), Manual external alarm trigger

Memory

SD Card (512M to 8GB) *

Power Input

T-eye Body

DC 5V to recording unit

Cigarette Lighter Plug

DC 12V to 24V input

* Depending on the model ordered, typically a 2GB SD Card is provided with the unit.

Memory specifications

* This is an average time. (Recorded at daytime in the downtown area)

Size of SD

Memory

Maximum

Storage Time

Event Recording

Time

Number of Event Generated Recordings according to

the Preset Recording Time

1min

2min

3min

512MB

23 minutes

16 minutes

1GB

2GB

4GB

180

120

8GB

370

280

* Time varies depending on the amount of motion seen by the camera & lighting conditions

Installation:

Caution

Be sure to stop the engine before installing the product.

Install the product in a location where the satellite signals are received.

Before permanently mounting the unit, ensure that the camera views meet your

requirements. (cf. where interior view camera is not hiddenby the mirror inside your car)

Mount the unit carefully.

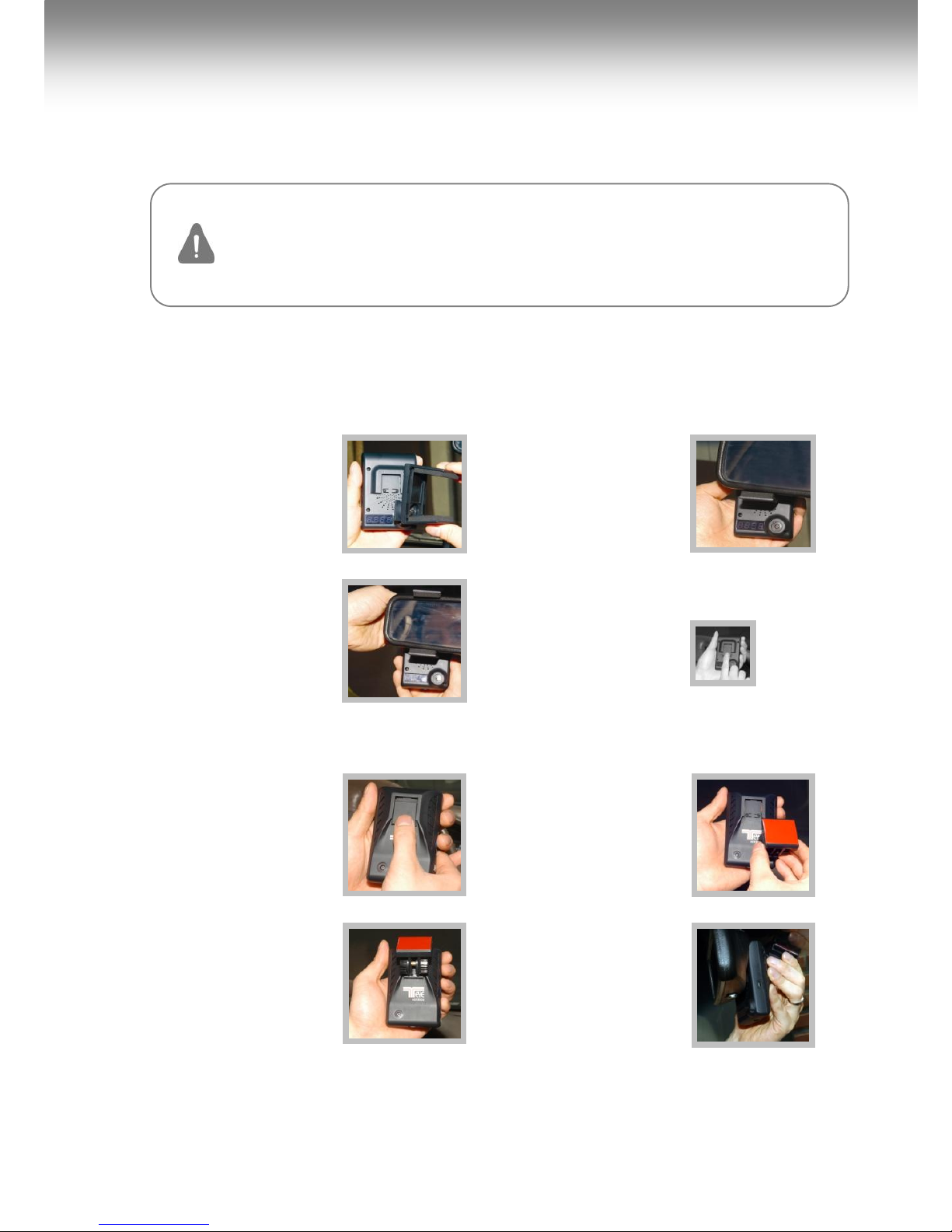

1. Mounting the Unit

You may install the product using any of the following 2 mounting methods:

Method1. Installation with the mirror mount

1. Align the mirror mount with

the guide on the rear of the

body.

2. Attach the mirror mount to

the mirror with the front of

the unit facing forward.

(LED Display Window

towards the back as shown)

3. Fasten the screw on the rear

of the mount after tightly

pressing the body of the

unit in place so that it may

not be easily removed.

*In order not to lose the plastic piece,

attach it to the rear of the body.

Method2. Installation using the fixed-type holder

1. Remove the fixed plastic

cover of the front of the

unit.

2. Insert the fixed-type holder

into the guide.

3. Determine the location to

attach the mount to the

windshield or other surface

area.

4. Clean the mounting surface

and remove the red film from

tape the mount. Tightly press in

place the mount to the

windshield.

*Use isopropyl alcohol to clean the mounting surface of windshield, and leave it to dry.

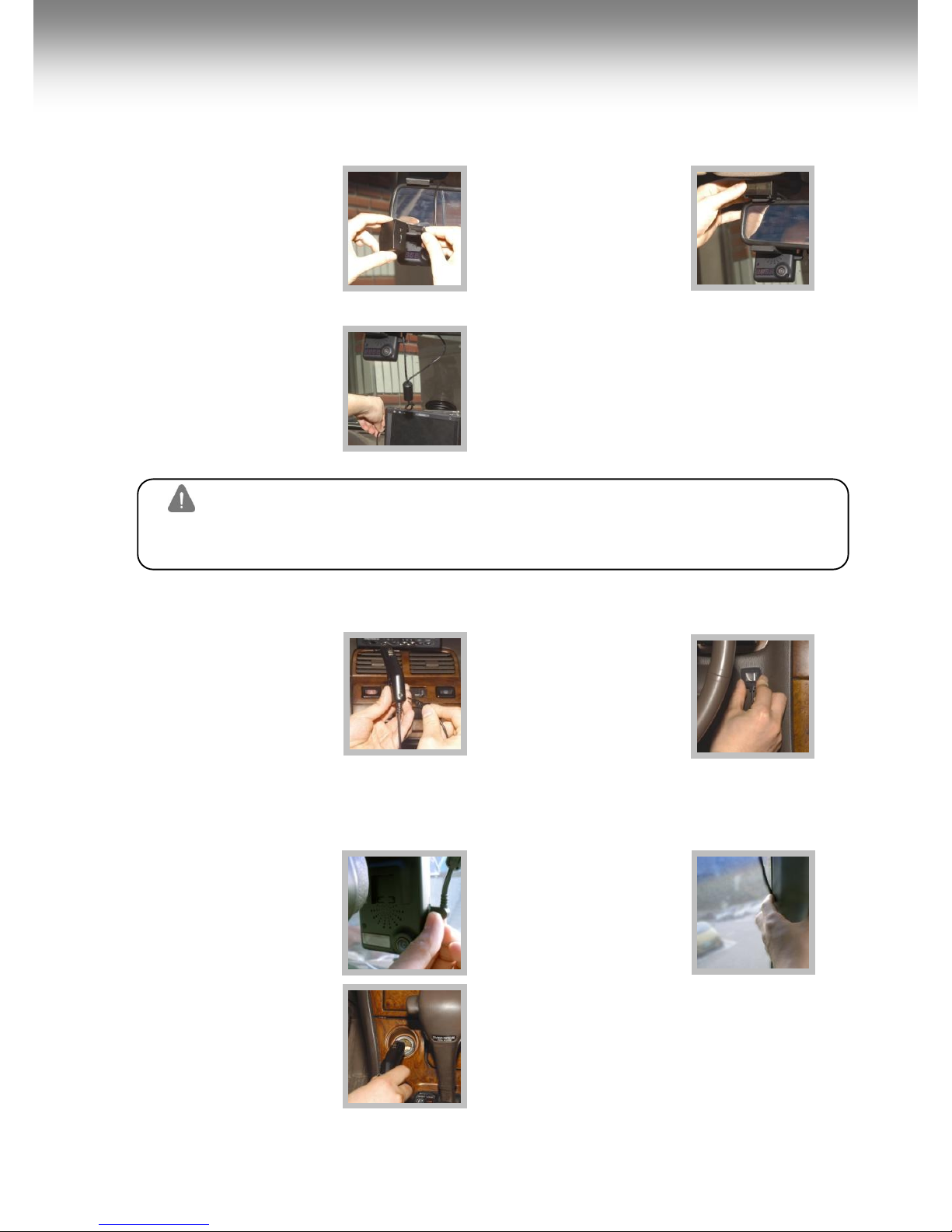

2. Installing the IR light Module

1. Connect the “Y” power

cable adapter to both the IR

light module and the

recorder. Then connect the

cigarette lighter plug.

2. Insert the IR light module

after aligning it with the top

of the mirror holder

3. Arrange the power cord

neatly alongside of the

windshield and door pillar

trim.

Caution

●Connectpower to the unit once the IR light module has been connected.

●Aim the IR light module towards the driver and passenger area.

●If you mounting the unit with fixed-type holder, you need to install the mirror holder for

installing IR light Module.

3. Installing the External Remote button

1. Insert the external input

cable into the external input

connection port on the

upper part of the Cigarette

Lighter Plug.

2. After removing the adhesive

tape attached on the

external button, attach the

button to the desired

position.

4. Connecting the power cord

1. Connect the power cord to

the cable on the right of the

unit. Pull the cable up

towards the upper part of

the unit.

2. Arrange the power cord

neatly after inserting it in

the chink of the door near

the driver or passenger seat.

3. Insert the power cord into

the Cigarette Lighter Plug.
