System Q Zip SEE858 Manuel utilisateur

SEE858

8MP Mini Eyeball 3.6mm Fixed Lens Camera

Instruction Manual

ZipDVR.com

xSEE858

ZipDVR.com

Table of Contents

Part 1 Introduction 1

1 SEE858 ............................................................................................................................ 1

Part 2 Tools & Handy Extras 1

Part 3 Connections & Dipswitches 2

Part 4 Dipswitch 4-In-1 Technology 2

Part 5 Mounting 3

1 Mini Eyeball .................................................................................................................... 3

Part 6 OSD Menu 4

1 8MP OSD Menu Non-Motorised ....................................................................................... 4

2 Key Menu Settings.......................................................................................................... 7

Part 7 Troubleshooting 8

1 Camera Rebooting / Turning Off ..................................................................................... 8

2 Poor Quality Images ....................................................................................................... 8

3 Image isBlack & White .................................................................................................. 8

4 NCD / No Image Displayed on Recorder ......................................................................... 8

Part 8 General Maintenance 9

Part 9 Specification 10

1 SEE858 .......................................................................................................................... 10

Part 10 Conditions 11

1 General Company Disclaimer ....................................................................................... 11

2 WEEE Declaration ......................................................................................................... 11

3 Copyright ...................................................................................................................... 11

Index 13

Index

ZipDVR.com

Introduction

1.1 SEE858

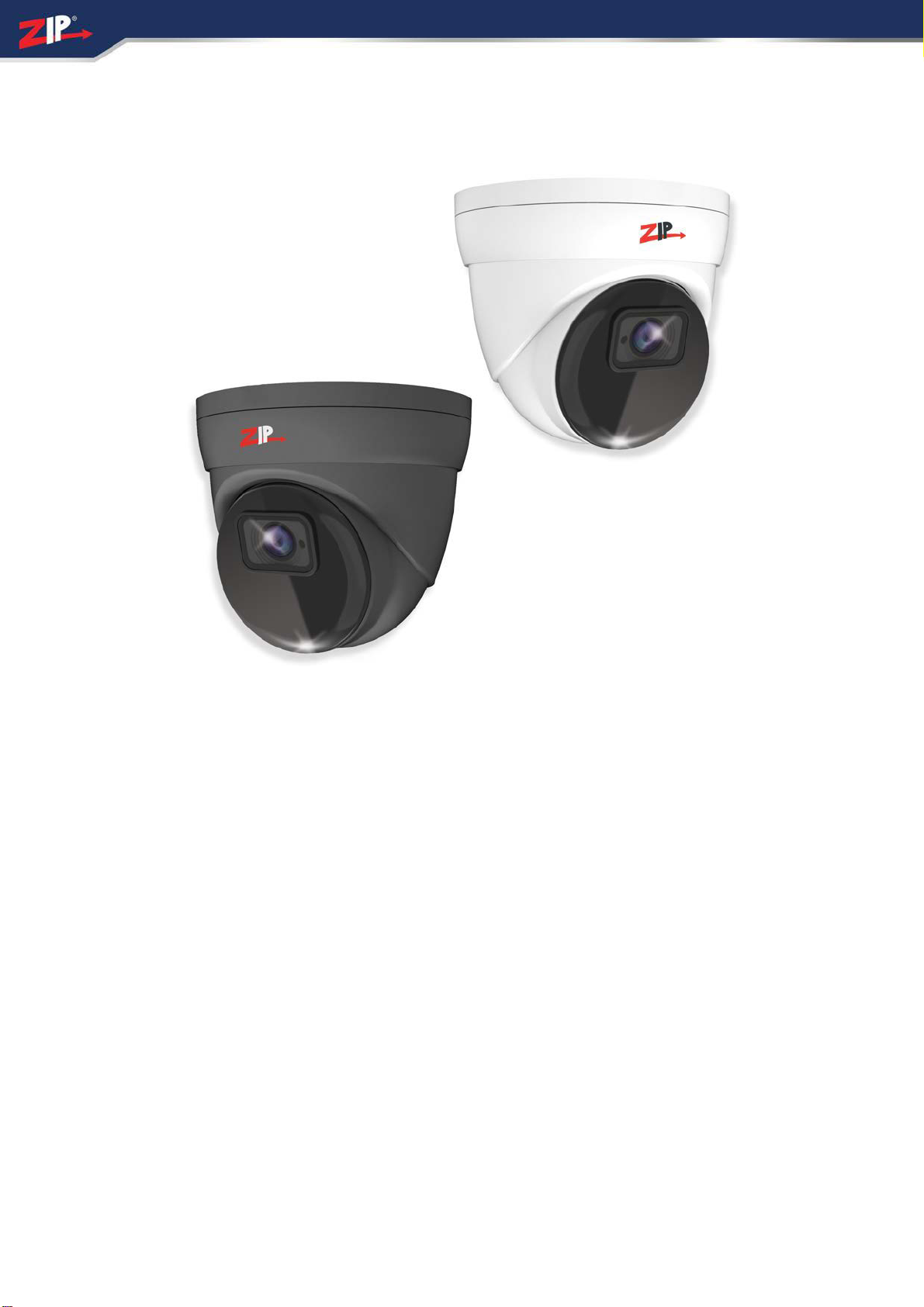

The SEE858 is a MiniEyeballcamera featuring 4-in-1 video technology, idealwhenyou’re

looking for your CCTV systemto be more low key.

This 4K modelalso described as 8MP offers stunning Ultra-HD quality. Designed to be used

with a 4K DVR such as the new Zip Xtreme.

IP66 and available in black or grey with no contrasting lens rimit can seamlessly blend into

interior or exterior installs.

Tools & Handy Extras

Screwdriver

Drill

12V DC PSU

Drillbits

BNC Crimp Tool& BNCs

RG59 Coax Cable

DigitalMulti-Meter

LCD400K - CCTV Test monitor

04/04/2022

xSEE858

ZipDVR.com

Connections & Dipswitches

The camera has a 2.1mmsocket which requires 12V DC, use a regulated power supply rated

above the current draw of the camera.

The camera is polarity sensitive so connections must be correctly made.

The camera has a standard BNC connector for the 4-in-1 video output, the output canbe

changed to AHD, CVI or CVBS ifrequired.

Dipswitch 4-In-1 Technology

Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. As default the camera is

set to HD-TVI, however the output can be changed to AHD, CVI or CVBS ifrequired.

This output can be changed withthe dip switches on the fly-lead ofthe camera. Please note the

“Output Mode” in the menu ofthe DVR won’t change the format, as the dip switchoverrides the

output.

The dip switch configuration can be found below:-

Index

ZipDVR.com

Mounting

5.1 Mini Eyeball

A template is provided in the box for marking the hole positions for the fixing screws.

04/04/2022

xSEE858

ZipDVR.com

OSD Menu

Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as

default.

To access the Cameras Menu via coaxitron:-

1. Click on the image in Live view

2. Click on the PTZ button at the bottomofthe screen

3. Click on the IRIS + / centre button to display the menu

Use the directionalarrows to move up and

down through the menu.

Use the directionalarrows left and right to

change the option.

Use IRIS + to select & enter that menu option.

6.1 8MP OSD Menu Non-Motorised

BRIGHTNESS

0 ~ 100 (Default 41)

EXPOSURE MODE

GLOBAL /

BLC

0 ~ 7 (Default 4)

RETURN

AWB

MODE

PRO / GREY WORLD

RGAIN

0 ~ 100 (Default 44)

BGAIN

0 ~ 100 (Default 50)

DAY / NIGHT

MODE

EXT / COLOR / B/W

RETURN

Index

ZipDVR.com

IMAGE ENHANCE

CONTRAST

AUTO /

MANUAL

0 ~ 20 (Default 5)

SHARPNESS

AUTO /

MANUAL

0 ~ 20 (Default 3)

SATURATE

AUTO /

MANUAL

0 ~ 20 (Default 2)

3DNR

AUTO /

MANUAL

0 ~ 20 (Default 3)

2DNR

AUTO /

MANUAL

0 ~ 20 (Default 19)

FLIP

OFF / ON

MIRROR

OFF / ON

RETURN

VIDEO SETTING

NO ADJUSTMENT SEE 4-IN-1 SWITCH

STANDARD

8MP 15 / 8MP 12.5

REBOOT & APPLY

RETURN

LANGUAGE

ENGLISH / SIMPLIFIED CHINESE / TRADITIONAL CHINESE /

RUSSIAN / SPANISH / FRENCH / POLISH / ITALIAN /

PORTUGUESE

WDR

OFF / ON

04/04/2022

xSEE858

ZipDVR.com

FUNC

PRIVACY

MODE

OFF / ON

AREA 0

CUSTOMISE

AREA 1

CUSTOMISE

AREA 2

CUSTOMISE

AREA 3

CUSTOMISE

COLOR

RED / GREEN / BLUE

TRANSPARENCY

OFF / ON

RETURN

RESET

SAVE – EXIT

EXIT

Index

ZipDVR.com

6.2 Key Menu Settings

Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for the current

light level. The shutter speed willautomatically detect the required length oftime to keep the

digitalsensor exposed to light. FLK optionsets the shutter speed to stop synchronisation with

lighting so that pulsing effect is minimised.

White Balance - Colour adjustment ofthe camera to be set up so objects appear a natural

colour. ATW / PRO (Automatic tracking white balance) continually tracks and adjusts the white

balance, making it suitable for use in cameras in which the image content and lighting are subject

to changes.

Day & Night - The camera canbe set to colour or B&W mode or have it automatically switch

Externalis set as default, the switchbetweencolour and black & white is controlled by an

externaltrigger Inthis a light dependent resistor.

DNR (Noice Reduction) - Noise Reduction is the process ofremoving noise fromthe video

signalby applying a digitalfilter. 2D noise reduction reduces noise in the foreground ofthe image

where as 3D noise reduction reduces noise in both the foreground and the background ofthe

image.

D-WDR - Digitally adjusts the exposure in areas of the frame to maintain optimum levels in both

the dark and bright areas ofanimage.

NOTE - Some models may not have D-WDR function.

Reset - Defaults the camera to factory settings. This setting helps when fault finding issues with

the camera to ensure allsettings are defaulted.

04/04/2022

xSEE858

ZipDVR.com

Troubleshooting

7.1 Camera Rebooting / Turning Off

A. Check the voltage to the camera (under load) using a digitalmulti-meter, ifbelow 10.8V then

move the power supply closer to the camera.

B. For 12V DC cameras, only use regulated power supply rated above the current consumption,

so that the camera is always receiving the correct supply which is rated above the current

consumption.

C. Use thicker gauge copper cabling to reduce the voltage drop to the camera, using thicker

cable willreduce the resistance between the camera and the power supply and therefore reduce

the voltage dropped along the cable.

7.2 Poor Quality Images

A. Check the video format the DVR (digitalvideo recorder), then set the camera to the relevant

video format – see the 4-In-1 Technology

B. Ifset to CVBS, then this is a low quality video output for legacysystems (analogue - CVBS),

when using a 2 MegaPixelDVR or above then use another video format, like HD-TVI.

C. Reset the camera menu via Zip Coaxitron – OSD Menu

D. Check ifthe DVR (digitalvideo recorder) supports the resolution ofthe camera.

7.3 Image is Black & White

A. Check the video format your DVR supports, then set the camera to the relevant video format

– see the 4-In-1 Technology

B. Reset the camera menu via Zip Coaxitron OSD Menu

D. Check ifthe DVR (digitalvideo recorder) supports the resolution ofthe camera.

7.4 NCD / No Image Displayed on Recorder

A. Check the voltage to the camera (under load) using a digitalmulti-meter, ifbelow 10.8V then

move the power supply closer to the camera.

B. For 12V DC cameras, only use regulated power supply rated above the current consumption,

so that the camera is always receiving the correct supply which is rated above the current

consumption.
