System Q CCT513 Manuel utilisateur

www.kovert.com Doc XCCT513

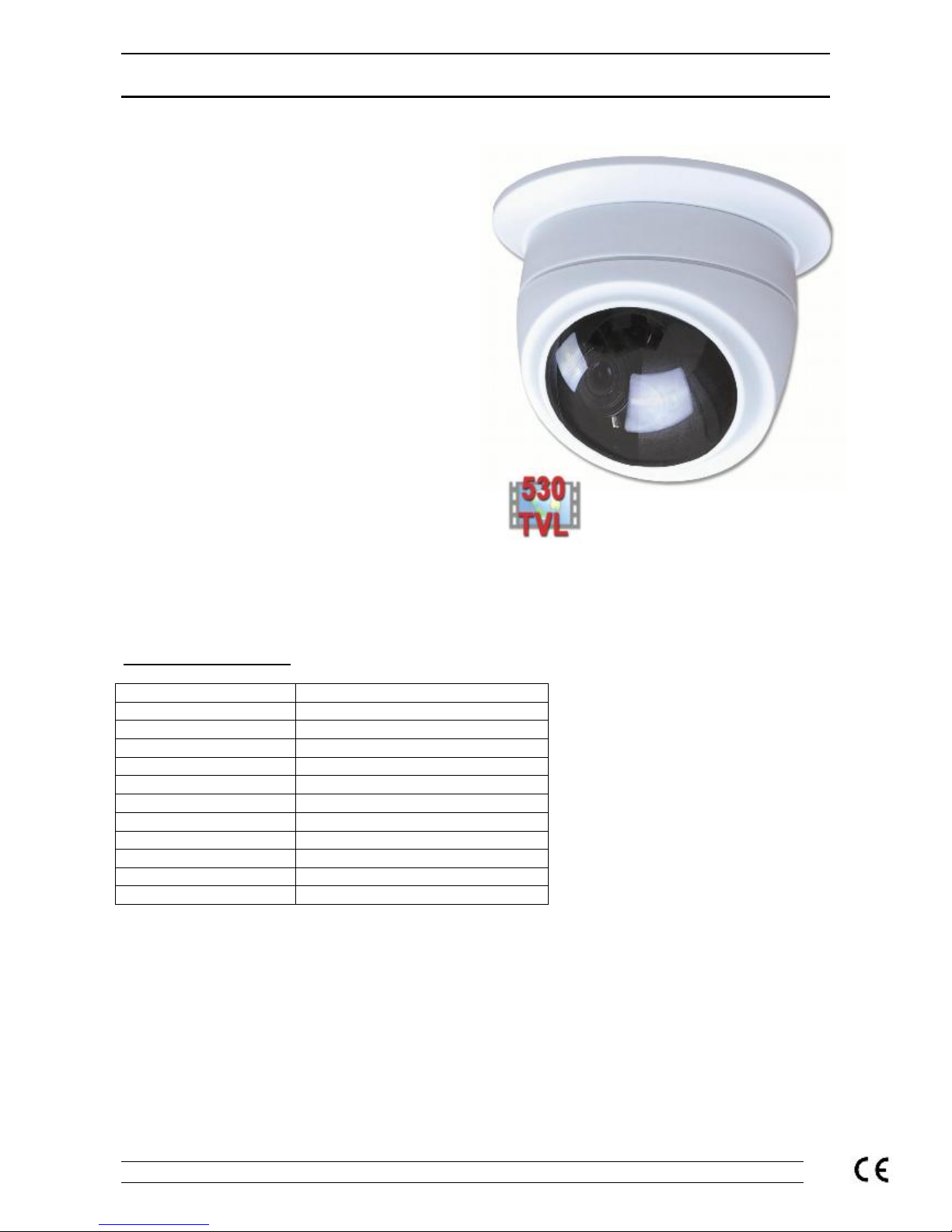

CCT513 Hi-Res Vari-focal Colour Dome Camera Instructions

Email: support@kovert.com

Features

·Hi-Res 530 TVL

·Futuristic design

·The dome is fitted with a 3.5-8mm Vari-focal lens.

·Domes are for internal ceiling mount fitting.

·Video and power connected via a fly lead.

Camera Specifications

CCT513

Camera Spec Hi-Res Colour –12V DC

Image Sensor 1/3”Colour

Image Output 1Vpk-pk 75W

Resolution 530TVL

Min Illumination 0.5 Lux @ F1.6

Input Voltage Range 12V DC ±10%

Power Consumption 220mA / 2.65W

Lens 3.5-8 mm Vari-focal

AGC Automatic

AWB Automatic

Size Dia 128 x H96mm

Installation Instructions

Connecting dome to 12v DC power

The camera is provided with a 2.1mm Mini Jack plug on a fly lead that allows you to connect the power supply to it.

When powering these dome cameras with a 12V DC power supply, ensure that the supply is regulated. It is

recommended to use a power supply that is rated higher than the current consumption of the camera i.e. allows 25% -

30% minimum headroom, so for these cameras a minimum requirement would be a continuous rating of 300mA or

higher per camera. This prevents the PSU from running at its maximum rating for long periods of time. A POW150

or higher is recommended.

The CCT513 is an attractively designed dome

camera with an exceptional 530 TVL

resolution. The 3.5-8 mm vari-

focal lens gives

the flexibility to adjust the angle of view from

a wide-angle general shot to

a more narrow

precise shot. This unit is 12v DC and is ideal

for internal ceiling mount fitting. The dome

camera comes complete with a short BNC

plug and 2.1 mini jack for video and power

connections. The futuristic design of the

CCT513 would make it ideal

for any modern

office or retail environment and its high spec

make it a good choice for bars or clubs.

www.kovert.com Doc XCCT513

CCT513 Hi-Res Vari-focal Colour Dome Camera Instructions

Email: support@kovert.com

Connecting the camera to video control equipment.

The dome camera comes with a fly lead for power and video out. To reduce installation time the video out lead is

terminated into a male BNC connector. This allows the installer to effortlessly connect the camera to control

equipment via a female BNC-BNC lead.

Remember that the Video out from the camera is like any other electrical circuit and requires two wires to complete

the circuit. When using a co-ax type cable such as RG59 or similar, the outer braid of the co-ax provides the “0V

GROUND”connection and the inner core provides the “Video”connection.

It is recommended that when you are first setting up the cameras that you use a short

BNC-BNC cable to link the camera directly to the monitor and to set it up at the

same time. This allows you to both understand the camera and get the very best out

of this great product, as you will be able to adjust the camera whilst looking at the

monitor screen. Obviously whilst you are setting up the camera, it does need to be powered!

Securing the dome

First select a suitable position to mount the dome. This must be an internal installation and fitted to a ceiling.

Unscrew the dome housing from the base by turning anti-clockwise.

Make a hole in the ceiling to take the video and power cables and secure the base using mounting screws.

Rotate the camera base, set camera angle of view and then refit dome cover. Secure the dome cover with the retaining

screw.

All specifications are approximate. Kovert.com reserves the right to change

any product specifications or features without notice. Whilst every effort is

made to ensure that these instructions are complete and accurate, kovert.com

cannot be held responsible in any way for any losses, no matter how they arise,

from errors or omissions in these instructions, or the performance or non-

performance of the equipment that these instructions refer to.
