User’s Manual
STA-UI-A0035
(BlueW_2310 USB version)
Wifi 802.11 b/g and Bluetooth v2.0 + EDR
Combo USB Dongle
User’s Manual
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
Confidential Version1.0
Released Date: 2008.03.31
2
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual
1. Before installation
Requirement environments:
• Windows Vista / Vista-64 / XP sp2 / XP-64 / 2000 sp4 or above
• At least 50 MB of available free hard disk space for installing the drive
• An IEEE 802.11b, or IEEE 802.11g Access Point (for Infrastructure Mode) or
another Wireless Adapter (for Ad-Hoc Mode). Also, the STA-UI-A0035 can
compatible with most 802.11n AP router.
• One Available USB port
• CD-ROM Drive (for Driver installation only)
2. Package Contents Check
9STA-UI-A0035 Combo USB Dongle x 1
Software CD x 1 include
User’s Manual
IVT BlueSoleil Bluetooth software and driver
3DSP WLAN windows software and driver
This Quick Setup Guide x 1
Warranty Card x 1
# Please informs your dealer if there are any missing or damaged parts.
Confidential Version1.0
Released Date: 2008.03.31
3
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual
Contents
1. Introduction............................................................................................................4
2. Product Features.....................................................................................................5
3. Install the Drivers and Utilities..............................................................................6
4. Wireless Configuration........................................................................................19
4.1 Configuring Your Wireless Network with Windows XP .........................19
4.2 Single Access Point Network...................................................................21
4.3 Multiple Access Point Network...............................................................22
4.4 Setting Up a Peer-to-Peer Network..........................................................23
4.5 Wireless Performance Considerations .....................................................24
4.6 WiFi Security Considerations..................................................................25
5. Bluetooth Configuration and Utilities..................................................................26
5.1 Start the Bluetooth Device.......................................................................26
5.2 Manual Configuration Bluetooth Dongle ................................................27
5.3 Start Bluetooth .........................................................................................30
5.4 Establish Bluetooth Connection...............................................................30
5.5 Stop the Bluetooth Device .......................................................................31
6. 3DSP Combo USB Dongle Utility Configuration...............................................33
7. Driver Uninstallation ...........................................................................................34
8. Troubleshooting...................................................................................................37
9. Specifications.......................................................................................................40
10. Contact Information.....................................................................................41
Confidential Version1.0
Released Date: 2008.03.31
4
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual
1. Introduction
The SYNTEK STA-UI-A0035 product provides the highest level of integration
and most aggressive BOM cost by integrating IEEE 802.11b/g and Bluetooth v2.0 +
EDR into a single MAC/Baseband chip utilizing a single 2.4GHz transceiver.
Integrated on-chip power amplifier and LNA reduce external component count,
while still able to deliver ample transmit power for most applications.
Different from any other wireless LAN and Bluetooth chip set vendor, SYNTEK and
3DSP uses its patented Software Radio technology to implement both wireless LAN
and Bluetooth in software. The highly optimized software radio DSP technology
enables STA-UI-A0035 to integrate class 1 Bluetooth v2.0 + EDR function
without any added cost to the total solution. No extra antenna, PA, RF transceiver,
resistor, capacitor, crystal or any components are needed. The software solution
even guarantees the Bluetooth RF performance if the wireless LAN performance is
tested to be good. It eliminates the need for system manufacturers to separately
test the module’s Bluetooth RF performance, therefore reduce the testing time and
cost.
The STA-UI-A0035 utilizes 3DSP’s patent pending technologies to fundamentally
solve the interference and performance issues existed during 802.11b/g and
Bluetooth coexistence, thus improving both 802.11b/g and Bluetooth performance
and link stability in real environment. As a result, it enhances user experience in a
totally wireless environment, where all devices are connected wirelessly through
either Bluetooth link or 802.11b/g link.
The single installation package allows for easy setup and configuration of both
802.11b/g and Bluetooth devices. Combined user interface is intuitive to use. Once
configured, both wireless links operate transparently in the background.
Confidential Version1.0
Released Date: 2008.03.31
5
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual
2. Product Features
[WiFi]
9Data Rate up to 54Mbps.
9Single-band 2.4-GHz 802.11b/g with Bluetooth v2.0 + EDR
9RF IC integrated on-chip PA capable of delivering 20dBm output power
9Low active transmit and receive power dissipation and ultra-low power in
stand-by and idle modes
9Supports IEEE802.11 b/g
Security:
9WPA and WPA2 for advanced authentication and encryption
9AES and TKIP in hardware for reduced power dissipation and encryption speed
9Worldwide regulatory support
9Patent pending technology maximizes multimedia streaming performance over
Bluetooth over WLAN in coexistence mode
9Patent pending Software Radio technology allows single radio, single baseband
integration of multiple standards
9Advanced network security features include WPA, WPA2, 802.11i and 802.11x
9Long and short preamble supported
[Bluetooth]
9Support AFH (Adaptive Frequency Hopping)
9Support Bluetooth v2.0 + EDR
9Backward compatible with Bluetooth v1.1 and v1.2
9Support for up to seven active Bluetooth devices
9Class 1 with 18dbm PA, 100m range
Confidential Version1.0
Released Date: 2008.03.31
6
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual
3. Install the Drivers and Utilities
1. Insert the Installation Software CD into CD-ROM drive. If the Auto-Run function
of CD-ROM is disabled, you can utilize the Windows Explorer to browse CD content
and run Setup.exe manually.
If the Auto-Run function of CD-ROM is enabled (in Windows, the default setting of
this function is usually enabled), then a CD menu will appear automatically.

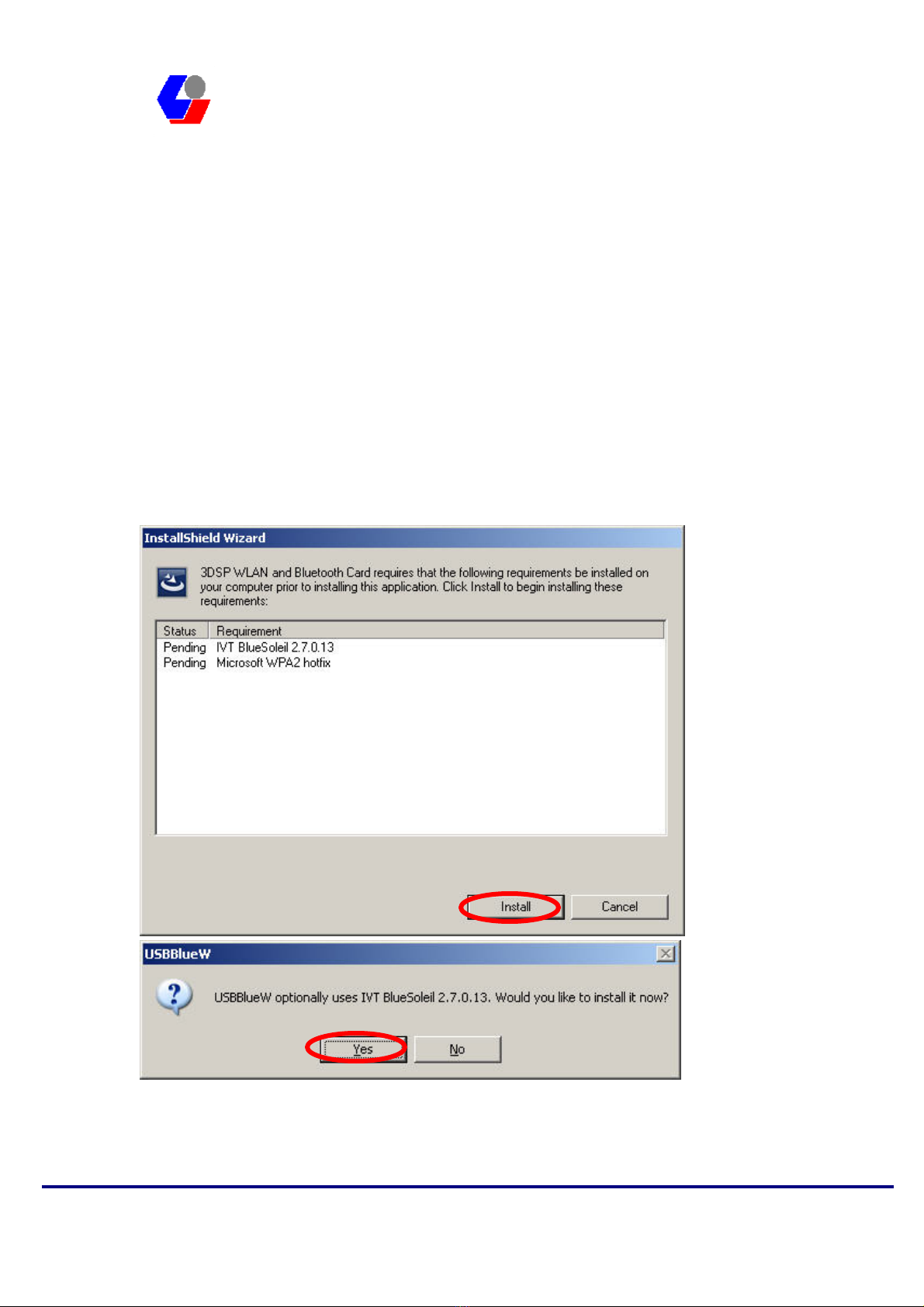

1. The Instillation program before install 3DSP Wireless driver, the installation
program will install the requirement program “IVT BlueSoleil” and “Microsoft
WPA2 hot fix” (This is not necessary in many PCs if installed) . The program will
install IVT BlueSoleil first. Please press the “Yes” button start install BlueSoleil.

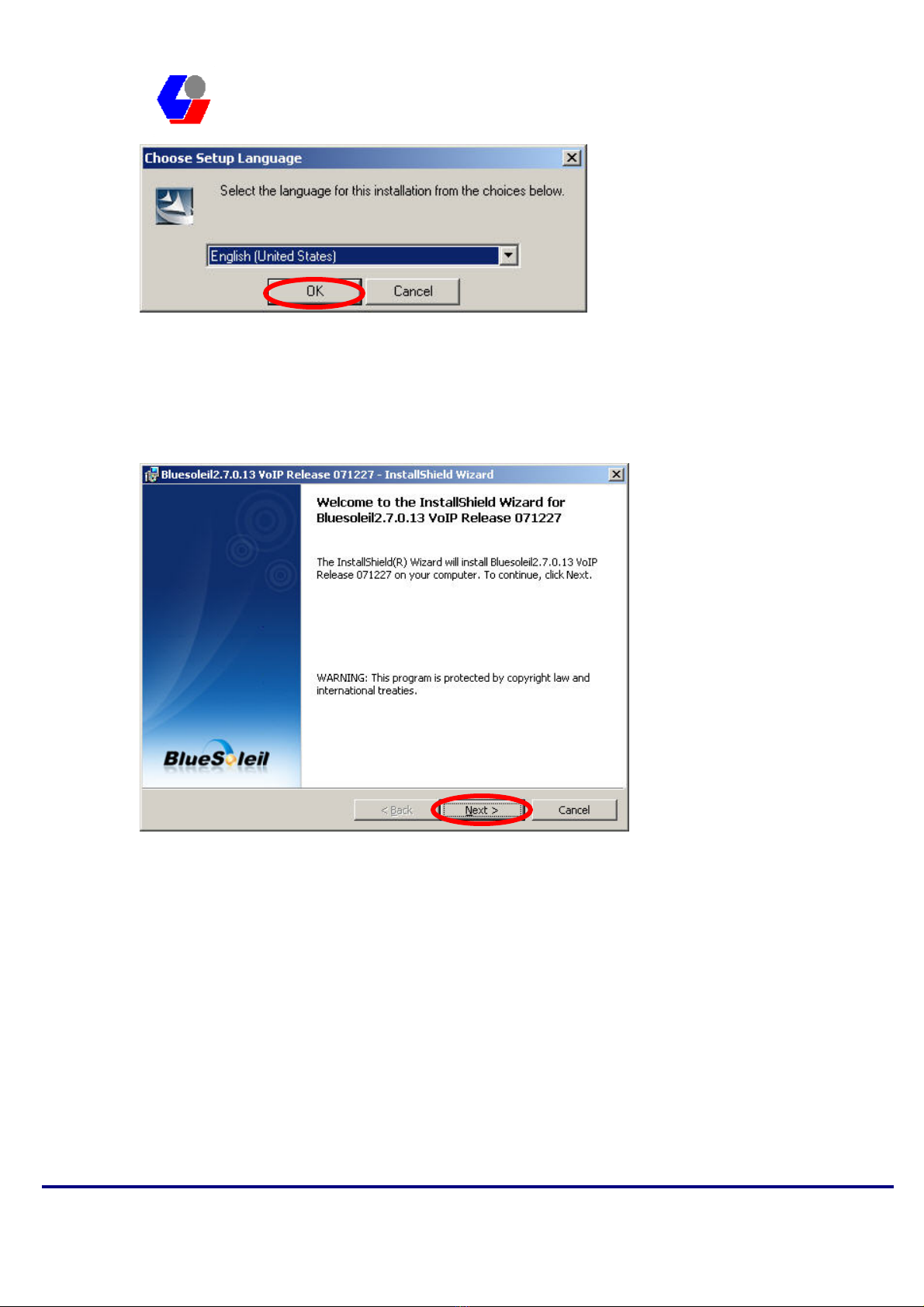

2. Select the Language you want to installation from the combo box, and then press
the “OK” button to continue.
Confidential Version1.0
Released Date: 2008.03.31
7
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual

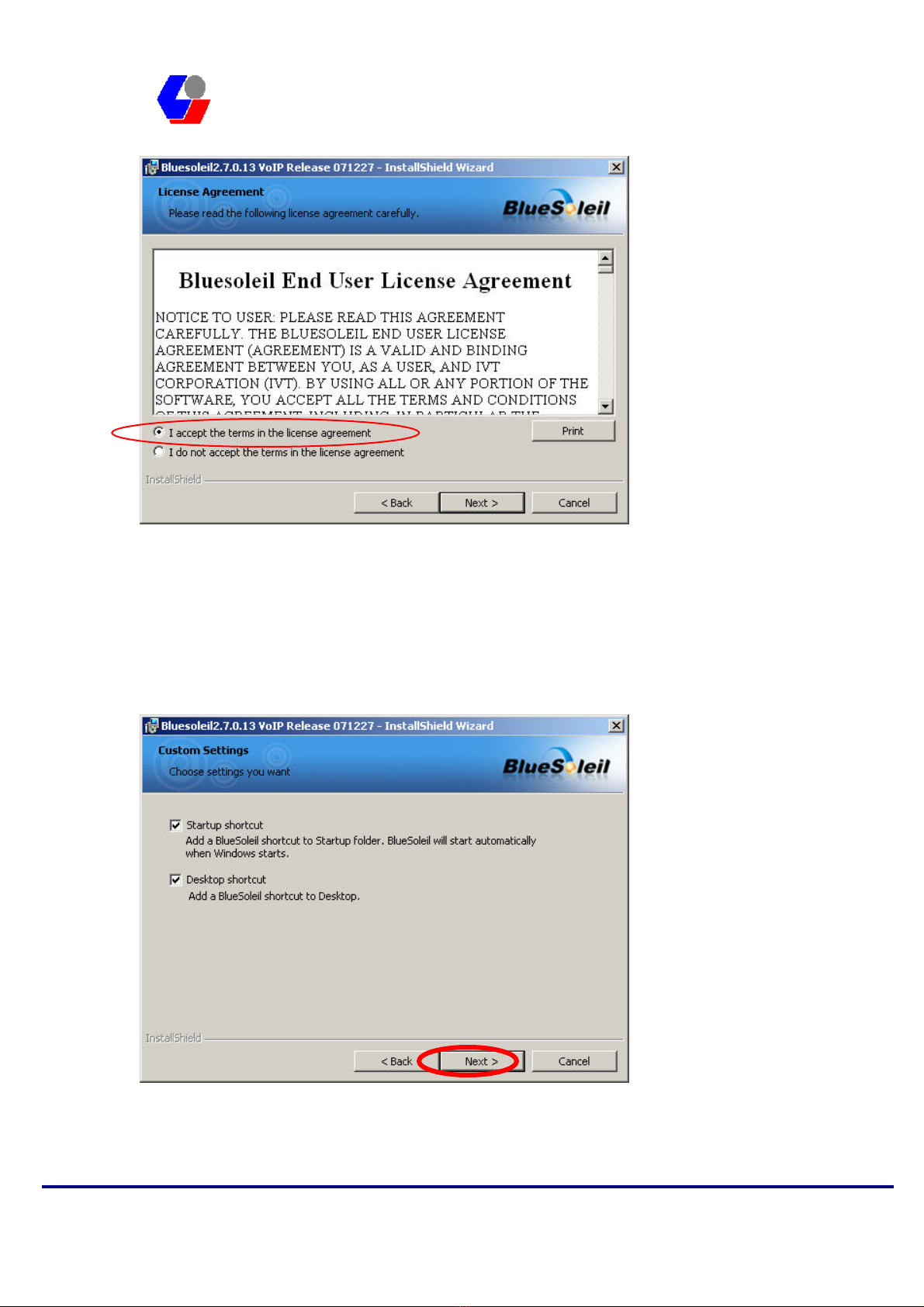

3. Please click Next button several times to continue the software installation. In the
License Agreement window, please read license agreement carefully. Select “I
accept the terms in the license agreement” then click “Next” button to continue.
Confidential Version1.0
Released Date: 2008.03.31
8
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual

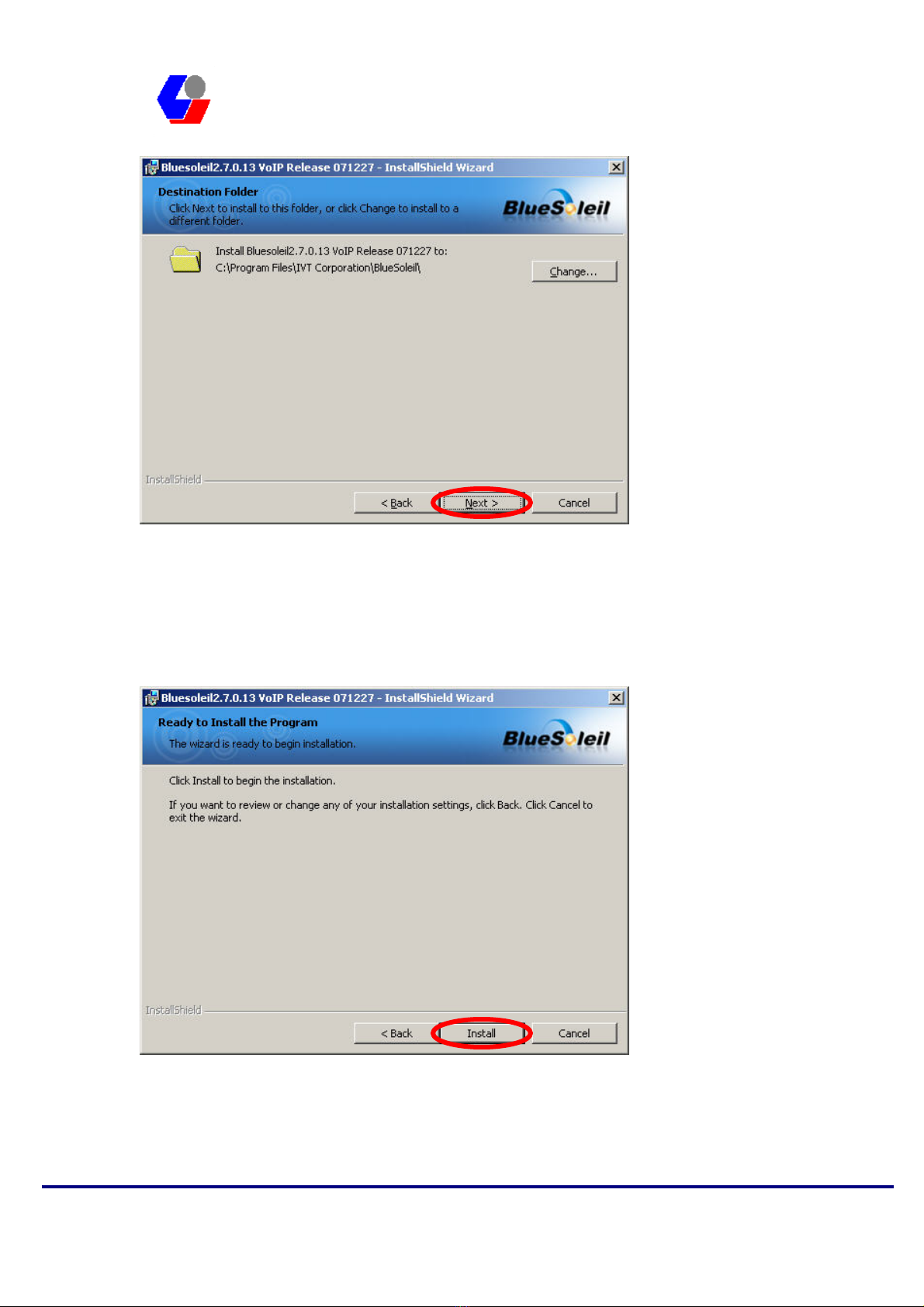

4. Select you want to place the program shortcut, and indicate the location of where
you want Bluetooth Software to be stored; if you do not change the default settings,
it will be stored under C:\Program Files\IVT Corporation\BlueSoleil
(Recommended). Click on “Next” button to continue. Or you can select your
prefers location to install. After finish, the installation program is ready for install.
Confidential Version1.0
Released Date: 2008.03.31
9
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual
5. The Install Shield Wizard will begin to install the software and copy files to your
hard disk. After copy all the files, the installation will try to install virtual
Bluetooth device in your system. It may take a few minutes, please wait it finishes
the installation.
Confidential Version1.0
Released Date: 2008.03.31
10
太欣半導體股份有限公司
SYNTEK Semiconductor Co., Ltd.
STA-UI-A0035
User’s Manual

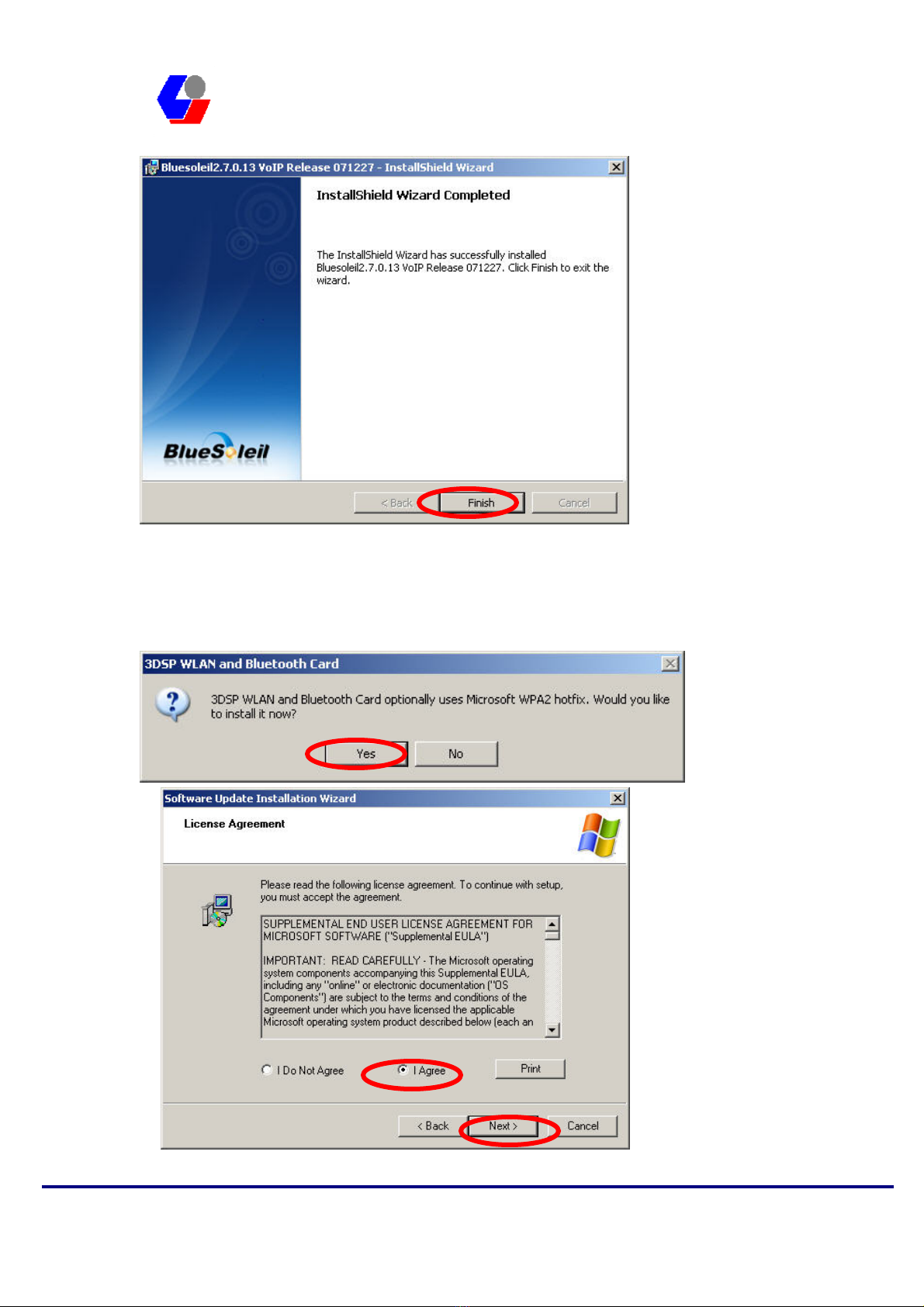

6. After finish installation the IVT Bluesoleil, then the install system will continue
install. If your system is not install the WPA2 hotfix yet. The install program will
ask you install it first.
