Universal Mounting Open Frame

Front NEMA4 / IP65

User Manual 21.5” Full HD High Brightness LCD

ID-HE21Aw

ID-HE21Pw

Legal Information

First English printing, October 2002

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness

of the contents. The information in this document is subject to change without notice. We are not liable for any injury or

loss that results from the use of this equipment.

Safety Instructions

Please read all of these instructions carefully before you use the device. Save this manual for

future reference.

■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with

temperatures not exceeding 40º Celsius (104º Fahrenheit).

■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing

damage to other equipment or injury to persons nearby.

■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the

power supply. Proper air convection is necessary to keep it from overheating.

■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current

labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed

on the equipment’s ratings label.

■Observe all precautions and warnings attached to the equipment.

■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being

damaged by transient over-voltage.

■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power

supply or on other hardware may cause damage, ﬁre or electrical shock.

■Only qualiﬁed service personnel should open the chassis. Opening it yourself could damage the equipment and

invalidate its warranty.

■If any part of the equipment becomes damaged or stops functioning, have it checked by qualiﬁed service personnel.

What the warranty does not cover

■Any product, on which the serial number has been defaced, modiﬁed or removed.

■Damage, deterioration or malfunction resulting from:

□Accident, misuse, neglect, ﬁre, water, lightning, or other acts of nature, unauthorized product modiﬁcation, or

failure to follow instructions supplied with the product.

□Repair or attempted repair by anyone not authorized by us.

□Any damage of the product due to shipment.

□Removal or installation of the product.

□Causes external to the product, such as electric power ﬂuctuation or failure.

□Use of supplies or parts not meeting our speciﬁcations.

□Normal wear and tear.

□Any other causes which does not relate to a product defect.

■Removal, installation, and set-up service charges.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation.

Any changes or modiﬁcations made to this equipment may void the user’s authority to operate this equipment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

■Re-position or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

www.rackmountmart.com

Options

4.1 Option Table

4.2 3G / HD / SD-SDI Broadcast-grade input

4.3 MC Multi-display control solution

4.4 AV3.0 Upgrade : S-Video + BNC & Audio

4.5 21" Touchscreen : Resistive, Capacitive

4.6 48V or 24VDC power

4.7 MIL-type or lockable connector

4.8 TV ( Analog )

4.9 Auto / switch dimming

P.16

P.17

P.18

P.19 - 20

P.21

P.22

P.23

P.24 - 25

P.26

< Part. 4 >

< Part. 3 > Speciﬁcations / OSD

3.1 Product Speciﬁcations

3.2 On-screen Display Operation ( OSD )

3.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP )

P.10 - 11

P.12 - 13

P.14 - 15

< Part. 1 >

1.1 Package Content

1.2 Structure Diagram & Dimension

1.3 Mounting Hardware & Installation

Contents

P. 1

P.2 - 3

P.4 - 5

< Part. 2 >

2.1 Package Content

2.2 Structure Diagram & Dimension

2.3 Mounting Hardware & Installation

P. 6

P.7 - 8

P.9

www.rackmountmart.com

ID-HE21Aw

ID-HE21Pw

■It is very important to mount the equipment in a suitable cabinet or on a stable surface.

■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive

dust, dirt, heat, water, moisture and vibration.

The equipment comes with the standard parts shown in package content. Check and make sure they are

included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

Unpacking

Before Installation

How To Clean Your LCD Monitor

Caution :

■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or

plugging your monitor into an electrical outlet.

■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can

scratch or damage your display. Pressure damage is not covered under warranty.

■Use only cleansers made speciﬁcally for cleaning monitors and monitor screens. Cleansers not made to

clean monitors and monitor screens can scratch the LCD display or strip off the ﬁnish.

■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly

onto the screen or case can cause damage which is not covered under warranty.

■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based

paper product such as paper towels can scratch your LCD screen.

Cleaning Your Monitor

To clean your LCD safely, please follow these steps :

Disconnect the power cord.

Gently wipe the surface using a clean, dry microﬁber cloth. Use as little pressure as possible.

Cleaning Tough Marks and Smudges

To remove tough marks and smudges, please follow these steps :

Disconnect the power cord.

Spray a small amount of non-abrasive cleanser on a microﬁber cloth.

Gently wipe the surface. Use as little pressure as possible.

Wait until your monitor is completely dry before plugging it in and powering it up.

Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your

microﬁber cloth ﬁrst, not directly on the parts you are cleaning.

www.rackmountmart.com

P. 1

< Part 1 >

21" High Brightness LCD display X 1

6ft VGA cable X 1

Power adapter X 1

Power cord X 1

Mounting hardware X 1 pack

- Mounting bracket x 4 pcs

- M4* 6mm screw x 8 pcs

- M4* 50mm screw x 8 pcs

AV3.0 upgrade I/O with advanced features

- An abundance of input connections that include HDMI, DVI-D, VGA, S-Video + BNC and audio

- On-chip Faroudja® DCDi Cinema processing

Audio

Power

out - in - in

Video PC

VGADVI-D

HDMI

S-VideoBNC

Power VGADVI-D

HDMI

Basic I/O

Power VGADVI-D

21" High Brightness LCD Display

< 1.1 > Package Content - ID-HE21Aw

ID-HE21Aw

www.rackmountmart.com

Rear case

LCD panel

Protective 3mm glass

6mm aluminum front bazel

Audio speaker, pair

LCD membrane

Remote sensor

Front view

Rear view

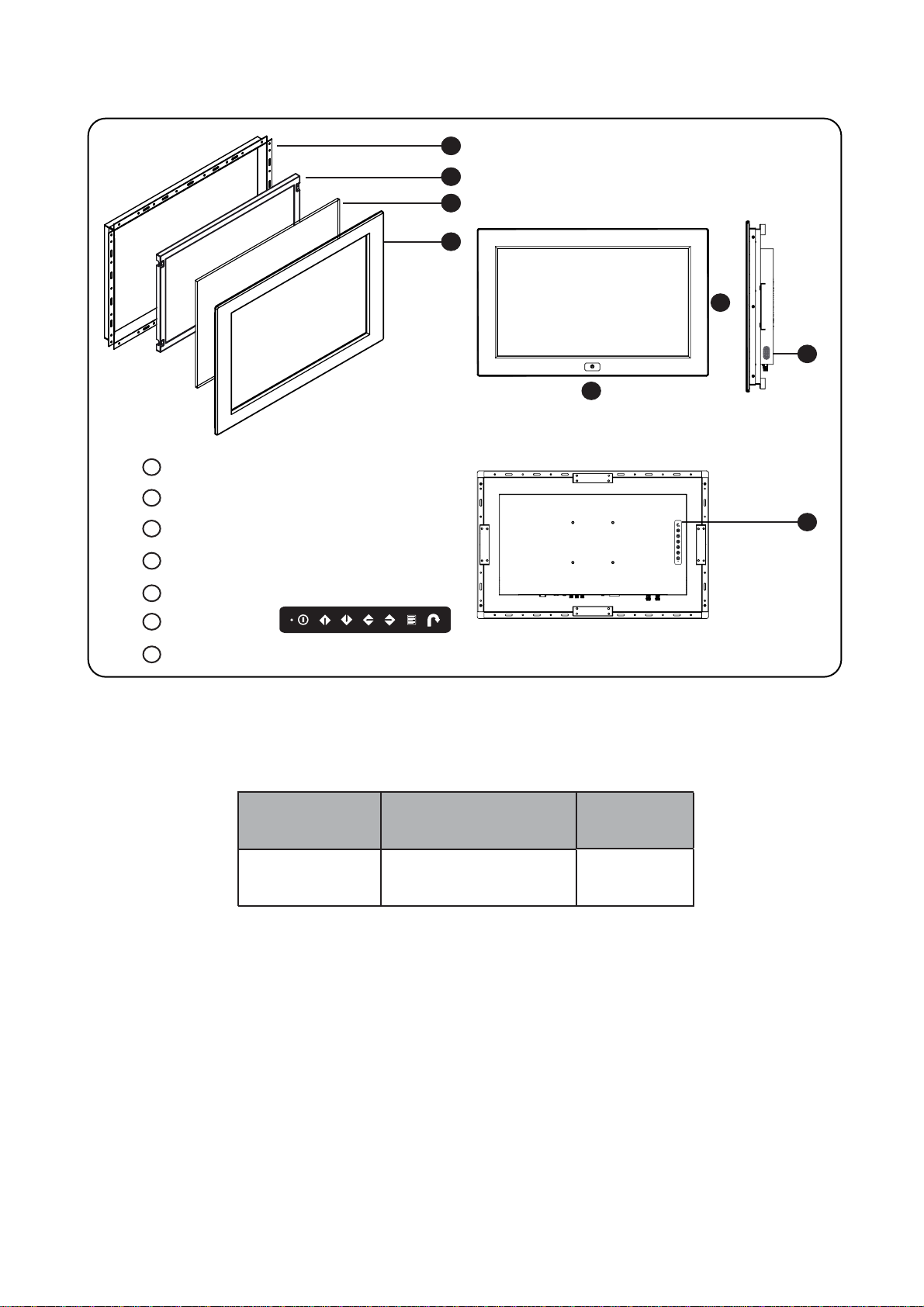

< 1.2 > Structure Diagram - ID-HE21Aw

ID-HE21Aw

P. 2

Model Product Dimension

(W x D x H)

Net

Weight

577.8 x 59.1 x 369.3 mm

22.7 x 2.3 x 14.5 inch

6.9 kg

15.2 lbs

www.rackmountmart.com

ID-HE21Aw

21" High Brightness LCD Display

< 1.2 > Dimension - ID-HE21Aw

P. 3

Front View Side View

Rear View

ID-HE21Aw

UNIT : mm

1mm = 0.03937 inch

Bottom View

www.rackmountmart.com

P. 4

x 4 pcs

Mounting

bracket x 8 pcs

M4*6mm screw

2 3

x 8 pcs

M4*50mm screw

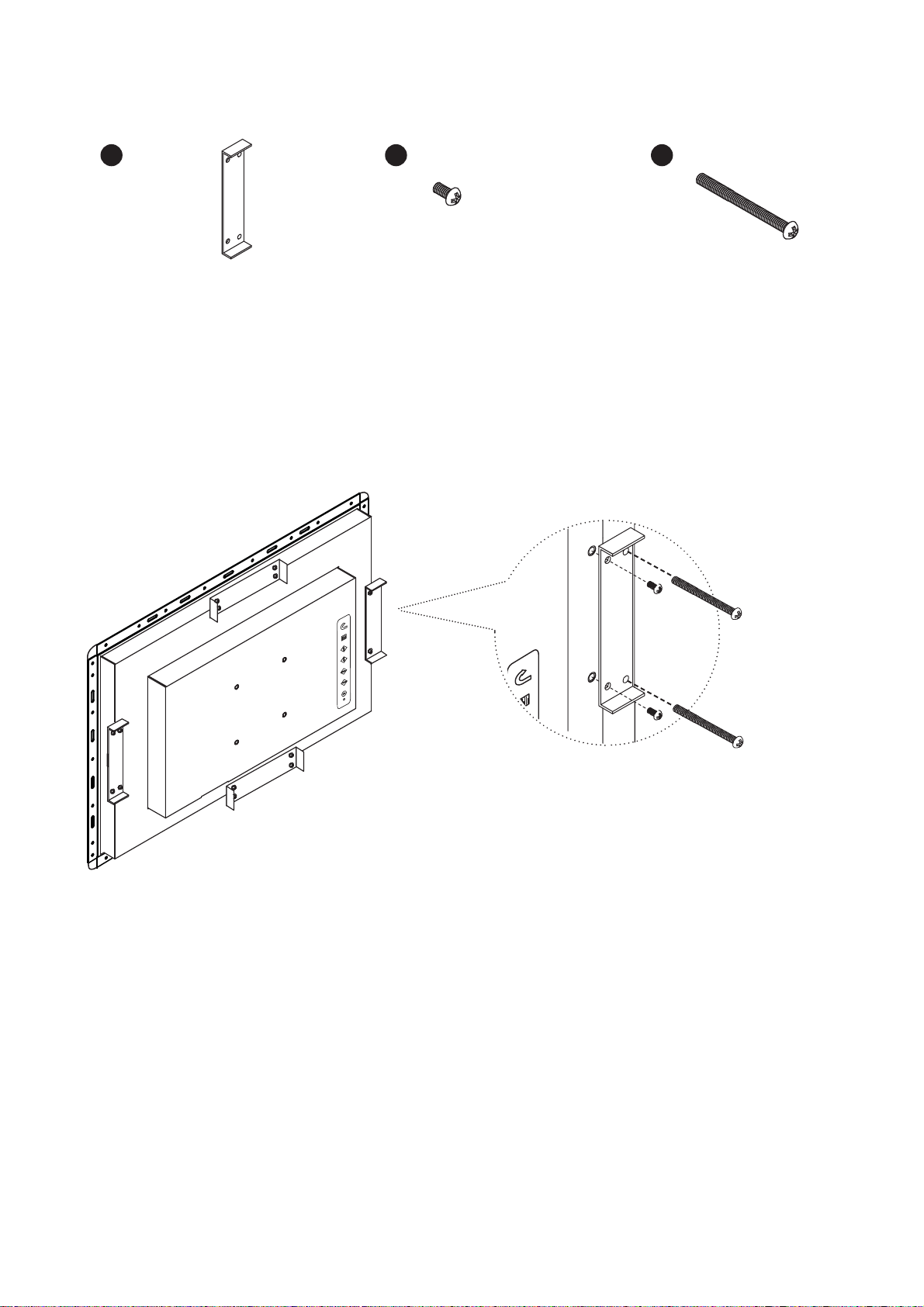

< 1.3 > Panel Mount Installation - ID-HE21Aw

■Install 4 mounting brackets with 8 x M4*6mm screws

■Adjust the LCD panel with 8 x M4*50mm screws and ﬁx it on the surface.

Steps

www.rackmountmart.com

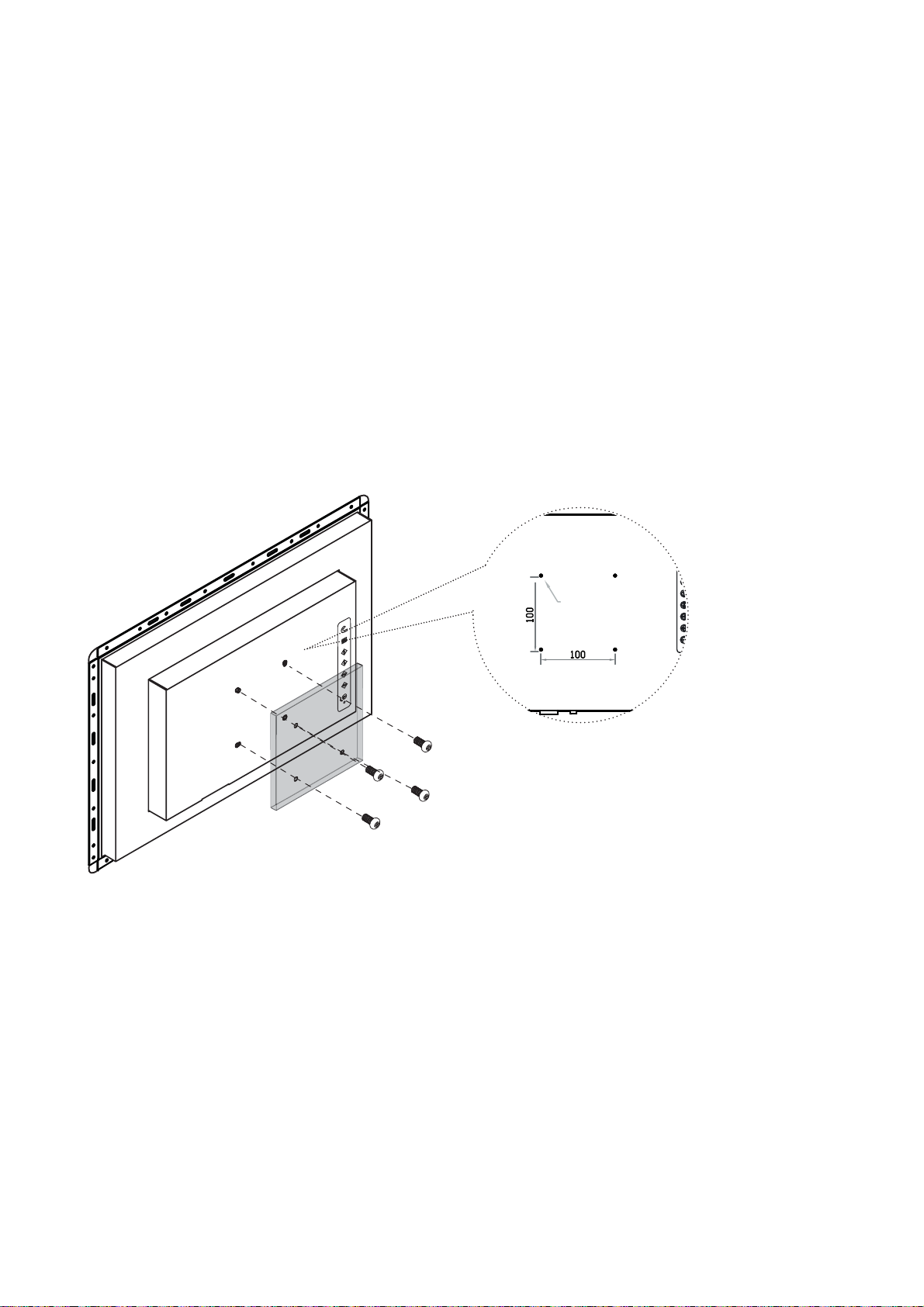

< 1.3 > VESA mount Installation - ID-HE21Aw

■Hardware and M4*4 pcs for VESA mount are not provided

VESA mount ( 100*100mm )

M4 screw

P. 5

www.rackmountmart.com
