Synergy Global Technology ID-E27Aw Manuel utilisateur
User Manual
Aluminum front bezel
Universal Mounting Open Frame
27” FHD 1920 x 1080 LCD
Front NEMA4 / IP65
ID-E27AwN
ID-E27Pw
ID-E27Aw
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
www.RackmountMart.com
< Part. 1 >
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Mounting Hardware & Installation
Contents
P. 1
P.2 - 3
P.4 - 5
< Part. 4 > Options
4.1 Option Table
4.2 3G / HD / SD-SDI Broadcast-grade input
4.3 Multi-display control solution
4.4 Projected Capacitive ( 10-point touch )
4.5 48V or 24VDC power
4.6 MIL-type or lockable connector
4.7 TV ( Analog )
P.17
P.18
P.19
P.20
P.21
P.22
P.23
< Part. 2 >
2.1 Package Content
2.2 Structure Diagram & Dimension
2.3 Mounting Hardware & Installation
P. 6
P.7 - 8
P.9
< Part. 3 > Specifications / OSD / Remote Controller
3.1 Product Specifications
3.2 On-screen Display Operation ( OSD )
3.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
3.4 Remote Controller ( RC-2 )
P.10 - 11
P.12 - 13
P.14 - 15
P.16
www.RackmountMart.com
MC
ID-E27Aw / ID-E27AwN
ID-E27Pw
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfiber cloth first, not directly on the parts you are cleaning.
3
4
www.RackmountMart.com
VGADVI-D
HDMI Audio
in S-Video Power
R C A Audio
out
P. 1
< Part 1 >
27” FHD LCD display X 1
6ft VGA cable X 1
Power cord X 1
Remote controller X 1
Wall-mount bracket set X 1
Basic I/O
www.RackmountMart.com
< 1.1 > Package Content - ID-E27Aw / ID-E27AwN
ID-E27Aw / ID-E27AwN
7

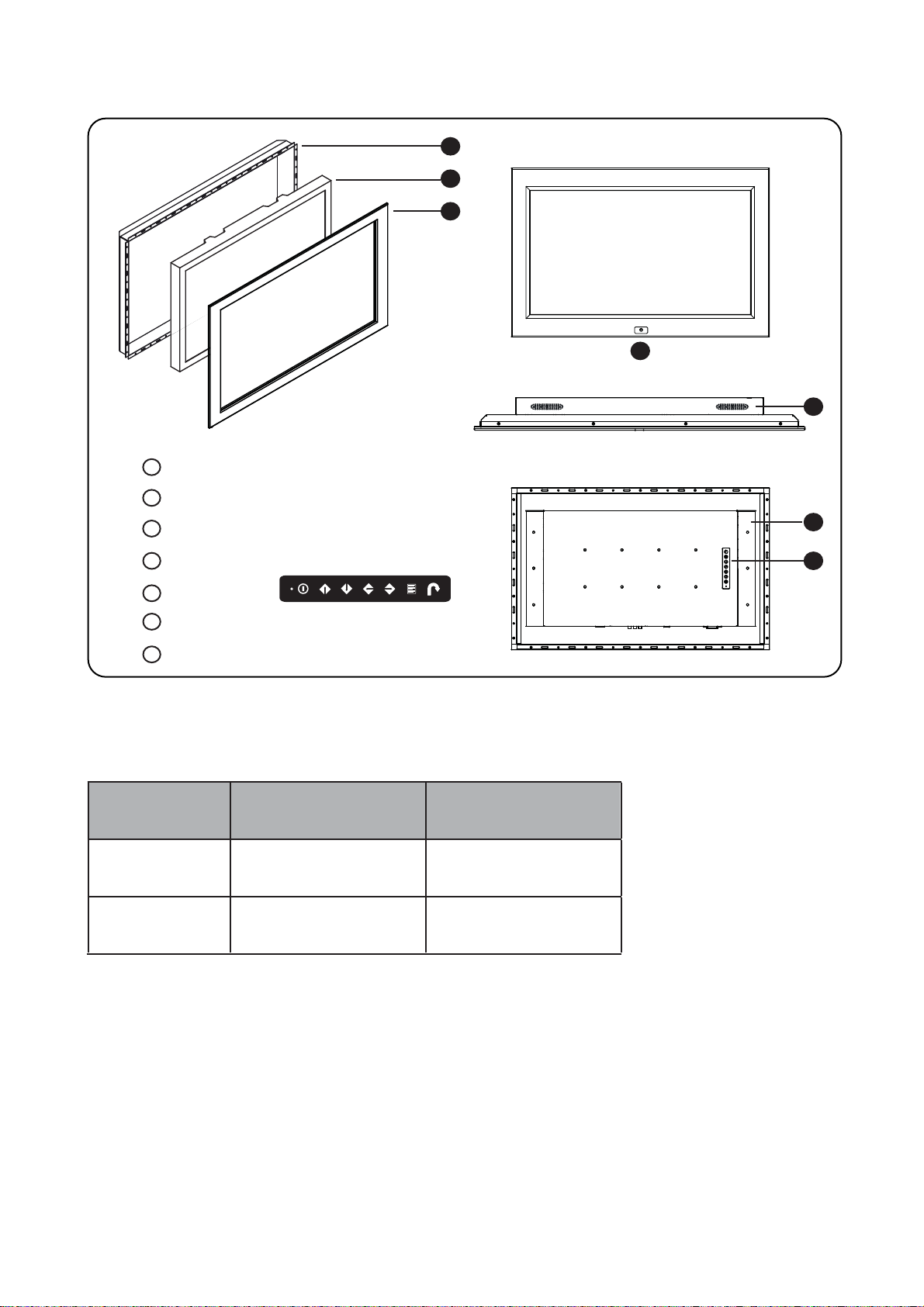

Front view
Rear view
Rear case
LCD panel
6mm aluminum front bazel
Audio speaker, pair
LCD membrane
Wall-mount bracket
Remote sensor
1
2
3
4
5
6
Top view
7
5
P. 2
4
1
2
3
6
Model Product Dimension
(W x D x H)
Net
Weight
699 x 68 x 438 mm
27.5 x 2.7 x 17.2 inch
16.8 kg
37 lbs
699 x 68 x 438 mm
27.5 x 2.7 x 17.2 inch
18.6 kg
40.9 lbs
www.RackmountMart.com
< 1.2 > Structure Diagram - ID-E27Aw / ID-E27AwN
ID-E27Aw
ID-E27AwN
P. 3
Front View Side View
Rear View
UNIT : mm
1mm = 0.03937 inch
Bottom View
www.RackmountMart.com
< 1.2 > Dimension - ID-E27Aw / ID-E27AwN
Step
■Install left & right front wall-mount brackets at
the rear side of the LCD shown above.
■M5 screw x 8 pcs included ( Left & right side ).
1
Front wall-mount bracket
Rear side
Step
■Install left & right rear wall-mount brackets on
the wall shown above.
■6 x M10 screws required ( Left & right side ).
M10 screw sets are not provided.
2
Rear wall-mount bracket
Wall
Step
■Attach the LCD to the rear wall-mount brackets
on the wall.
3
Wall
Wall WallLCD
Installation Completed.
Step 4
P. 4
www.RackmountMart.com
< 1.3 > Wall-mount Installation - ID-E27Aw / ID-E27AwN
M6 screw
■Hardware and M6*8 pcs for VESA mount are not provided
VESA mount ( 100*100mm )
P. 5
www.RackmountMart.com
< 1.3 > VESA Installation - ID-E27Aw / ID-E27AwN
