Symmetry MOBIO 86-009077 Manuel utilisateur
#2Phillips Screwdriver
A(x1) B(x2)
C(x2) D(x4)
No. C6289 Rev. A
Release Date: 4/30/2020
IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY.
REQUIRED TOOLS86-009077/86-009185

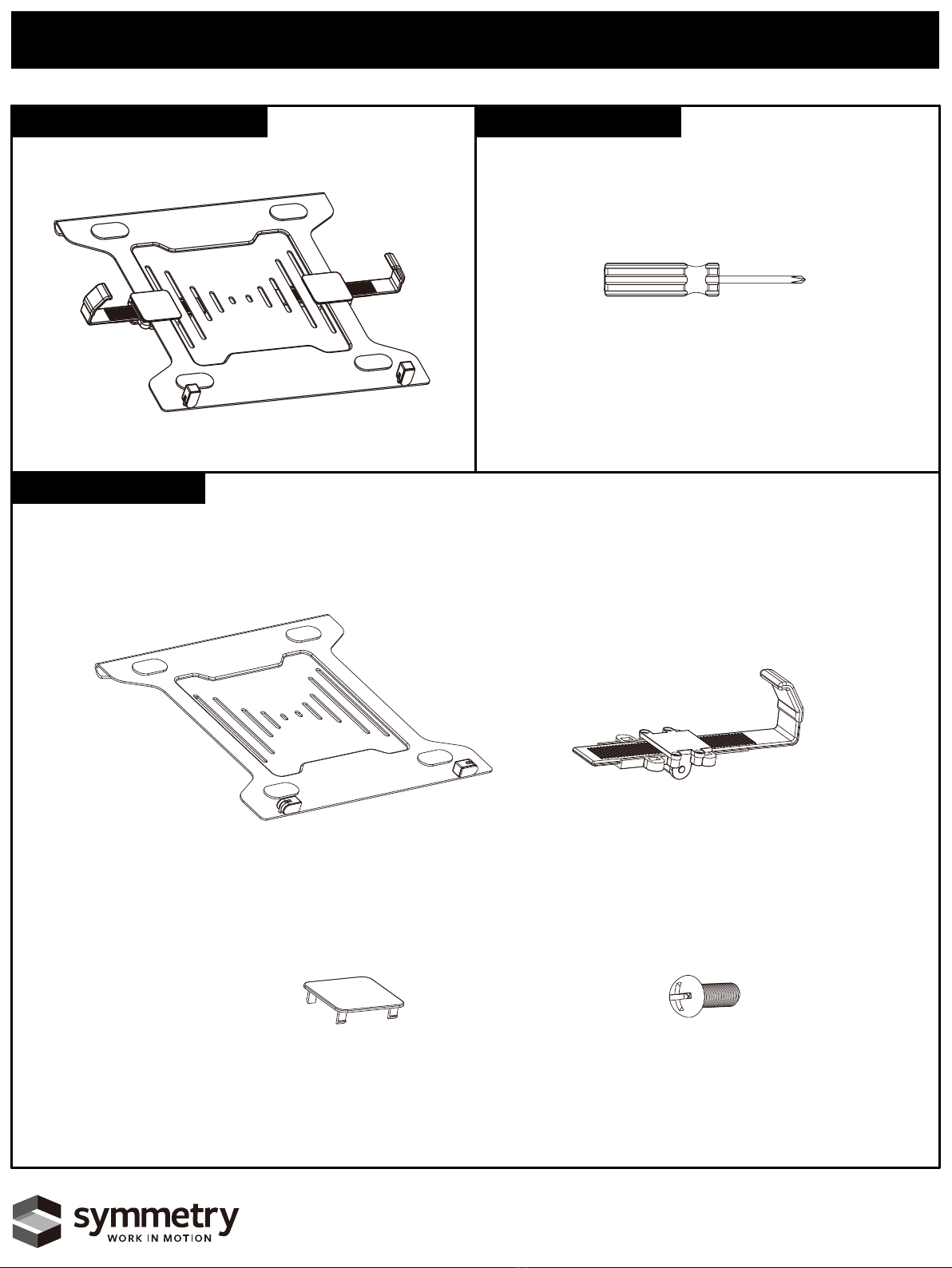

COMPONENTS
MOBIO MONITOR ARM LAPTOP TRAY LD
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
1
MOBIO MONITOR ARM LAPTOP TRAY LD
C
B
A
1
2

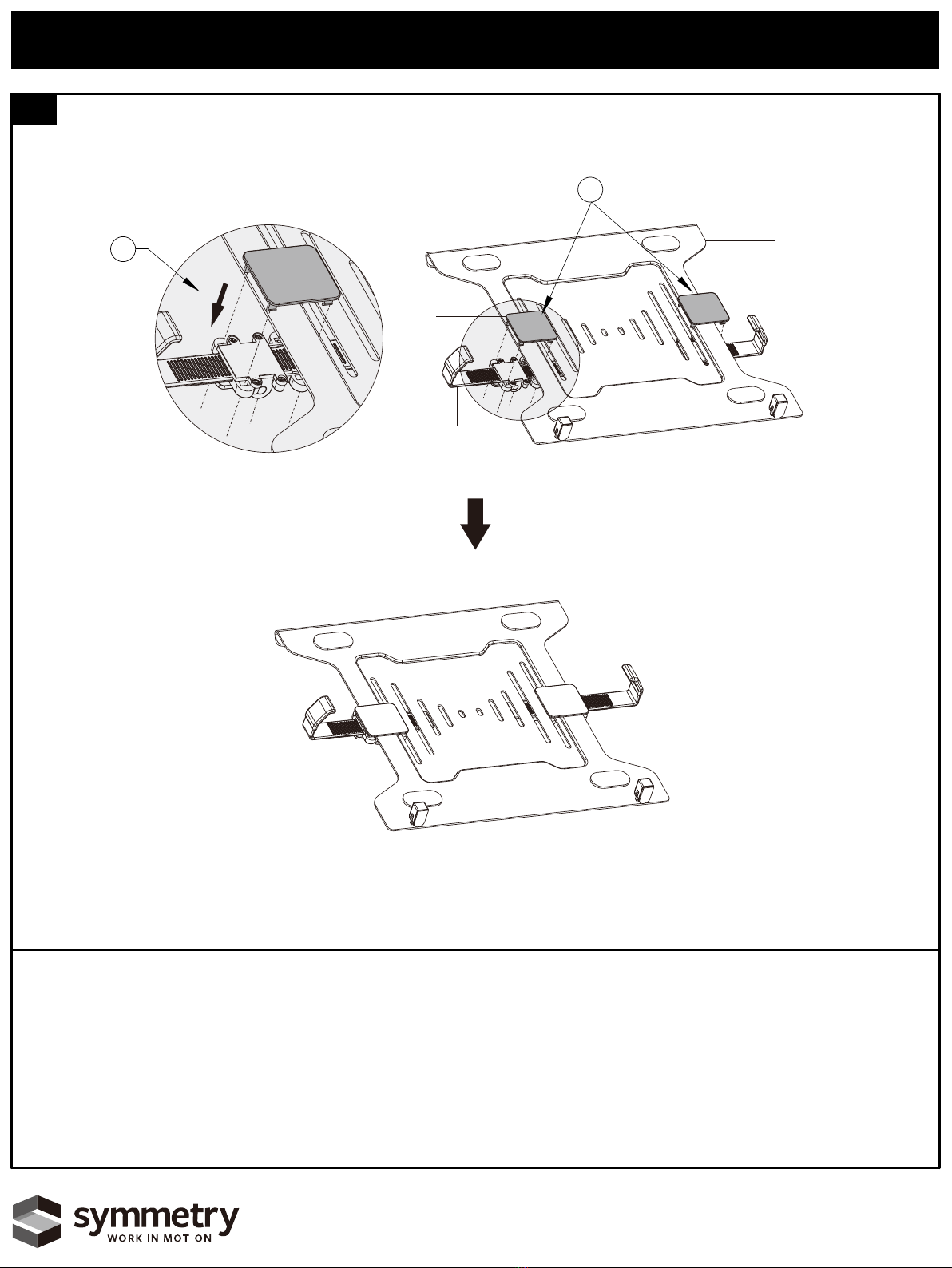

1. Place clamps on back side of tray in the desired position.
2. Align cover plates as shown and snap in place.
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
D
2
MOBIO MONITOR ARM LAPTOP TRAY LD
1

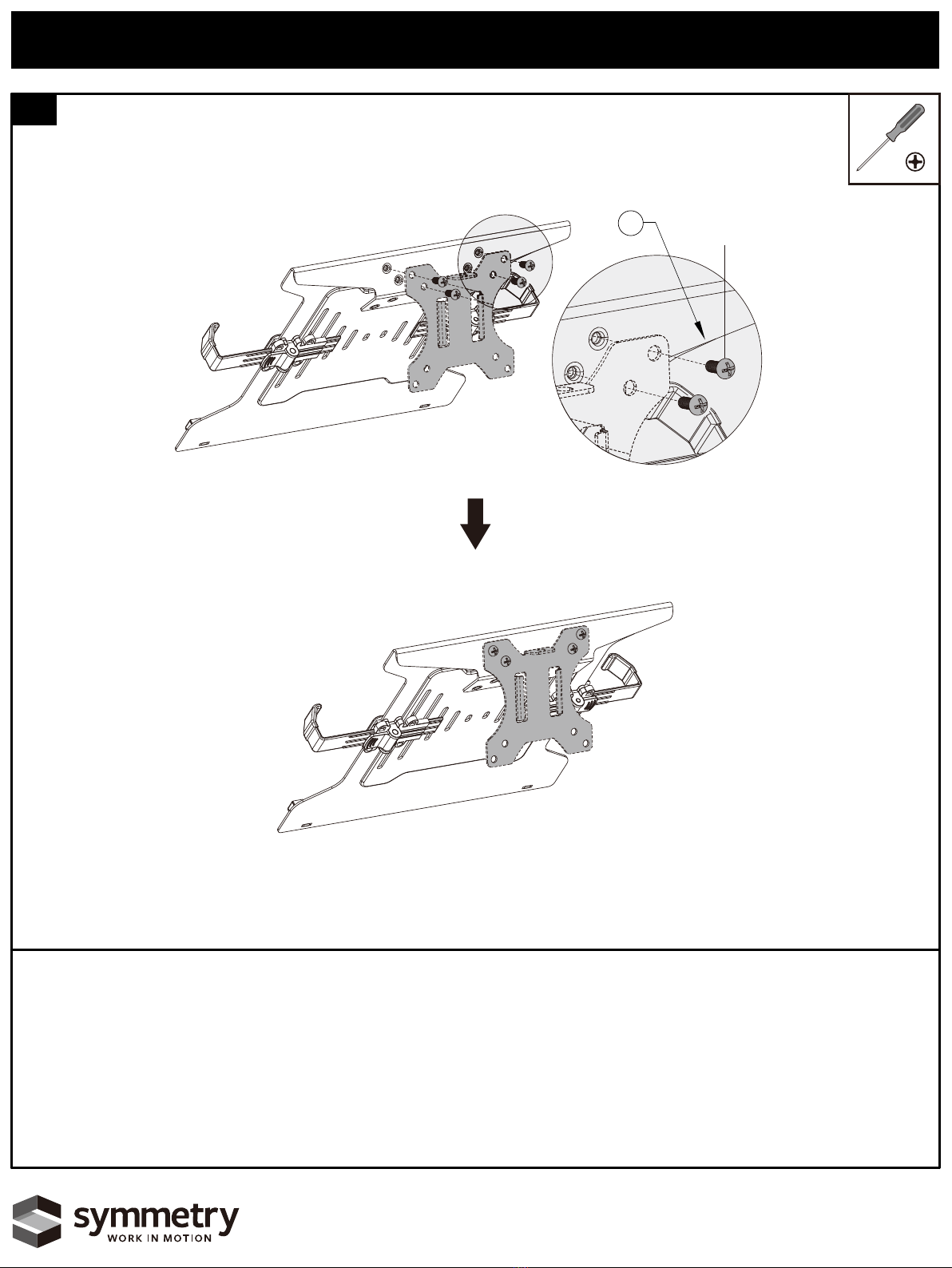

1. Align laptop tray with monitor arm plate (not included) and tighten 4
Phillips screws.
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
3
MOBIO MONITOR ARM LAPTOP TRAY LD
1

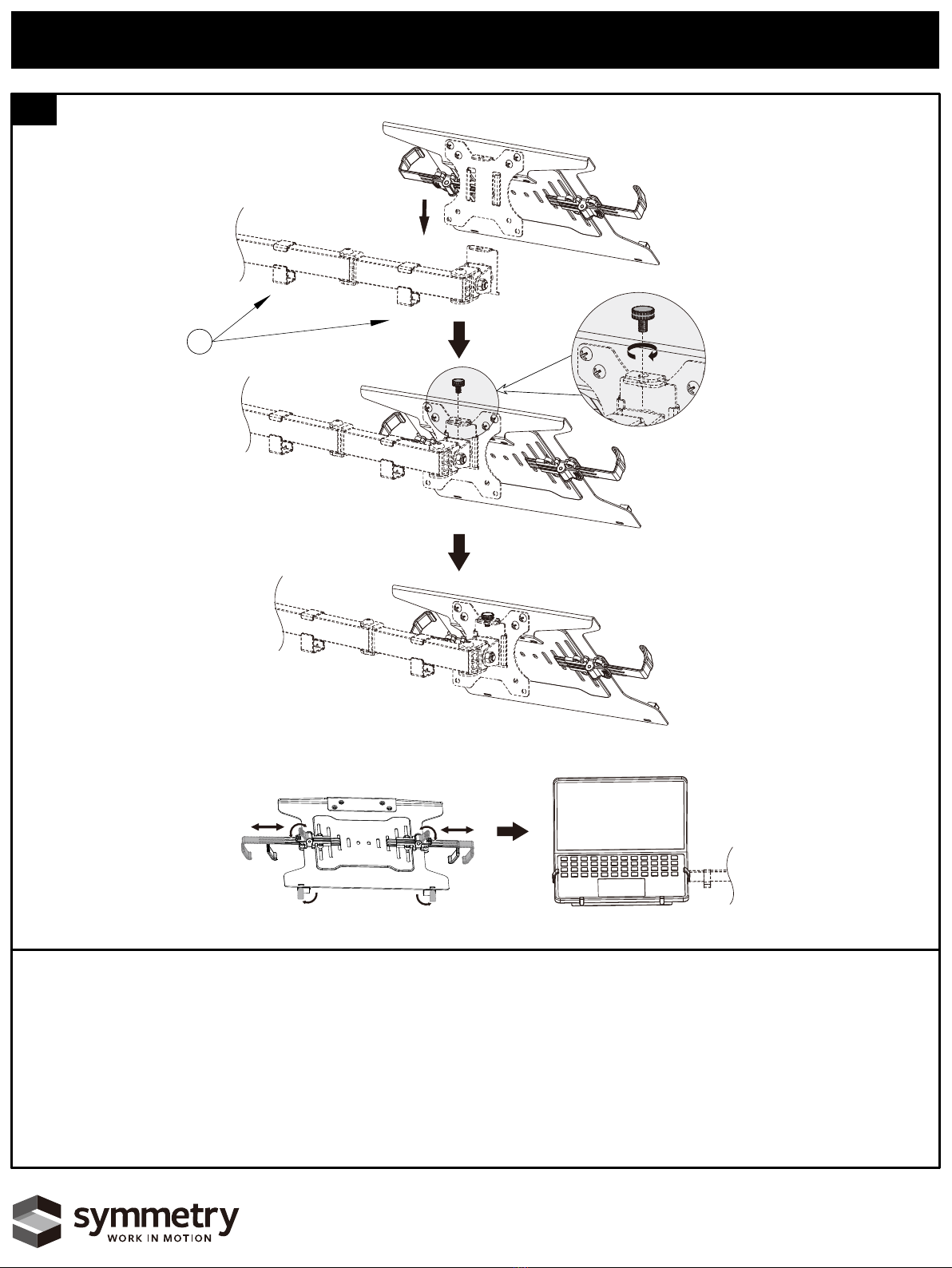

1. Position laptop tray as desired and hand tighten knob to secure tray on
arm.
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
#2 Phillips Screwdriver
M5x12mm Screw
M-B
M4x12mm Screw
M-A
D5 Washer
M-C
A(x1)
B(x1)
H(x1)
4mm(x1)
N
6mm(x1)
O
P(x1) M4x12(x4)
M-A
M5x12(x4)
M-B
D5(x4)
M-C
I(x1) J(x1) K(x1) L(x2) M(x3)
C(x1) D(x1) E(x1) F(x4) G(x1)
No. C6290 Rev. A
Release Date: 4/30/2020
IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY.
REQUIRED TOOLS86-009061/86-009066

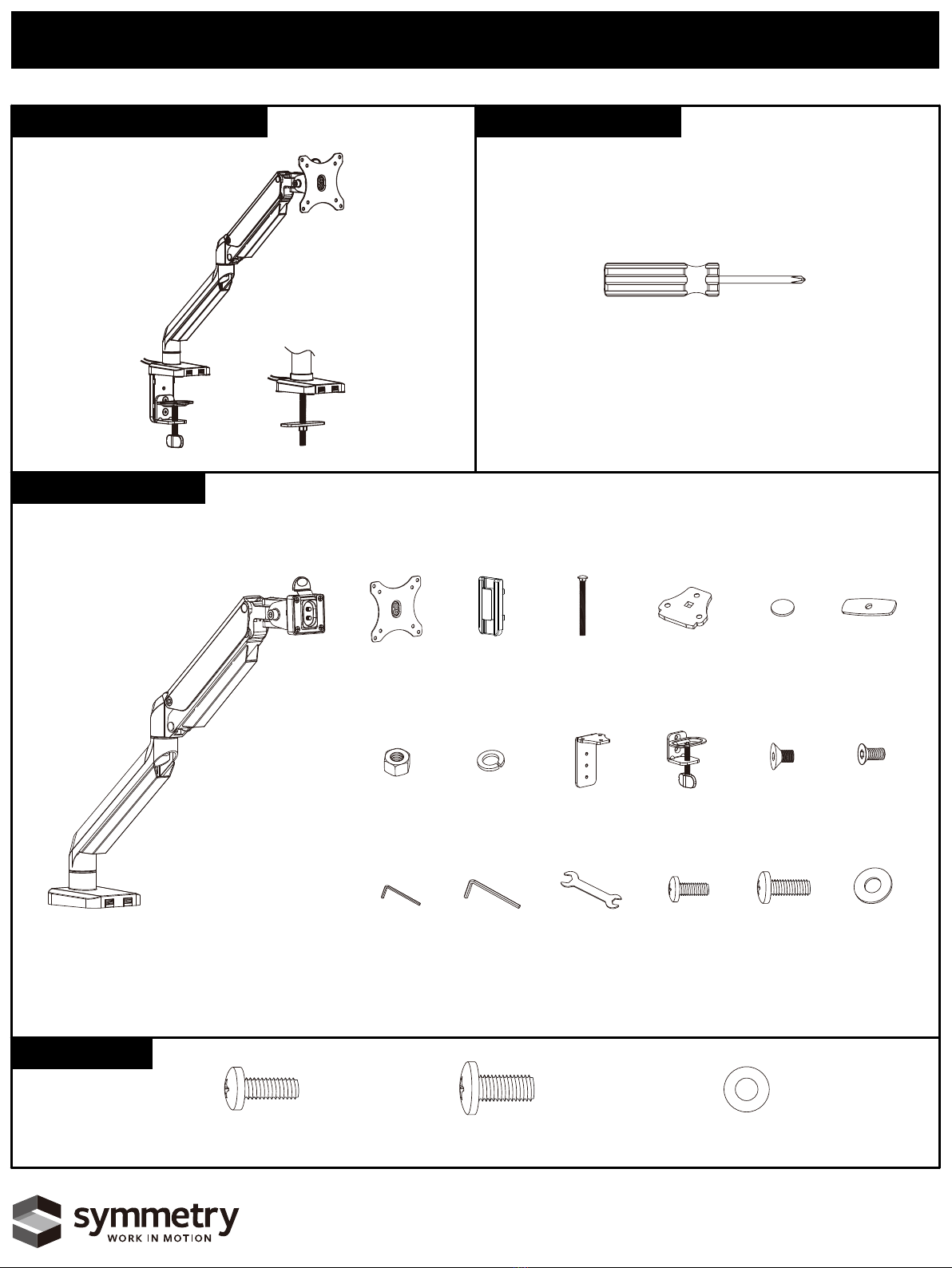

COMPONENTS
1:1 SCALE
MOBIO MONITOR ARM, SINGLE, DESK MOUNT, USB
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
MF
F
N
J
LL
KKC
55-85mm 10-65mm
1a
MOBIO MONITOR ARM, SINGLE, DESK MOUNT, USB

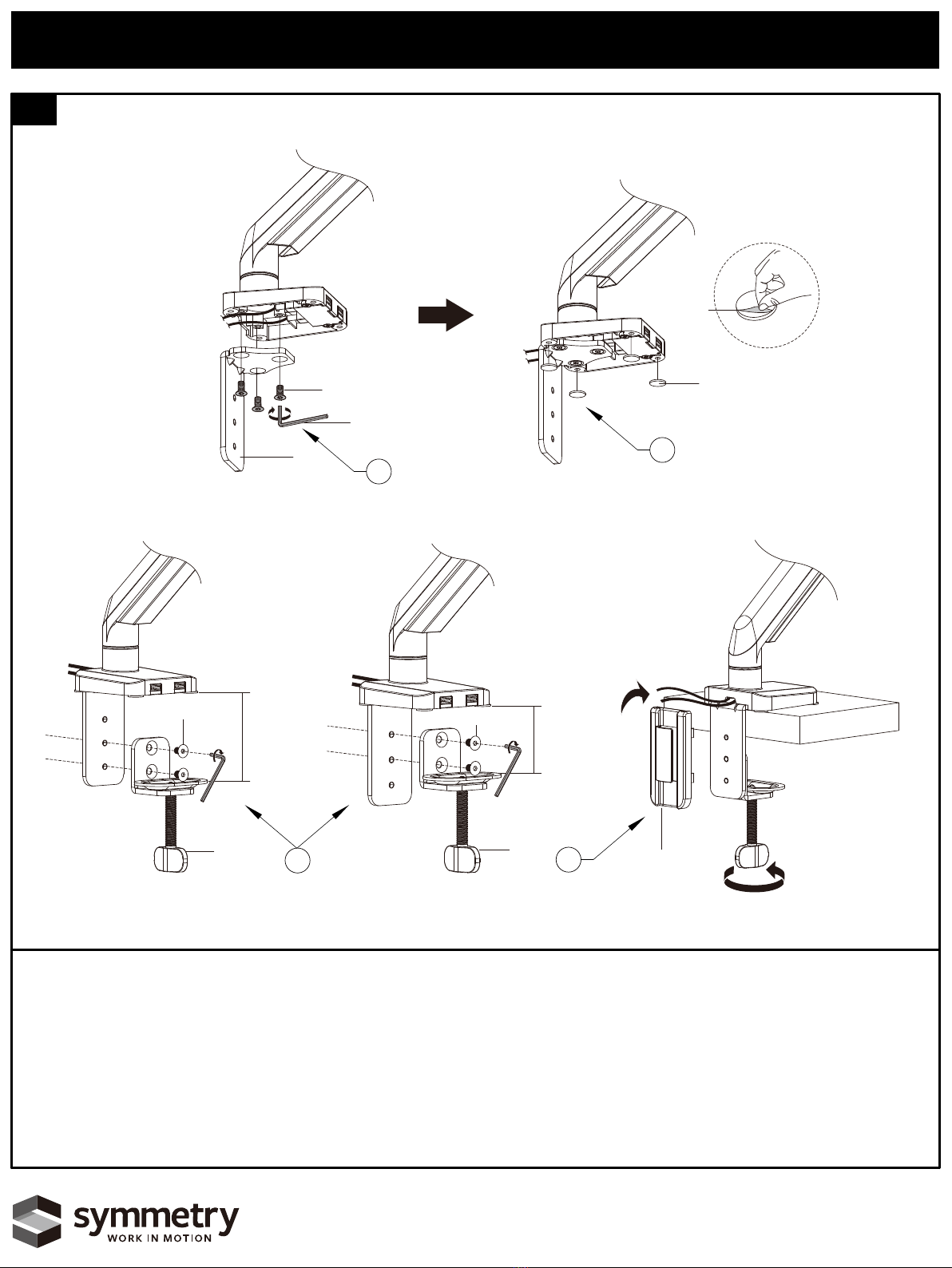

TABLE EDGE MOUNTING
Note: Clamp position will change depending on table thickness.
1. Using the provided Allen wrench, fasten three flathead screws
connecting the clamp plate to the underside of the pole.
2. After removing backing from pads, place them on corners of the base.
3. Using the provided Allen wrench, fasten 2 flathead screws connecting
the clamp to the clamp plate.
4. Place cover on back of clamp plate and tuck cable in channel.
1
2
34
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
E
M
F
G
I
HP
N
D
1b
MOBIO MONITOR ARM, SINGLE, DESK MOUNT, USB

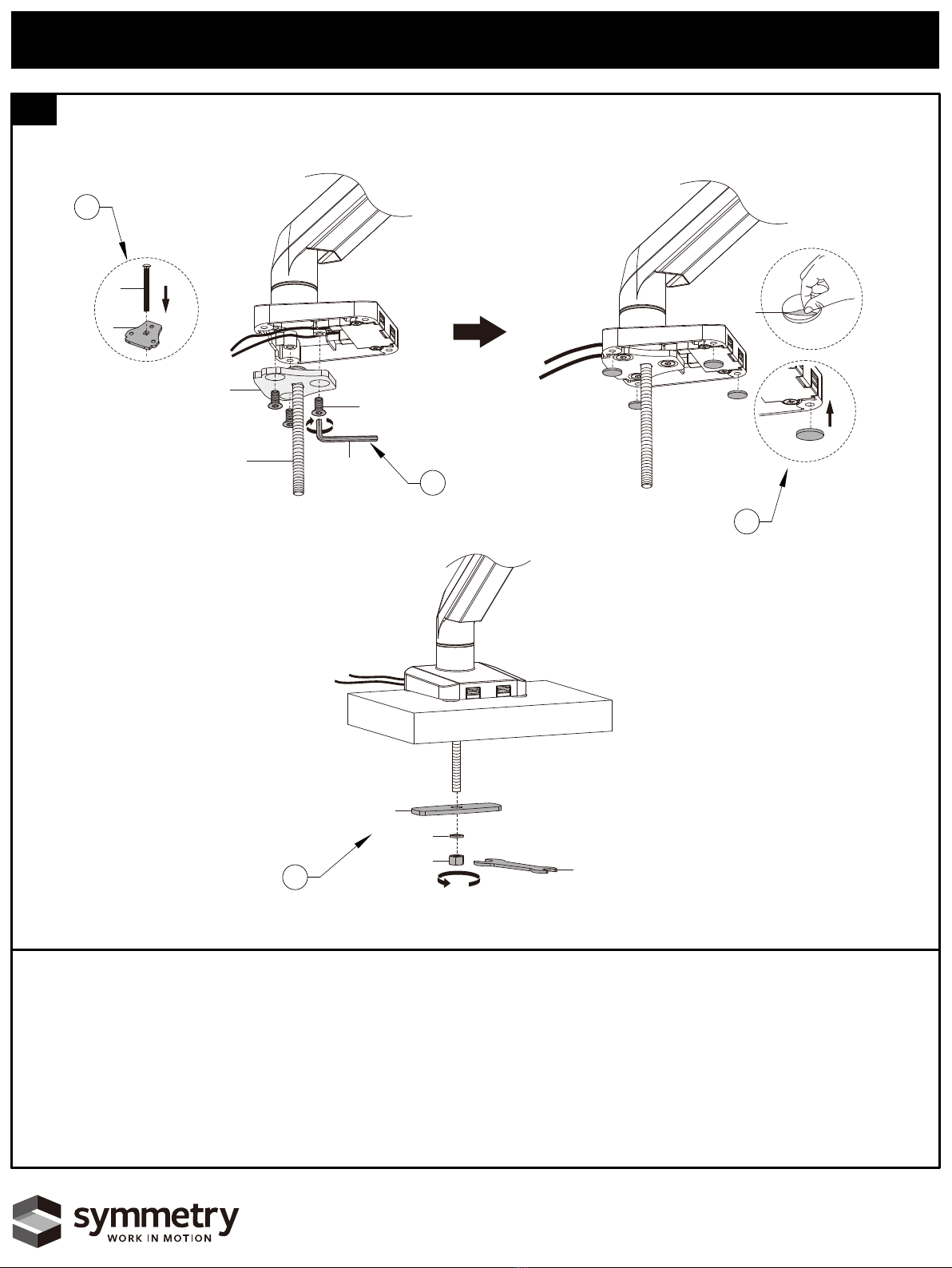

GROMMET MOUNTING
4
2
3
E
D
1
1. Place the long bolt through the clamp plate.
2. Using the provided Allen wrench, fasten three flathead screws
connecting the clamp plate to the underside of the pole.
3. After removing backing from pads, place them on corners of the base.
4. Using the provided wrench tighten the nut, plate, and lock washer
against surface.
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
B
M-A
M-B
M-C
2
MOBIO MONITOR ARM, SINGLE, DESK MOUNT, USB
Note: Make sure to select correct length screw for monitor,
failure to do so may cause damage to the monitor or cause
monitor to dismount from plate.
12

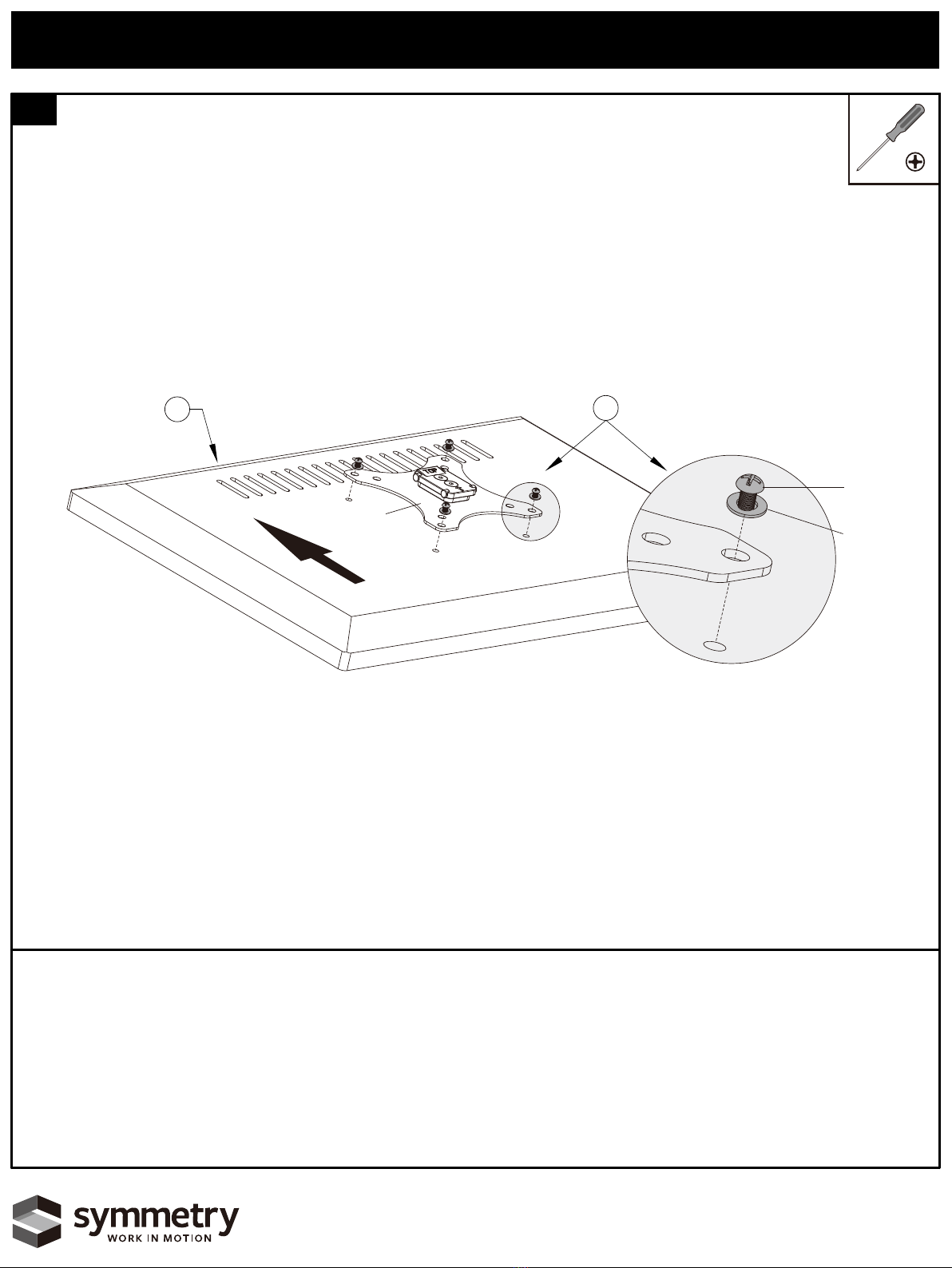

1. Place the monitor on a flat surface (possibly a table with a soft towel to
prevent scratches to the monitor screen)
2. Align the mounting plate on monitor and tighten the screws using a
Phillips screwdriver.
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
13
MOBIO MONITOR ARM, SINGLE, DESK MOUNT, USB
1
2

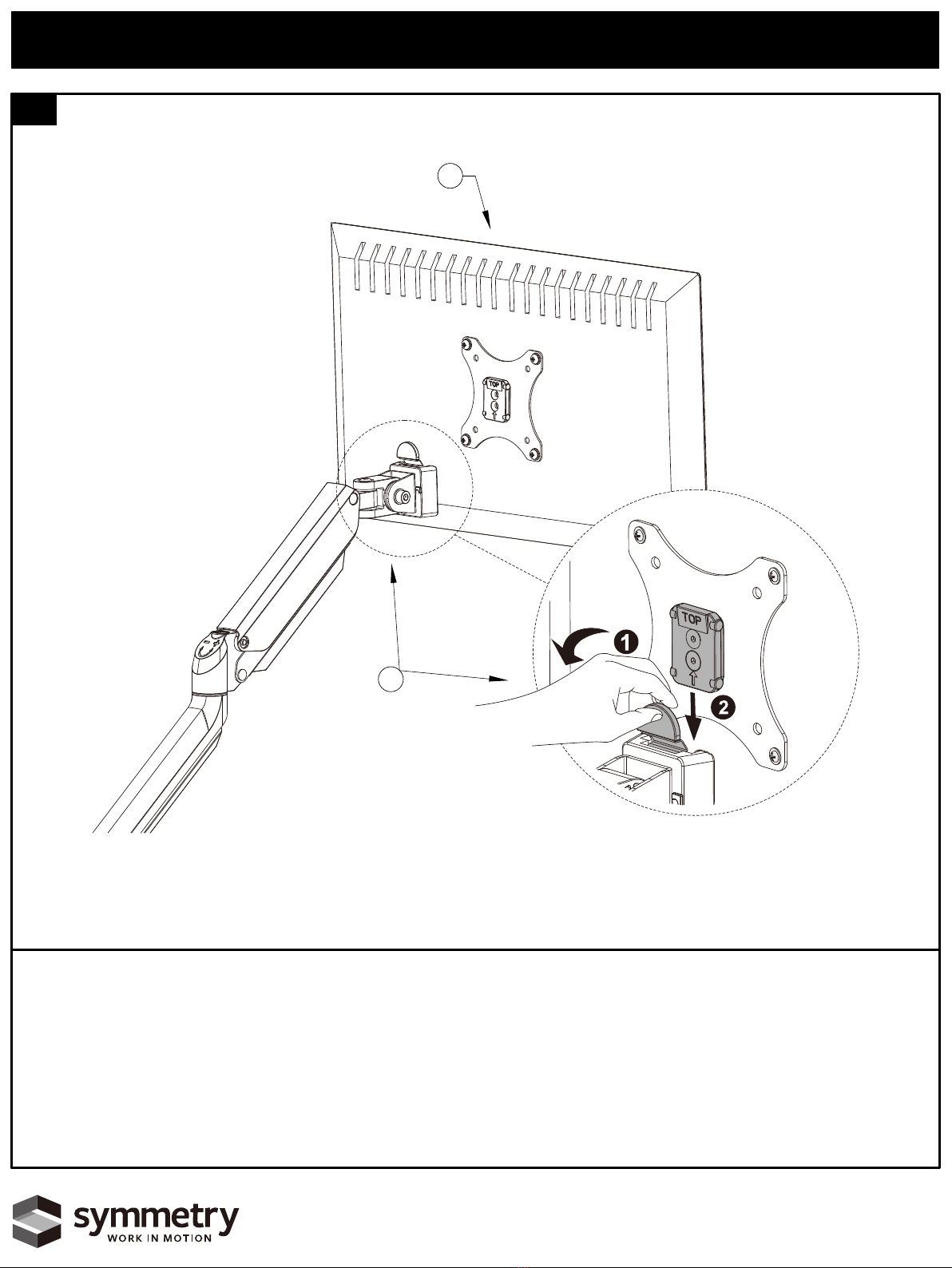

1. Using two hands, move monitor into position over end of arm.
2. While still holding monitor, have another person hold the spring open
while sliding the monitor in place.
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
O
O
14
MOBIO MONITOR ARM, SINGLE, DESK MOUNT, USB
1

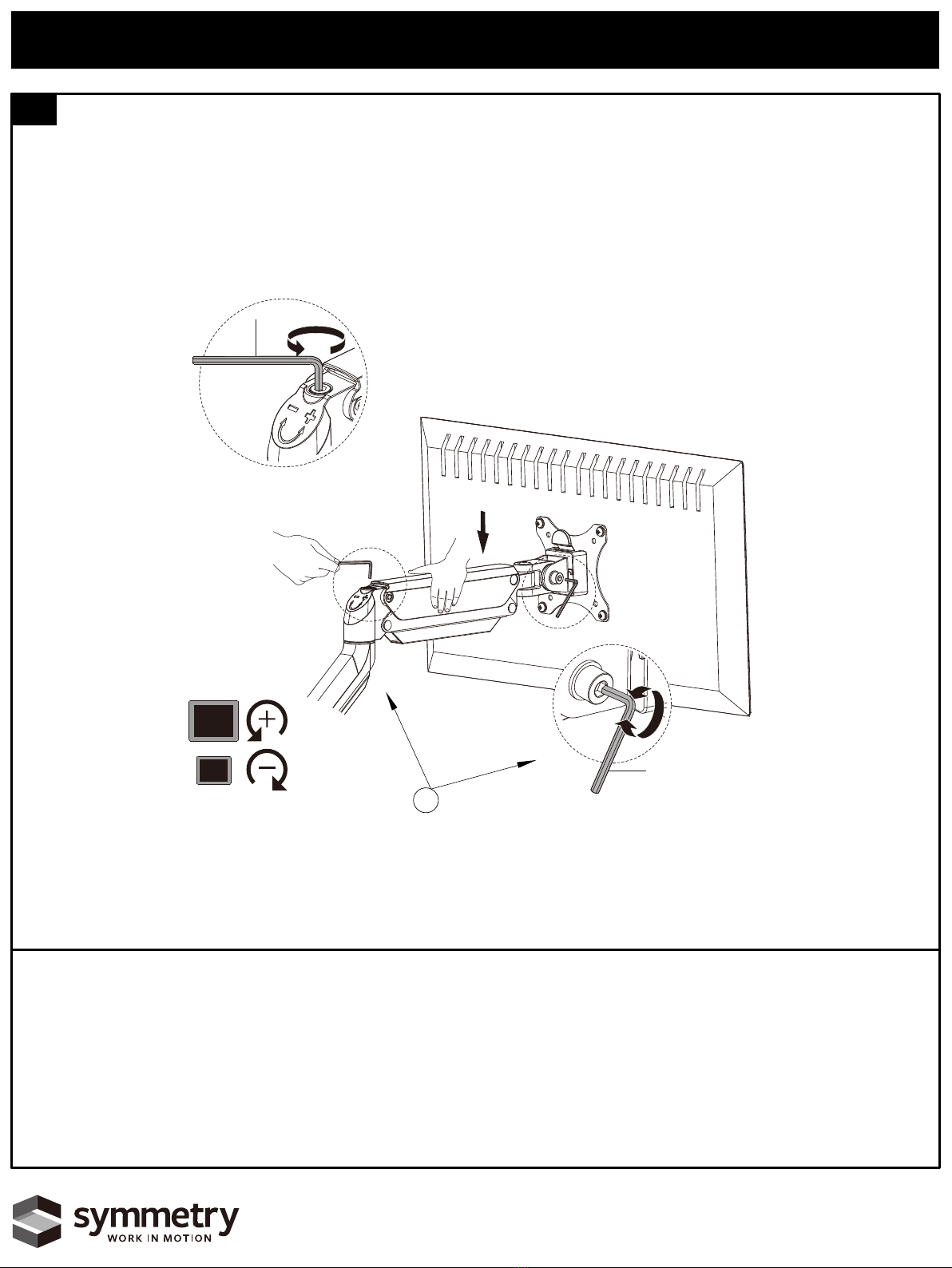

1. Depending on size of monitor, you may have to adjust the arm tension.
Modify arm tension as shown.
For more information, visit www.symmetryoffice.com.
To report any issues with this product, please contact our customer service department at (888) 552-5699.
