Swegon WISE Parasol Zenith 600 Manuel utilisateur

PARASOLc

Installation – Commissioning – Maintenance 20220302

Art. 942428007

Content / Innehåll

Installation / Montering ..................................... 2

Water connections / Vattenanslutning......................... 3

Air connection / Luftanslutning ................................... 4

Commissioning / Injustering .............................. 5

Maintenance / Skötsel ........................................ 7

Symbols / Symboler

Warning/Caution!

Varning/Observera!

PARASOLc

2Swegon reserves the right to alter specications 20220302

PARASOL 600 PARASOL 1200

Installation / Montering

20220302 Swegon reserves the right to alter specications

PARASOLc

PARASOL 600 PARASOL 1200

Ø 12



Water connections / Vattenanslutning

PARASOL 600 / 600 PF

600

Värme retur/

Heating return

Kyla tillopp/

Cooling supply

Kyla retur/

Cooling return

Värme tillopp/

Heating supply

B2 B1 A1

Water connections with factory ﬁtted valves

Vattenanslutning med fabriksmonterade ventiler

A1 Inlet, chilled water/

Tillopp kylvatten ø 12 × 1.0 mm (Cu)

A2 Return, chilled water/

Retur kylvatten

male threads, DN (1/2”) /

utvändig gänga, DN (1/2”)

B1 Inlet, heated water/

Tillopp värmevatten ø 12 × 1.0 mm (Cu)

B2 Return, heated water/

Retur värmevatten

male threads, DN (1/2”) /

utvändig gänga, DN (1/2”)

PARASOL 1200 / 1200 PF

1200

Värme retur/

Heating return

Kyla tillopp/

Cooling supply

Kyla retur/

Cooling return

Värme tillopp/

Heating supply

B2 B1

A1 A2

Water connections without valves

Vattenanslutning utan ventiler

A1 Inlet, chilled water/

Tillopp kylvatten ø 12 × 1.0 mm (Cu)

A2 Return, chilled water/

Retur kylvatten ø 12 × 1.0 mm (Cu)

B1 Inlet, heated water/

Tillopp värmevatten ø 12 × 1.0 mm (Cu)

B2 Return, heated water/

Retur värmevatten ø 12 × 1.0 mm (Cu)

Connection dimensions / Anslutningsdimensioner:

N.B!

Use support sleeves inside the pipes

together with compression ring couplings.

OBS!

Använd stödhylsor i rören tillsammans med

klämringskopplingar.

PARASOLc

4Swegon reserves the right to alter specications 20220302

Spjället skall alltid monteras med vredet till vänster, sett i primär-

luftens riktning.

Spjeldet skal alltid monteres med håndtaket til venstre, sett i primær-

luftretningen.

Spjældet skal altid monteres med grebet til venstre set i primær-

luftens retning,

Pelti tulee aina asentaa niin, että säätönuppi on ensiöilman

virtaussuuntaan katsottuna vasemmalla puolella.

The damper must always be mounted with the knob to the left

viewed in the direction of primary air ﬂow.

Die Klappe immer mit dem Drehknopf auf der linken Seite montieren

(von der Primärluftrichtung aus gesehen).

le registre doit toujours être monté avec le bouton poignée côté

gauche par rapport au sens du débit d’air primaire.

La compuerta se debe montar siempre con la manija en el lado izqui-

erdo, vista en la dirección del caudal de aire primario.

Il registro di ﬂusso deve sempre essere montato con il pomello rivolto

a sinistra rispetto alla direzione della portata d'aria primaria.

Unit /

Enhet

Airﬂow variant /

Luftﬂödesvariant

A =

PARASOL 600 MF Ø 125

PARASOL 1200 LF Ø 125

PARASOL 1200 MF Ø 125

PARASOL 1200 HF Ø 125

PARASOL 1200 PF Ø 160

Air connection / Luftanslutning

20220302 Swegon reserves the right to alter specications

PARASOLc

Water/Vatten

Side/Sida

1 2 3 4

Air/Luft

Nozzle conﬁguration /

Dyskonﬁguration

H M C L

H =

q = k · √p [l/s]

p = [Pa]

i()

[pi Pa]

q [l/s]

k = k-factor/-faktor

1 x 8

T-25

Fan-shape

X-shape

Commissioning / Injustering

PARASOLc

6Swegon reserves the right to alter specications 20220302

1200

Värmeretur/

Heatingreturn

Kylatillopp/

Coolingsupply

Kylaretur/

Coolingreturn

Värmetillopp/

Heatingsupply

1200

Värmeretur/

Heatingreturn

Kylatillopp/

Coolingsupply

Kylaretur/

Coolingreturn

Värmetillopp/

Heatingsupply

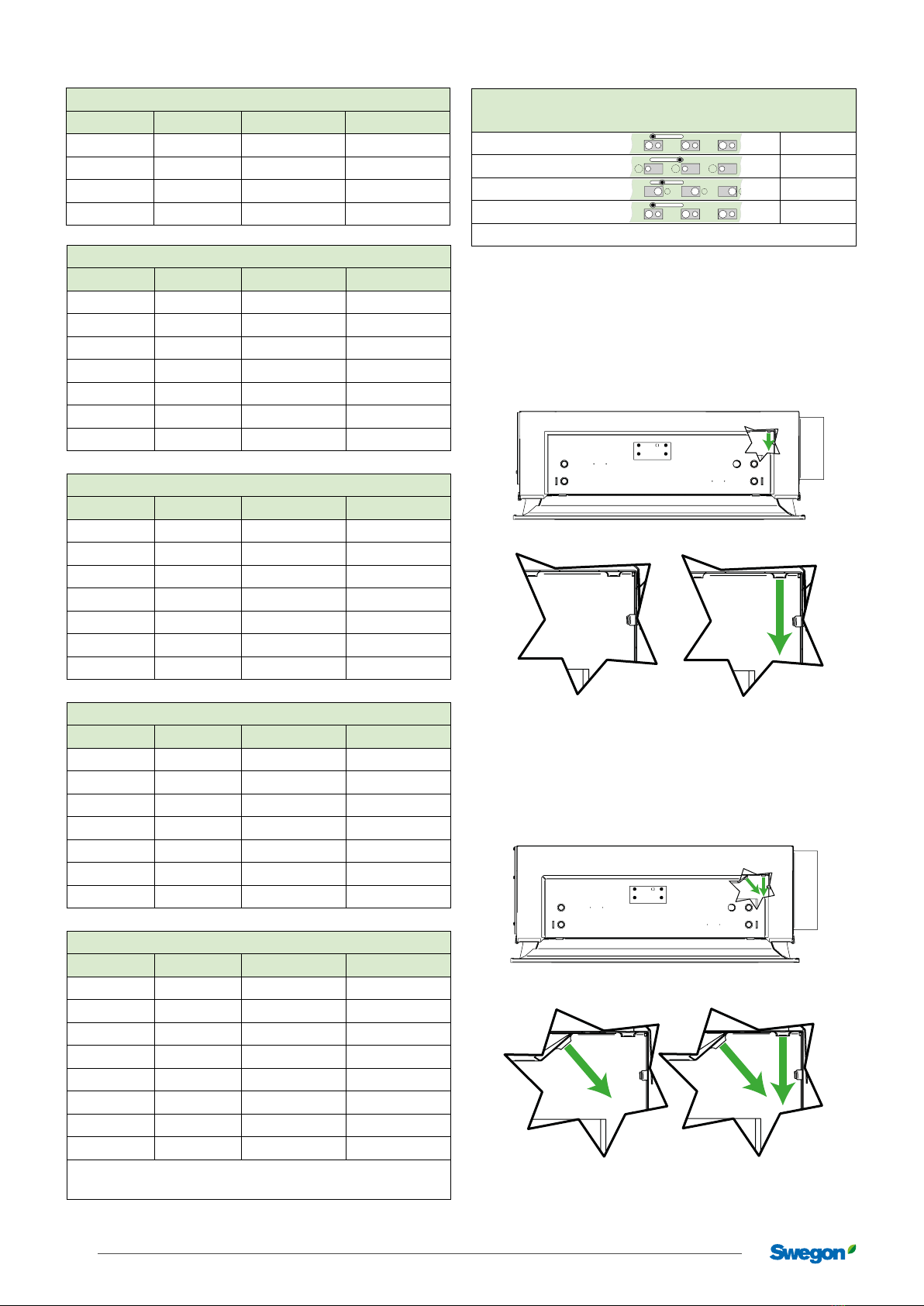

PARASOL c 1200 LF / Double-module unit

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

LF L1&3 short/kort 0,124

LF L 2&4 long/lång 0,328

LF M1&3 short/kort 0,176

LF M 2&4 long/lång 0,464

LF H1&3 short/kort 0,300

LF H 2&4 long/lång 0,792

LF C 1, 2, 3, 4 0,000

PARASOL c 1200 MF / Double-module unit

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

MF L1&3 short/kort 0,176

MF L 2&4 long/lång 0,464

MF M1&3 short/kort 0,253

MF M 2&4 long/lång 0,667

MF H1&3 short/kort 0,429

MF H 2&4 long/lång 1,131

MF C 1, 2, 3, 4 0,000

PARASOL c 1200 HF / Double-module unit

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

HF L1&3 short/kort 0,253

HF L 2&4 long/lång 0,667

HF M1&3 short/kort 0,440

HF M 2&4 long/lång 1,160

HF H1&3 short/kort 0,693

HF H 2&4 long/lång 1,827

HF C 1, 2, 3, 4 0,000

PARASOL c 1200 PF / Double-module unit

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

PF L1&3 short/kort 0,842

PF L 2&4 long/lång 2,221

PF M1&3 short/kort 0,991

PF M 2&4 long/lång 2,612

PF H1&3 short/kort 1,211

PF H 2&4 long/lång 3,192

PF C* 1&3 short/kort 0,556

PF C* 2&4 long/lång 1,467

* Parasol c 1200 PF with nozzle C is not completely closed

* Parasol c 1200 PF med dysa C är inte helt stängd

PARASOL c 600 MF / Single-module unit

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

MF L - 0,253

MF M - 0,440

MF H - 0,693

MF C - 0,000

Example Product Code/Exempel, produktkod:

PARASOL c 1192-A-HF-HLMH

Side/Sida 1 = H k=0,693

Side/Sida 2 = L k=0,667

Side/Sida 3 = M k=0,440

Side/Sida 4 = H k=1,827

k-factor/-faktor HLMH = 0,693+0,667+0,440+1,827=3,63

PARASOL LF, MF, HF

Nozzle/Dysa L, M and/och H

Nozzle/Dysa C

Nozzle L, M and HNozzle C

PARASOL PF

20220302 Swegon reserves the right to alter specications

PARASOLc

PARASOL LF, MF, HF

PARASOL PF

OPEN THIS SIDE

OPENTHISSIDE

Maintenance / Skötsel

PARASOLc

8Swegon reserves the right to alter specications 20220302
