Installation and User Guide

For model: SR12030 (all colours)

Swan Service Help line

0333 220 6050

Under Counter Cooler

SR12030_IM.indd 1 01/12/2017 12:53

Table of Contents

3. Your Cooler

4-5. Important Safeguards

6-7. Installation Notes

7-8. First Time Use

8. Reversing the door

9. Cleaning & Maintenance

10. Troubleshooting

10. Service & Spares, Specification, BS Plug Wiring

11. WEEE Directive, Warranty

SR12030_IM.indd 2 01/12/2017 12:53

Your Cooler

Shelves

Reversible

glass fronted

door

Adjustable feet

On/Off Switch

Thermostat & light

Specifications

Volume: 80 Litres

Energy A+

Weight: 24kg

Refrigerant: R600a (20g)

Dimensions: 435x474x840mm

Power consumption: 0.65A

Voltage: 220-240V ~ 50/60Hz

Climate type: N

Net weight: 24kg

SR12030_IM.indd 3 01/12/2017 12:53

Important Safeguards

• Do not connect your appliance

to the electricity supply until all

packing and transit protectors

have been removed.

• Leave to stand upright for at

least 4 hours before switching

on to allow compressor oil to

settle

• This product must only be used

for its intended purpose i.e the

storing and freezing of edible

foodstuff.

• Do not dispose of the appliance

on a fire. Your appliance

contains non CFC/HFC natural

substances in the cooling

system and in the insulation,

which are potentially flammable

if exposed to fire. Therefore,

take care not to damage, the

cooling circuit or pipes of the

appliance in transportation

and in use. In case of damage

do not expose the appliance to

fire or potential ignition source

and immediately ventilate the

room where the appliance is

situated.

• See installation section

for information on suitable

location.

• On delivery, check to make

sure that the product is not

damaged and that all the parts

and accessories are in perfect

condition.

• Ensure that the plug remains

readily accessible. Do not use

multiple adaptor or extension

cables.

• Failure to observe these

instructions may invalidate

your right to free service during

the guarantee period.

• Keep ventilation openings, in

the appliance enclosure or in

the built-in structure, clear of

obstruction.

WARNING: Keep ventilation

openings, in the appliance

enclosure or in the built-in

structure, clear of obstruction.

Do not use mechanical devices

or other means to accelerate

the defrosting process, other

than those recommended by the

manufacturer.

GAS WARNING CAUTION RISK

OF FIRE: Due to the flammable

refrigerant (R600a) and/or the

flammable insulation blowing gas

used, this gas is natural gas with

high environmental compatibility

SR12030_IM.indd 4 01/12/2017 12:53

Important Safeguards

that is, however, also combustible.

When transporting and installing

the appliance, care should be

taken to ensure that no parts

of the refrigerating circuit are

damaged.

Refrigerant and/or insulation

blowing gas squirting/leaking out

of the pipes or body of appliance

could ignite or cause an eye

injury. If leak is detected, avoid any

naked flames or potential sources

of ignition and air the room in

which the appliance is standing

for several minutes. Servicing

and repair of R600a refrigerant

shall be done by qualified service

technicians. Do not damage the

refrigerant circuit.

WARNING: Do not use electrical

appliances inside the food

storage compartments of the

appliance, unless they are of

the type recommended by the

manufacturer.

• We suggest you keep these

instructions in a safe place for

easy reference.

• This appliance can be used

by children aged from 8

years and above if they have

been given supervision or

instruction concerning use of

the appliance in a safe way and

if they understand the hazards

involved. Cleaning and user

maintenance shall not be made

by children unless they are

older than 8 and supervised.

Keep the appliance and its

cord out of reach of children

aged less than 8 years.

• If the supply cord is damaged,

it must be replaced by the

manufacturer, its service agent

or similarly qualified persons in

order to avoid a hazard.

CAUTION:Inordertoavoidahazard

due to inadvertent resetting of

the thermal cutout, this appliance

must not be supplied through an

external switching device, such as

a timer, or connected to a circuit

that is regularly switched on and

off by the utility company

This appliance should only

be connected to an earthed,

switched mains socket. Do not

use an extension cord with this

appliance

SR12030_IM.indd 5 01/12/2017 12:53

Installation Notes

1. The appliance should not be tilted more than 45 degrees when you move it. Do

not use force on any part such as the condenser, the door or handle. They could

distort and affect the operation of the cooler. Ensure ALL packaging is removed

before installation

2. Make sure there is enough ventilation space around cooler

3. The appliance should not be installed near external heat sources eg direct sun-

shine - or external moisture sources.

It is important that upon receipt you stand your appliance upright for at least 1 hour

before switching on to allow the system to settle.

3cm

10cm

5cm

SR12030_IM.indd 6 01/12/2017 12:53

Installation Notes

4. Ensure the supply voltage of socket is same as rating label.

5. The plug must be properly inserted to the wall socket.

6. The mains supply socket must be earthed - preferably with a switch. If it is not

earthed, do NOT install this appliance there. Do not use an extension cord

7. The product is equipped with adjustable feet. Once the product is in place, adjust

these to ensure the cooler is level and doesn’t rock.

DO NOT SITE THE PRODUCT WHERE THE AMBIENT TEMPERATURE IS LIKELY TO

DROP BELOW 5 DEGREES CENTIGRADE - EG: GARAGE OR SHED

1. It is important that upon receipt you stand your appliance upright for at least 1 hour before

switching on to allow the system to settle. Remove all packaging & any transit tapes

2. Clean the inside of the cabinet with a soft, dry cloth prior to switching on

3. When using the product for the first time, set the thermostat inside to MAX without any

bottles inside. When the appliance starts, you will hear the quiet hum of the compressor. You

may also hear the circulation of liquids and gases in the refrigeration system. This is normal

on first start up, Generally it will take up to 1 hour for the appliance to reach temperature.

Once temperature has been reached then put the drinks inside.

4. The temperature of the cooler can be adjusted by rotating the disc of the thermostat. The

higher the value on the setting of the thermostat, the maximum value of refrigeration (coldest

being 5). Typically a medium setting of 3 is best for most circumstances. Temperature range

in the cooler is typically 5 - 12 C depending on thermostat setting.

5. Do not put too much foodstuff in the cooler. Avoid opening the door too frequently as this

will waste energy.

First Time Use

SR12030_IM.indd 7 01/12/2017 12:53

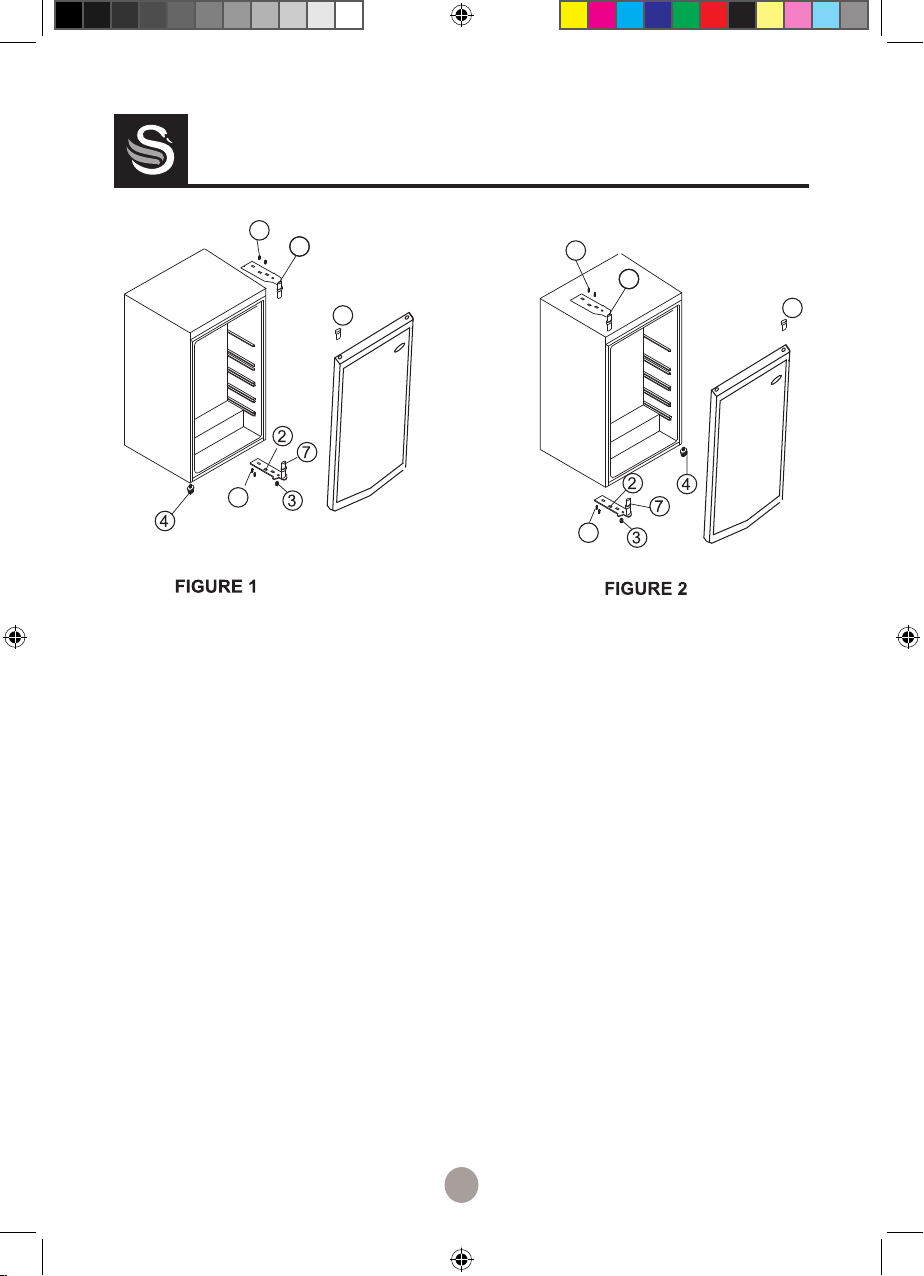

Reversing the door

This cooler has the capability of either opening the door from the left or right side. The unit

is delivered to you with the door opening from the left side. Should you desire to reverse the

opening direction, please follow these instructions.

NOTE: All parts removed must be saved should you with to restore the door to original orien-

tation.

1. Remove the two screws(1) that hold the upper hinge (5)(right side) to the frame.Take

away the upper hinge (5).

2. Lift the door and place it on a padded surface to prevent scratching it. (8)

3. Remove the two screws (6 )that hold the lower hinge (2) and Make sure to Remove the

lower hinge (2).

4. Remove the left front leg (4) and transfer it to the right side.

5. Before placing this lower hinge (2),remove the bolt-pin (5) and reverse the direction of

the lower hinge (2).Then install the lower hinge (2)onto the left side of the lower frame

with two screws (6).

6. Insert the bolt-pin (5)to the lower hinge (2).

7. Set the door to its place making sure the door seat at the lower hinge (2).

8. While holding the door in the closed position secure the upper hinge (5) in the top frame

of left side with two screws (1). Please note: do not tighten the two screws (1)until the

top of the door is leveled with the counter top.

SR12030_IM.indd 8 01/12/2017 12:53

Cleaning & Maintenance

DAILY CLEANING

The outside of your cooler can be cleaned using a soft cloth moistened with a mild detergent solution. Wipe

dry with kitchen towel.

Do not use chemical or abrasive cleaners on any part of your cooler as these could permanently damage

or discolour the surfaces.

DOOR SEALS

Ensure that the door seals are kept free from debris at all times. If they don’t seal properly this can waste

energy.

CLEANING INSIDE

From time to time it may be necessary to clean the inside of the cooler (eg after a spill)

1. Switch off the cooler and remove plug from wall socket

2. Remove drinks and shelves

3. Clean the inside with a soft cloth moistened with a mild detergent soloution. Dry thoroughly with

kitchen towel before replacing the shelves, drinks and switching the unit back on.

4. Do not use abrasive or chemical cleaners on any part of the the cooler at any time.

CONDENSATION

Depending on the environment, you may notice a little condensation on the outside of the glass door. This

is normal and can be wiped away with a dry cloth or piece of kitchen towel.

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings

identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or

coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked

with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the

terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

SR12030_IM.indd 9 01/12/2017 12:53

Troubleshooting

1. If the cooler does not run:

Check the supply voltage is available at the socket and check that the power plug is

correctly connected. Check that the power switch near the thermostat/light unit is

switched ON.

2. If the cooler does not become cold enough:

a. is the thermostat is set properly?

b. is there enough space around the cooler?

c. is the door is opened too frequently or not closed properly? (check seals).

d. is there direct sun shine on the appliance or are there heat sources nearby?

e. is there too much foodstuff inside the compartment? (Do not put hot liquids in the

cooler)

f. is there dust and debris built up on cooling matrix or compressor?

3. If the cooler operates noisily:

a. Check that the appliance is installed on a stable, level floor. Adjust the feet if nec-

essary. Is the cooler too near the wall?

b. The food stored in the cooler is not touching - particularly applies to glass contain-

ers. The cooler creates very slight vibrations, which can be amplified greatly with

touching glass containers!

Note:

During high relative humidity environment, condensation may occur on the surface

of the cooler. This is not a malfunction. Simply clean the surface of condensation.

If the cooler is not working properly after all these checks, contact the service cen-

tre without further delay.

Service and Spares

If you experience any problems at all with your product or require spare parts,

expert help is just a phone call away!

0333 220 6050

You will need to quote the model and serial number of your appliance. This is printed

on the service label just inside the door.

SR12030_IM.indd 10 01/12/2017 12:53

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Swann Accessoires

Swann

Swann WARMNITE WN47003N Manuel utilisateur

Swann

Swann SWC28S Manuel utilisateur

Swann

Swann Wireless door chime Manuel utilisateur

Swann

Swann SR12010 Manuel utilisateur

Swann

Swann SWO-WDS2PA Manuel utilisateur

Swann

Swann WT83 Manuel utilisateur

Swann

Swann home series Manuel utilisateur

Swann

Swann SWIFI-DOORBELL Manuel utilisateur

Swann

Swann HOME Series Manuel utilisateur

Swann

Swann dc835p Manuel utilisateur

Swann

Swann MWMA170510E MWMA170510E Manuel utilisateur

Swann

Swann DC810B Manuel utilisateur

Swann

Swann SR16220 Manuel utilisateur

Swann

Swann SWIFI-LEAK Manuel utilisateur

Swann

Swann SWADS-WVDP720 Manuel utilisateur

Swann

Swann DC817B Manuel utilisateur

Swann

Swann Motion Manuel utilisateur

Swann

Swann SwannBuddy Manuel utilisateur

Swann

Swann Manga Pen Manuel utilisateur

Swann

Swann PenCam DVR-420 Manuel utilisateur

Swann

Swann WT82 Manuel utilisateur

Swann

Swann SWADS-GARSEN-GL Manuel utilisateur

Swann

Swann DC805B Manuel utilisateur

Swann

Swann HOME Series Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
