Sven PS-490 Manuel utilisateur

www.sven.ﬁ

Portable Speaker System

with Bluetooth and FM-radio

PS-490

PS-500

PS-550

OPERATION

MANUAL

Portable Speaker System with

Bluetooth and FM-radio

ENG

Congratulations on your purchase of the SVEN speaker system!

BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device

for damage; if the product was damaged during transportation, address the ﬁrm which carried out

the delivery; if the product functions incorrectly, address the dealer at once.

• Shipping and transportation equipment is permitted only in the original container.

• Does not require special conditions for realization.

• Dispose of in accordance with regulations for the disposal of household and computer equipment.

APPLICATION

SVEN PS-490, PS-500, PS-550 portable multimedia speaker system with Bluetooth and FM-radio

is designed for operation with PC, notebooks and other mobile devices by means of data transfer

via Bluetooth protocol. It can be also used in internet telephony, during video conferences, in

multimedia applications, in interactive games, for speech recognition and foreign language teaching.

Microphone input with echo function, FM-tuner and the player with USB-ﬂash and micro SD-cards

are included.

PACKAGE CONTENTS

• Speaker system – 1 pc

• 3.5 mm mini-jack to 3.5 mm mini-jack signal cable – 1 pc

• USB to micro USB power cable – 1 pc

• Carrying strap – 1 pc

• User’s Manual – 1 pc

• Warranty card – 1 pc

SPECIAL FEATURES

• Bluetooth wireless signal transmission

• Eﬀective multi-colored lighting (for models PS-500 and PS-550)

• Track switching control possibility

• Wired/wireless audio signal transmission

• Built-in player for audio ﬁles from USB-ﬂash and micro SD card

• Built-in equalizer

• Microphone input with echo function

• Built-in FM tuner

• LED display

Technical support is on www.sven.ﬁ.

ENG

User’s Manual

PS-490

PS-500

PS-550

Speaker system description

aMODE: switching modes button: Bluetooth/Radio / Player/LINE IN (short press);

ON/OFF the service signals (long pressing in Bluetooth mode)

For PS-490:

bREMOVE: breaking the Bluetooth connection and transition into search mode

cDEL: FM station deletion (long press in Radio mode)

dEQ: EQ mode switch button

For PS-500 and PS-550:

bEQ: EQ mode switch button

cLIGHT: switching backlight modes (short press);

turning on / oﬀ the backlight (long press)

dDEL: FM station deletion (long press in Radio mode)

eCH/ : button for switching between stations or frequency (in Radio mode);

repeat mode selection button (in the Player mode): ONE – repeats the current track; RAND – play

tracks in the random order; ALL – plays all tracks in the sequential order

fFM-/ : next track (short pressing in Player and Bluetooth mode); Navigation on the track (long

pressing in Player mode); Next track/station (in Radio mode)

gAUTO SCAN/ : Play/Pause button (in Player and Bluetooth mode); Start/Stop auto scan (long

pressing in Radio mode); Mute (short pressing in Radio mode)

hFM+/ : next track (short pressing in Player and Bluetooth mode); Navigation on the track (long

pressing in Player mode); Next track/station (in Radio mode)

iDC 5V IN: micro USB jack for charger connecting, the USB port of laptop / PC

jIndicator

kON/OFF: POWER button

lDisplay

mTF CARD: micro SD card slot

nUSB: USB-ﬂash card slot

oAUX IN: 3.5 mm mini-jack for audio

signal connecting (phone, MP3 player, etc.)

pMIC: 6.3 mm jack microphone jack

qMIC VOL +/-: microphone volume

control knob

rECHO +/-: microphone echo

adjustment knob

sVOLUME: volume control knob

Fig.1.

Portable Speaker System with

Bluetooth and FM-radio

ENG

CONNECTION AND OPERATION

Attention! The built-in battery must be charged completely prior to the application.

Speaker system battery charging

• Connect speaker system to a USB port of PC or USB charger using micro USB to USB cable

(included). During battery charging the indicator jis red. Indicator jgoes out when the battery

is charged.

• The battery is used in the speaker system as an integral part of the device, therefore do not try to

extract or replace it, because this can result in the warranty cancellation or the device damage.

OPERATION MODES

Bluetooth mode

• Wireless data transfer via the Bluetooth protocol enables to connect speaker system to compatible

devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic

devices can interfere with the signal transfer.

• Turn on the speaker system Bluetooth mode – press button aseveral times until display shows

«bt» inscription.

• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone,

notebook, smartphone, etc.). «SVEN PS-490, SVEN PS-500, SVEN PS-550», massage will be

displayed on the screen which is to be connected to*.

• When connection is successful, there will be a short beep and the indication of the search mode on

speaker system is over**.

* You might have to enter “0000” code to connect some models of devices via Bluetooth.

** If the item has been already registered in the device list of a source, then the second search mode

activation is not obligatory. Choose the item name «SVEN PS-490, SVEN PS-500, SVEN PS-550» and

the “connect” command on the source.

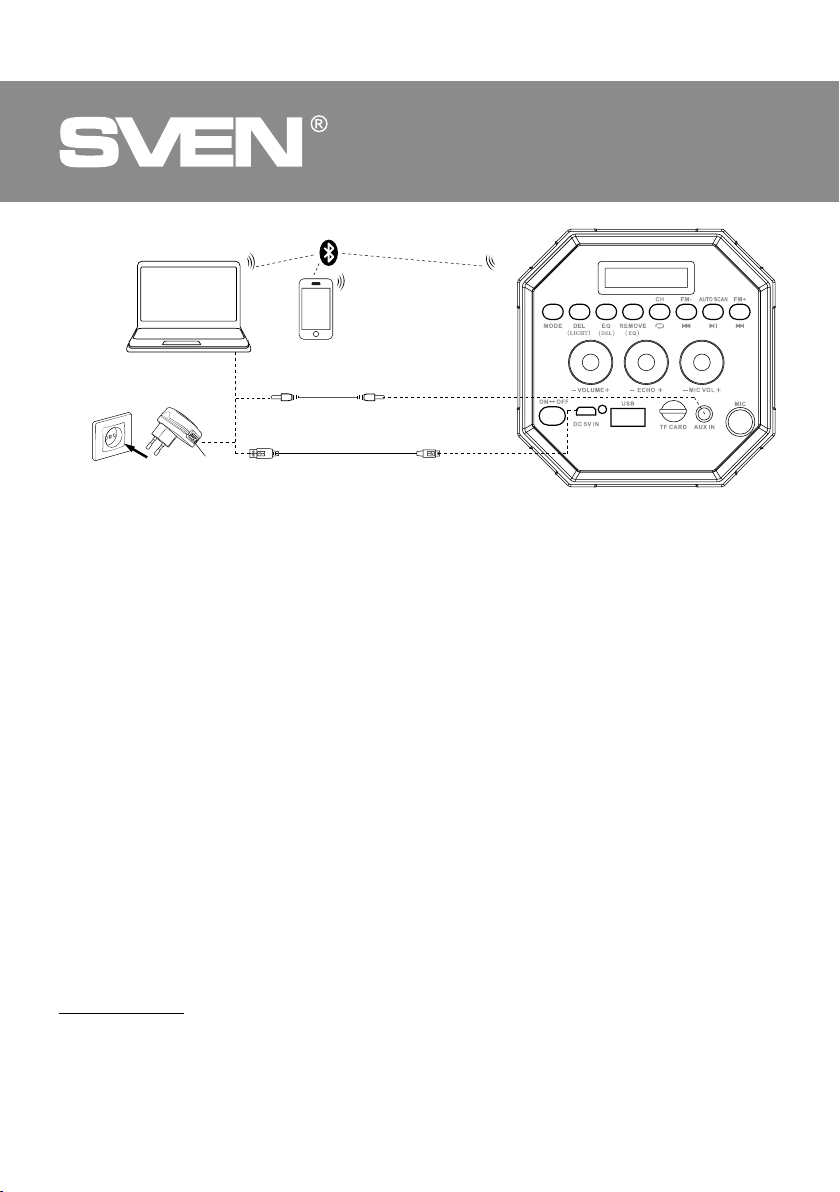

Fig. 2. Connection diagram

USB to micro USB

power cable

USB jack

Mini-jack to mini-jack

signal cable

Mobile device

Socket

ENG

User’s Manual

PS-490

PS-500

PS-550

Radio mode

Attention! To improve the reception quality of the radio signal, connect the 3.5 mm mini-jack

cable (included) to the AUX IN input

• Turn on the speaker system – press button МODE aseveral times until the display shows the

station frequency. Long-term pressing button gactivates auto search mode. After scanning

completion, the ﬁrst scanned radio station will start to operate automatically. With buttons fand

hselect a desired radio station.

Player mode

Attention! The ﬁle system of a micro SD carrier is FAT32. Maximum volume is 32 GB. It is not

recommended to use the micro SD Ultra Speed.

• The system will enter the Player mode automatically when a carrier (USB ﬂash or SD card) is

connected to corresponding ports. Use button gto switch between Play / Pause modes. You can

control tracks by using buttons f(previous track) and h(next track).

The use in the wired mode (LINE IN)

• Speaker system can be used as an external device for amplifying any audio source with a 3.5 mm

output mini-jack. Connect a cable mini USB, plug 3.5 mini-jack to the audio input AUX IN o. Turn

the speakers to the LINE IN mode – press the MODE button aseveral times until «LINE» appears

on the display.

TECHNICAL SPECIFICATIONS

Notes:

• Technical speciﬁcations given in this table are supplemental information and cannot give

occasion to claims.

• Technical speciﬁcations and package contents are subject to change without notice due to

the improvement of SVEN production.

Parameter, measurement

unit Value PS-490 Value PS-500 Value PS-550

Frequency response, Hz 80 – 22 000 80 – 22 000 80 – 22 000

Output power (RMS), W 36 (2 × 18 ) 36 (2 × 18 ) 36 (2 × 18 )

Speaker diameter, mm Ø 35 + Ø 100 Ø 35 + Ø 100 Ø 35 + Ø 100

Bluetooth supported proﬁles HSP, HFP, A2DP,

AVRCP

HSP, HFP, A2DP,

AVRCP

HSP, HFP, A2DP,

AVRCP

Radius of operation, m until 10 until 10 until 10

Battery capacity, mA*h 2 000 (2 pcs) 2 000 (2 pcs) 2 000 (2 pcs)

Power supply, V USB/DC 5V USB/DC 5V USB/DC 5V

Weight, kg 2 900 3000 3150

Dimensions, mm 465 × 210 × 200 465 × 210 × 200 460 × 210 × 195

Portable Speaker System

with Bluetooth and FM-radio

PS-490

PS-500

PS-550

Models: PS-490, PS-500, PS-550

Импортер в России: ООО «РЕГАРД», 105082, г. Москва,

ул. Фридриха Энгельса, д. 75, стр. 5.

Уполномоченная организация в России: ООО «РТ-Ф»,

105082, г. Москва, ул. Фридриха Энгельса, д. 56, стр. 1.

Условия гарантийного обслуживания смотрите в

гарантийном талоне или на сайте www.sven.ﬁ.

Гарантийный срок: 12 мес.

Срок службы: 2 года

Производитель: «СВЕН ПТЕ. Лимитед», 176 Джу

Чиат Роуд, № 02-02, Сингапур, 427447. Произведено

под контролем «Свен Скандинавия Лимитед», 48310,

Финляндия, Котка, Котолахдентие, 15.

Сделано в Китае.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-

02, Singapore, 427447. Produced under the control of Oy

Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland,

48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.
