Suzuki VL125 Manuel utilisateur

VL125

99500-31150-01E

loc83

GROUP INDEX

FOREWORD

This manual contains an introductory description on

the SUZUKI VL125 and procedures for its inspec-

tion/service and overhaul of its main components.

Other information considered as generally known

is not included.

Read the GENERAL INFORMATION section to fa-

miliarize yourself with the motorcycle and its main-

tenance. Use this section as well as other sections

to use as a guide for proper inspection and service.

This manual will help you know the motorcycle bet-

ter so that you can assure your customers of fast

and reliable service.

Inexperienced mechanics or mechanics

without the proper tools and equipment may

not be able to properly perform the services

described in this manual. Improper repair

may result in injury to the mechanic and may

render the motorcycle unsafe for the rider

and passenger.

GENERAL INFORMATION

* This manual has been prepared on the basis

of the latest specifications at the time of pub-

lication. If modifications have been made

since then, differences may exist between the

content of this manual and the actual motor-

cycle.

* Illustrations in this manual are used to show

the basic principles of operation and work pro-

cedures. They may not represent the actual

motorcycle exactly in detail.

* This manual is written for persons who have

enough knowledge, skills and tools, includ-

ing special tools, for servicing SUZUKI mo-

torcycles. If you do not have the proper knowl-

edge and tools, ask your authorized SUZUKI

motorcycle dealer to help you.

PERIODIC MAINTENANCE

ENGINE

FUEL AND LUBRICATION

SYSTEM

CHASSIS

ELECTRICAL SYSTEM

Motorcycle Service Department

cCOPYRIGHT SUZUKI MOTOR CORPORATION 1999

SERVICING INFORMATION

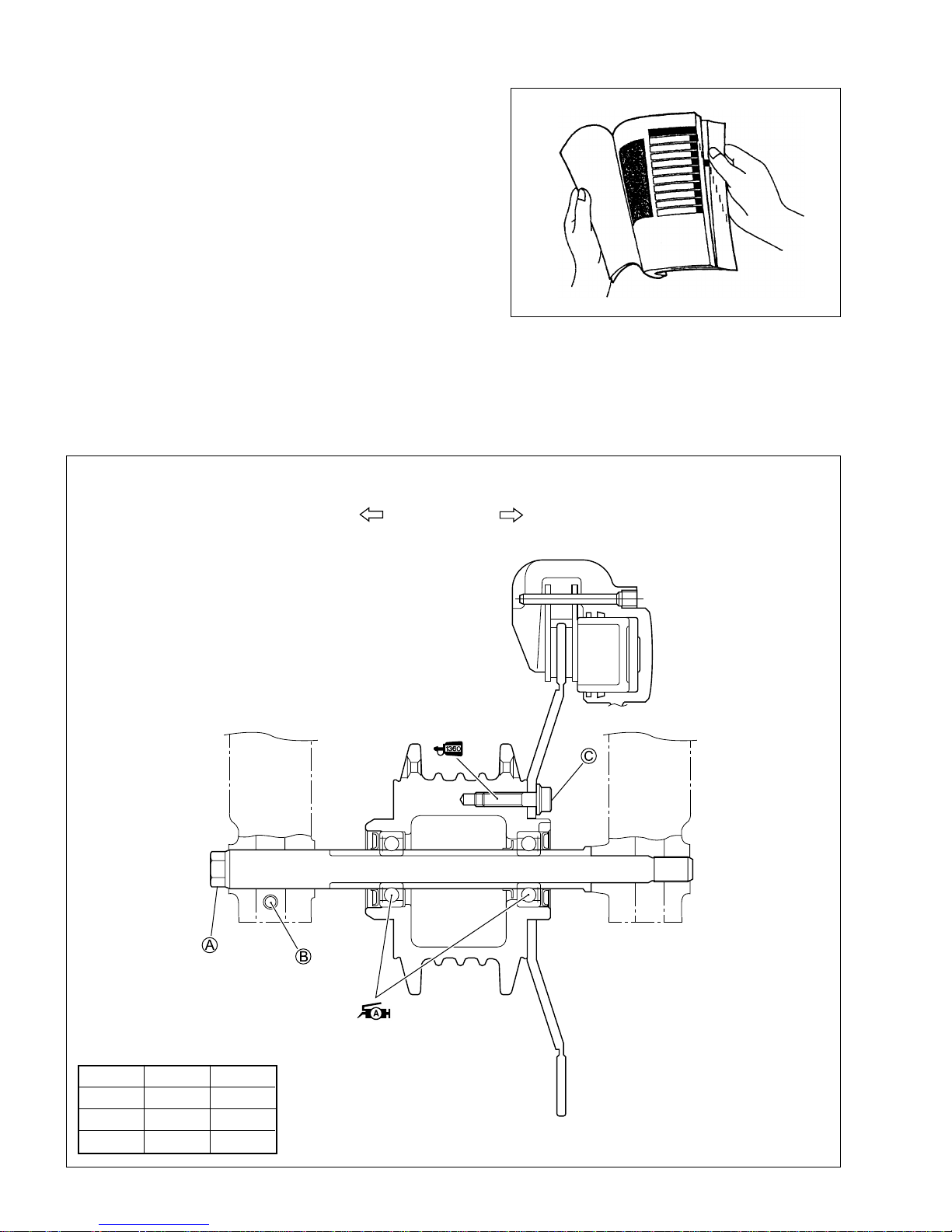

HOW TO USE THIS MANUAL

TO LOCATE WHATYOU ARE

LOOKING FOR:

1.The text of this manual is divided into sections.

2.The section titles are listed in the GROUP INDEX.

3.Holding the manual as shown at the right will allow you

to find the first page of the section easily.

4.The contents are listed on the first page of each section

to help find the item and page you need.

COMPONENT PARTS AND WORKTO BE DONE

Under the name of each system or unit, is its exploded view. Work instructions and other service information

such as the tightening torque, lubricating points and locking agent points, are provided.

Example: Front wheel

Left Right

ITEM N.m kgf.m

A65 6.5

B23 2.3

C23 2.3

AFront axle

BAxle pinch bolt

CBrake disc bolt

SYMBOL

Listed in the table below are the symbols indicating instructions and other information necessary for servic-

ing. The meaning of each symbol is also included in the table.

* How to make Molybdenum oil : Pour an engine oil and SUZUKI MOLY PASTE in a ratio of 1:1 by volume

into such as oiler, and stir well.

SYMBOL DEFINITION SYMBOL DEFINITION

Use special tool.

Torque control required

Data beside it indicates specified

torque.

Apply oil. Use engine oil unless

otherwise specified.

Apply *Molybdenum oil solution

(Mixture of engine oil and SUZUKI

MOLY PASTE in a ratio of 1:1)

Apply SUZUKI MOLY PASTE.

99000-25140

Apply THREAD LOCK SUPER

“1303”.

99000-32030

Apply THREAD LOCK SUPER

“1360”.

99000-32130

Apply or use brake fluid.

Measure in voltage range.

Measure in resistance range.

Measure in current range.

Measure in diode test range.

Use fork oil.

99000-99044-10G

Measure in continuity test range.

Indication of service data.

Apply THREAD LOCK “1342”.

99000-32050

Apply SUZUKI SUPER GREASE “A”.

99000-25010

Apply SUZUKI SILICONE GREASE.

99000-25100

(

)

Apply SUZUKI BOND “1215”.

99000-31110

Apply SUZUKI BOND “1216”.

99000-31160

Apply THERMO GREASE “G”.

99000-25300

GENERAL INFORMATION 1-1GENERAL INFORMATION 1-1

GENERAL INFORMATION 1-1

GENERAL INFORMATION

CONTENTS

WARNING/CAUTION/NOTE ............................................................... 1- 2

GENERAL PRECAUTIONS................................................................ 1- 2

SUZUKIVL125Y (2000-MODEL)........................................................ 1- 4

SERIAL NUMBER LOCATION ........................................................... 1- 4

FUEL AND OIL RECOMMENDATION................................................ 1- 5

FUEL................................................................................................ 1- 5

ENGINE OIL .................................................................................... 1- 5

BRAKE FLUID................................................................................. 1- 5

FRONT FORK OIL........................................................................... 1- 5

BREAK-IN PROCEDURES................................................................. 1- 5

CYLINDER IDENTIFICATION............................................................. 1- 6

INFORMATION LABELS .................................................................... 1- 6

SPECIFICATIONS............................................................................... 1- 7

COUNTRY AND AREA CODES ......................................................... 1- 9

1-2 GENERAL INFORMA1-2 GENERAL INFORMA

1-2 GENERAL INFORMATIONTION

TIONTION

TION

WARNING/CAUTION/NOTE

Please read this manual and follow its instructions carefully. To emphasize special information, the symbol

and the words WARNING, CAUTION and NOTE have special meanings. Pay special attention to the mes-

sages highlighted by these signal words.

Indicates a potential hazard that could result in death or injury.

Indicates a potential hazard that could result in motorcycle damage.

NOTE:

Indicates special information to make maintenance easier or instructions clearer.

Please note, however, that the warnings and cautions contained in this manual cannot possibly cover all

potential hazards relating to the servicing, or lack of servicing, of the motorcycle. In addition to the WARN-

INGS and CAUTIONS stated, you must use good judgement and basic mechanical safety principles. If you

are unsure about how to perform a particular service operation, ask a more experienced mechanic for ad-

vice.

GENERAL PRECAUTIONS

* Proper service and repair procedures are important for the safety of the service mechanic and

the safety and reliability of the motorcycle.

* When 2 or more persons work together, pay attention to the safety of each other.

* When it is necessary to run the engine indoors, make sure that exhaust gas is forced outdoors.

* When working with toxic or flammable materials, make sure that the area you work in is well-

ventilated and that you follow all of the material manufacturer’s instructions.

* Never use gasoline as a cleaning solvent.

* To avoid getting burned, do not touch the engine, engine oil and exhaust system until they have

cooled.

* After servicing the fuel, oil, exhaust or brake systems, check all lines and fittings related to the

system for leaks.

GENERAL INFORMATION 1-3GENERAL INFORMATION 1-3

GENERAL INFORMATION 1-3

* If parts replacement is necessary, replace the parts with Suzuki Genuine Parts or their equiva-

lent.

* When removing parts that are to be reused, keep them arranged in an orderly manner so that

they may be reinstalled in the proper order and orientation.

* Be sure to use special tools when instructed.

* Make sure that all parts used in reassembly are clean. Lubricate them when specified.

* Use the specified lubricant, bond, or sealant.

* When removing the battery, disconnect the negative cable first and then the positive cable.

When reconnecting the battery, connect the positive cable first and then the negative cable,

and replace the terminal cover on the positive terminal.

* When performing service to electrical parts,if the service procedures not require use of battery

power, disconnect the negative cable the battery.

* When tightening the cylinder head and case bolts and nuts, tighten the larger sizes first. A l -

ways tighten the bolts and nuts diagonally from the inside working out and to the speci fied

tightening torque.

* Whenever you remove oil seals, gaskets, packing, O-rings, locking washers, self-locking nuts,

cotter pins, circlips and certain other parts as specified, be sure to replace them with new

ones. Also, before installing these new parts, be sure to remove any left over material from

the mating surfaces.

* Never reuse a circlip.When installing a new circlip, take care not to expand the end gap larger

than required to slip the circlip over the shaft. After installing a circlip, always ensure that it is

completely seated in its groove and securely fitted.

* Use a torque wrench to tighten fasteners to the specified torque.Wipe off grease and oil if a

thread is smeared with them.

* After reassembling, check parts for tightness and proper operation.

* To protect the environment, do not unlawfully dispose of used motor oil, engine coolant and

other fluids: batteries, and tires.

* To protect Earth’s natural resources, properly dispose of used motorcycle and parts.

1-4 GENERAL INFORMA1-4 GENERAL INFORMA

1-4 GENERAL INFORMATIONTION

TIONTION

TION

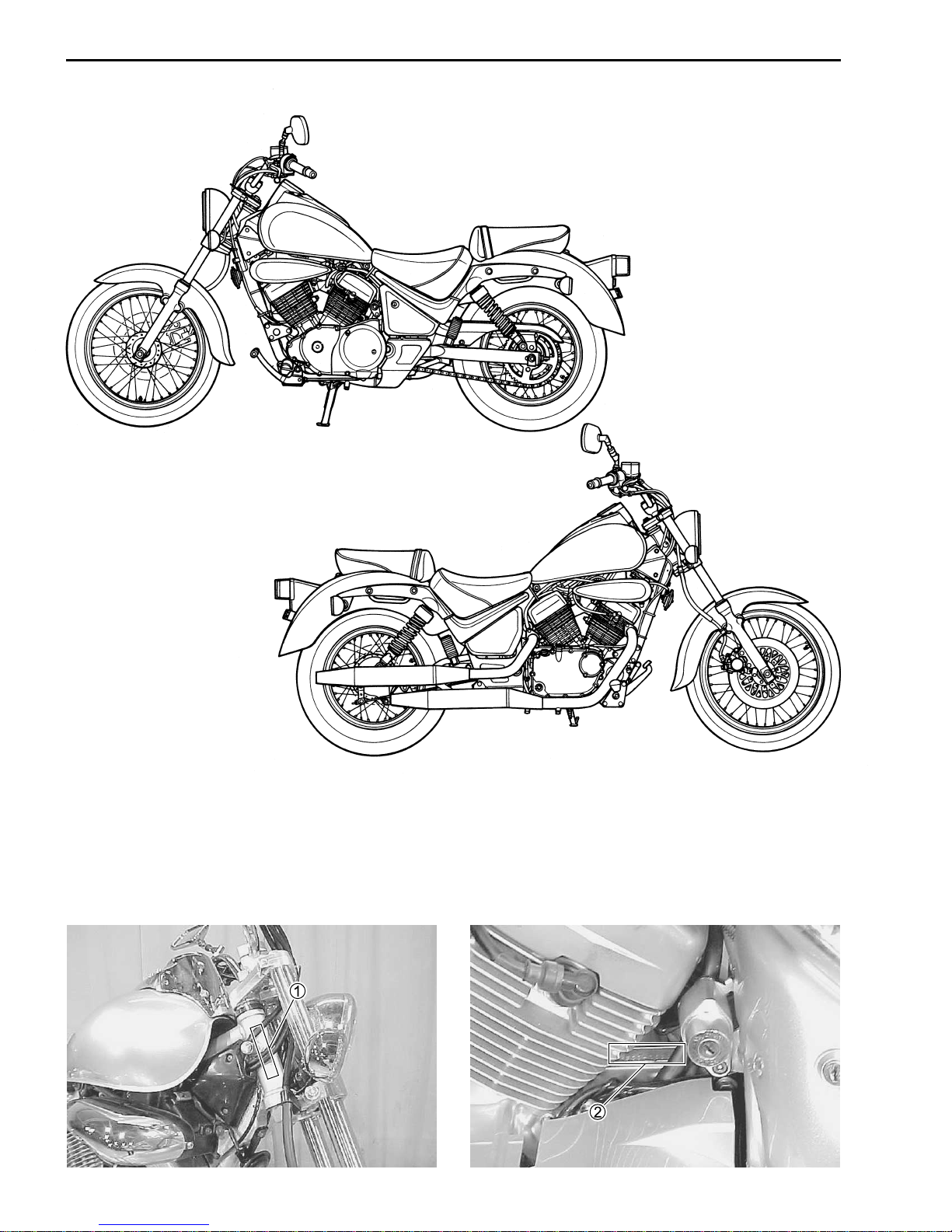

SUZUKI VL125Y (2000-MODEL)

*Difference between photograph and actual motorcycle depends on the markets.

SERIAL NUMBER LOCATION

The frame serial number or V.I.N. (Vehicle Identification Number) 1is stamped on the right side of the frame

tube. The engine serial number 2is located on the left side of the crankcase. These numbers are required

especially for registering the machine and ordering spare parts.

LEFT SIDE

RIGHT SIDE

GENERAL INFORMATION 1-5GENERAL INFORMATION 1-5

GENERAL INFORMATION 1-5

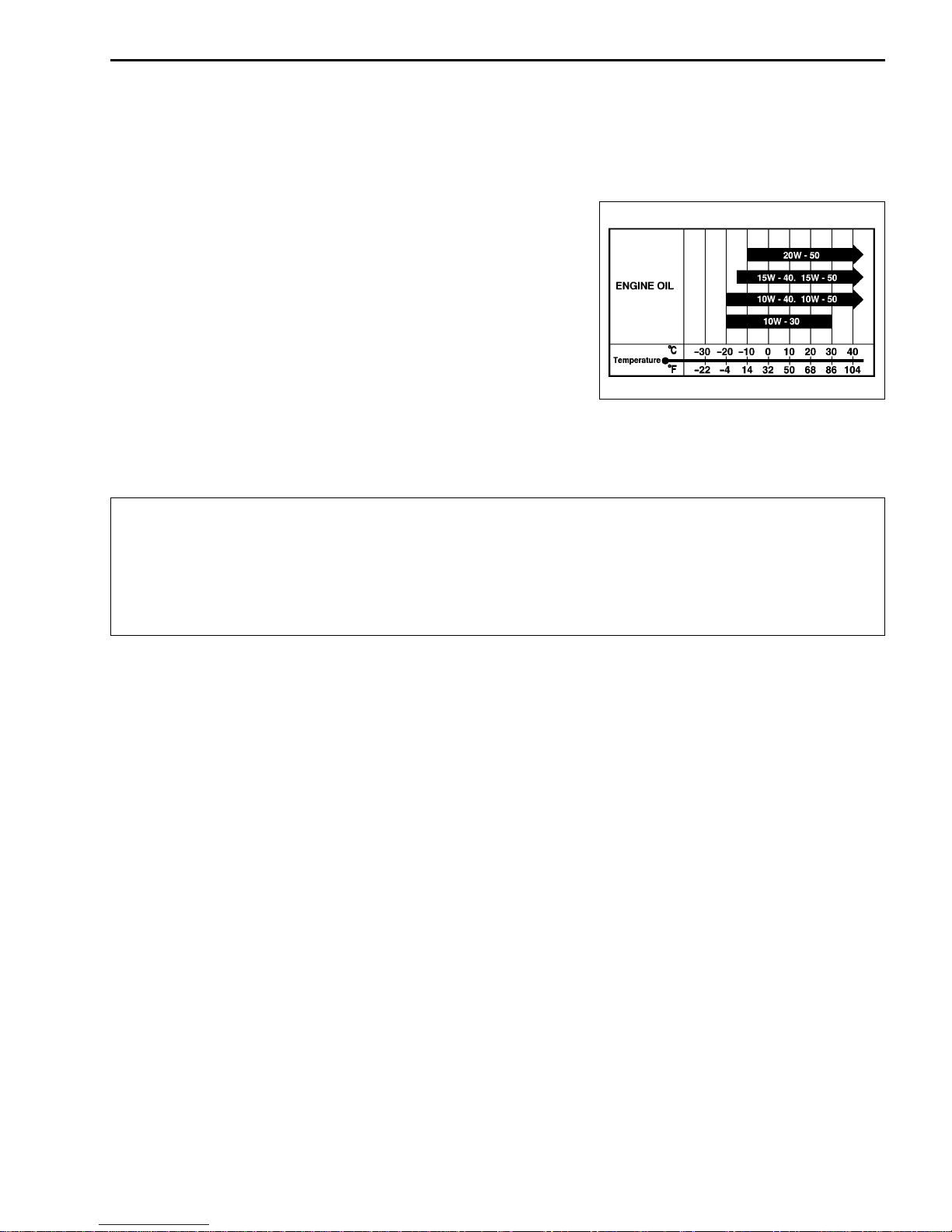

ENGINE OIL

Use a premium quality 4-stroke motor oil to ensure longer ser-

vice life of your motorcycle. Use only oils which are rated SF or

SG under the API service classification.

The recommended viscosity is SAE 10W-40. If an SAE 10W-40

motor oil is not available, select an alternative according to the

following chart.

BRAKE FLUID

Specification and classification: DOT 4

Since the brake system of this motorcycle is filled with a glycol-based brake fluid by the manufac-

turer, do not use or mix different types of fluid such as silicone-based and petroleum-based fluid

for refilling the system, otherwise serious damage will result.

Do not use any brake fluid taken from old or used or unsealed containers.

Never re-use brake fluid left over from a previous servicing, which has been stored for a long

period.

FRONT FORK OIL

Use fork oil #10.

FUEL AND OIL RECOMMENDATION

FUEL

Gasoline used should be graded 91 octane (Research Method) or higher. Unleaded gasoline is recom-

mended.

BREAK-IN PROCEDURES

During manufacture only the best possible materials are used and all machined parts are finished to a very

high standard but it is still necessary to allow the moving parts to “BREAK-IN”before subjecting the engine to

maximum stresses. The future performance and reliability of the engine depends on the care and restraint

exercised during its early life. The general rules are as follows.

•Keep to these break-in procedures:

Initial 800 km : Less than 1/2 throttle

Up to 1 600 km : Less than 3/4 throttle

•Upon reaching an odometer reading of 1 600 km you can subject the motorcycle to full throttle operation.

•Do not maintain constant engine speed for an extended time period during any portion of the break-in. Try

to vary the throttle position.

1-6 GENERAL INFORMA1-6 GENERAL INFORMA

1-6 GENERAL INFORMATIONTION

TIONTION

TION

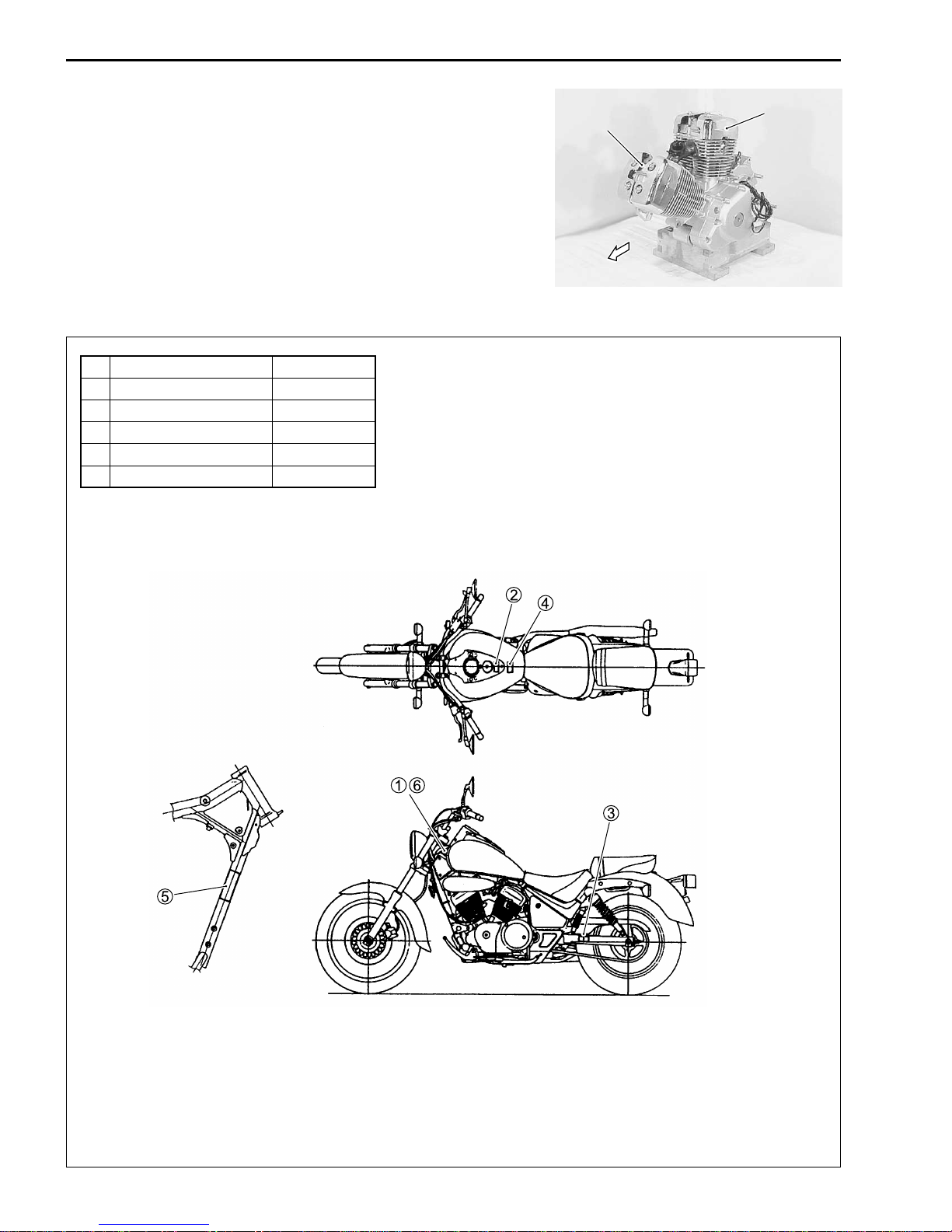

CYLINDER IDENTIFICATION

The two cylinders of this engine are identified as No. 1 and No. 2

cylinder, as counted from rear to front (as viewed by the rider on

the seat).

INFORMATION LABELS

1Noise label For E-34

2Fuel caution label For E-02

3Tire pressure label

4Warning safety label

5ID plate

6ID plate For E-18

No. 1No. 1

No. 2No. 2

FrontFront

Table des matières

Autres manuels Suzuki Moto

Suzuki

Suzuki Intruder VS1400 Manuel utilisateur

Suzuki

Suzuki GZ250 Marauder Manuel utilisateur

Suzuki

Suzuki GSX1200 1999 Manuel utilisateur

Suzuki

Suzuki VZR1800K6 Manuel utilisateur

Suzuki

Suzuki sv1000S Manuel utilisateur

Suzuki

Suzuki Intruder VZ1500 Manuel utilisateur

Suzuki

Suzuki Intruder VL800 Manuel utilisateur

Suzuki

Suzuki DL650K5 Manuel utilisateur

Suzuki

Suzuki LS650P Manuel utilisateur

Suzuki

Suzuki RGV250 1989 Manuel utilisateur

Suzuki

Suzuki 2001 GSX-R600 Manuel utilisateur

Suzuki

Suzuki GSX-R750 Manuel utilisateur

Suzuki

Suzuki GS1100G 1982 Manuel utilisateur

Suzuki

Suzuki RG50 Manuel utilisateur

Suzuki

Suzuki 2006 GSF1200AK6 Manuel

Suzuki

Suzuki k8 gsx1300r Manuel de référence

Suzuki

Suzuki TU250X Manuel utilisateur

Suzuki

Suzuki RM250 Guide d'application

Suzuki

Suzuki GSF650A Manuel utilisateur

Suzuki

Suzuki SV650 Manuel utilisateur

Suzuki

Suzuki DR Z400SM Manuel utilisateur

Suzuki

Suzuki GSX1300BK B-King Manuel utilisateur

Suzuki

Suzuki VZR1800/BZ Manuel utilisateur

Suzuki

Suzuki RM 250 2003 Guide d'application

Manuels Moto populaires d'autres marques

OHVALE

OHVALE GP-0 Manuel de la liste des pièces

Yamaha

Yamaha Star XV19CTSZ 2009 Manuel utilisateur

KTM

KTM 350 XCF-W USA Manuel utilisateur

HYOSUNG

HYOSUNG ST7 Manuel utilisateur

Husqvarna

Husqvarna FC 250 2016 Manuel utilisateur

Ducati

Ducati SCRAMBLER 800 Manuel d'instructions

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manuel utilisateur

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manuel utilisateur

Yamaha

Yamaha 2006 YZF-R1V Manuel utilisateur

KTM

KTM Freeride E-XC 2021 Manuel utilisateur

Fantic

Fantic Enduro 125 Manuel utilisateur

Ducati

Ducati Supersport 750 desmodue Manuel utilisateur

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manuel d'instructions

Yamaha

Yamaha XVS650A Manuel utilisateur

Yamaha

Yamaha YZF-R6T(C) Manuel

Ducati

Ducati 748 monoposto strada Manuel utilisateur

ATK

ATK 1988 250 Manuel utilisateur

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manuel utilisateur
