Figure 1
120
100
80
60
110
90
70
50
FT- LB
0
120
100
80
60
110
90
70
50
200
180
160
140
190
170
240
220
230
250
210
150
130
FT- LB 0
Figure 2
Thimble Edge Unlock to set torque
Lock Ring HandleMinor GraduationsMajor Graduations
120
100
80
60
110
90
70
50
4
Figure 1
120
100
80
60
110
90
70
50
FT- LB
FT- LB
120
100
80
60
110
90
70
50
200
180
160
140
190
170
240
220
230
250
210
150
130
FT- LB 0
Thimble Edge Unlock to set torque
Lock Ring HandleMinor GraduationsMajor Graduations
USE PROPER
EYE PROTECTION
LUNETTES DE
SÉCURITÉ
OBLIGATOIRES

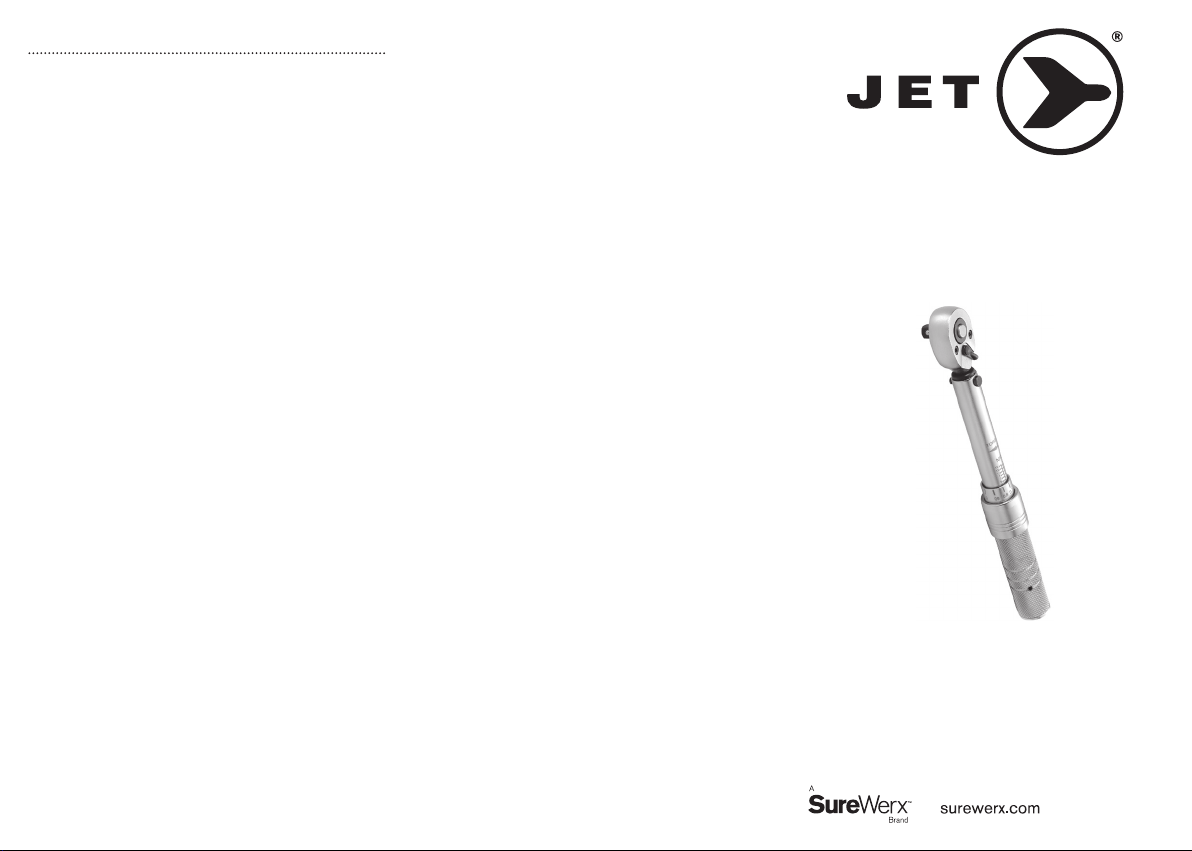

Dear Customer
You have purchased a Professional quality
JET JITW Series micrometer torque wrench.
It is a robust precision instrument with a
release accuracy of +/-3% of the torque
setting in the clockwise direction and +/-6%
in the counterclockwise direction. Properly
used and maintained, it will give you many
years of trouble-free service.
Please note: every instrument is only
as good as the user. Please read and
carefully observe the following operating
instructions.
SAFETY
Read operation manual completely
before using torque wrench. Keep
manual for future reference. Wear
safety goggles.
1. Periodic re-calibration is necessary to
maintain accuracy.
2. An out of calibration torque wrench can
cause part or tool breakage.
3. Do not exceed rated torque. Over-
torquing can cause wrench or part to fail.
4. Do not use torque wrench to break
fasteners loose.
5. Do not use cheater extension on handle.
6. Do not set the wrench above or below
the scale limit.
7. Return wrench to its lowest setting
after use.
8. Ratchet mechanism may slip or break
if dirty, mismatched, or worn parts are
used, or if direction lever is not fully
engaged.
ADJUSTMENT OF TORQUE
SETTING
To unlock handle hold tube and pull lock
ring back, allowing handle to turn CW or
CCW. Set wrench to desired torque as
follows: EXAMPLE – 64 FT/LBS.
1. Keep slight rearward pressure on the
lock ring during all adjustments.
2. Line up edge of lock ring scale with the
“60” mark on the tube and vertical line
on ring with vertical line on tube. Wrench
is now set to 60 ft/lbs. See figure 1.
3. Turn lock ring until “4” on ring lines up
with vertical line on tube. Wrench is now
set to 64 ft/lbs. See figure 2.
4. Release lock ring until it clicks and
handle cannot be turned.
5. Set direction lever for CW or CCW use.
Wrench signals torque in either direction.
6. Apply torque to fastener using a slow,
steady pull with hand centered on the
grip. Release when a click / impulse
is heard or felt. Stop pulling to reset
wrench.
