Surecom EP-824DX Manuel utilisateur

FCC Statement

This equipment can generate, use and radiate radio frequency energy and, if not installed

and used in accordance with the instructions in this guide, may cause interference to radio

communications. This equipment has been tested and found to comply with the limits for a

Class A computing device pursuant to Subpart J of Part 15 of the FCC rules, which are

designed to provide reasonable protection against radio interference when operated in a

commercial environment. Operation of this equipment in a residential area is likely to cause

interference, in which case the user, at his own expense, will be required to take

whatever measures are necessary to correct the interference.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN

55022 class A for ITE and EN 50082-1. This meets the essential protection requirements of

the European Council Directive 89/336/EEC on the approximation of the laws of the Member

States relating to electromagnetic compatibility.

Trademarks

All company, brand, and product names are trademarks or registered trademarks of their

respective companies.

2--

Yee

Waa

ntt

The manufacturer warrants to the original consumer /purchaser

free from defects in materials or workmanship for limited time

from the original factory shipment date.

DII

STT

TRR

RII

BUU

UTT

TOO

ORR

Daa

Puu

d::

Whh

hee

Puu

urr

d::

Frr

omm

Whh

m::

Model:

Serial :

TOO

O::

ATT

TTT

TNN

N::

WAA

ARR

RRR

RAA

ANN

NTT

TYY

REE

EGG

GII

STT

TRR

RAA

ATT

TII

ONN

CAA

ARR

RDD

Pll

mpp

urr

wii

100

waa

Naa

mee

Tii

Coo

mpp

Add

Tee

Noo

Sii

urr

Puu

Moo

See

Noo

Puu

m::

Add

Daa

off

Puu

Pll

Stt

mpp

Hee

KEEPTHIS STUBFORYOURRECORDS

MAA

ANN

NUU

UFF

FAA

ACC

CTT

TUU

URR

REE

SUU

URR

REE

ECC

COO

OMM

Table of Contents

Chapter 1 Introduction

Key Features

Package Contents

Chapter 2 Hardware

Front Panel

LED Indicators

Rear Panel

Chapter 3 Network Connections

Switch to PC

Switch to Hub

Switch to Switch (Other Devices)

Appendix A Technical Specifications

Appendix B Cable Requirements

1-1

1-2

2-1

2-2

2-3

3-1

3-2

3-3

A-1

B-1

List of Figures

Figure 2-1 Front Panel

Figure 2-2 LED Indicators

Figure 2-3 Rear Panel

Figure 3-1 PC or Workstation Connection

Figure 3-2 10BASE-T or 100BASE-TX Hub Connection

Figure 3-3 Switch to Switch Connection

2-1

2-2

2-3

3-1

3-2

3-3

Full/Half-Duplex and Easy Expansion

The Switch supports both full/half-duplex on all ports which are able to provide 200Mbps of

bandwidth to the connected devices using auto-negotiation. The Switch is also expandable by

cascading two or more switches together or connecting any RJ-45 port on the Switch to any

device such as a workstation or a server.

Fiber Slide-in Port

The Switch has a fiber slide-in port. With fiber the workgroup distance could be extended to

2,000 meters and solve the distance limit.

Store-and-Forward Scheme

The Switch uses store-and forward switching to ensure all error packets will be filtered and

maintain maximum data integrity, even under heavy loading.

The 24-Port 100/10M N-Way Rack-Mount Switch is the latest design in its N-Way Switches

series for easy installation and high-performance in an environment where traffic on the

network and the number of users increase continuously. Provide 24 ports 100/10M Ethernet

Switch support Auto MDI/MDI-X. Small businesses and corporate branch offices can take full

advantage of 100Mbps Fast Ethernet performance and preserve existing desktop investment

with no changes required to PCs, NICs, cabling, drivers, or PC configurations.

Upgrade

Designed for plug-and-play, the Switch is fully compatible with existing Ethernet networks,

thus saving your current network properties. The 24-Port 100/10M N-Way Rack-Mount

Switch offers a solution in accelerating Ethernet workgroup bandwidth.

Introduction

Conform to IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX , and IEEE 802.3x flow

control for full-duplex standards

Provide non-blocking twenty-four ports full-wire speed access

Support one fiber slide-in port for expansion with the 24th port

Full/half-duplex mode operation on all ports

Auto-negotiation capability

Source address learning and aging function

Provide 8K MAC address and 2.5Mbits RAM buffer

LEDs to indicate Power, link/activity, full-duplex/collision, and speed status

One 24-Port 100/10M N-Way Rack-Mount Switch

One Power Cord

One Warranty Card

One Pack of Screws

Two Mounting Brackets

One Users Manual

Note: If any item is damaged or missing, please contact your supplier.

Provide 24 ports 100/10M Ethernet Switch to support Auto MDI/MDI-X

Provide one fiber slide-in port for expansion the workgroup distance to 2,000 meters

Provide back-pressure in half-duplex and flow control in full-duplex

Store-and-forward switching scheme capability supports rate adaptation and ensures data

integrity

N-way Auto-negotiation on each RJ-45 port. This allows for auto-sensing of speed (100/

10Mbps) and auto-detecting mode (full-duplex or half-duplex) thereby providing you with

automatic and flexible solutions in your network connections

Auto-polarity detection for correction of incorrect polarity on the received twisted-pair

Data forwarding rate 148,800 pps per port at 100% of wire-speed

Data filtering rate eliminates all error packets, runts, etc. at 148,800pps per port at 100% of

wire-speed

Key Features

Package Contents

Hardware

1. RJ-45 Ports

Uses these twenty-four ports to connect to another Switches or Hubs. Each port uses auto-

negotiation for automatic speed and mode selection.

The front panel of the Switch consists of 24 (100/10Mbps Auto MDI/ MDI-X) ports.

This chapter describes the front panel, LED indicators, and rear panel on the Switch.

Front Panel

EP-824DX

21 22 23 (24)

910 11 12

Fiber Module

1234

13 14 15 16

5678

17 18 19 20

1234

13 14 15 16

5678

17 18 19 20

21 22 23 24

910 11 12

EP-824DX-F

2. Fiber Connector

Extends the workgroup distance up to 2,000 meters.

EP-824DX/DX-F

The LED indicators are all located on the front panel which include one Power, one Fiber Slide-in,

one Link/Act., one FDX/Col,and one 100 indicator per port.

1. Power

The LED lights when the Switch is powered on. If the LED , fails to light, check the AC power

connector to ensure proper insertion of the power cord and that the power switch is turned

ON.

2. Link/Act.

These LEDs light up green to indicate that a valid link is established. These LEDs flash

whenever data packets are transmitting or receiving.

3. FDX/Col

These LEDs light up green to show the ports are operating in full-duplex (FDX) mode. These

LEDs flash whenever collision is detected on the netwok segments.

4. 100

These LEDs light when the ports run at 100Mbps. These LEDs are OFF when they run at

10Mbps or are not connected.

LED Indicators

The rear panel consists of an AC power socket, a power switch, and a console port. Two system

fans are located at the both sides of the Switch.

1. Power Socket

Plugs the power cord into this socket.

Rear Panel

4 5

5. Fiber Slide-in

These LED lights to indicate that the optional fiber slide-in module is chosen to operate the

Switch.

EP-824DX

EP-824DX-F

EP-824DX/DX-F

2-32-

CHAPTER 3 Network DIY

This chapter describes how to connect this Switch to your Fast Ethernet network.

Make sure you have installed a 10BASE-T or 100BASE-TX network interface card for connect-

ing a PC to the Switchs RJ-45 (MDI-X) station ports. If LEDs dont light after powering on the

Switch, check if the LAN card, the cable and connectors are properly attached to the PC and the

Switch.

When a attached PC is powered on or reset:

1. The Link/Act LED will light

2. The FDX/Col LED depends on the installed LAN cards capabilities for the PC and the Switch

connection.

3. The 100M LED will light for 100Mbps connection, otherwise it will be unlighted.

You can connect any RJ-45 station port on the Switch to a PC via twisted-pair cable with RJ-45

plugs at both ends. Use 100 Category 3, 4 or 5 cable for standard 10Mbps Ethernet connections,

or 100 Category 5 cable for 100Mbps Fast Ethernet connections.

£[£[

£[

£[£[

£[

Network Connections

Switch to PC

Switch to Hub

(10BASE-T Hub)

The Link/Act LED will light

The FDX/Col LED will be unlighted

The 100 LED will be unlighted

(100BASE-TX Hub)

The Link/Act LED will light

The FDX/Col LED will be unlighted

The 100 will light

Hub

100/10M

You can connect any RJ-45 station port on the Switch to the Uplink port of a Hub via straight cable

with RJ-45 plugs at both ends. Use 100 Category 3, 4 or 5 cable for standard 10Mbps Ethernet

connections, or 100 Category 5 cable for 100Mbps Fast Ethernet connections.

When a attached 10BASE-T/100BASE-TX Hub is powered on or reset:

£[£[

£[

£[£[

£[

6 7

1234

13 14 15 16

5678

17 18 19 20

21 22 23 24

910 11 12

1234

13 14 15 16

5678

17 18 19 20 21 22 23 24

910 11 12

EP-824DX EP-824DX

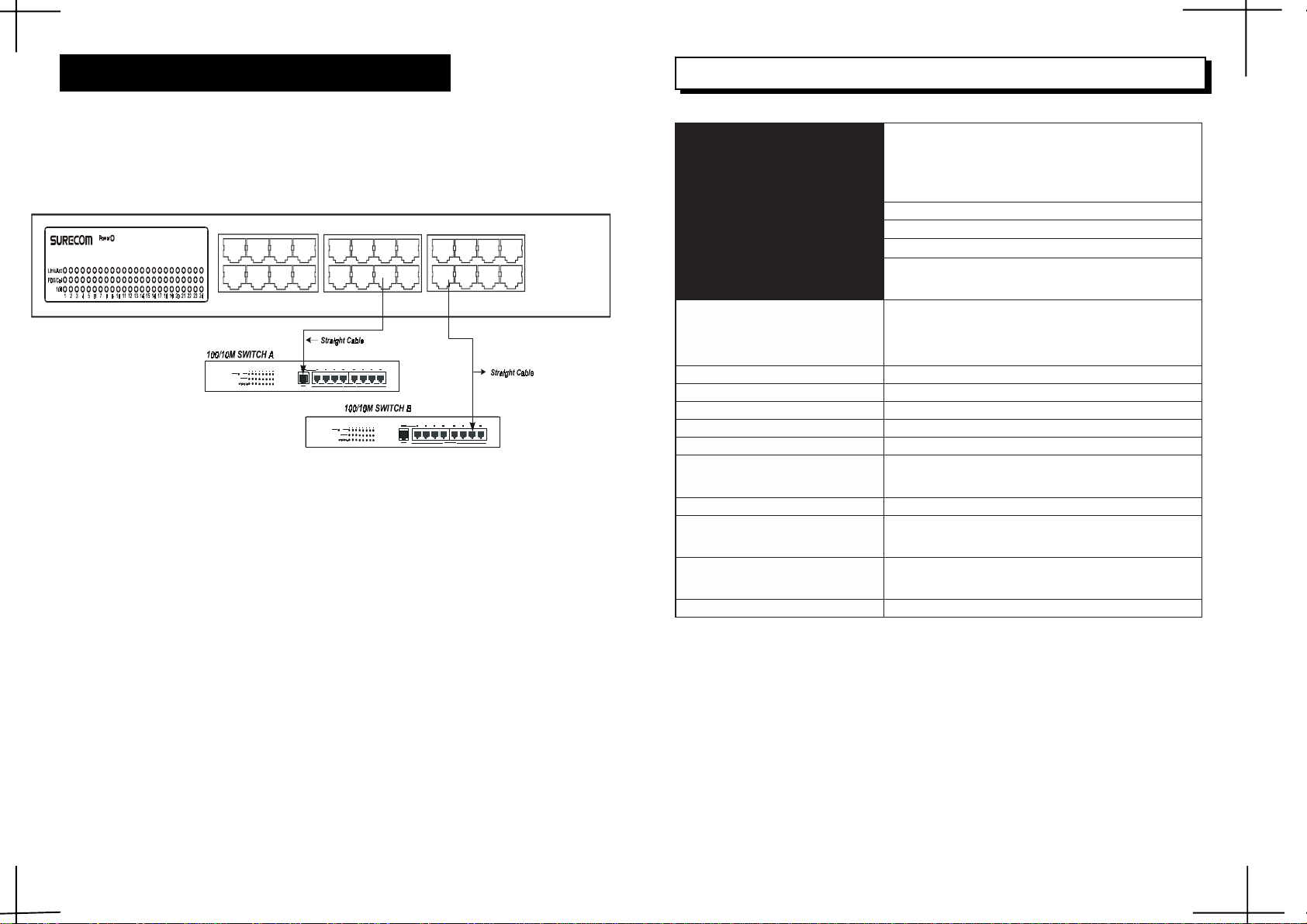

Switch to Switch (Other Devices)

The Switch can be connected to another Switch or other devices (Routers, Bridges, etc.) via a

twisted-pair category 3, 4, 5 UTP/STP straight or crossover cable.

Using a straight cable

1.When using a straight cable, any RJ-45 port on the Switch can be connected to the Uplink port

on any 10Mbps or 100Mbps Switch (Switch A) or other devices. (See Figure 3-4).

2.When using a straight cable, any RJ-45 port on the Switch can be connected to any normal port

on any 10Mbps or 100Mbps Switch (Switch B) or other devices. (See Figure 3-4).

When a Switch or other devices is switched on:

The Link/Act LED will light

The FDX/Col LED depends on the attached Switch or other devices capabilities.

The 100 LED will light for 100Mbps connection, otherwise it will be unlighted.

Technical Specification

sdradnatS tenrehtET-ESAB013.208EEEI

tenrehtEtsaFXF/XT-ESAB001u3.208EEEI

noitaitogen-otuayaW-N3.208dtSEEEI/ISNA

tnerapsnarT:sepytemarF3.208EEEI

setyB8151-46:ezisemarfreyalCAM3.208EEEI

xelpuD-lluFroflortnocwolfx3.208EEEI

LocotroP DC/AMSC

ygolopoT ratS

dohteMnoissimsnarT drawroF-dna-erotS

:etaRrefsnarT

:tenrehtE

tenrehtEtsaF

)xelpuD-lluF(M02;)xelpuD-flaH(M01

)xelpuD-lluF(M002;)xelpuD-flaH(M001

aideM

:T-ESAB01

:XT-ESAB001

:XF-ESAB001

)m001htgnelelbac.xaM(5,4,3.taCPTU

)m001htgnelelbac.xaM(5.taCPTU

)m000,2htgnelelbac.xaM(lebacrebiFedom-itluM

stroPfo.oN stroP54-JRspbM01/00142

egnahcxEecafretnIaideM XIDM/IDMotuAtroppusstrop54-JR42

reffuBMAR ecivedrepstibM5.2latoT

elbaTsserddAgniretliF setybK8

etaRgnidrawroF/gniretliFtekcaP )M01&M001rof(troprepdeepseriWspp00841/008841

rewoP rewoPlasrevinUlanretnI

)zH36~74(V042~001:tupnI

A6/V3.3:tuptuO

noitpmusnoC mumixamsttaw21

:erutarepmeT

:gnitarepO

:egarotS

55~

56~

:ytidimuH

:gnitarepO

:egarotS

%09~%01

%59~%5

ecnamrofnoC AssalCkraMEC,AssalCCCF

1234

13 14 15 16

5678

17 18 19 20 21 22 23 24

910 11 12

EP-824DX

Cable Requirement

The following diagram and table show the standard RJ-45 receptacle/connector and their pin

assignments for the switch-to-network interface card connection, and the straight/crossover

cable for the Switch-to-switch/hub/bridge connection.

The standard RJ-45 receptacle/connector

Contact Media Direct Interface Signal

1 Tx + (transmit)

2 Tx - (transmit)

3 Rx + (receive)

4 Not used

5 Not used

6 Rx - (receive)

7 Not used

8 Not used

RJ-45 Connector pin assignment

The standard Category 3 cable, RJ-45 pin assignment

EP-824DX/DX-F

24 port 10/100M Ethernet Rack-Mount Switch

Users Manual

#471824DXZ000
