Supvan TP76E Manuel utilisateur

SUPVAN Preface

Contents

DECLARATION...........................................................................................................................3

BRIEF INTRODUCTION OF SPECIAL FUNCTIONS...........................................................3

PRECAUTIONS.......................................................................................................................... 4

CHAPTER 1 APPEARANCE DESCRIPTION AND CONFIGURATION................................................. 6

1.1 APPEARANCE PARTS OF SUPVAN TUBE PRINTER....................................................................... 6

1.2 LCD DISPLAY DESCRIPTION..................................................................................................7

1.3 INCLUDED ITEMS................................................................................................................ 8

CHAPTER 2 FUNCTION KEYS.......................................................................................................... 9

CHAPTER 3 CONSUMABLE INSTALLATION.................................................................................. 14

3.1 INSTALLATION AND REMOVAL OF RIBBON CASSETTE................................................14

3.2 INSTALLATION AND REMOVAL OF LABEL CASSETTE.................................................. 15

3.3 INSTALLATION AND REMOVAL OF TUBE ADJUSTER AND TUBE.................................. 16

3.4 REPLACEMENT OF HALF-CUTTER AND CUTTING BOARD ASSEMBLY........................18

CHAPTER 4 BASIC OPERATION.................................................................................................... 19

4.1 PRINT OF TUBE........................................................................................................... 19

4.2 PRINT OF LABEL..........................................................................................................20

4.3 PRINT OF HEAT SHRINK TUBE................................................................................... 20

CHAPTER 5 OPERATION OF FUNCTION KEY................................................................................ 22

NOTE:....................................................................................................................................... 22

5.1 【ESC】.................................................................................................................... 23

5.2 【MEDIA】..................................................................................................................23

5.3 【SEG LENGTH】.......................................................................................................24

5.4 【CHAR SIZE】.......................................................................................................... 26

5.5 【REPEAT】............................................................................................................... 27

5.6 【FRAME】.................................................................................................................28

5.7 【MARGIN】.................................................................................................................29

5.8 【CHAR SPACE】.......................................................................................................30

5.9 【DENSITY】.............................................................................................................. 31

5.10 【ALIGN】...................................................................................................................32

5.11 【SEQ】.................................................................................................................... 32

5.12 【SET CUT】..............................................................................................................35

SUPVAN Preface

5.13 【FILE】..................................................................................................................... 35

5.14 【CURSOR PRINT】...................................................................................................38

5.15 【FONT】................................................................................................................... 39

5.16 【COPY PRINT】........................................................................................................40

5.17 【STOP】....................................................................................................................40

5.18 【REV FEED】........................................................................................................... 40

5.19 【HOME】...................................................................................................................41

5.20 【END】..................................................................................................................... 41

5.21 【CUT DEPTH】......................................................................................................... 41

5.22 【DELETE SEG】........................................................................................................44

5.23 【DOUBLE ROWS】................................................................................................... 44

5.24 【X2】【X2】.............................................................................................................. 44

5.25 【PRINT】...................................................................................................................45

5.26 【CAPS LOCK】......................................................................................................... 45

5.27 【EN/SY】..................................................................................................................45

5.28 【BACKSPACE】.........................................................................................................46

5.29 【→】,【←】............................................................................................................46

5.30 【↑】,【↓】............................................................................................................46

5.31 【SHIFT】...................................................................................................................46

5.32 【TEST】.................................................................................................................... 46

5.33 【ENTER】..................................................................................................................48

5.34 LOW TEMP MODE........................................................................................................48

5.35 SCREEN BRIGHTNESS ADJUSTMENT......................................................................... 48

5.36 REPEAT AND SEQ PRIORITY PRINT SETTINGS.........................................................49

CHAPTER 6 PERFORMANCE DESCRIPTION..................................................................................50

CHAPTER 7 COMPUTER SOFTWARE OF TP76E HIGH-SPEED COMPUTER TUBE PRINTER...........51

7.1 SOFTWARE CONFIGURATION OF TP76E TUBE PRINTER................................................51

CHAPTER 8 OTHERS..................................................................................................................... 52

8.1 SPECIFICATION OF ORIGINAL CONSUMABLES.........................................................................52

8.2 HOW TO OPERATE THE TUBE PRINTER CORRECTLY.................................................52

8.3 SIMPLE TROUBLESHOOTING.......................................................................................53

8.4 LIST OF SPECIAL SYMBOLS........................................................................................55

SUPVAN Preface

Declaration

1. “硕方”and “Supvan” are registered trademarks of Supvan Technology (Beijing)

Co., Ltd.

2. For any information about the instruction contents, Supvan reserves the right to

vary because of the upgrade of tube printer.

3. Supvan will not be responsible for any consequence caused by operations

which do not follow the requirements of instructions.

4. If you want to know more about the machine or Supvan, please visit

www.supvan.com.

Brief Introduction of Special Functions

1. English operation interface contains different input methods, e.g. English

letters, numbers, symbols etc.

2. Large white backlit LCD can display 5-row-and-2-column input contents.

3. Powerful function keys make operation more convenient and simple.

4. Assembly standard 85-key computer keyboard.

5. When there is any switch on/off or any error operation, the machine will send a

ticking sound.

6. TP76E tube printer can realize the automatic half/full cutting functions.

7. 9 different fonts give consumer more printing choices and make printing

effective and easier.

8. The unique test key is convenient to monitor the machine status and check its

performance.

9. The unique cursor print setting can realize range printing between any two

specific segments.

10. The powerful built-in file memory capacity can store up to 100 files for easy

calls at any time.

11. Supvan high-speed computer tube printer TP76E can be connected to any

computer. It is compatible with Windows XP/Win 7/Win 8 operating system and

can realize independent operations on the work site. It can be used as a

dual-purpose machine.

12. Its portable design suits various occasions.

13. The hard case is reliable which can protect the tube printer effectively.

14. The package includes 1 black ribbon. Other than that, we sell two more color

(white and red) ribbon as optional choice.

SUPVAN Preface

Precautions

Warning

1. Please use a single power socket. Do not use any socket inserted with multiple

devices, this may cause a fire or electric shock.

2. Do not let any metal or liquid get into tube printer. This may cause fire or

electric shock or machine damage.

3. Do not use power plug with wet hand in case of any electric shock.

4. When open the upper cover, do not let any object contact with the moving part

of tube printer.

5. Use voltage between 100 and 240V AC. If not, it may result in fire, electrical

shock or machine failure.

6. Do not disassemble or modify the tube printer without any authorization. This

may lead to fire or electric shock.

7. Please let the tube printer away from alcohol, gasoline and other flammable

solvents as well as any ignition source to prevent any deflagration and fire.

8. When clean the tube printer, please use wet gauze that has been twisted

closely. Do not use any flammable organic solvent.

9. When find any abnormal smell or noise in operation, please turn off the tube

printer immediately, pull out its plug and contact with your dealer.

10. Please use the tube printer in a clean place. Do not use it on carpet. Otherwise,

the dust may cause short circuit or even fire.

11. When there is any foreign object getting into the tube printer, do not use it in

case of any damage.

12. The machine can only print Φ≤6.0mm tube or heat shrink tube. Printing Φ ＞

6.0mm tube may affect the print effect, cause a printing error, or even damage

the print head.

SUPVAN Preface

Caution

1. Not all consumables are suitable for your tube printer because of the difference

of consumable specification. Please choose Supvan original consumables to

enjoy the premium print quality and avoid malfunction of the printer.

2. Supvan will not be responsible for any warranty caused by counterfeit ribbon or

label.

3. Do not touch the print head with hand.

4. Please use the cutter carefully to avoid injured.

5. Touching the print head which just finished working may cause your skin being

burnt.

6. Please keep the printer away from high moisture environment in case of

electric shock.

7. If the machine will not be used for a long time, unplug the AC adapter from the

power outlet. Otherwise, electrical leakage may occur.

8. The machine is very precision. Please operate it on a flat surface to prevent

falling damage or shock vibration.

9. Do not compress your tube printer.

10. Keep away from any electromagnetic interference which generates a magnetic

field.

11. Do not block the outlet of the printer.

12. Do not press the keyboard too hard.

13. In operation, do not pull out any print media forcibly from the outlet. Take it out

after cutting. Otherwise, this will affect the printing result or damage your tube

printer.

14. Consumables or tube printer shall be stored in a dry place with ventilation,

room temperature, and non-direct sunlight.

SUPVAN Chapter 1 Appearance Description and Configuration

Chapter 1 Appearance Description and Configuration

1.1 Appearance Parts of Supvan Tube Printer

SEQ

Name

Upper cover

LCD display

Cover opening button

Keyboard

Lower case

Upper case

SUPVAN Chapter 1 Appearance Description and Configuration

1.2 LCD Display Description

Text prompt

Description

Seg Length

Length of segment that cursor locates

Char Size

Character size of segment that cursor locates

Set Cut

Setting state of half cut function:

Normal; Half cut; Solid line

Frame

Frame setting state of segment that cursor locates.

Normal; Frame; Underline

Repeat

Repeat printing times of segment that cursor locates.

Density

Setting value of density level.

Caps Lock

Current setting state of letter uppercase/lowercase

Media

The setting type of printer media

En/Sy

Current display of input method

Display content: Segment numbering and segment

content.

SUPVAN Chapter 1 Appearance Description and Configuration

1.3 Included Items

1. One Supvan TP76E Tube Printer

2. One Tube Adjuster

3. One Ribbon Cassette (Black)

4. One Label Cassette (Random color and size)

5. One Power Adapter (Including Power Cord)

6. One USB Computer Cable

7. One TP Series Editing Software CD-ROM

8. One Instruction

9. One Qualified Certificate

10. One Test Printing Sample

11. One Hard Case

SUPVAN Chapter 2 Function Keys

Chapter 2 Function Keys

ESC the current setting, operation or error description to return

to the previous level of menu or a document input interface.

SUPVAN Chapter 2 Function Keys

Table des matières

Autres manuels Supvan Étiqueteuse

Supvan

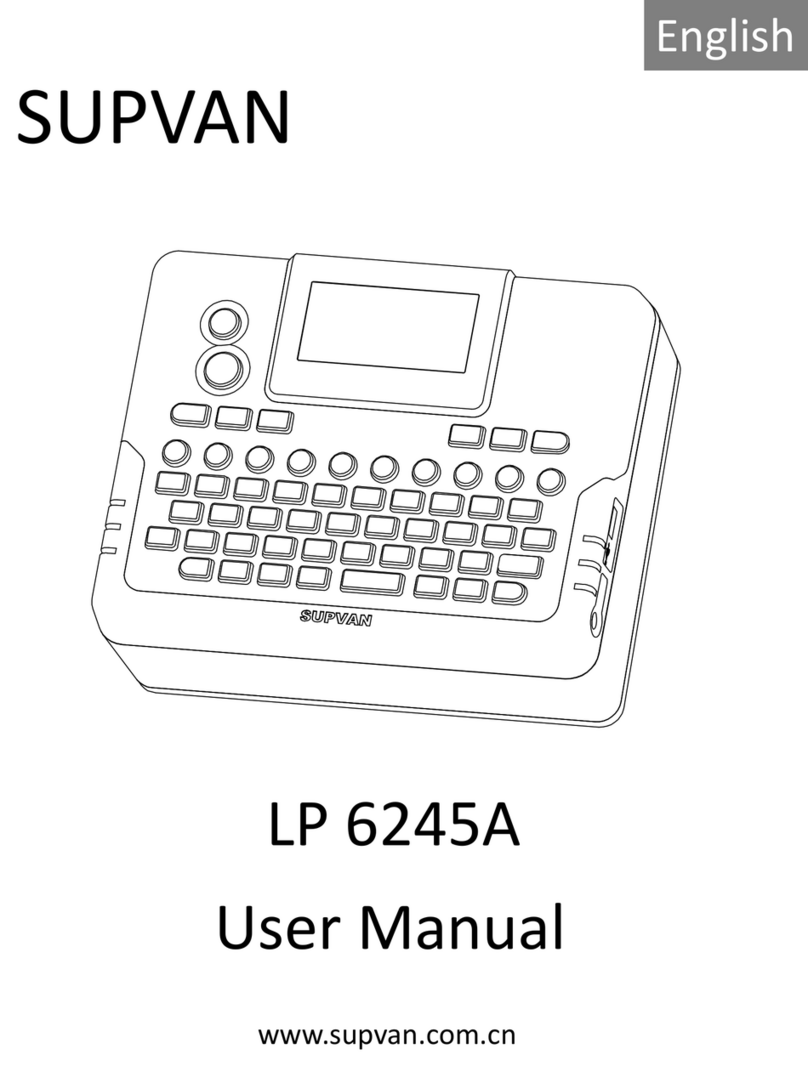

Supvan LP 6245A Manuel utilisateur

Supvan

Supvan LP5120M Manuel utilisateur

Supvan

Supvan LP 5125M Manuel utilisateur

Supvan

Supvan E10 Manuel utilisateur

Supvan

Supvan LP 6185A Manuel utilisateur

Manuels Étiqueteuse populaires d'autres marques

Brother

Brother P-Touch 2420PC Manuel utilisateur

newell

newell Dymo LabelManager 210D Manuel utilisateur

Brother

Brother TD-4000 Manuel utilisateur

U-Line

U-Line BROTHER H-8754 Manuel utilisateur

Tharo Systems

Tharo Systems H-435+ Manuel utilisateur

Brother

Brother E300 Manuel utilisateur

Godex

Godex RT700 SERIES Manuel utilisateur

ID Technology

ID Technology 252 Manuel utilisateur

Labelmate

Labelmate MC-11 Manuel utilisateur

CAB

CAB XD4M/300 Manuel utilisateur

Avery Dennison

Avery Dennison Pathfinder 6057 Manuel de service

Brother

Brother P-touch PT-9700PC Manuel utilisateur

TSC

TSC PEX1000 Series Manuel utilisateur

Adkins

Adkins Label Master Manuel utilisateur

Epson

Epson LabelWorks LW-400 Manuel utilisateur

Primera

Primera 510212 Manuel utilisateur

Brady

Brady BradyPrinter S3100 Manuel utilisateur

DuraLabel

DuraLabel LabPRO Manuel utilisateur
