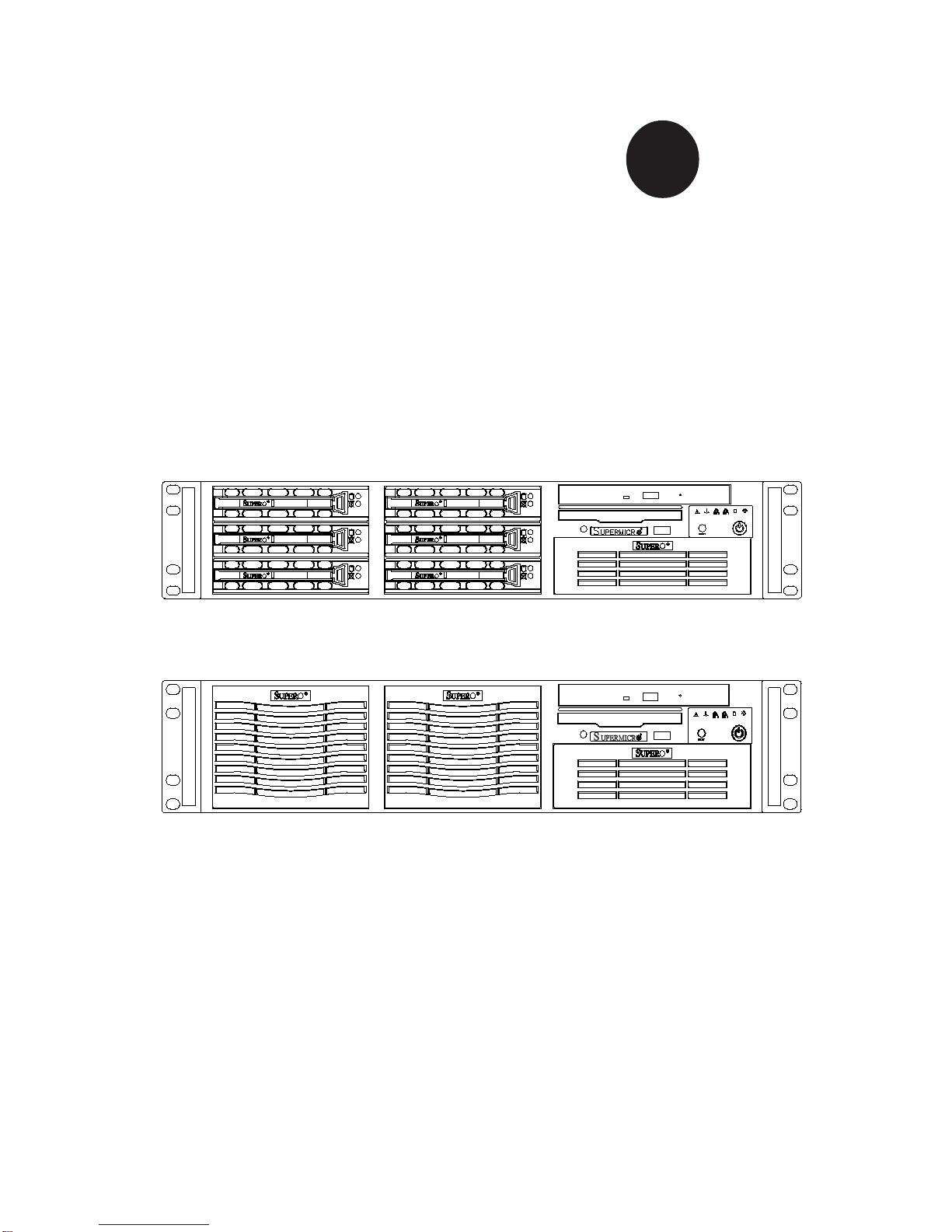

SUPER

SC823 CHASSIS

USER'S GUIDE

(SC823T/SC823S)

(SC823i)

1-2

SC823 Chassis User’s Guide

The information in this User’s Guide has been carefully reviewed and is believed to be

accurate. The vendor assumes no responsibility for any inaccuracies that may be

contained in this document, makes no commitment to update or to keep current the

information in this manual, or to notify any person or organization of the updates. Please

Note: For the most up-to-date version of this manual, please see our

web site at www.supermicro.com.

SUPERMICRO COMPUTER reserves the right to make changes to the product described in

this manual at any time and without notice. This product, including software, if any, and

documentation may not, in whole or in part, be copied, photocopied, reproduced, translated

or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR

INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE

LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE

PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,

INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of

Santa Clara County in the State of California, USA. The State of California, County of

Santa Clara shall be the exclusive venue for the resolution of any such disputes.

Supermicro's total liability for all claims will not exceed the price paid for the hardware

product.

Unless you request and receive written permission from SUPER MICRO COMPUTER, you

may not copy any part of this document.

Information in this document is subject to change without notice. Other products and

companies referred to herein are trademarks or registered trademarks of their respective

companies or mark holders.

Printed in the United States of America

1-3

Chapter 1: Safety Information and Technical Specifications

Table of Contents

Chapter I: Safety Information and Technical Specifications.......... 1-4

1-1. Electrical Safety Guidelines ............................................................ 1-4

1-2. General Safety Guidelines............................................................... 1-5

1-3. ESD Safety Guidelines ....................................................................... 1-6

1-4. Operation Safety Guidelines.......................................................... 1-6

1-5. Product Compliance Information................................................. 1-8

1-6. Packing List and the SC823 Specifications ............................ 1-9

Chapter 2: Chassis Description and Installation Procedures........ 2-1

2-1. Chassis Description .......................................................................... 2-1

A. Contents of the Accessory Kit ............................................................... 2-1

B. Chassis Front View and the Front Control Panel ................................ 2-2

C. Chassis Rear View and the Back Panel .............................................. 2-4

2-2. Chassis Installation ........................................................................... 2-6

A. Important Safety Guidelines ..................................................................... 2-6

B. Tools Needed.............................................................................................. 2-6

C. Removing the Top Cover of the Chassis............................................... 2-7

D1. Accessing the SCA/SATA Drive Tray and Installing a Hard Disk ..2-8

D2. Accessing the IDE Drive Tray and Installing a Hard Disk ................ 2-9

E. Accessing the Front Chassis Fans and Installing the Air Shroud..2-10

F. Accessing the Redundant Power Supply............................................ 2-11

G. Installing the Motherboard ...................................................................... 2-12

H. Installing Chassis Rails........................................................................... 2-13

I. Rack Installation........................................................................................ 2-15

1-4

SC823 Chassis User’s Guide

Chapter 1-Safety Information and Technical

Specifications

1-1 Electrical Safety Guidelines

Warning: To avoid electrical shock, check the power

cords as follows:

Checking the Power Cords

!Use the exact type of power cords as required.

!Be sure to use power cord(s) that came with safety certifications.

!The power cord(s) must be compliant with the AC voltage requirements in your

region.

!The power cord plug cap must have an electrical current rating that is at least

125% of the electrical current rating of this product.

!The power cord plug cap that plugs into the AC receptacle on the power

supply must be an IEC 320, sheet C13, type female connector.

!Be sure to disconnect the power supply before accessing the SC823 chassis

or its components.

!Plug the Power cord(s) into a socket that is properly grounded before

turning on the power.

Warning: Follow the guidelines below to avoid possible

damages to the system or injury to yourself:

General Electrical Safety Guidelines

!Be aware of the locations of the power switches on the chassis and in the

room, so you can disconnect the power supply if an accident occurs.

!Take extra precautionary measures when working with high voltage

components. It is not recommended to work alone.

!Before removing or installing main system components, be sure to

disconnect the power first. Turn off the system before you disconnect

the PS.

Use only one hand when working with powered-on electrical equipment to

avoid possible electrical shock.

1-5

Chapter 1: Safety Information and Technical Specifications

Use rubber mats specifically designed as electrical insulators when working

with computer systems.

The power supply or power cord must include a grounding plug and must

be plugged into grounded outlets.

Motherboard Battery: CAUTION -Make sure not to install the onboard battery

upside down to avoid possible explosion. Make sure that the positive side

should be facing up on the motherboard. This battery must be replaced

only with the same or an equivalent type recommended by the manufac-

turer. Dispose of used batteries according to the manufacturer's instruc-

tions.

CD-ROM Laser: CAUTION - Do not open the enclosures of power supplies

or CD ROM to avoid injury.

1-2 General Safety Guidelines

Warning: Follow these rules to ensure general safety:

Keep the area around the SC823 chassis clean and free of clutter.

To avoid injuries to the back, be sure to use your leg muscles, keep your

back straight, and bend your knees, when lifting the system.

Avoid wearing loose clothing to preventing it from coming into contact with

After removing the components or chassis covers from the system, place

them on a table for safeguard.

Be sure to remove any jewelry or metal objects before working on the

chassis to avoid short circuits should these objects come into contact

with power circuits.

After accessing the interior of the chassis, be sure to close the chassis

with chassis covers and secure the chassis to the racks with screws.

1-6

SC823 Chassis User’s Guide

1-3 ESD Safety Guidelines

Use a grounded wrist strap designed to prevent static discharge.

Keep all components and printed circuit boards (PCBs) in their antistatic

bags until ready for use.

Touch a grounded metal object before removing the board from the antistatic bag.

Do not let components or PCBs come into contact with your clothing, which may

retain a charge even if you are wearing a wrist strap.

Touch a grounded metal object before removing the board from the antistatic

bag.

Handle a board by its edges only; do not touch its components, peripheral

chips, memory modules or contacts.

When handling chips or modules, avoid touching their pins.

Put the motherboard and peripherals back into their antistatic bags when not in

use.

For grounding purposes, make sure your computer chassis provides excel-

lent conductivity between the power supply, the case, the mounting

fasteners and the motherboard.

Electric Static Discharge (ESD) can damage electronic com-

ponents. To prevent damage to your system board, it is

important to handle it very carefully. The following measures are

generally sufficient to protect your equipment from ESD.

1-4 Operation Safety Guidelines

Warning: For proper cooling, make sure to install all

chassis covers before turning on the system. If this rule is

not strictly followed, warranty may become void. Do not open

the casing of a power supply. Power supplies can only be

accessed and serviced by a qualified technician of the manufacturer.

1-7

Chapter 1: Safety Information and Technical Specifications

To avoid personal injury and property damage, please carefully

follow all the safety steps listed below:

Before accessing the chassis:

1. Turn off all peripheral devices connected to the SC823.

2. Press the power button to power off the system.

3. Unplug all power cords from the system or the wall outlets.

4. Disconnect all the cables and label the cables for easy identification.

5. Use a grounded wrist strap designed to prevent static discharge when

handling components.

Removing the chassis covers:

After completing the above steps, you can remove the covers and install

components/peripheral devices into the chassis as described in Chapter 2.

1. Unlock and remove the screws and fasteners to remove the cover or

components.

2. Save all the screws and fasteners for later use. (If necessary, label these

screws or fasteners for easy identification.)

3. Follow the instruction given in Chapter 3 to remove the chassis covers.

Reinstalling the chassis covers:

To maintain proper system cooling and airflow, do not operate the system

without installing all chassis covers back to the chassis. To reinstall the chassis

covers, please follow the steps listed below:

1. Make sure that all components and devices are securely fastened

on the chassis and there are no loose parts/screws inside the chassis.

2. Make sure that all cables are properly connected to the connectors and ports.

3. Use the original screws or fasteners to install the covers to the chassis.

4. Be sure to lock to the chassis or the system to prevent unauthorized access.

5. For proper cooling, enclose the chassis with covers before operating the

system.

1-8

SC823 Chassis User’s Guide

Before installing the chassis into a rack:

1. Make sure that the rack is securely anchored onto an unmovable surface or

structure before installing the chassis into the rack.

2. Unplug the power cord(s) of the rack before installing the chassis into the

rack.

3. Make sure that the system is adequately supported and that all the

components are securely fastened to the chassis to prevent com-

ponents from falling off from the chassis.

4. Be sure to install an AC Power Disconnect for the entire rack assembly and

this Power Disconnect must be clearly marked.

5. The rack assembly shall be properly grounded to avoid electric shock.

6. The rack assembly must provide sufficient airflow to the chassis for proper

cooling.

1-5 Product Compliance Information

The SC823 Chassis is compliant with the following safety standards/

requirements:

Product Safety

*Canada/USA--UL60 950-CSA60 950

*European Union--EN 60 950

*International--IEC60 950

Electromagnetic Compatibility (EMC)-Emissions

*European Union--EN55022: 1994

*International--CISPR22

*USA--Title 47 CFR, Part 15

Power Line Harmonics/Voltage Flicker

*European Union--EN61000-3-2/EN61000-3-3

*International--IEC61000-3-2

Electromagnetic Compatibility-Immunity

*European Union--EN55024: 1998

*International--CISPR24

1-9

Chapter 1: Safety Information and Technical Specifications

A. The SC823 Series chassis contains the following:

1-6 Packing List and the SC823 Specifications

!One (1) 1.44" floppy drive

!One (1) slim CD-ROM drive (*For 823S-R500LP, 823S-R500RC,

823T-R500RC, 823i-R500RC only)

!One (1) 5.25" drive bay

!One (1) I/O shield

!SCSI Accessories (*For SC823S only)

One (1) SCSI backplane

One (1) SCSI Ultra 320 Cable

Six (6) SCSI drive carriers

!SATA Accessories (*For SC823T only)

One (1) SATA backplane

One (1) SATA Activity LED cable

Six (6) SATA drive carriers

!IDE Accessories (*For SC823i only)

Two (2) IDE drive carriers

One (1) IDE cable

B. SC823 Specifications

For the SC823-IDE Models-(*823i-550LP/823i-R500RC)

SC823-IDE

Component Part# Qty Notes

IDE Drive Tray CSE-PT18 (B) 2

8 cm Hot -Swap Chassis Fan Fan-0070 4

550W Power Supply PWS-0047 1 (*for 823i -550LP)

500W Power Supply PWS-0049 2 (*for 823i -R500RC)

Floppy Drive FPD-PNSC-02(01) 1

Rackmount Hardware CSE-PT 25 1

CD ROM CDM-TEAL-24(B) 1 (*for 823i -R500RC)

1-10

SC823 Chassis User’s Guide

SC823T

Component Part# Qty Notes

SATA Drive Tray CSE-PT17 (B) 6

8 cm Hot -Swap Chassis Fan Fan-0070 4

500W Power Supply PWS-0049 2 (*for 823T-R500RC)

550W Power Supply PWS-0047 1 (* for 823T-550LP)

6-port SATA Backplane CSE-SATA-822 1

SATA Activity LED Cable CBL-0077 1

Floppy Drive FPD-PNSC-02(01) 1

CD ROM CDM-TEAC-024(B) 1 (*for 823T-R500RC)

Rackmount Hardware CSE-PT-25 1

SC823S-SCSI

Component Part# Qty Notes

SCA Drive Tray CSE-PT17 (B) 6

8 cm Hot -Swap Chassis Fan Fan-0070 4

550W Power Supply PWS-0047 1 (*for 823S-550LP)

500W Power Supply PWS-0049 2 (*for 823S-R500RC/R500LP)

6-port SCSI Backplane CSE-SCA-822 1

SCSI Cable CBL-033-U320 1

Floppy Drive FPD-PNSC-02(01) 1

CD ROM CDM-TEAC-024(B) 1 (*for Redundant Chassis)

Rackmount Hardware CSE-PT-25 1

Power supply spec 500W 550W

Mfr. Model# SP502-2S SP552-2C

Mfr. Part# PWS-0049 PWS-0047

Rated AC input voltage 100-240V AC 100-240V AC

Rated input frequency 50-60 Hz 50-60 Hz

Rated input current 10A (115V) 9A (115V)

5A (230V) 3.5A (230V)

Rated output power 500W 550W

Maximum rated BTU 2630 BTUs/Hr 2910 BTUs/Hr

Nominal DC output

+3.3V 21A 30A

+5V 30A 35A

+12V 39A 34A

-5V N/A 0.8A

-12V 1A 1A

+5Vsb 2A 2A

For the SC823-SCSI Models-(*823S-R500LP/-R500RC/-R550LP)

For the SC823-SATA Models-(*823T-R550LP/823T-R500RC)

C. SC823 Power Supply Specifications
